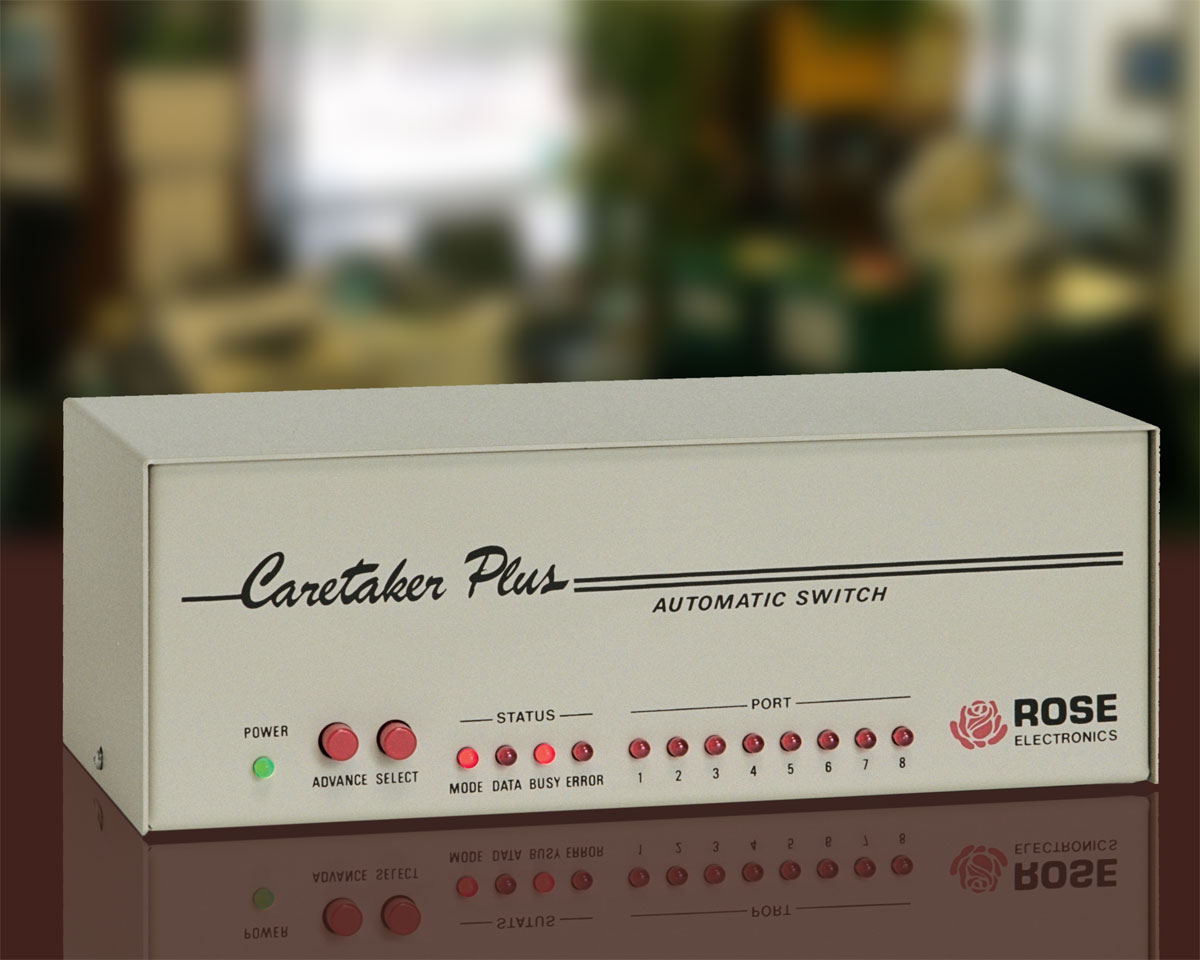

Caretaker Plus
Printer Sharing Switch
- Four or eight ports
- Serial or parallel
- Compatible with all serial and parallel devices
- Up to 2MB buffer
OVERVIEW

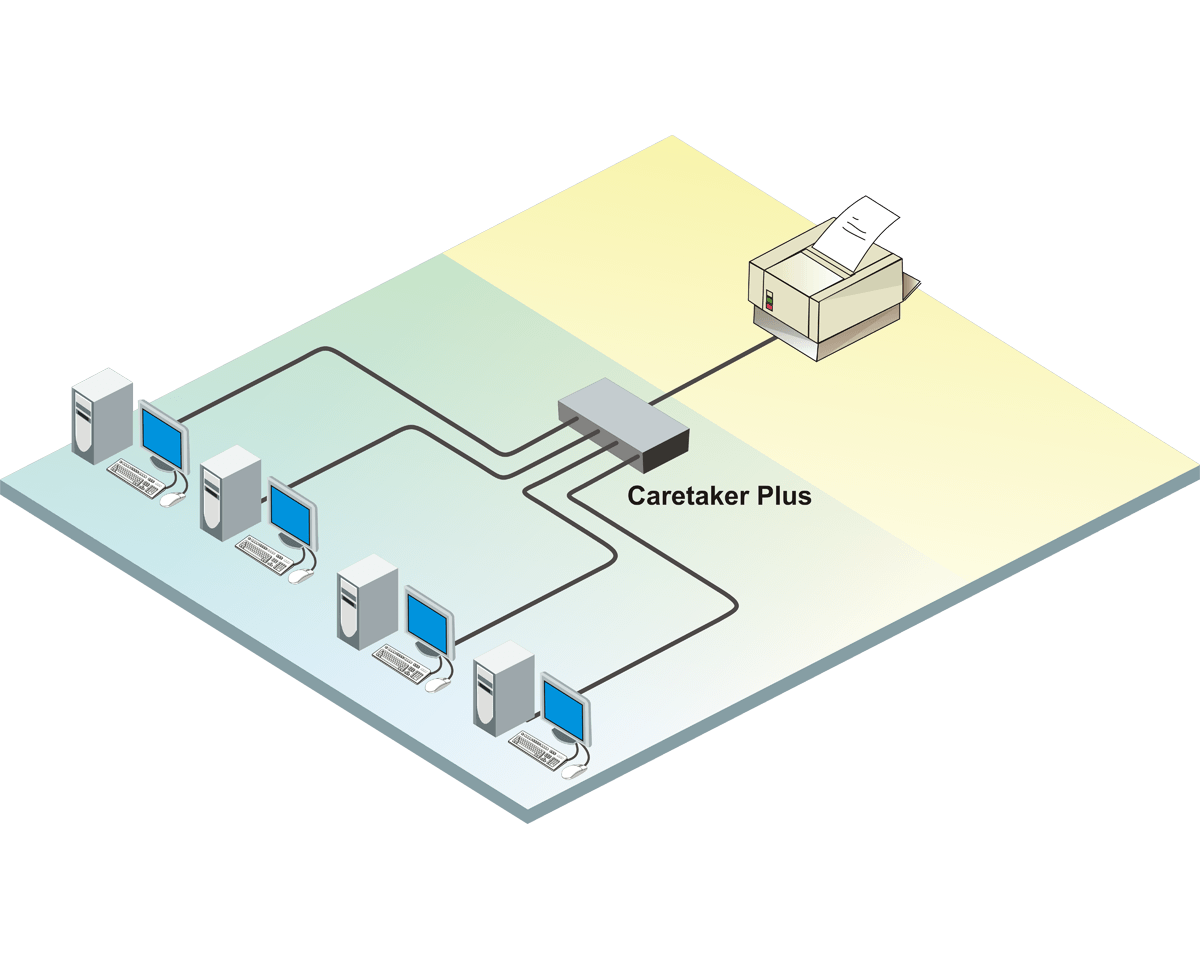

Caretaker Plus makes it possible to connect up to eight computers, or terminals to a common printer, plotter, or other serial or parallel device. Designed for adaptability and convenience, Caretaker Plus uses commonly available cables and is compatible with all computers, printers, and plotters, and has up to 2MB of buffer memory. This buffer memory allows computers to simultaneously send data to the unit for fast, efficient printer sharing. Accessing the shared peripheral device is done by sending data to the unit, and all data is sent to the device in the order it was received.
Caretaker Plus comes in 5 different models:
- 4 serial in, 1 serial out
- 4 parallel in, 1 parallel out
- 5 parallel in, 1 parallel out
- 8 serial in, 1 serial out
- 8 parallel in, 1 parallel out
Serial models support rates up to 19,200 baud. Parallel models support standard Centronics parallel
SPECIFICATIONS
| Dimensions (W x D x H) | 10.5" x 5" x 3.9" (267 x 127 x 99 mm) |
| Weight | 8 lb (3.6 kg) |
| Power | 90-240 VAC 50-60Hz External adapter, 17 VAC CT, 700 ma 10W |
| Distance | RS232: 100 feet (30m)Parallel: 25 feet (7.6m) |
| Connectors | Serial: DB25FParallel: Centronics 36FPower: DIN5 |
| Controls | Unit power: Green LEDPort select: Red LED per portStatus: Red LEDs Mode, Data, Busy, ErrorLED control: Advance/select push-buttons |
| Environment | Operating temperature: 32°F–131°F (0°C–55°C)Storage temperature: -13°F–140°F (-25°C–60°C)Relative humidity: 5%–80%, non-condensing |
PART NUMBERS
| Caretaker Plus | |
|---|---|
| CTP-4S | Serial: 4 In to 1 Out, DB25F, RS422 Option available |
| CTP-4P | Parallel: 4 In to 1 Out, Centronics 36F |
| CTP-5P/25 | Parallel: 5 In to 1 Out, DB25F |
| CTP-8S | Serial: 8 In to 1 Out, DB25F, RS422 Option available |
| CTP-8P | Parallel: 8 In to 1 Out, Centronics 36F |
| Serial cables | |
| CAB-ATRSnnn* | Cable, PC to Switch, DB9F to DB25M |
| CAB-PCRSnnn* | Cable, PC to Switch, DB25F to DB25M |
| CAB-PRSnnn* | Cable, Serial Printer to Switch, DB25M to DB25M |
| Parallel cables | |
| CAB-IBMPnnn* | Cable, PC to Switch Parallel Cable, DB25M-Centronics C36M |
| CAB-PMMnnn* | Cable, Switch to Printer Parallel Cable, Centronics C36 (M-M) |
| CAB-IBMPnnn*/SC | SuperCable, PC to Switch Extended Distance Parallel Cable, DB25M-Centronics C36M |
| CAB-SMMnnn/SC | SuperCable, PC to Switch Extended Distance Parallel Cable, DB25 (M-M) |
| Accessories | |
| RM-MP/xx | Rack Mount kit, 3U Chassis, (xx = 19", 23", or 24") |
| nnn = cable length in feet | |
