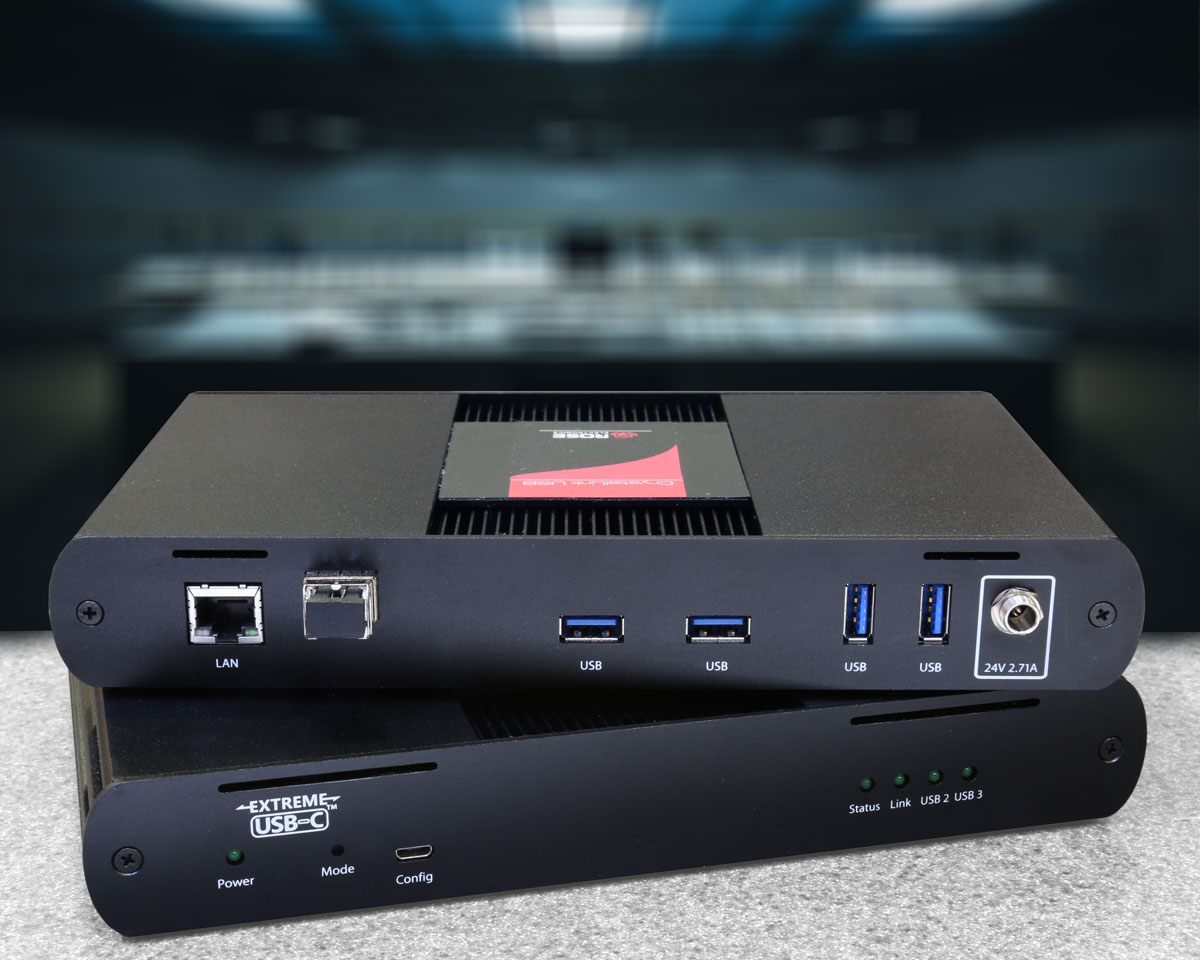

CrystalLink USB-3-2-1 Fiber
USB3.1/2.0/1.1 Fiber Extender
- Locate USB devices where they are convenient to the user or to secure the USB host from unwanted access
- Extends USB 1.1, USB2.0 and USB3.1 devices beyond the standard 3m cable limit, point-to-point connection, up to 660ft (200m)
- Supports all USB1.1, USB2.0, and USB3.1 Gen 1 devices simultaneously at full 5Gbps bandwidth
- Four USB-A Gen 1 ports on the receiver unit, each with 1.5A power, expandable to 30 ports with the use of USB hubs
- One 100/1000 Ethernet channel for transparently extending your network
- Optimum results with OM4 or OM3 multi-mode cabling
- Plug-and-Play installation, no configuration, driver installation, or set-up required
- Supports all major operating systems: Windows, Mac OS X, and Linux
- Transmitter and Receiver units require a +24VDC power adapter (included)
OVERVIEW
The CrystalLink USB 3.1 extender is a professional and industrial grade extender, ideally suited for the remote and secure operation of USB devices. This high performance USB extender is ideal for locating various USB workstation devices conveniently away from the host location.
In addition to extending USB signals, the product features an RJ45 100/1000 Ethernet pass-through port for connecting to network enabled devices, or to use existing LAN infrastructure without losing LAN connectivity.

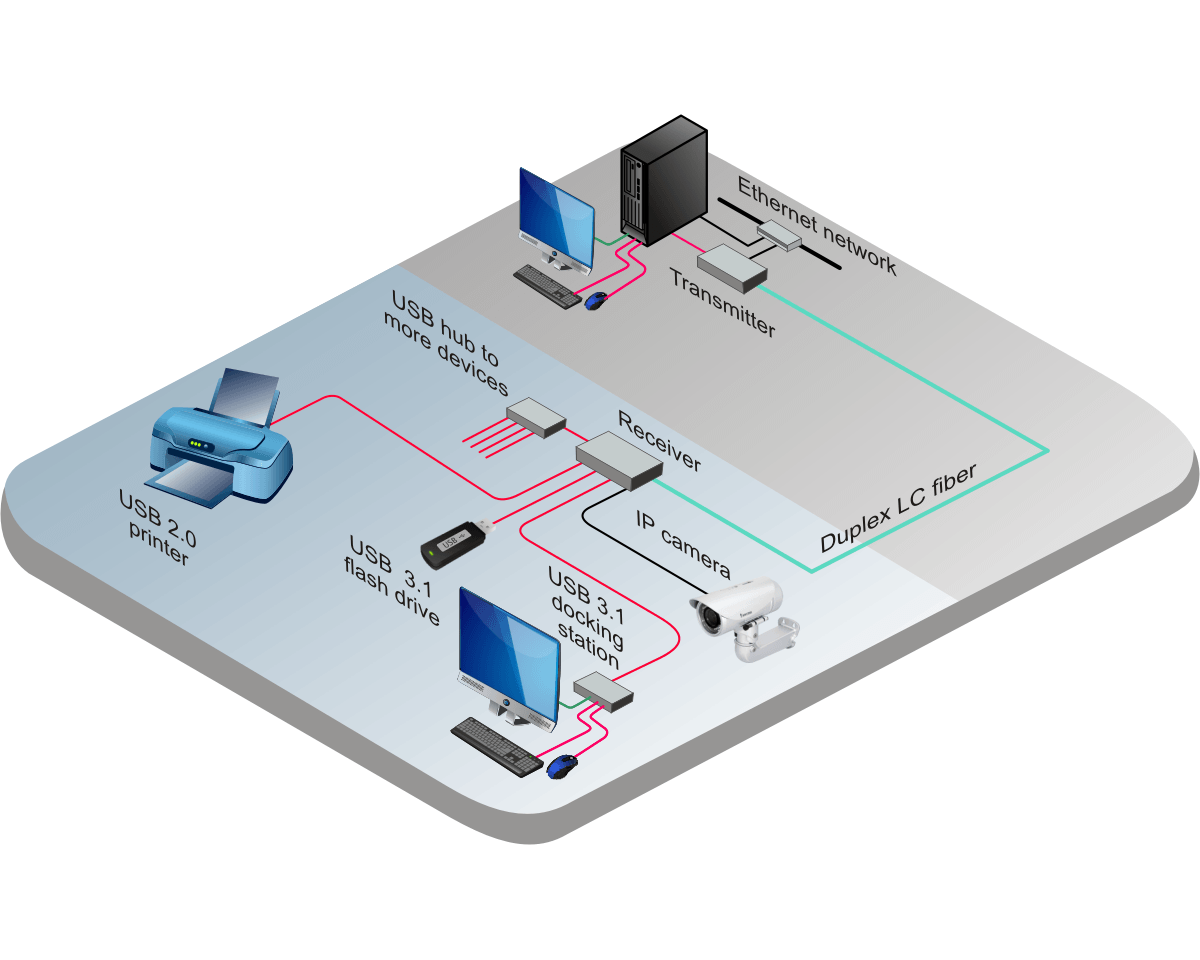

Data transmission is point-to-point, using a duplex LC fiber cable. When combined with the simultaneous support of USB 1.1, USB2.0, and USB3.1 Gen 1 devices with up to 5 Gpbs bandwidth, the CrystalLink USB 3.1 offers unrivalled performance for extension requirements up to 660ft (200m).
SPECIFICATIONS
| Dimensions (W x D x H) | 9.1" x 5.4" x 1.3" (232 x 137 x 33 mm) |
| Weight | 5 lb (2.3 kg) |
| Power | 100-240 VAC 50-60Hz 24V Model: 24V DC, 1A, Locking, 2.5 mm, center-positive 10W |
| Distance | Multi-mode fiber 50µ OM4:Up to 660' (200m) |

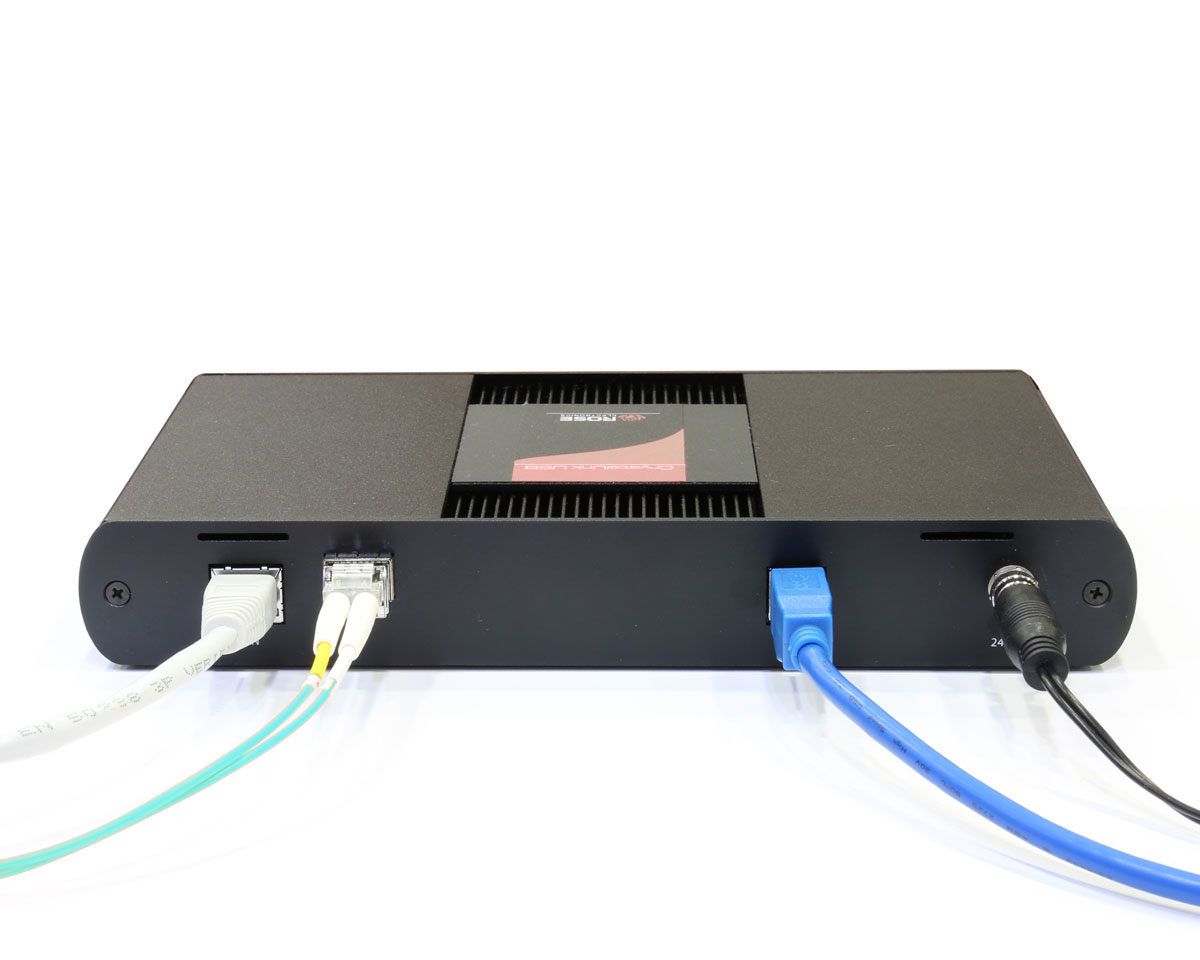

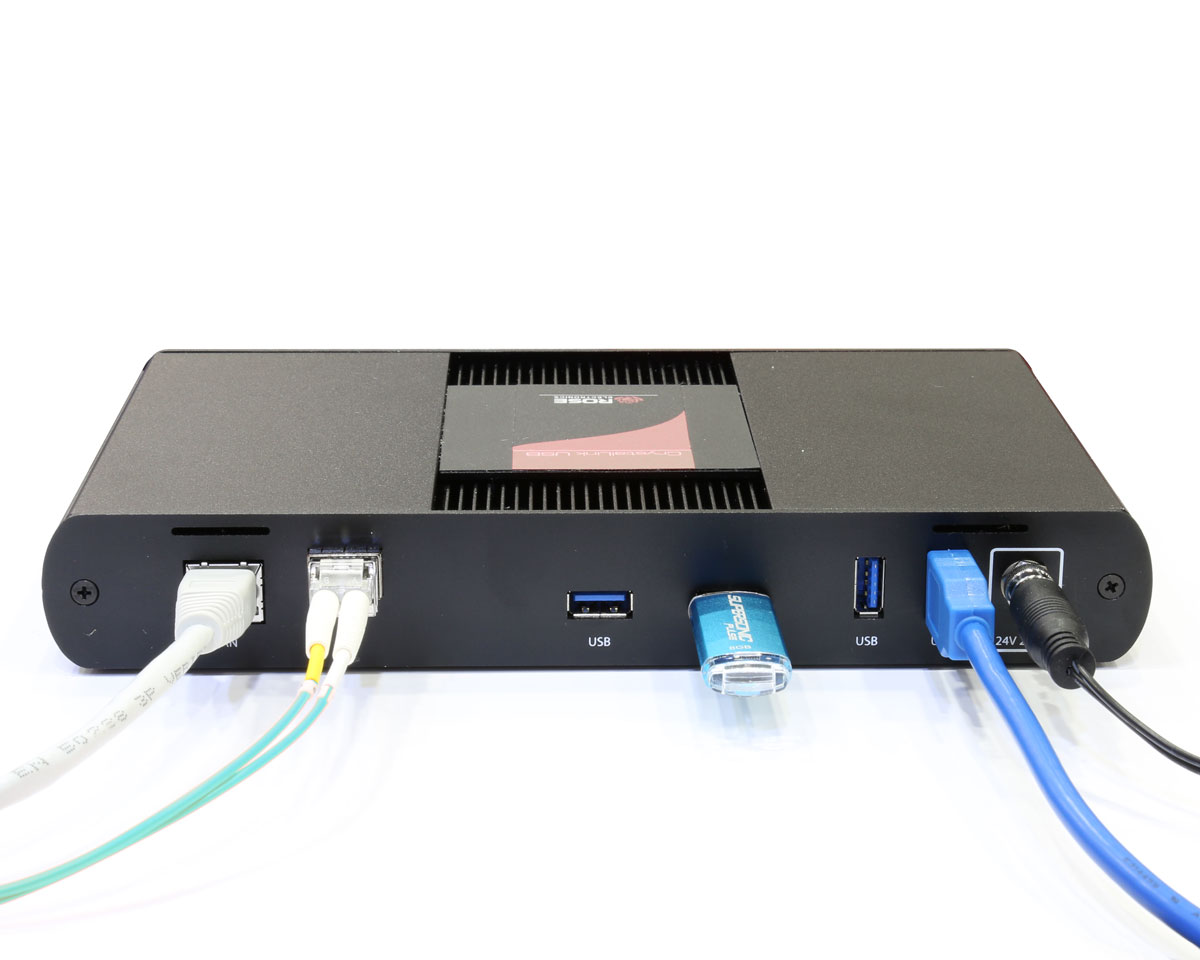

| Connectors | Transmitter:1× USB3.1 type B connector1× RJ45 Ethernet 100/1000 port1x Duplex LC fiber jack link port1× 24V locking power connector1× Mini USB config portReceiver:4 × USB3.1 type A connectors1 × RJ45 Ethernet 100/1000 port1x Duplex LC fiber jack link port1 × 24V locking power connector1× Mini USB config port |
| Controls | Power, status, link, USB2, USB3 |
| Environment | Operating temperature: 32°F–113°F (0°C–45°C)Storage temperature: -4°F–158°F (-20°C–70°C)Relative humidity: 20%–80%, non-condensing |
PART NUMBERS
| Product Part Number | Description |
|---|---|
| CLK-4U321FM-200M | CrystalLink USB-3.1-2.0-1.1 Fiber Extender |
| RM-UD/CLK123 | Shelf, wall or under desk bracket |
