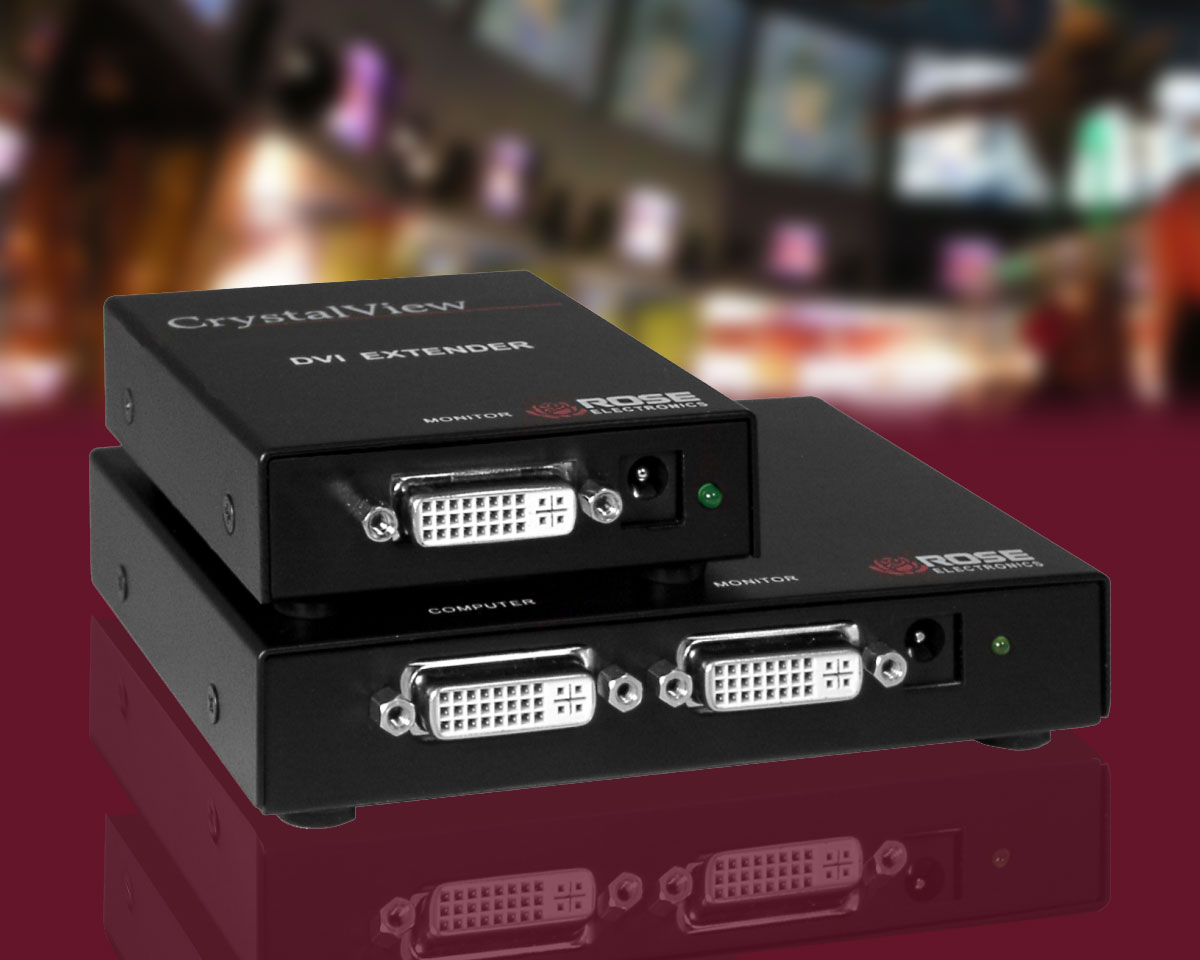

CrystalView DVI Multi
CATx Extender/Splitter • One DVI Input to 1-4 Outputs • 220'
- Combines features of splitter and extender in one unit

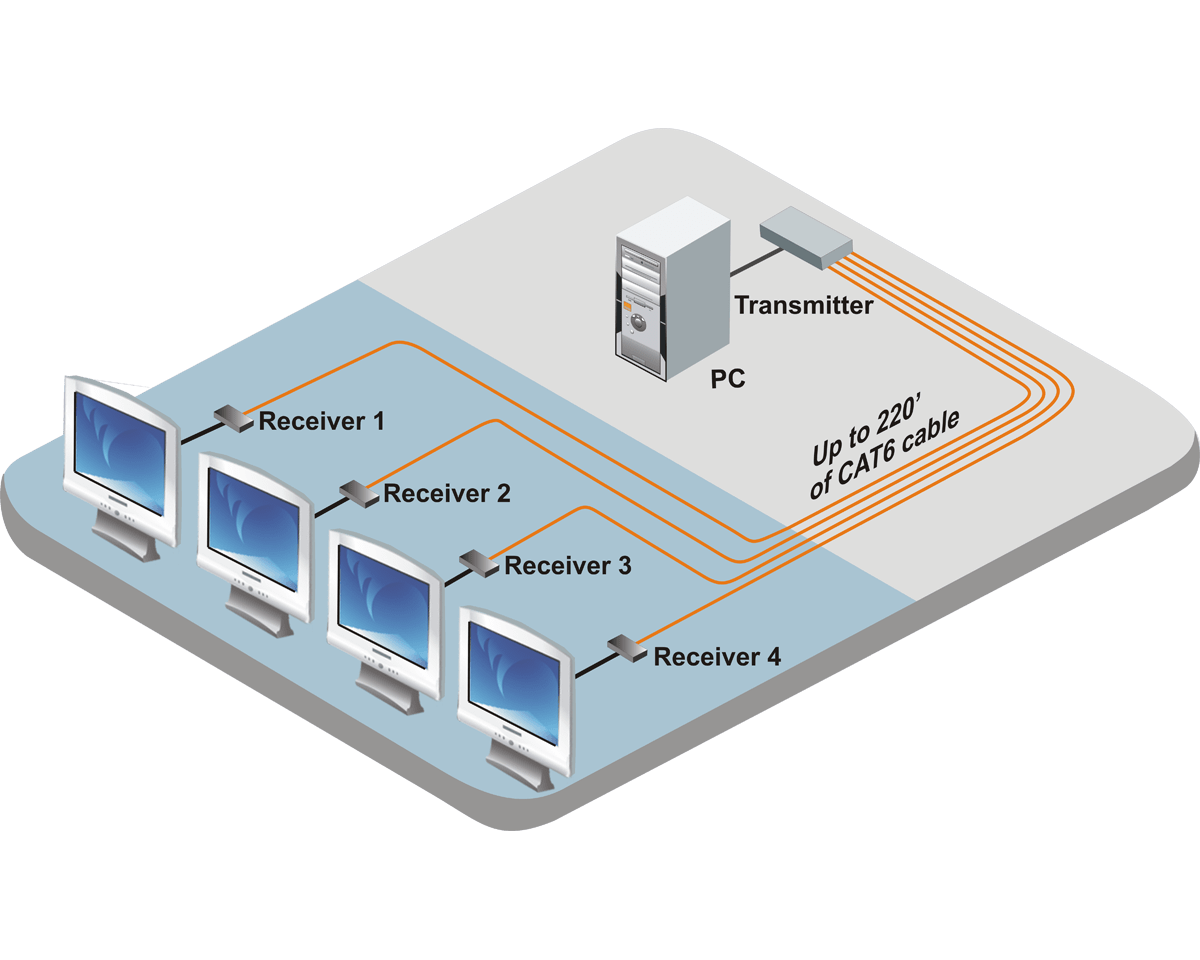

- Distributes a single-link DVI-D video source to 1, 2, or 4 DVI monitors up to 220ft (67m) away over CATx cable
- Small receiver unit is installed for each monitor
- Resolution up to 1920x1200@60Hz
- Local port on transmitter unit allows viewing video at source
- DDC table is stored in flash memory
- Automatically reads the DDC information from the locally attached monitor
- Compatible with all operating systems
- Ideal for use in:
- Call Centers
- Airport terminals
- Information stations / Kiosks
- Digital signage environments
- Flash upgradeable
- Rack mountable
OVERVIEW
CrystalView DVI Multi from Rose Electronics is a perfect enhancement for an existing system or designing a new video distribution system. It can be easily integrated into any system and provide perfect DVI video quality to all connected displays, with absolutely no loss in signal quality, even at 1920 x 1200 @ 60Hz. The unit splits the video input signal into 1, 2, or 4 different outputs, depending on the model desired.
The remote displays can be extended up to 220 feet away from the controlling computer. This is ideal for many applications in which the controlling computer needs to be remotely located in a secure area away from the DVI displays. When the CrystalView DVI Multi units are powered up, the EDID information from the locally connected monitor is read and saved in flash memory. Once saved, the local DVI monitor does not have to be connected or powered on. All models offer a local DVI connection for viewing video on a locally connected DVI monitor.
Note: We can also configure an 8-port unit on request - please call Rose Electronics
SPECIFICATIONS
| Dimensions (W x D x H) |
Transmitter - Single Port: 2.9" x 3.4" x 1" (74 x 86 x 25 mm) Transmitter Dual-Port: 5" x 3.75" x 1" (127 x 95 x 25 mm) Transmitter Quad-Port: 5" x 3.75" x 1" (127 x 95 x 25 mm) Receiver: 2.9" x 3.4" x 1" (74 x 86 x 25 mm) |
| Weight | Transmitter - Single Port: 0.2 lb (0.2 kg)Transmitter Dual-Port: 1 lb (1 kg)Transmitter Quad-Port: 2.1 lb (2.1 kg)Receiver: 0.2 lb (0.2 kg) |
| Power | 100-240 VAC 50-60Hz External adapter, +5V Transmitter - Single Port: 15W |
| Resolution | DVI 1920x1200: 220' (65m) |
| Distance | DVI uncompressed to: 220' (65m) |
| Connectors | Transmitter: Single PortDVI video: DVI female, one inputLink: RJ45 jack, one per portPower: Barrel jackTransmitter: Dual PortDVI video In: DVI female, one inputDVI local Port: DVI female, one outputLink: RJ45 jack, twoPower: Barrel jackTransmitter: Quad PortDVI video In: DVI female, one inputDVI local Port: DVI female, one outputLink: RJ45 jack,fourPower: Barrel jackReceiver:DVI Video: DVI femaleLink: RJ45 jackPower: Barrel jack |
| Controls | Dual and Quad port units have a local DVI output for viewing at the PC end |
| Environment | Operating temperature: 32°F–104°F (0°C–40°C)Storage temperature: -4°F–122°F (-20°C–50°C)Relative humidity: 0%–80%, non-condensing |
PART NUMBERS
| Kits (transmitter, receiver, and power supply) | |
|---|---|
| CRK-21DLC | DVI Video Extender, Local Access, CAT6, (1x TX + 1x RX) |
| CRK-22DLC | DVI Video Extender, Local Access, CAT6, (1x TX + 2x RX) |
| CRK-24DLC | DVI Video Extender, Local Access, CAT6, (1x TX + 4x RX) |
| Transmitters | |
| CRV-DL1DLC | Transmitter, DVI Extender, Local Access, CAT6, 1 Port RJ45 |
| CRV-DL2DLC | Transmitter, DVI Extender/Splitter, Local Access, CAT6, 2 Port RJ45 |
| CRV-DL4DLC | Transmitter, DVI Extender/Splitter, Local Access, CAT6, 4 Port RJ45 |
| Receivers | |
| CRV-SRDLC | Receiver, DVI Video Extender, CAT6 |
