CrystalView EX DVI Multi
Multi-head CATx Extender • DVI • USB 2.0 • Audio • 330' (100m)
Quad-head model

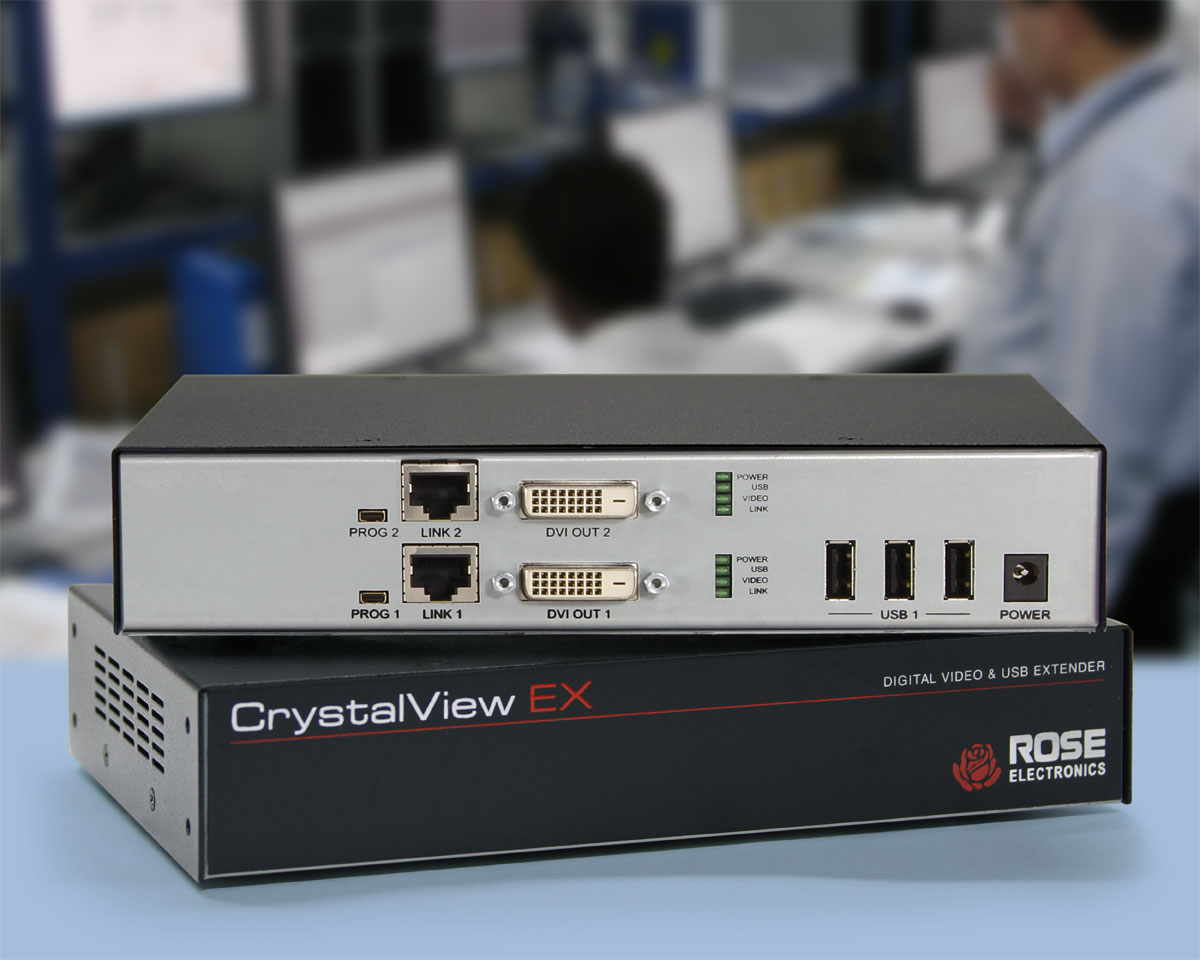

Dual-head model
- Extends up to four DVI video signals and USB 2.0 up to 330' (100m)
- Uncompressed video resolution up to 1920 x 1200
- Three remote high speed USB 2.0 device ports supplying 500ma power
- USB 2.0 throughput of up to 40 Mbps
- Supports audio via USB or optional dedicated channel
- Use USB keyboards, mice, printers, scanners, flash drives, audio devices, touch screens, web cams, game controllers, and others
OVERVIEW

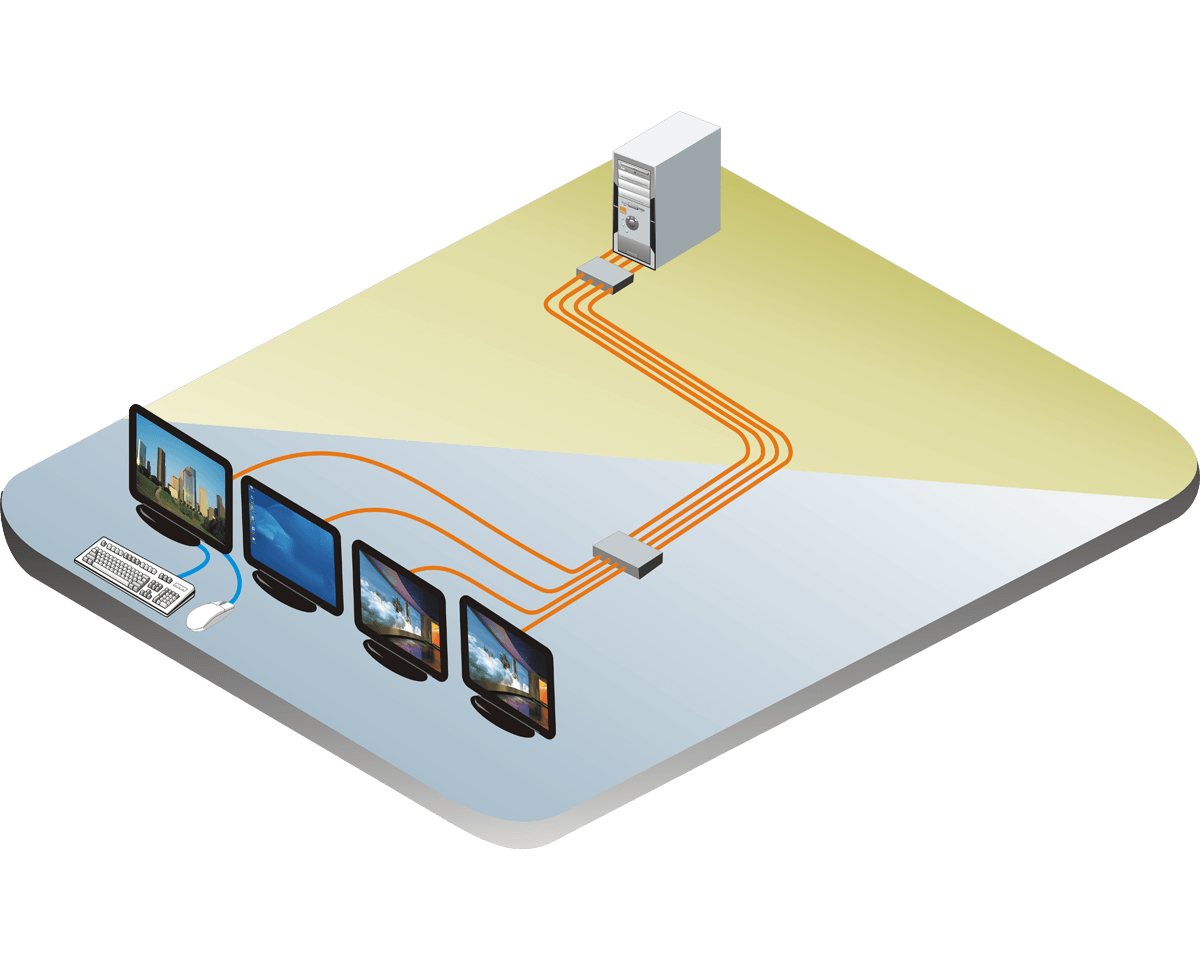

CrystalView EX6 Quad extender supports DVI graphic interfaces in an uncompressed video format with a resolution up to 1920 x 1200. This full speed uncompressed video data transfer format prevents picture corruption and frame drops. The extender will maintain a smooth and clear picture even when displaying video in the highest resolution up to a distance of 330 feet over a CATx cable.
It also extends USB keyboard and mouse signals. Using enhanced USB emulation, a wide range of USB HID and USB 2.0 devices are supported. 3 USB ports are available on the receiver unit, with the capacity to expand the number of ports to 30 by using USB hubs. Each USB port has 500 ma of power for USB devices requiring higher power to operate.
CrystalView EX6 Quad is available in dual, triple, or quad-head models. The USB is transmitted together with the first video signal. Each video output requires a separate CATx cable.
A Quad-Rack version of this product is available that includes two, three or four independent CrystalView EX6 (DVI+USB) extenders within a single 1U 19" rackmount chassis.
SPECIFICATIONS
| Dimensions (W x D x H) |
Mini Chassis: 9" x 5.7" x 1.73" (228 x 144 x 44 mm) (1U)B Chassis: 16.7" x 4.85" x 1.75" (424 x 123 x 44.5 mm) (1U) |
| Weight | Mini Chassis: 4.4 lb (2 kg)B Chassis: 6 lb (2.7 kg) |
| Power | 100-240 VAC 50-60Hz External adapter, +5V, 4A-9A, groundedDual: 15WTriple: 30WQuad, 45W |
| Resolution | DVI: uncompressed 1920x1200, 24 bit colorUSB2.0 throughput: up to 40Mbps |
| Distance | DVI/USB: 330' (100m) |
| Connectors | Multi-Head Version:Transmitter:DVI video: DVI female, one per portUSB host: USB Type BLink: RJ45 jack, one per portPower: Barrel jackReceiver:DVI video: DVI female, one per portUSB device: Three USB Type A, 500ma eachLink: RJ45 jackPower: Barrel jackQuad-Rack Version:Transmitter:DVI video: DVI female, one per portUSB host: USB Type B, one per portLink: RJ45 jack, one per portPower: Barrel jackReceiver:DVI video: DVI female, one per portUSB device: Three USB Type A, 500ma on each portLink: RJ45 jackPower: Barrel jack |
| Controls | Unit power: Green LED per portLink active: Green LED per portVideo active: Green LED per portUSB status: Green LED per port |
| Environment | Operating temperature: 32°F–104°F (0°C–40°C)Storage temperature: -4°F–158°F (-20°C–70°C)Relative humidity: 20%–80%, non-condensing |
PART NUMBERS
| Extender Kit (transmitter, receiver and PSU) | |
|---|---|
| Dual, triple and quad-head (DVI x n + 1xUSB2.0) | |
| CRK-1DTXT1DM-EX6 | CrystalView EX6, Single Head KVM Extender, 1xDVI, 1xUSB2.0 |
| CRK-1DTXT2DM-EX6 | CrystalView EX6 Multi-Head, Dual Head KVM Extender, 2xDVI, 1xUSB2.0 |
| CRK-1DTXT2D-EX6 | CrystalView EX6 Multi-Head, Dual Head KVM Extender, 2xDVI, 1xUSB2.0 |
| CRK-1DTXT3D-EX6 | CrystalView EX6 Multi-Head, Triple Head KVM Extender, 3xDVI, 1xUSB2.0 |
| CRK-1DTXT4D-EX6 | CrystalView EX6 Multi-Head, Quad Head KVM Extender, 4xDVI, 1xUSB2.0 |
| EX6 Extender Kit (transmitter, receiver and PSU) | |
| DVI Video Only (Dual, triple and quad-head) | |
| CRK-1DTX01DM-EX6 | CrystalView EX6 Video-Only, Single Head KVM Extender, 1xDVI |
| CRK-1DTX02DM-EX6 | CrystalView EX6 Video-Only, Dual Head KVM Extender, 2xDVI |
| CRK-1DTX02D-EX6 | CrystalView EX6 Video-Only, Dual Head KVM Extender, 2xDVI |
| CRK-1DTX03D-EX6 | CrystalView EX6 Video-Only, Triple Head KVM Extender, 3xDVI |
| CRK-1DTX04D-EX6 | CrystalView EX6 Video-Only, Quad Head KVM Extender, 4xDVI |
| EX6 Extender Rack Kit. Multi-DVI + Multi-USB2.0 | |
| Dual, triple and quad extenders, each with USB2.0 | |
| CRK-1DTXT1DM-1T-EX6 | CrystalView EX6 Rack, Single KVM Extender, 1xDVI, 1xUSB2.0 |
| CRK-1DTXT2DM-2T-EX6 | CrystalView EX6 Rack, Dual KVM Extender, 2xDVI, 2xUSB2.0 |
| CRK-1DTXT2D-2T-EX6 | CrystalView EX6 Rack, Dual KVM Extender, 2xDVI, 2xUSB2.0 |
| CRK-1DTXT3D-3T-EX6 | CrystalView EX6 Rack, Triple KVM Extender, 3xDVI, 3xUSB2.0 |
| CRK-1DTXT4D-4T-EX6 | CrystalView EX6 Rack, Quad KVM Extender, 4xDVI, 4xUSB2.0 |
| Options (options fitted on TX and RX units) | |
| /A1 | Uni-Directional Audio |
| /A2 | Bi-Directional Audio |
| /S | Serial RS232 |
| /AS | Bi-Directional Audio + Serial |
| Transmitter chassis | |
| Dual, triple and quad-head (DVI x n + 1xUSB2.0) | |
| CRV-SLDTXT1DM-EX6 | CrystalView EX6 Single, Transmitter, Single Head KVM Extender, 1xDVI, 1xUSB2.0 |
| CRV-SLDTXT2DM-EX6 | CrystalView EX6 Multi-Head, Transmitter, Dual Head KVM Extender, 2xDVI, 1xUSB2.0 |
| CRV-SLDTXT2D-EX6 | CrystalView EX6 Multi-Head, Transmitter, Dual Head KVM Extender, 2xDVI, 1xUSB2.0 |
| CRV-SLDTXT3D-EX6 | CrystalView EX6 Multi-Head, Transmitter, Triple Head KVM Extender, 3xDVI, 1xUSB2.0 |
| CRV-SLDTXT4D-EX6 | CrystalView EX6 Multi-Head, Transmitter, Quad Head KVM Extender, 4xDVI, 1xUSB2.0 |
| Receiver chassis | |
| Dual, triple and quad-head (DVI x n + 1xUSB2.0) | |
| CRV-SRDTXT1DM-EX6 | CrystalView EX6 Single, Receiver, Single Head KVM Extender, 1xDVI, 1xUSB2.0 |
| CRV-SRDTXT2DM-EX6 | CrystalView EX6 Multi-Head, Receiver, Dual Head KVM Extender, 2xDVI, 1xUSB2.0 |
| CRV-SRDTXT2D-EX6 | CrystalView EX6 Multi-Head, Receiver, Dual Head KVM Extender, 2xDVI, 1xUSB2.0 |
| CRV-SRDTXT3D-EX6 | CrystalView EX6 Multi-Head, Receiver, Triple Head KVM Extender, 3xDVI, 1xUSB2.0 |
| CRV-SRDTXT4D-EX6 | CrystalView EX6 Multi-Head, Receiver, Quad Head KVM Extender, 4xDVI, 1xUSB2.0 |
| Transmitter chassis - video only | |
| Dual, triple and quad-head (DVI x n) | |
| CRV-SLDTX01DM-EX6 | CrystalView EX6 Video-Only, Transmitter, Single Head KVM Extender, 1xDVI, 1920x1200, CATx, 330ft |
| CRV-SLDTX02DM-EX6 | CrystalView EX6 Video-Only, Transmitter, Dual Head KVM Extender, 2xDVI, 1920x1200, CATx, 330ft |
| CRV-SLDTX02D-EX6 | CrystalView EX6 Video-Only, Transmitter, Dual Head KVM Extender, 2xDVI, 1920x1200, CATx, 330ft |
| CRV-SLDTX03D-EX6 | CrystalView EX6 Video-Only, Transmitter, Triple Head KVM Extender, 3xDVI, 1920x1200, CATx, 330ft |
| CRV-SLDTX04D-EX6 | CrystalView EX6 Video-Only, Transmitter, Quad Head KVM Extender, 4xDVI, 1920x1200, CATx, 330ft |
| Receiver chassis - video only | |
| Dual, triple and quad-head (DVI x n) | |
| CRV-SRDTX01DM-EX6 | CrystalView EX6 Video-Only, Receiver, Single Head KVM Extender, 1xDVI, 1920x1200, CATx, 330ft |
| CRV-SRDTX02DM-EX6 | CrystalView EX6 Video-Only, Receiver, Dual Head KVM Extender, 2xDVI, 1920x1200, CATx, 330ft |
| CRV-SRDTX02D-EX6 | CrystalView EX6 Video-Only, Receiver, Dual Head KVM Extender, 2xDVI, 1920x1200, CATx, 330ft |
| CRV-SRDTX03D-EX6 | CrystalView EX6 Video-Only, Receiver, Triple Head KVM Extender, 3xDVI, 1920x1200, CATx, 330ft |
| CRV-SRDTX04D-EX6 | CrystalView EX6 Video-Only, Receiver, Quad Head KVM Extender, 4xDVI, 1920x1200, CATx, 330ft |
| EX6 Extender Transmitter Rack. Multi-DVI + Multi-USB2.0 | |
| Dual, triple and quad transmitters, each with USB2.0 | |
| CRV-SLDTXT1DM-1T-EX6 | CrystalView EX6 Rack, Transmitter, Single Head KVM Extender, 1xDVI, 1xUSB2.0 |
| CRV-SLDTXT2DM-2T-EX6 | CrystalView EX6 Rack, Transmitter, Single Head KVM Extender, 2xDVI, 2xUSB2.0 |
| CRV-SLDTXT2D-2T-EX6 | CrystalView EX6 Rack, Transmitter, Dual Head KVM Extender, 2xDVI, 2xUSB2.0 |
| CRV-SLDTXT3D-3T-EX6 | CrystalView EX6 Rack, Transmitter, Triple Head KVM Extender, 3xDVI, 3xUSB2.0 |
| CRV-SLDTXT4D-4T-EX6 | CrystalView EX6 Rack, Transmitter, Quad Head KVM Extender, 4xDVI, 4x USB2.0 |
| EX6 Extender Receiver Rack. Multi-DVI + Multi-USB2.0 | |
| Dual, triple and quad receivers, each with USB2.0 | |
| CRV-SRDTXT1DM-1T-EX6 | CrystalView EX6 Rack, Receiver, Single Head KVM Extender, 1xDVI, 1xUSB2.0 |
| CRV-SRDTXT2DM-2T-EX6 | CrystalView EX6 Rack, Receiver, Single Head KVM Extender, 2xDVI, 2xUSB2.0 |
| CRV-SRDTXT2D-2T-EX6 | CrystalView EX6 Rack, Receiver, Dual Head KVM Extender, 2xDVI, 2xUSB2.0, 1920x1200, CATx, 330ft,100m |
| CRV-SRDTXT3D-3T-EX6 | CrystalView EX6 Rack, Receiver, Triple Head KVM Extender, 3xDVI, 3xUSB2.0, 1920x1200, CATx, 330ft,100m |
| CRV-SRDTXT4D-4T-EX6 | CrystalView EX6 Rack, Receiver, Quad Head KVM Extender, 4xDVI, 4xUSB2.0, 1920x1200, CATx, 330ft,100m |
| Options (options fitted on TX or RX units) | |
| /A1 | Uni-Directional Analog Audio |
| /A2 | Bi-Directional Analog Audio |
| /S | Serial RS232 |
| /AS | Bi-Directional Analog Audio + Serial |
| /3A1 | Bi-Directional Analog Audio + Serial |
| Accessories | |
| RM-UM19 | Rackmount Kit for "M" Chassis |
| RM-UB19 | Rackmount Kit for "B" Chassis |
| TFR-05D400FSUB-1.7F | Replacement PSU for TX and RX chassis, "M" and "B" Chassis |
