CrystalView Exact

CATx Extender • DisplayPort 1.2a • USB 3.0 • 330' (100m)

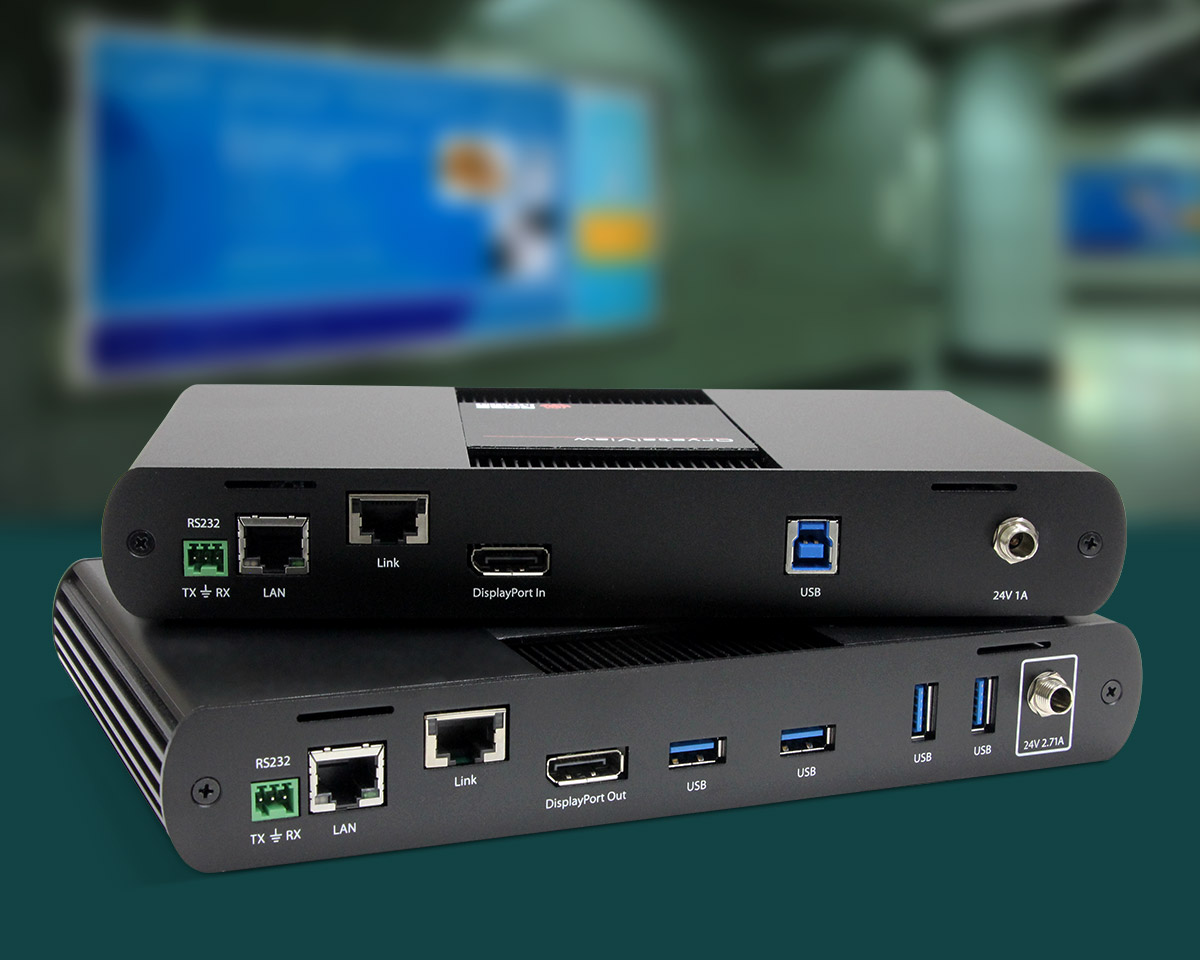

Product Picture

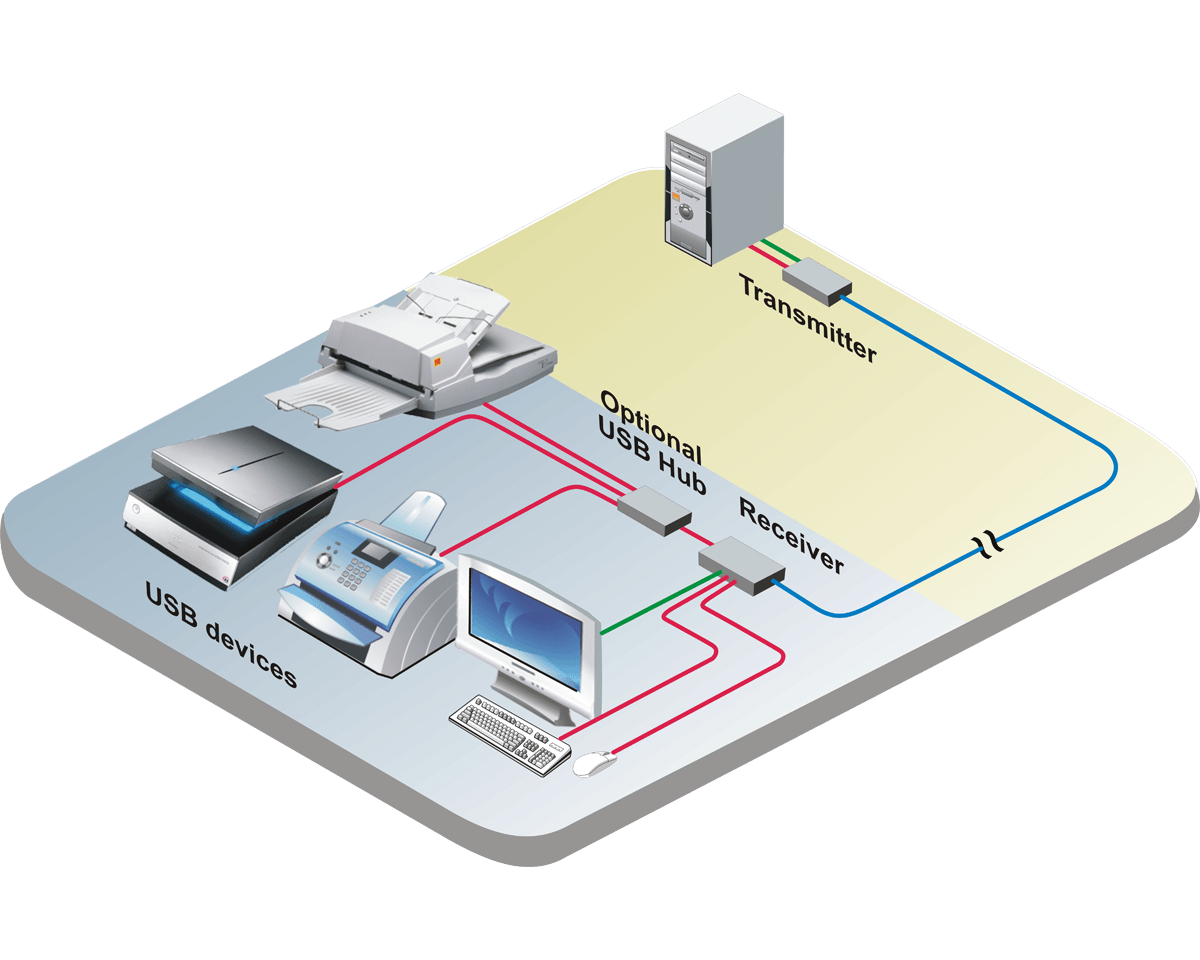

Diagram
  • Extends DisplayPort 1.2a, USB 3.1/2.0/1.1, RS232, and Gbit Ethernet on a single CAT6a/7 cable up to 330' (100m)
  • Resolutions up to UHD 4K, 3840 x 2160 @ 60Hz
  • YCbCr 4:4:4 and RGB color support up to 10 bits per channel
  • Embedded 2 Channel DisplayPort audio
  • USB 3.1 Gen 1 data rate up to 5Gbps
  • Provides simultaneous, transparent USB extension for USB 3.1, 2.0, and 1.1 devices at full bandwidth
  • Four USB-A Gen 1 ports on the receiver unit, each supplying 1.2 Amp (6W) power
  • Expandable up to 30 USB ports with additional USB hubs
  • Industrial grade, built with an aluminum enclosure and locking power connector
  • Ethernet 100/1000 pass-through channel for connecting remote network-enabled devices
  • Bidirectional RS232 channel supports serial devices and controllers at baud rates to 115,200
  • Direct point-to-point connection
  • True plug and play; no software drivers required
  • Works with all major operating systems: Windows®, MAC OS™, Linux®, and Chrome OS™
  • Automatic EDID detection and synchronization
  • FCC and CE compliant
  • Optimum performance with CAT6 and CAT7 (solid core) UTP/STP cabling
  • Use USB keyboards, mice, printers, scanners, flash drives, audio devices, touch screens, web cameras, game controllers, and others

OVERVIEW

The CrystalView Exact extends Ultra HD DisplayPort 1.2a video along with USB 3.1, 2.0, and 1.1 up to 330 feet (100 meters) over a single Cat6a/7 cable. Two-channel audio embedded in DisplayPort, Ethernet pass-through, and bidirectional RS232 are also transported.

This point-to-point extension system consists of two parts with a transmitter extender unit located near a host computer and a remote receiver extender unit near a display and USB peripherals. All signals are aggregated and transmitted between the transmitter and receiver units over a single CAT6a/7 cable. A minimum grade of Category 6a cable is required.

Image quality is remarkable with DisplayPort 1.2a delivering visually lossless 4K60 video resolution with YCbCr 4:4:4 and color support up to 10 bits per channel. The receiver unit includes four USB ports, each supplying 1.2A (6W) of power. Directly connect USB devices simultaneously at full bandwidth or attach self-powered USB hubs to expand the USB port count up to 30. The Ethernet pass-through channel allows remote connection of network-enabled devices. The RS232 channel can be utilized for RS232 enabled devices or for command and control applications.

Installation of the CrystalView Exact extension system is simple with plug-and-play setup, and it's compatible with all major computer operating systems. Software drivers are not required.

The CrystalView Exact is an industrial-grade product built with aluminum enclosures and locking power connectors. Common applications include industrial control/HMI, video production, ProAV, medical imaging, conference rooms, and interactive digital signage.

SPECIFICATIONS

Dimensions (W x D x H) 9.1" x 5.4" x 1.3" (232mm x 137mm x 33 mm)
Weight Transmitter: 2.03 lb (920g) Receiver: 2.18 lb (990g) Packaged (Extender set with power adapters): 6.5 lb. (2.95kg)
Power Transmitter Power Adapter: Input: 100-240VAC, 50/60Hz; Output: 24VDC, 1A Receiver Power Adapter: Input: 100-240VAC, 50/60Hz; Output: 24VDC, 2.71A
Interconnect Cable Cable Category: CAT6a/CAT7 solid core, UTP, STP, or FTP, depending on installation environment Cable Termination: RJ45, using TIA/EIA T568A or T568B Maximum Length: 330 feet (100m) (Use of patch cable may reduce the maximum length)
Video Max Resolution: 3840x2160 @ 60Hz Color: YCbCr 4:4:4 and RGB color (6, 8, 10 bit) support
Audio Two channel DisplayPort audio
USB USB Device Support: USB 3.1 Gen 1, USB 2.0, USB 1.1 USB Speeds: SuperSpeed 5Gbps, high-speed, full-speed, low-speed USB Bandwidth: Up to 5Gbps USB Host Compatibility: xHCI (USB 3.1), EHCI (USB 2.0), and OHCI/UHCI (USB 1.1) USB Host Support: Up to three self-powered USB hubs Maximum USB Devices: 30 Current per USB Device: Up to 1.2 Amp (6W)
OS Compatiblity Windows®, Mac OS X™, Linux®, ChromeOS™
LED Indicators Power, Status, Link, Video, USB 2, USB 3
Connectors Transmitter: 1 x DisplayPort 1.2a connector 1 x USB 3.1 Gen 1 Type B 1 x RJ45 link port 1 x RJ45 100/1000 Ethernet port 1 x 3-pin terminal block for RS-232 1 x locking power jack Receiver: 1 x DisplayPort 1.2a connector 4 x USB 3.1 Type A female 1 x RJ45 link port 1 x RJ45 100/1000 Ethernet port 1 x 3-pin terminal block for RS-232 1 x locking power jack
Operating Environment Temp: 32°F to 104°F (0°C to 40°C) Humidity: 20% - 80%, non-condensing
Storage Environment Temp: -4°F to 158°F (-20°C to 70°C) Humidity: 10% - 90%, non-condensing
Approvals FCC Part 15 Class B, CE Class B, ICES-003 Class B, EMC EN55024, EN55032, EN61000, RoHS2 (CE), WEEE

PART NUMBERS

CRK-1DTXU321DP CrystalView Exact KVM Extender Set
CRK-SLDTXU321DP CrystalView Exact KVM Transmitter Unit
CRK-SRDTXU321DP CrystalView Exact KVM Receiver Unit
RM-UD/CRK321 "L" bracket kit for shelf, wall, or under desk (Not for 19" rack)

DOCUMENTS

DOCUMENT LINK
Datasheet • CrystalView Exact PDF
Manual • CrystalView Exact • Installation and Operation PDF
