MultiStation CATx

CATx Computer Sharing • VGA • USB • PS/2

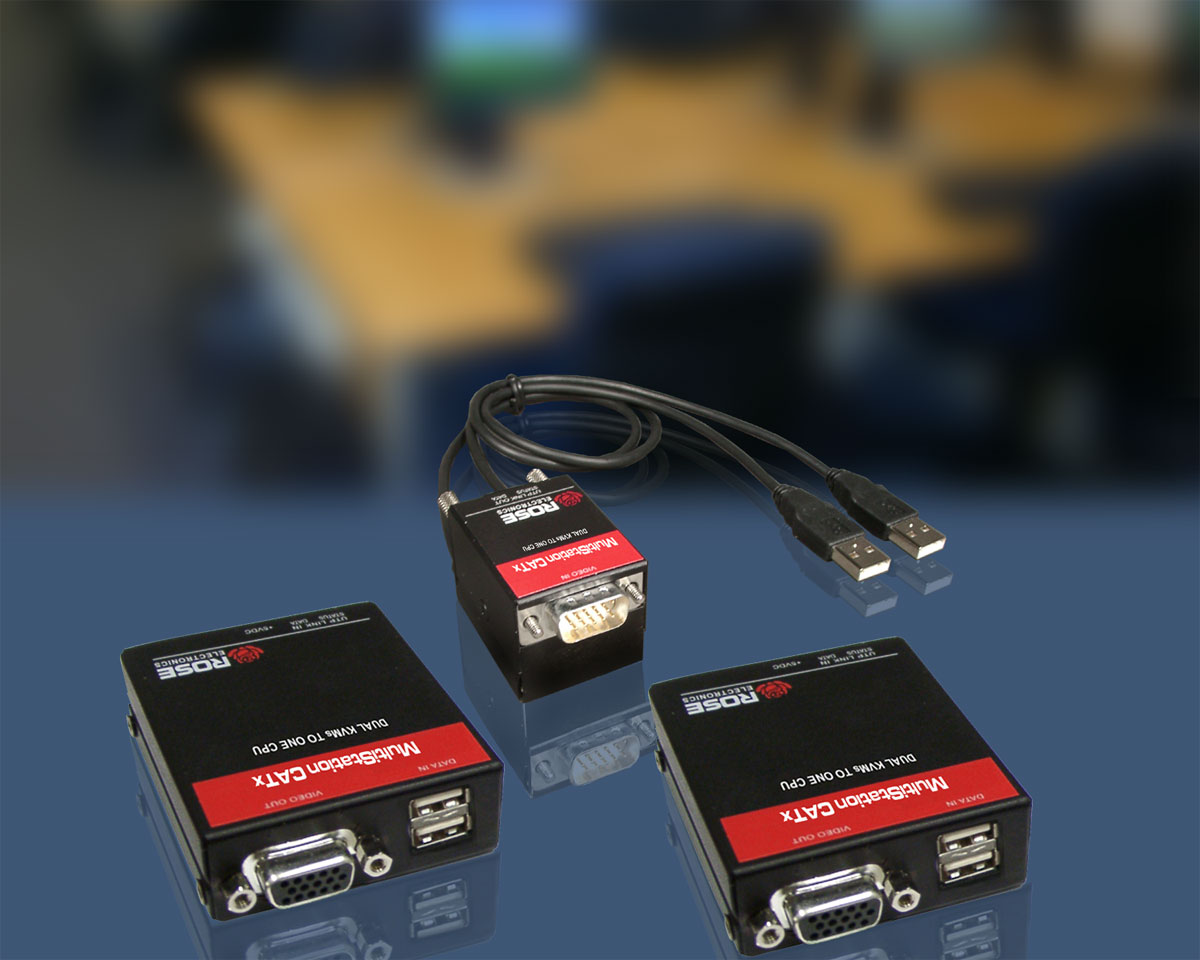

Product Picture
  • Multiple users share one computer with VGA video and PS/2 or USB keyboard and mouse

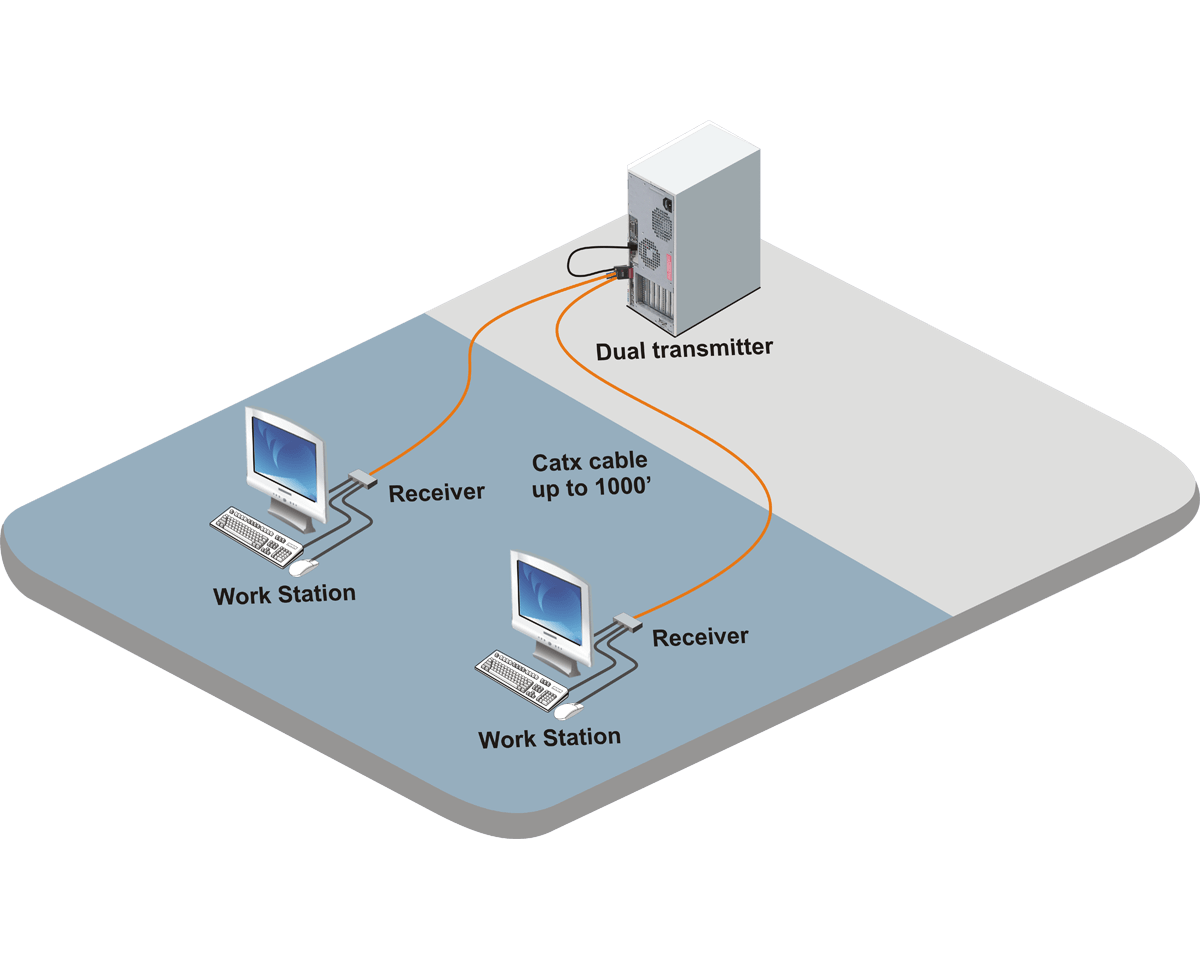

  • Transmitter at computer and a receiver at each of two KVM stations are connected with up to 1000' (300m) of CATx cable
  • Video resolution up to 1920 x 1440 @ 60Hz
  • Uses a microprocessor to emulate the keyboard and mouse
  • Automatic cable length compensation adjustments
  • Video equalization and gain can be fine-tuned with simple keyboard commands
  • Optional automatic skew adjustments produce a crystal clear display no matter what cable type is used (recommended for cable lengths over 100’)
  • Video can be displayed on both KVM stations
  • Models available with PS/2 or USB connectors
  • Supports video resolutions up to 1920 x 1440
  • Kit contains one transmitter and two receivers
  • Made in USA


MultiStation CATx is a sharing device that will extend two KVM user stations up to 1000 feet from one CPU over CATx cable. This unique product allows two users located at two different workstations to access the same computer • one at a time. The two users can't use the computer at once, but must wait until one user relinquishes control in order to have access. It supports VGA video resolution up to 1920 x 1200 and automatically performs cable length compensation and skew adjustments to produce a high quality crystal clear picture, with the ability to fine-tune video equalization and gain with simple keyboard commands.

Multistation CATx is offered in two models:

  • PS/2 Dual Access Unit – Allows 1 user to control the computer at a time with a 2 second delay between transferring control
  • USB Dual Access Unit – Allows both users to control the computer with no delay


(W x D x H)
Transmitter: 1.3" x 1.75" x 1.3" (33 x 44.5 x 33 mm) Receiver: 2.68" x 2.65" x 1" (68 x 67 x 25.4 mm)
Weight Transmitter: 0.15 lb (0.07 kg)Receiver: 0.15 lb (0.07 kg)
Power Transmitter: 5V DC powered by computerReceiver: 90-240 VAC, 50-60Hz External adapter, 5V, 1A Transmitter: 5WReceiver: 5W
Resolution VGA: 1920 x 1440
Distance Up to 1000' (300m)
Connectors Transmitter:VGA video: HD15MPS2 keyboard/mouse: Two mini-din6 male cable for direct plug-inUSB keyboard/mouse: USB A male cable for direct plug-inReceiver:VGA video: HD15FPS2 keyboard/mouse: One PS/2 mini-din6F with included Y cableUSB keyboard/mouse: Two USB Type A receptaclePower: Barrel jack
Controls Status LED: YellowLink LED: Green
Environment Operating temperature: 32°F–113°F (0°C–45°C)Storage temperature: -13°F–140°F (-25°C–60°C)Relative humidity: 5%–80%, non-condensing


Product Part NumberDescription
MLK-TMDVPRAVPTwo Users to 1 CPU, PS/2, VGA Kit: 1 transmitter & 2 receivers
MLK-TMDVURAVUTwo Users to 1 CPU, USB, VGA Kit: 1 transmitter & 2 receivers
-WAutomatic Skew Adjustment Option


Datasheet • MultiStation CATx PDF
Quick Start • MultiStation CATxPDF
Manual • MultiStation CATx • Installation and Operation PDF
