Orion XC
Enterprise KVM Switch • CATx or Fiber • 8-80 ports

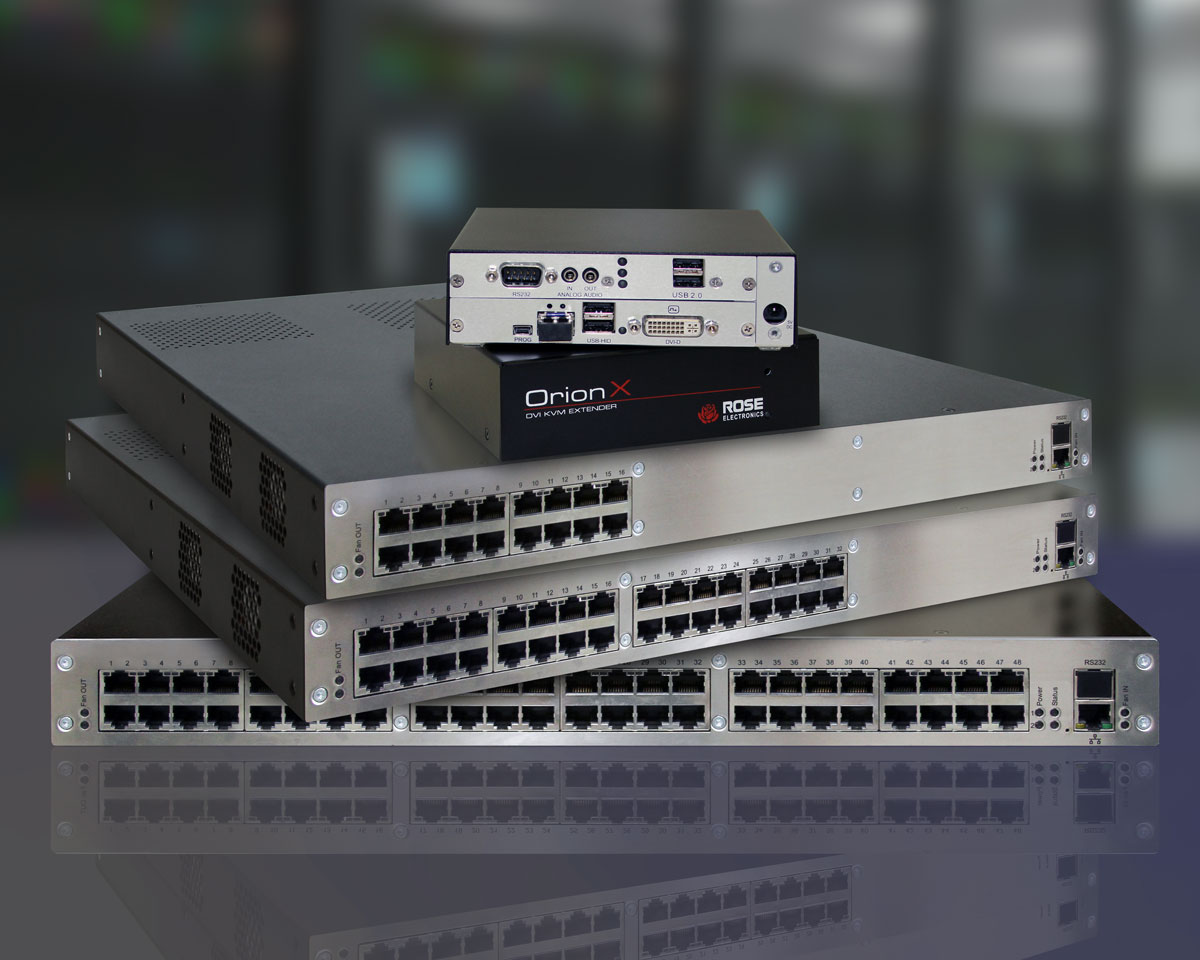

Orion XC 16/32/48-port CATx Switch
Orion XC 8-port CATx Switch
Orion XC 64-port CATx Switch

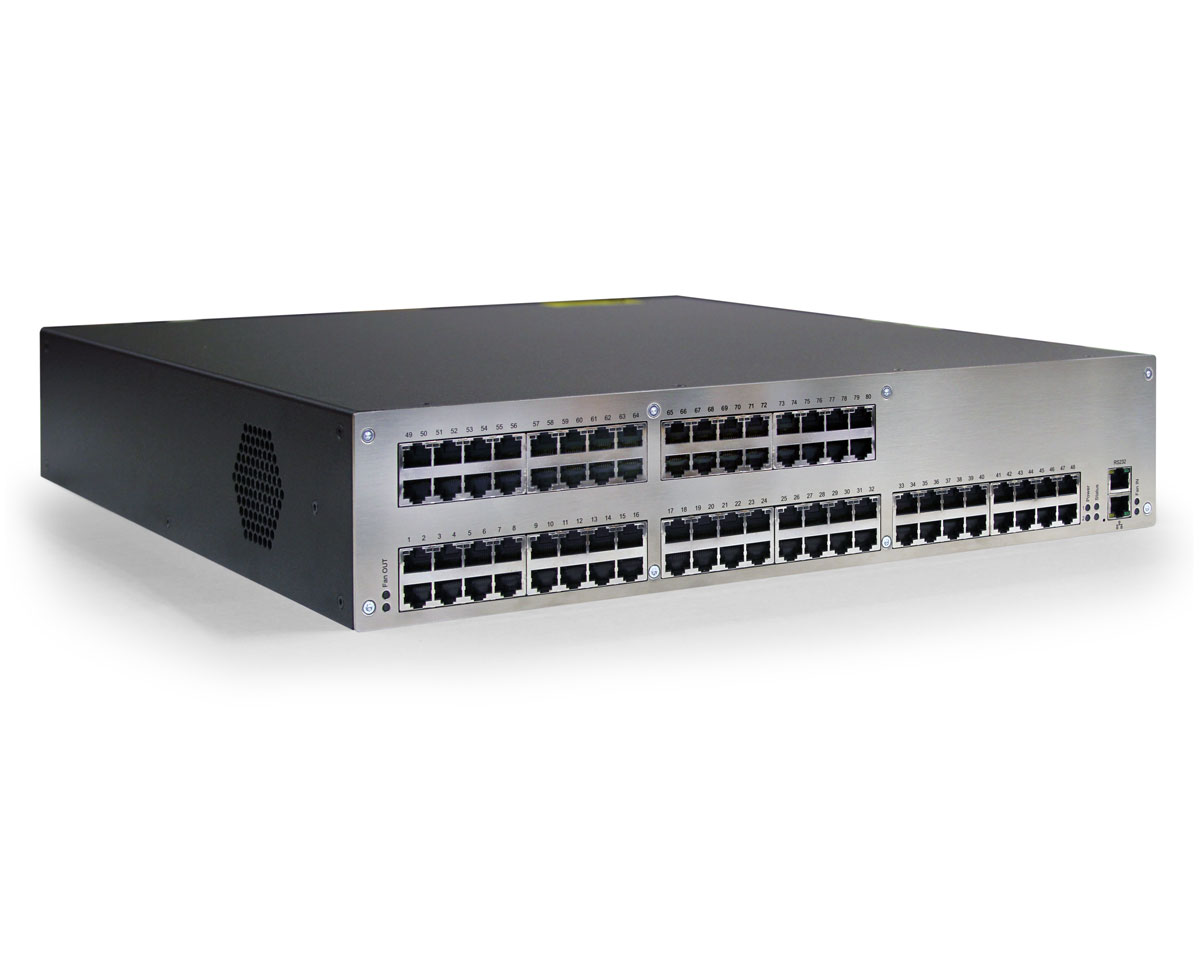

Orion XC 80-port CATx Switch

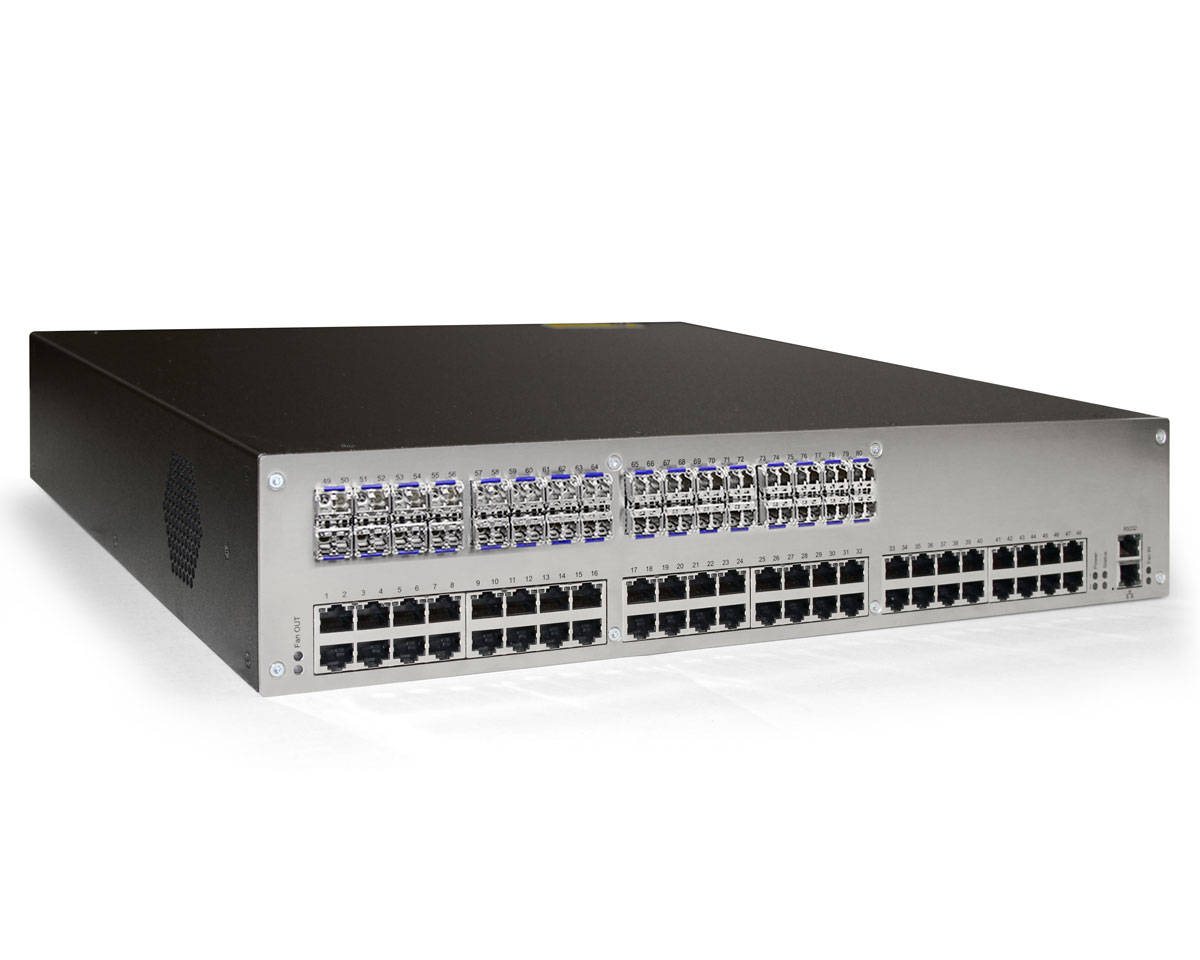

Orion XC 80-port mixed Fiber/CATx Switch

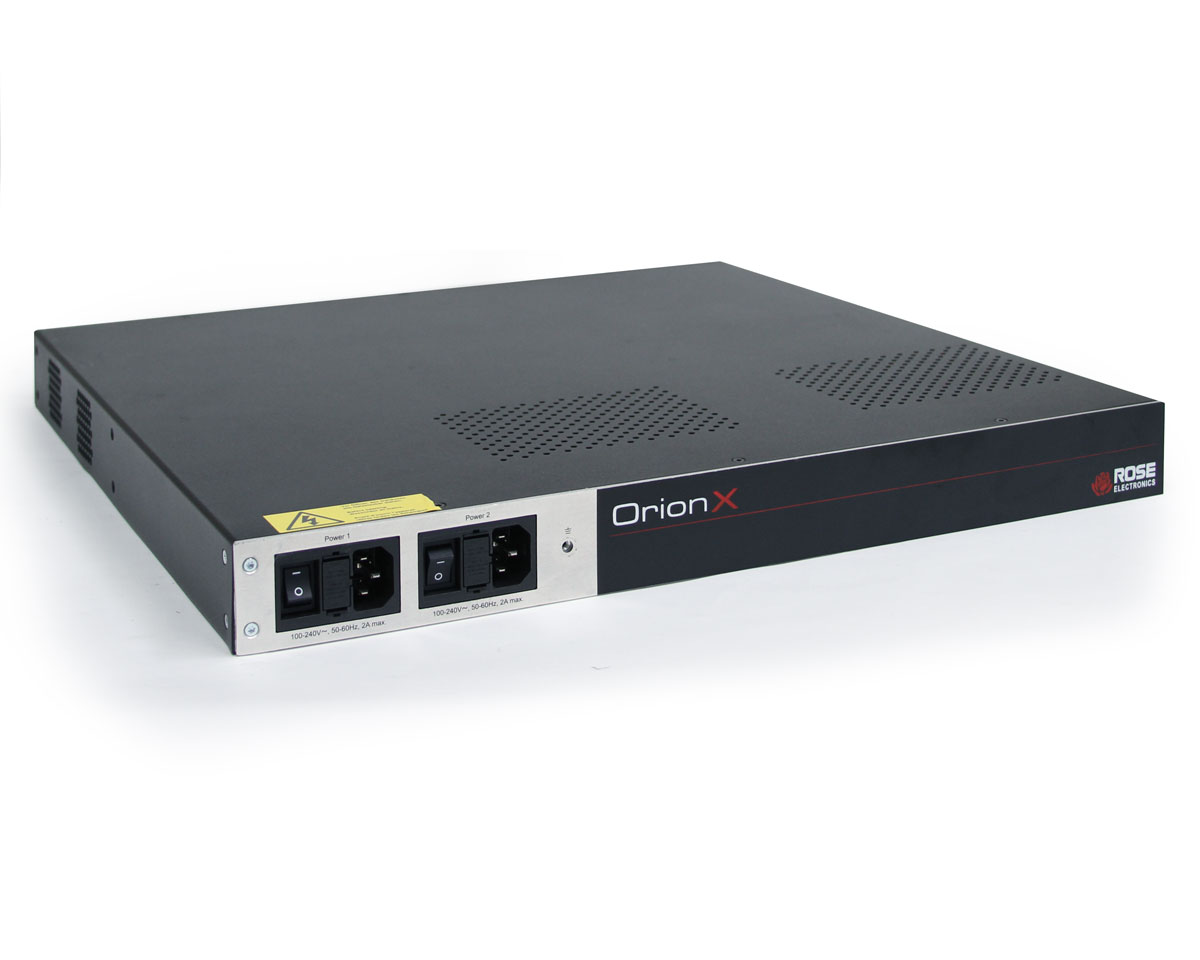

Orion XC 1U Chassis with redundant power supplies

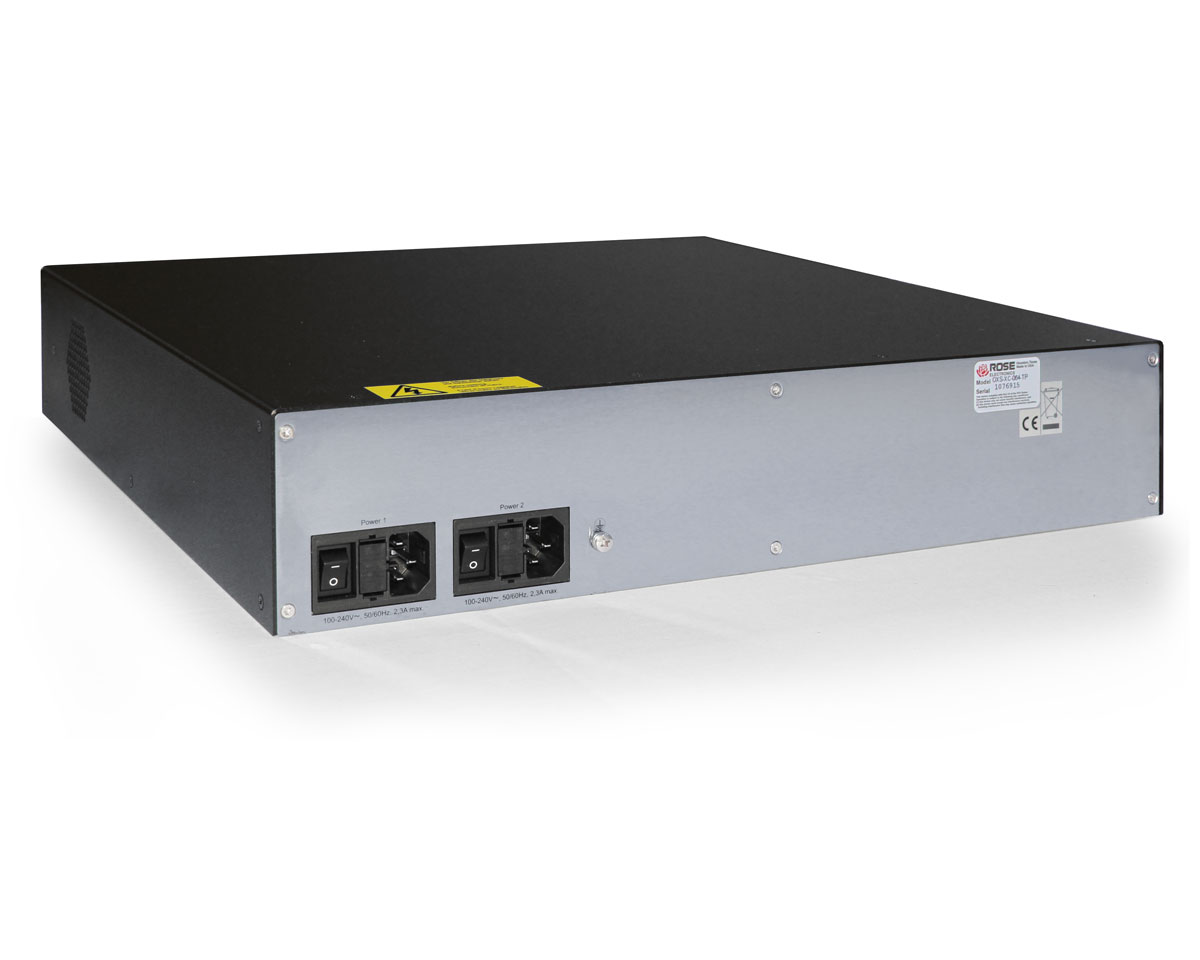

Orion XC 2U Chassis with redundant power supplies
Orion Fiber Transmitters and Receivers
Orion HDMI+USB 2.0 over CATx
Orion DisplayPort+USB+Serial+Audio over Fiber
Orion DVI+USB2.0+Audio over Fiber
- Compact version of Orion-X switch with fixed port models of 8, 16, 32, 48, 64, and 80 ports in all CATx, all fiber, or mixed CATx/fiber
- Extend computers and KVM stations to 460ft (140m) on CATx cable, 33,000ft (10Km) on fiber
- Each switch port can be an input or output
- Switch ports connect to transmitters or receivers which come as 2, 4, 6, or 21-card modular chassis
- Video can be VGA, DVI, dual-link DVI, HDMI, DisplayPort, or SDI
- Standard video resolution up to 1920×1200, UHD 4K video resolution up to 4096×2160@60Hz
- Switch video sources of the same resolution instantly with no delay or display blanking
- Comes standard with switching of USB-HID
- Choose optional switching of PS/2 keyboard-mouse, USB2.0, USB3.0, analog or digital audio, serial RS232, and redundant link
- Access via on-screen display, serial, web-based GUI, SNMP, or hotkey commands
- Switches can be interconnected using Matrix Grid feature
- Optional redundant power supplies
OVERVIEW

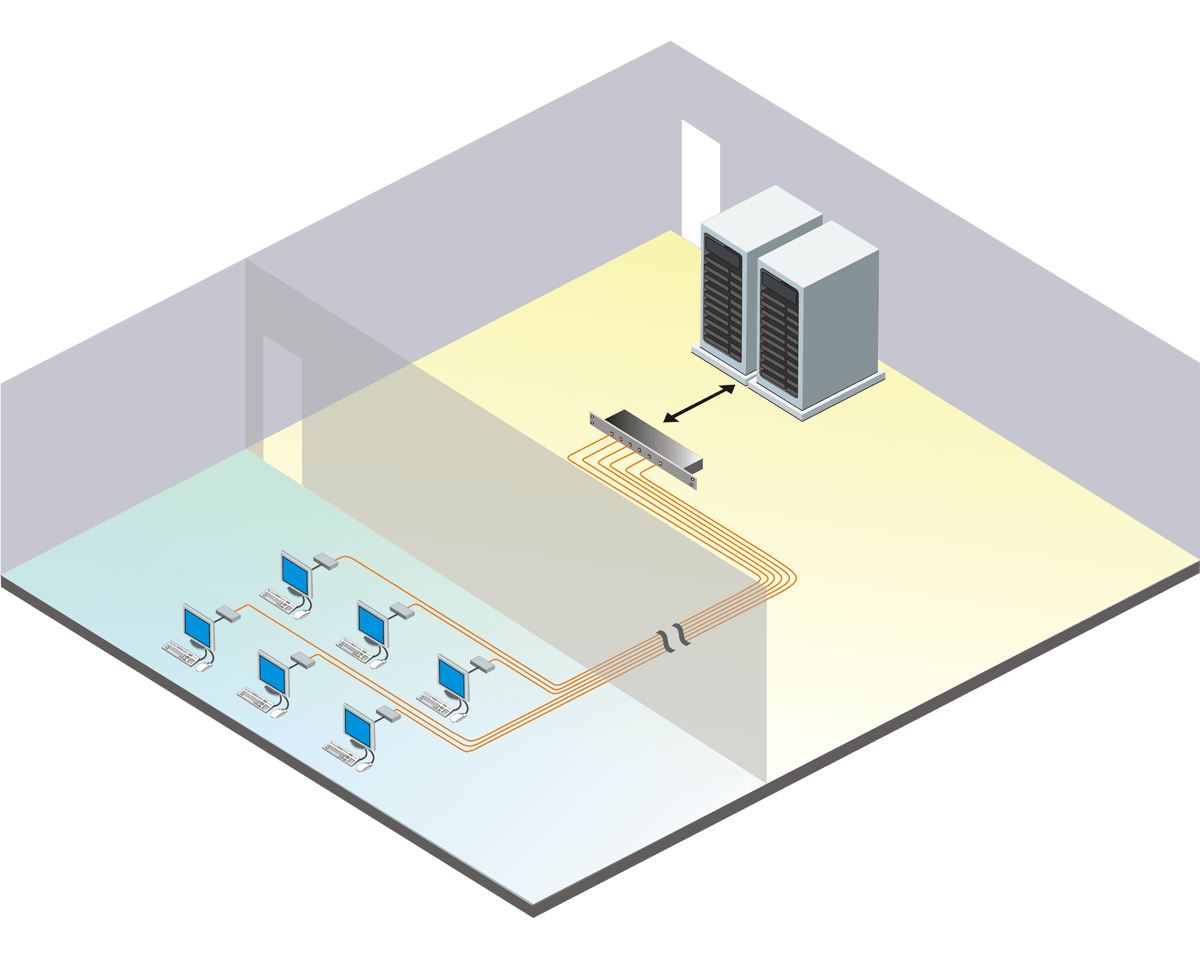

Orion XC is a fixed port version of the Orion X-series switches. This reduces the cost and makes the unit more compact. It also is a three-component system consisting of: transmitters at the video or computer source, a central switch, and receivers at the user station.
The Orion XC switch is available as a range of 1U and 2U chassis with a fixed port configuration. It also comes as 8-port cards which insert into an Orion Xtender 6-bay or 21-bay chassis.
The available link interface formats are CATx, singlemode fiber with 1G (1.25Gbps) or 2.5G (3.125Gbps) high speed SFPs, or Universal ports which can support either SDI or USB 3.0.
There are various arrangements of interface ports with all CATx, all Fiber, all Universal, or mixed versions in the 64-port and 80-port switches.
Each port of the switch is automatically configured to be an input or an output port depending on whether a transmitter or receiver unit is connected to it. This simplifies your system planning because you do not have to decide in advance, how many input or output ports – only the total number of ports.
Distances of the transmitters or receivers can be:
- Up to 33,000 feet (10Km) using single-mode fiber cable
- Up to 1,300 feet (400m) using multi-mode OM3 fiber cable
- Up to 460 feet (140m) using CATx cable
The Orion product supports a standard video resolution of 1920 x 1200 @ 60Hz and all DVI single-link resolutions including high definition 1080p. Ultra high definition video up to 4K is supported at 4096 x 2160 at 60Hz. Video sources running at the same resolution can be switched instantly with no delay or blanking which makes it ideal for command centers, broadcast applications, financial institutions, and many more. The receivers include an intuitive OSD for easy use and configuration at each user station through the attached USB keyboard and mouse.
Other capabilities optionally available are:
- VGA input/output (with video scaling)
- Dual-link DVI input/output
- Dual-head DVI input/output
- SD/HD/3G-SDI input (I/O)
- HDMI 4K60 input/output
- DisplayPort 4K60 input/output
- Transparent USB 2.0
- RS232/RS422 serial interface
- PS/2 keyboard and mouse
- Analog or digital audio
- Redundant power supply
- Rack mount kit (19")
To enhance the functionality of the product software utilities are provided that are useful in an enterprise environment.
- JAVA Tool, Extended Switching, Presets, and API
- SNMP and Syslog for unit monitoring
- Cascading / Stacking
- Multi-Screen Control
SPECIFICATIONS
| Dimensions (W x D x H) |
80-port: 17.4" x 17.1" x 3.5" (443 x 435 x 89 mm) (2U)64-port: 17.4" x 17.1" x 3.5" (443 x 435 x 89 mm) (2U)48-port: 17.4" x 17.1" x 1.75" (443 x 435 x 44.5 mm) (1U)32-port: 17.4" x 17.1" x 1.75" (443 x 435 x 44.5 mm) (1U)16-port: 17.4" x 17.1" x 1.75" (443 x 435 x 44.5 mm) (1U)8-port: 8.7" x 5.7" x 1.75" (220 x 146 x 44.5 mm) (1U) |
| Weight | 80-port: 15.9 lb (7.2 kg)64-port: 15.9 lb (7.2 kg)48-port: 9 lb (4.1 kg)32-port: 8.8 lb (4 kg)16-port: 8.6 lb (3.9 kg)8-port: 1.9 lb (0.9 kg) |
| Power | 90-240 VAC 50-60 Hz Optional redundant PSU 80-port: 125W64-port: 115W48-port: 90W32-port: 65W16-port: 40W8-port: 13W |
| Resolution | DVI single-link video: 1920 x 1200/2048 x 1152 DVI dual-link video: 2560 x 2048, 4096 x 2160, 3840 x 2160Full color depth, 24-bit (4:4:4)VGA video: 1920 x 1200HDMI video: 1080p, 1920 x 1200 DisplayPort video: 1920 x 1200, 2560 x 2048, 3840 x 2160SDI: per SMPTE spec up to 3G |
| Distance | CATx: 460' (140m)Multi-mode fiber: (62.5µ): 650' (200m)Multi-mode fiber: (50µ): 1,300' (400m)Multi-mode fiber: (50µ) OM3: 3,300' (1Km)Single-mode fiber: (9µ): 33,000' (10Km) |
| Connectors | Transmitters/receivers: Dual LC fiber or CATxSD/HD/3G-SDI:Mini coax replaces fiber SFPEthernet control port: RJ45 jackRS232 control port: RJ45 jackPower: IEC-320 receptacle |
| Controls | On-screen display (at each KVM station)Web, FTP, Telnet, SMTP, Serial, IRMulti-screen control (one KB/Mouse controls up to 4 monitors) |
| Environment | Operating temperature: 41°F–113°F (5°C–45°C)Storage temperature: -13°F–140°F (-25°C–60°C)Relative humidity: 0%–80%, non-condensing |
PART NUMBERS
| Orion XC Switch — CATX PORTS | |
|---|---|
| OXS-XC008-TP | Orion XC 8 port matrix switch, CATx, with IEC power and redundant +5V power jack, 1U |
| OXS-XC016-TP | Orion XC 16 port matrix switch, redundant PSU, CATx, 1U |
| OXS-XC032-TP | Orion XC 32 port matrix switch, redundant PSU, CATx, 1U |
| OXS-XC048-TP | Orion XC 48 port matrix switch, redundant PSU, CATx, 1U |
| OXS-XC064-TP | Orion XC 64 port matrix switch, redundant PSU, CATx, 2U |
| OXS-XC080-TP | Orion XC 80 port matrix switch, redundant PSU, CATx, 2U |
| Orion XC Switch — FIBER PORTS | |
| OXS-XC008-FS | Orion XC 8 port matrix switch, 1G Fiber SM, with IEC power and redundant +5V power jack, 1U |
| OXS-XC016-FS | Orion XC 16 port matrix switch, redundant PSU, 1G Fiber SM, 1U |
| OXS-XC032-FS | Orion XC 32 port matrix switch, redundant PSU, 1G Fiber SM, 1U |
| OXS-XC048-FS | Orion XC 48 port matrix switch, redundant PSU, 1G Fiber SM, 1U |
| OXS-XC064-FS | Orion XC 64 port matrix switch, redundant PSU, 1G Fiber SM, 2U |
| OXS-XC080-FS | Orion XC 80 port matrix switch, redundant PSU, 1G Fiber SM, 2U |
| OXS-XC008-F3 | Orion XC 8 port matrix switch, 2.5G Fiber SM, with IEC power and redundant +5V power jack, 1U |
| OXS-XC016-F3 | Orion XC 16 port matrix switch, redundant PSU, 2.5G Fiber SM, 1U |
| OXS-XC032-F3 | Orion XC 32 port matrix switch, redundant PSU, 2.5G Fiber SM, 1U |
| OXS-XC048-F3 | Orion XC 48 port matrix switch, redundant PSU, 2.5G Fiber SM, 1U |
| OXS-XC064-F3 | Orion XC 64 port matrix switch, redundant PSU, 2.5G Fiber SM, 2U |
| OXS-XC080-F3 | Orion XC 80 port matrix switch, redundant PSU, 2.5G Fiber SM, 2U |
| Orion XC Switch — UNIVERSAL PORTS | |
| OXS-XC008-UN | Orion XC 8 port matrix switch, Universal Ports, with IEC power and redundant +5V power jack, 1U |
| OXS-XC016-UN | Orion XC 16 port matrix switch, redundant PSU, Universal Ports, 1U |
| OXS-XC032-UN | Orion XC 32 port matrix switch, redundant PSU, Universal Ports, 1U |
| OXS-XC048-UN | Orion XC 48 port matrix switch, redundant PSU, Universal Ports, 1U |
| Orion XC Switch — MIXED CATX + FIBER PORTS | |
| OXS-XC48TP16FS | Orion XC 64 port matrix switch, redundant PSU, 48 x CATx, 16 x 1G Fiber SM, 2U |
| OXS-XC48TP32FS | Orion XC 80 port matrix switch, redundant PSU, 48 x CATx, 32 x 1G Fiber SM, 2U |
| OXS-XC48TP16F3 | Orion XC 64 port matrix switch, redundant PSU, 48 x CATx, 16 x 2.5G Fiber SM, 2U |
| OXS-XC48TP32F3 | Orion XC 80 port matrix switch, redundant PSU, 48 x CATx, 32 x 2.5G Fiber SM, 2U |
| Orion XC Switch — MIXED CATX + UNIVERSAL PORTS | |
| OXS-XC48TP16UN | Orion XC 64 port matrix switch, redundant PSU, 48 x CATx, 16 x Universal Ports, 2U |
| OXS-XC48TP32UN | Orion XC 80 port matrix switch, redundant PSU, 48 x CATx, 32 x Universal Ports, 2U |
| Orion XC Switch — MIXED FIBER + UNIVERSAL PORTS | |
| OXS-XC48FS16UN | Orion XC 64 port matrix switch, redundant PSU, 48 x 1G Fiber SM, 16 x Universal Ports, 2U |
| OXS-XC48FS32UN | Orion XC 80 port matrix switch, redundant PSU, 48 x 1G Fiber SM, 32 x Universal Ports, 2U |
| Orion XC Switch— CARDS for insertion into 6-bay or 21-bay Orion XTender chassis | |
| OXS-XC008-TP/IRK | Orion XC 8 ports (card version), CATx |
| OXS-XC008-FS/IRK | Orion XC 8 ports (card version), 1G Fiber SM |
| OXS-XC008-F3/IRK | Orion XC 8 ports (card version), 2.5G Fiber SM |
| OXS-XC008-UN/IRK | Orion XC 8 ports (card version), Universal Ports |
| Orion X Receivers – CATx | |
| OR2-SRDTXUD1D | DVI-D, USB HID |
| OR2-SRDTXTD1D | DVI-D, USB HID, USB 2.0 |
| OR2-SRDTXUS1V | DVI-I (VGA, no scaling), USB HID |
| OR2-SRDTXTD1V | DVI-I (VGA, with scaling), USB HID |
| OR2-SRDTXUH1H | HDMI, USB HID |
| OR2-SRDTXUD1D/AUD | DVI-D, USB HID, Audio, Serial |
| OR4-SRDTXTD1D/AUD | DVI-D, USB HID, USB 2.0, Audio, Serial |
| OR4-SRDTXTD2D/AUD | Dual-head DVI-D, USB HID, USB 2.0, Audio, Serial |
| Orion X Receivers – Fiber single-mode (supports Single-Mode and Multi-Mode Fiber) | |
| OR2-SRDFSUD1D | DVI-D, USB HID |
| OR2-SRDFSTD1D | DVI-D, USB HID, USB 2.0 |
| OR2-SRDFSUD1D/AUD | DVI-D, USB HID, Audio, Serial |
| OR4-SRDFSTD1D/AUD | DVI-D, USB HID, USB 2.0, Audio, Serial |
| Orion X Transmitters – CATx | |
| OT2-SLDTXUD1D | DVI-D, USB HID |
| OT2-SLDTXUS1V | DVI-I (VGA, no scaling), USB HID |
| OT2-SLDTXUD1V | DVI-I (VGA, with scaling), USB HID |
| OT4-SLDTXTD1V | DVI-I (VGA, with scaling), USB USB 2.0, HID |
| OT2-SLDTXTD1D | DVI-D, USB HID, USB 2.0 |
| OT4-SLDTXTD1V | DVI-I (VGA), USB USB 2.0, HID |
| OT2-SLDTXUD1D/AUD | DVI-D, USB HID, Audio, Serial |
| OT4-SLDTXUD1V/AUD | DVI-I (VGA), USB HID, Audio, Serial |
| OT4-SLDTXTD1D/AUD | DVI-D, USB HID, USB 2.0, Audio, Serial |
| OT4-SLDTXTD2D/AUD | Dual-head DVI-D, USB HID, USB 2.0, Audio, Serial |
| OT4-SLDTXTD1V/AUD | DVI-I (VGA), USB USB 2.0, HID, Audio, Serial |
| Orion X Transmitters – Fiber single-mode (supports Single-Mode and Multi-Mode Fiber) | |
| OT2-SLDFSUD1D | DVI-D, USB HID |
| OT2-SLDFSUD1V | DVI-I (VGA), USB HID |
| OT2-SLDFSTD1D | DVI-D, USB HID, USB 2.0 |
| OT4-SLDFSTD1V | DVI-I (VGA), USB HID, USB 2.0 |
| OT2-SLDFSUD1D/AUD | DVI-D, USB HID, Audio, Serial |
| OT4-SLDFSUD1V/AUD | DVI-I (VGA), USB HID, Audio, Serial |
| OT4-SLDFSTD1D/AUD | DVI-D, USB HID, USB 2.0, Audio, Serial |
| OT4-SLDFSTD1V/AUD | DVI-I (VGA), USB HID, USB 2.0, Audio, Serial |
| Transmitters and receivers are partial list, see Orion Xtender data sheet for full information | |
