RackView 20 DVI

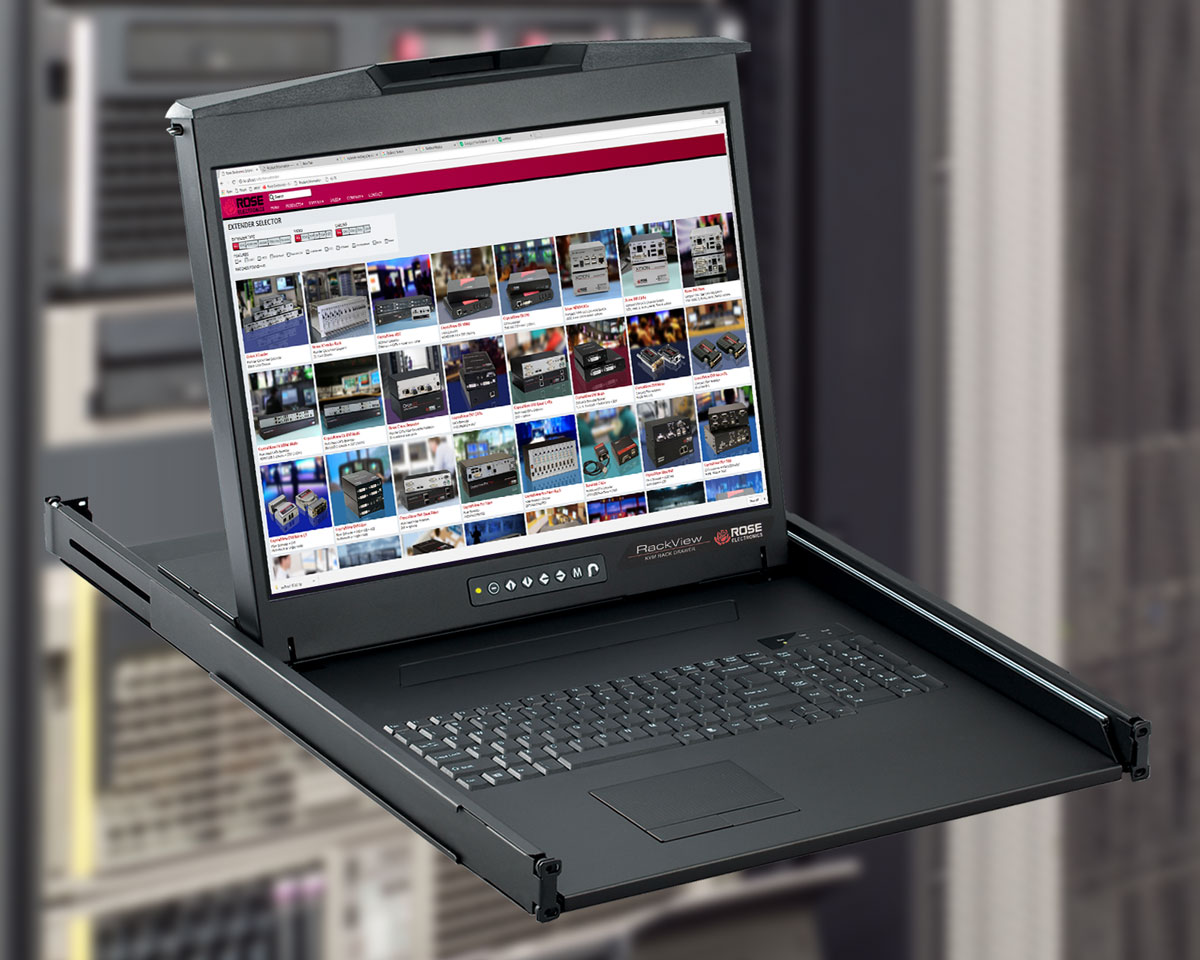

KVM Rack Drawer • 20" LCD
- High resolution 20.1" TFT, 1U height
- DVI or VGA video interface, 1600×1200(UXGA)
- Supports a rear-mounted DVI or VGA KVM switch
- USB and PS2 keyboard/mouse connections
- Lockable front panel secures and conceals the unit
- Monitor OSD allows for easy video adjustments
- Optional trackball mouse and DC power
- Optional video includes HDMI and S-Video
OVERVIEW
RackView 20" offers the latest, most efficient way to organize and streamline your server rooms and multiple computers. The RackView 20" is a rack mountable KVM station neatly fitted in a compact pull-out drawer. The easy-glide KVM station contains a high resolution Bright Active Matrix TFT display that provides crisp images at high resolution up to 1600×1200, and wide viewing angles, a tactile keyboard and a 2-button touchpad mouse. The lockable front panel neatly conceals the unit when it is not in use.
RackView 20" can be connected to a computer or any Rose Electronics KVM switch. Rose Electronics KVM switch options are fully expandable and when connected to the RackView 20", your system becomes a versatile distributed matrix controlled system with multi-user capability, controlled access to the servers, and many other features. PC's, SUN, MAC and UNIX systems can easily be accessed, monitored, and controlled locally using the RackView 20". A built-in 12-port single user DVI/USB switch or 8/16-port VGA/USB switch can also be added to the RackView chassis. These switches are mounted in the rear of the RackView chassis, and each kit includes a quantity of CPU cables for easy installation.
SPECIFICATIONS
| Dimensions | 17.3" x 25.6" x 1.73" (440 x 650 x 44 mm) |
| Weight | 31.9 lb (14.5 kg) |
| Resolution | 1600 x 1200 |
| Diagonal size | 20.1" |
| Viewing Area | 16.06" x 12.05" (408 x 306 mm) |
| Dot pitch | 0.255 mm |
| Colors | 16.7M |
| Contrast ratio | 800:1 |
| Brightness | 300 cd/m² |
| Backlight | CCFL |
| MTBF | 45,000 hours |
| Response time | 16 ms |
| Power | Auto-sensing 100 to 240VAC, 50-60Hz |
| Watts | Max. 48 Watt, Standby 4 Watt |
| Controls | 7 backlit buttons for OSD control1 on/off power buttonGreen LED = On. Orange LED = Power Saving |
| Connectors | DVI female: DVI videoHD15 female: VGA video,PS/2 and USB keyboard and mouse |
| Environment | Operating temperature: 32°F–131°F (0°C–55°C)Storage temperature: -4°F–140°F (-20°C–60°C)Relative humidity: 5%–90%, non-condensing |
PART NUMBERS
| KVM Rack Drawer | |
|---|---|
| RV1-CAKVT20/DVI/Kn | 20" LCD, 1600x1200 |
| RV1-CAKVT20/DVI/KVM-108CMB | RackView, KVM Drawer, 20" 1600 x 1200 LCD, with an 8-port VGA/USB switch and a cascade port (8* CPU cables included) |
| RV1-CAKVT20/DVI/KVM-116CMB | RackView, KVM Drawer, 20" 1600 x 1200 LCD, with a 16-port VGA/USB switch and a cascade port (8* CPU cables included) |
| RV1-CAKVT20/DVI/KVM-12TDVI | RackView, KVM Drawer, 20" 1600 x 1200 LCD, with a 12-port DVI/USB switch (6* CPU cables included) |
| Cables (CPU) | |
| CAB-CMBVM66C005 | Combo(HD15) to VGA+PS2 |
| CAB-CMBVMUAC005 | Combo(HD15) to VGA+USB |
| CAB-CMBDVUAC005 | Combo(HD15)+DVI-D to DVI-I+USB |
| Cables (User port) | |
| /K1 | HD15 -HD15 + (1) USB-A |
| /K2 | HD15 to HD15 + (2) PS2 |
| /K3 | DVI-D +VGA-M to DVI-I + USB-A |
| Options | |
| /nnnDC | 12/24/48/125/250 DC power option |
| /HM | HDMI with dual stereo speakers, 2W x 2 |
| /AV | S-Video + Composite (BNC) |
| /KM | Trackball Mouse |
| International keyboard layout (add /nn to part number) | /UK,/DE,/FR,/SP,/IT,/NE,/NO,/RU,/SW, /PO,/CH,/JP,/KR,/AR,/TU |
