RackView Widescreen 19
KVM Rack Drawer • 19" Widescreen LCD
- Widescreen 19" TFT with resolution up to 1440×900 - DVI or VGA
- Easy-glide 1U KVM drawer can be mounted at any height in a standard 19" rack
- Fold and tilt the LCD Monitor for optimum viewing position
- Supports a rear-mounted DVI or VGA KVM switch
- Front USB port for device access (with Hub KVM only)
- Closing drawer puts LCD in standby
- USB keyboard/touchpad interface
- Monitor OSD allows for easy adjustments of color, brightness, contrast, position, and shape of the display
- Optional trackball mouse and DC power
- Optional video includes HDMI, S-Video and SD-SDI
- LCD panel protected by tempered glass
- Mounting rails included
- Options available
- 18 International keyboard versions available
- Integrated KVM switch, DVI (12 port) or VGA/USB (8 or 16 port)
- HDMI (replaces the DVI interface)
- DC power, 12, 24, 48, 125, 250V
- 3G/HD/SD-SDI video
- S-Video + Composite (BNC)
- Trackball mouse
OVERVIEW

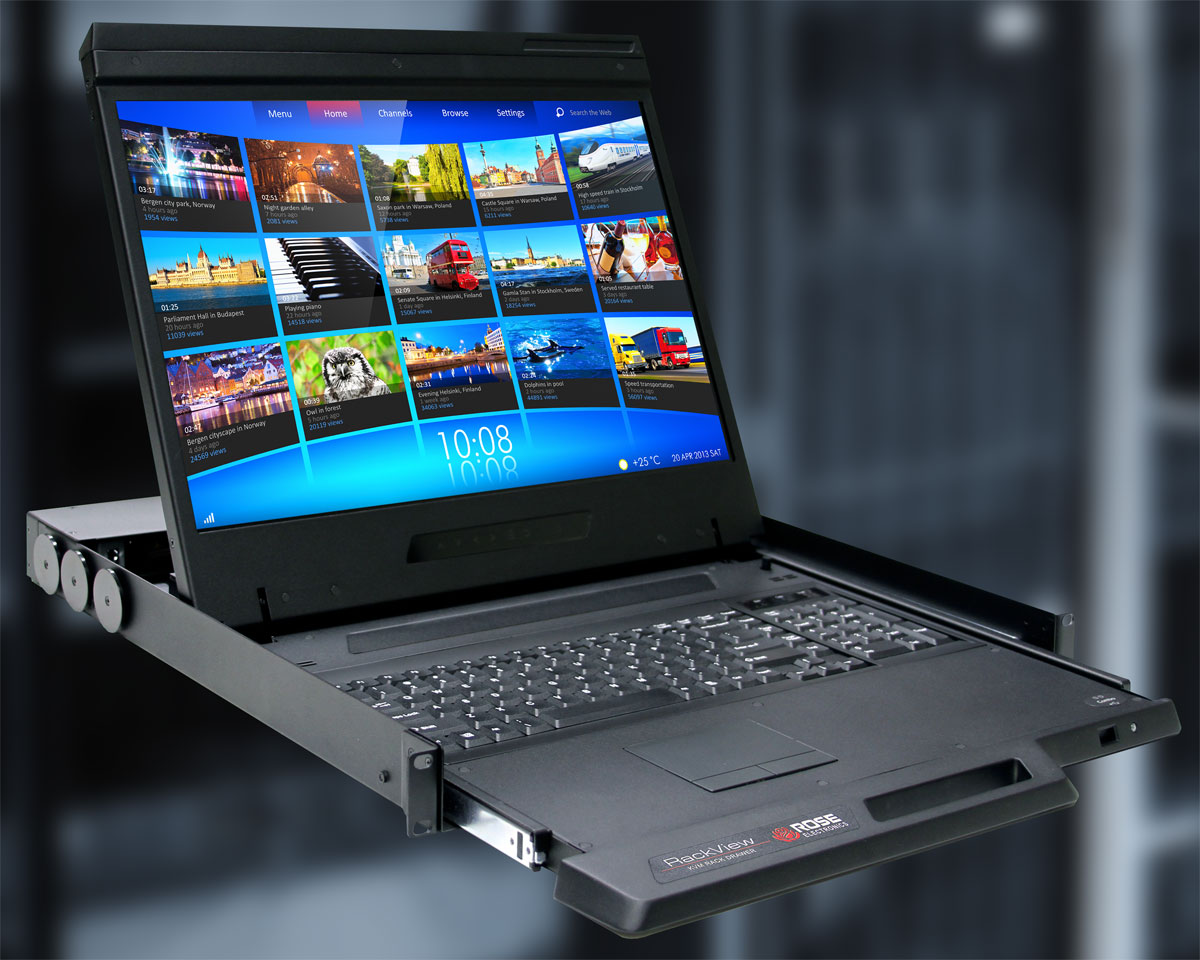

RackView Widescreen 19" is a rack mountable KVM station fitted in a 1U compact pullout drawer. This sliding KVM station contains a high quality widescreen LCD monitor capable of resolutions up to 1440×900, a tactile keyboard, and a touchpad or trackball mouse. The widescreen LCD is suited to displaying video and many applications such as spreadsheets where you can see more columns.
The RackView Widescreen 19" features a Samsung LCD panel known for its high quality and reliability. Its LED backlighting technology and shutdown on close features help to conserve energy and reduce heating in your power-hungry data center.
Installing RackView Widescreen 19" is a breeze. Just screw the provided adjustable mounting rails to your standard 19" rack. Slide the unit into the mounted brackets and secure it. One person can easily install the RackView Widescreen 19" in a rack.
The product comes standard with a DVI-USB signal cable and a power cord. This model does not offer a PS/2 interface. Additional options include KVM switches, SDI video, HDMI, audio, and DC power. Get organized and get a RackView Widescreen 19" for your enterprise.
RackView + KVM Switch options include three different KVM switches that will satisfy most data center applications. There is an 8 or 16-port VGA/USB switch with a combined 2-port USB2.0 hub, an 8 or 16-port VGA/USB switch with a cascade port for 8-level cascades, and a 12-port DVI/USB switch. These switches are mounted in the rear of the RackView chassis, and each kit includes a quantity of CPU cables for easy installation.
SPECIFICATIONS
| Dimensions | 17.4" x 18.1" x 1.73" (442 x 460 x 44 mm) |
| Weight | 25.3 lb (11.5 kg) |
| Resolution | 1440 x 900 |
| Diagonal size | 19" |
| Viewing Area | 16.06" x 10.04" (408 x 255 mm) |
| Dot pitch | 0.2835 mm |
| Colors | 16.7M |
| Contrast ratio | 1000:1 |
| Brightness | 300 cd/m² |
| Backlight | CCFL |
| MTBF | 50,000 hours |
| Response time | 5 ms |
| Power | Auto-sensing 100 to 240VAC, 50-60Hz |
| Watts | Max. 25 Watt, Standby 4 Watt |
| Controls | 6 backlit buttons for OSD control1 on/off power button |
| Connectors | DVI female: DVI videoHD15 female: VGA video, PS/2 and USB keyboard and mouse |
| Environment | Operating temperature: 32°F–131°F (0°C–55°C)Storage temperature: -4°F–140°F (-20°C–60°C)Relative humidity: 20%–90%, non-condensing |
PART NUMBERS
| KVM Rack Drawer | |
|---|---|
| RV1-CAKVT19/WS/Kn | 19" Widescreen LCD, 1440x900 |
| RV1-CAKVT19/WS/KVM-108CMH | RackView, KVM Drawer, 19WS" 1440 x 900 LCD, with an 8-port VGA/USB switch with a 2-port USB hub (8* CPU cables included) |
| RV1-CAKVT19/WS/KVM-116CMH | RackView, KVM Drawer, 19WS" 1440 x 900 LCD, with a 16-port VGA/USB switch with a 2-port USB hub (8* CPU cables included) |
| RV1-CAKVT19/WS/KVM-108CMB | RackView, KVM Drawer, 19WS" 1440 x 900 LCD, with an 8-port VGA/USB switch and a cascade port (8* CPU cables included) |
| RV1-CAKVT19/WS/KVM-116CMB | RackView, KVM Drawer, 19WS" 1440 x 900 LCD, with a 16-port VGA/USB switch and a cascade port (8* CPU cables included) |
| RV1-CAKVT19/WS/KVM-12TDVI | RackView, KVM Drawer, 19WS" 1440 x 900 LCD, with a 12-port DVI/USB switch (6* CPU cables included) |
| Cables (CPU) | |
| CAB-CMBVM66C005 | Combo(HD15) to VGA+PS2 |
| CAB-CMBVMUAC005 | Combo(HD15) to VGA+USB |
| CAB-CMBDVUAC005 | Combo(HD15)+DVI-D to DVI-I+USB |
| Cables (User port) | |
| /K1 | HD15 -HD15 + (1) USB-A |
| /K2 | HD15 to HD15 + (2) PS2 |
| /K3 | DVI-D + VGA-M to DVI-I + (1) USB-A |
| Options | |
| /nnnDC | 12/24/48/125/250 DC power option |
| /HM | HDMI with dual stereo speakers, 2W x 2 |
| /SD | 3G/HD/SD-SDI Broadcast video |
| /AV | S-Video + Composite (BNC) |
| /KM | Trackball Mouse |
| International KB (add /nn to part number) | /UK,/DE,/FR,/SP,/IT,/NE,/NO,/RU,/SW, /PO,/CH,/JP,/KR,/AR,/TU |
