UltraLink 2 HDMI
Single computer HDMI KVM-IP remote access
- Connect to a remote computer, server, or KVM switch over IP using VNC Viewer software from RealVNC®
- Start up and BIOS control
- Supports resolutions up to 1920 x 1200 @60Hz, 30fps, depending on available network bandwidth
- Accepts DVI and DisplayPort input with converter cables
- Intelligent EDID management
- KVM console connections for local access at the unit
- Powered by an AC power adapter
- Files can be transferred between directly connected computers and remote computers
- Easy installation and configuration over IP
- Flash upgradeable to keep the unit up to date with new features and enhancements
- Private single-user access or shared access, with up to eight remote users accessing the computer connection simultaneously
- Create up to 15 user profiles with event logging
- Compatible with Rose Electronics Vista DVI+ 4-port KVM switch
- State of the art security using AES 128-bit or 256-bit encryption and RSA 2048-bit public key authentication
- Configurable to use your LDAP server for User authorization
- Optional Rack mount kits available for mounting up to 16 units in 2U of rack space
- Can control programmable power switches through a USB to serial port adapter
OVERVIEW
The UltraLink 2 HDMI, when installed and connected to your network, allows you full access and control of the connected computer using the VNC Viewer client from almost anywhere. This small, flexible, and powerful product uses RealVNC® client software that is designed for very secure, encrypted, and password protected exchange of information between the server and the remote viewer.

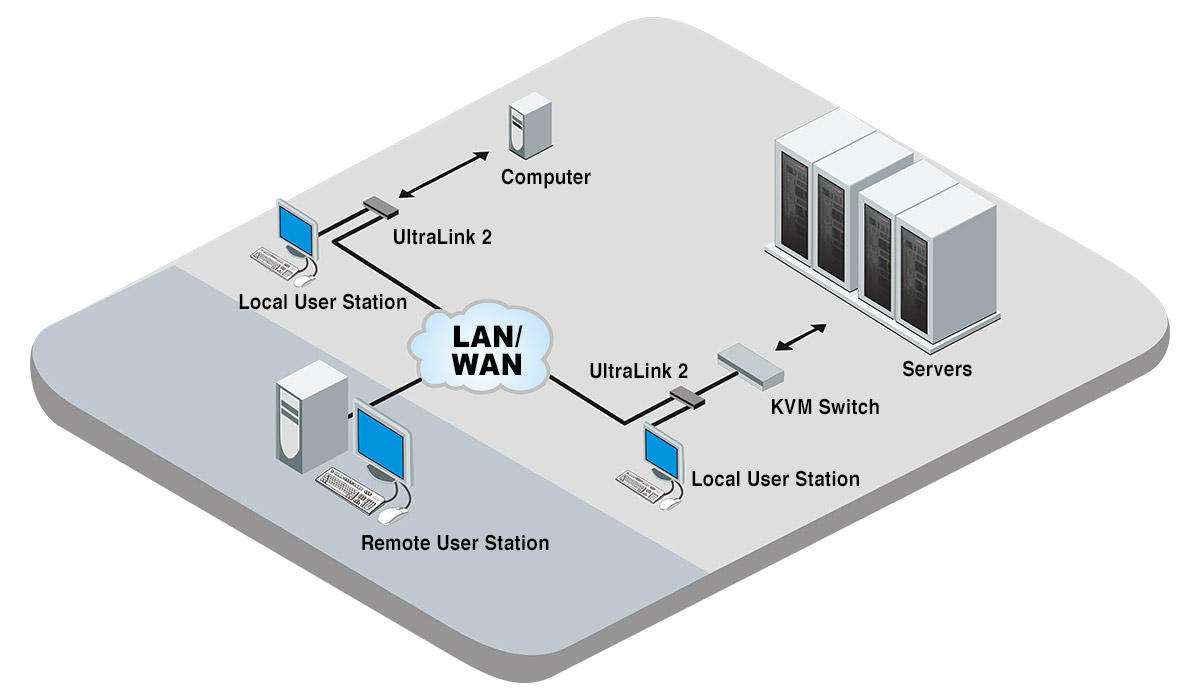

The UltraLink 2 HDMI sets a new standard for easy remote and secure management of server room environments, standalone applications such as digital signage, and many other remote applications. Connect the UltraLink 2 HDMI to a DVI/USB KVM switch like the Vista DVI Plus, and you now have access to and control of as many computers as your KVM switching system can support.
The UltraLink 2 HDMI is different in the way it manages remote access to your systems. All of the systems that will be accessed remotely remain completely unchanged and can run their usual operating system normally. They only need to be connected to the UltraLink 2 HDMI unit. Being totally operating system independent, the UltraLink 2 HDMI allows users to remotely connect to Windows, Linux, UNIX, and Sun systems without difficulty. The UltraLink 2 HDMI is ideal for remote computers running stand-alone applications like ATMs and digital signage devices.
Whatever your remote accessing needs, the versatility of the UltraLink 2 HDMI from Rose Electronics makes it a great choice. It can be installed at any network level, and connected to a single server, a computer running any operating system, or to a KVM switch.
SPECIFICATIONS
| Dimensions (W x D x H) | 6.65" x 4.41" x 1.22" (169 x 112 x 31 mm) |
| Weight | 1.3 lb (0.6 kg) |
| Power | Input: 100-240 VAC, 47-63 HzOutput: +12VDC, 18W |
| Resolution | 1920 x 1200 @ 60Hz, up to 30fps |
| Distance | CPU/KVM: 6 feet (2.0m) |
| Connectors | Computer:1 x HDMI Female1 x USB Type B femaleLocal Console:1 x HDMI female3 x USB Type B female1 x 3.5mm stereo audio outputNetwork :1 x RJ45 female |
| Controls | Front Panel Status LEDs: Link, Local, Remote, PowerRJ45 port LEDs: Link, Data |
| Environment | Operating temperature: 32°F–104°F (0°C–40°C)Storage temperature: -13°F–140°F (-25°C–60°C)Relative humidity: 5%–80%, non-condensing |
PART NUMBERS
| Product Part Number | Description |
|---|---|
| UL2-DHD | UltraLink 2 HDMI, Digital KVM Access over IP |
| CAB-HDMIMDVIM003 | HDMI to DVI converter cable, 3ft |
| CAB-USBAB006 | USB-AB cable, 6ft (2.0m) |
