UltraLink 2

Single computer VGA KVM-IP remote access

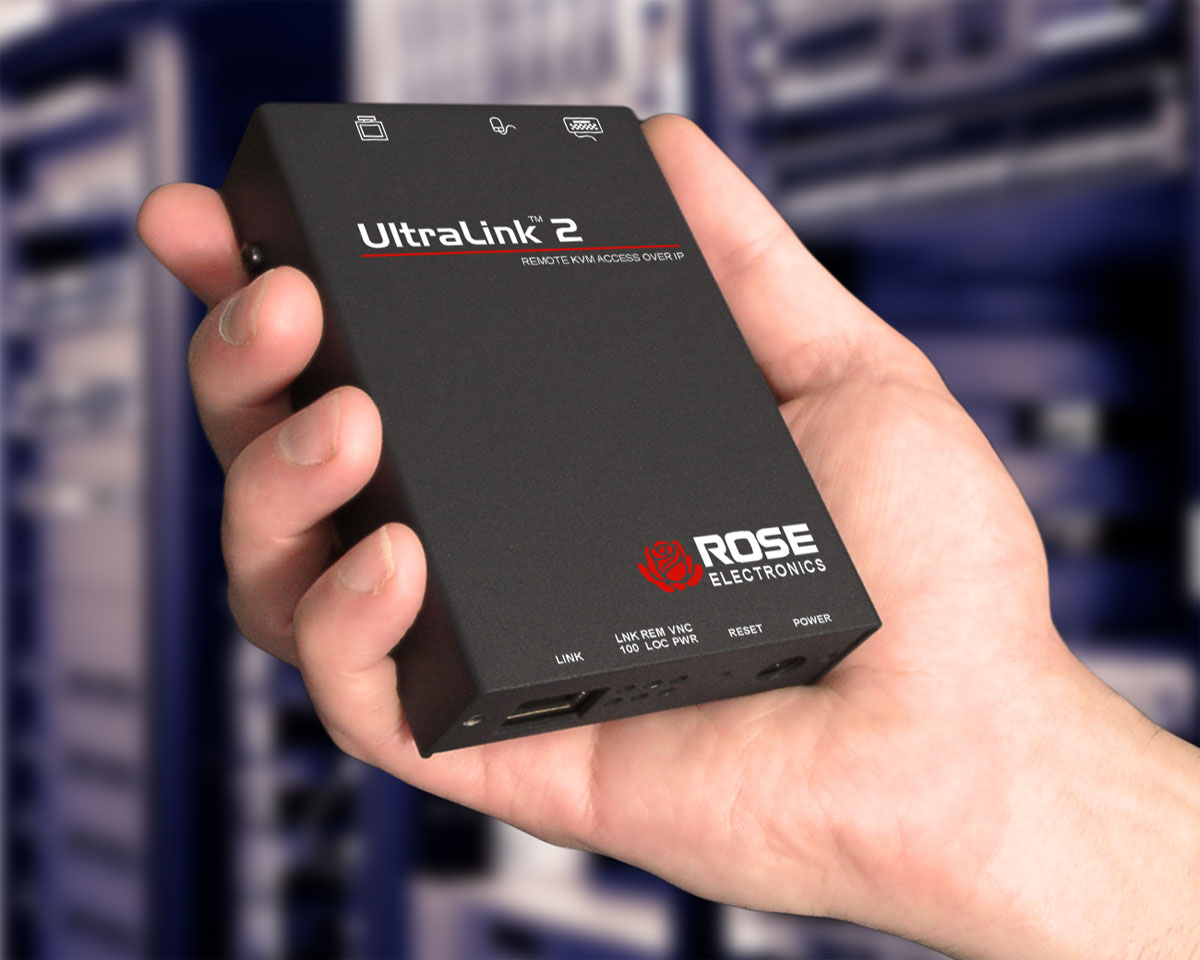

Product Picture

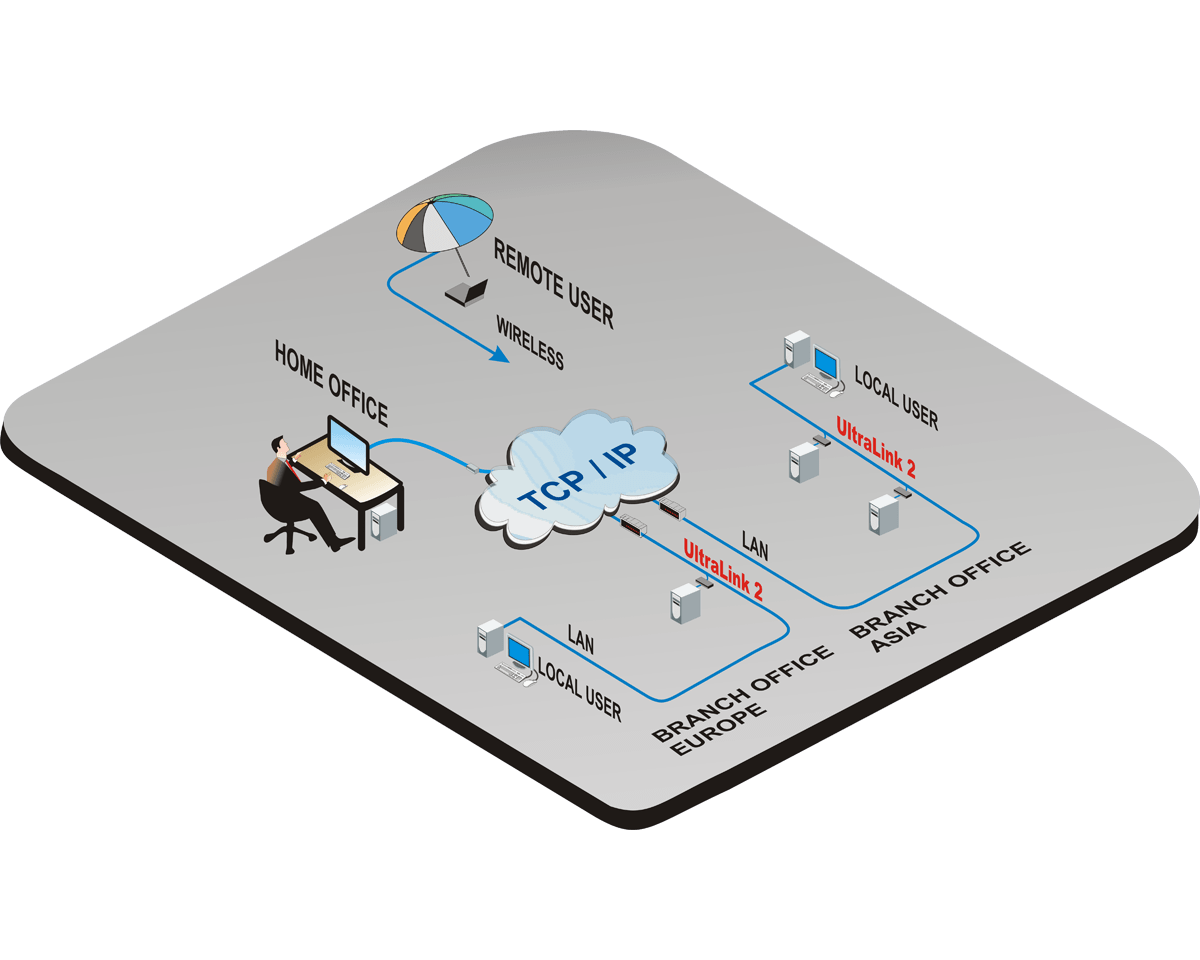

Diagram
  • Connect to a remote computer, server, or KVM switch directly or remotely over IP using any supported internet browser or the built-in Real VNC viewer
  • Hardware based unit allows full access to computer even to BIOS
  • Supports VGA video to 1600×1200@60Hz and USB or PS/2 keyboard and mouse
  • Power supplied from the computer’s keyboard, mouse, or USB ports
  • Virtual Media (via USB) support feature allows authorized remote users to transfer files and folders (2Gig max) to a host computer
  • Dual model features local access for unit configuration and direct access to the connected computer
  • Flash upgradeable so your unit is always up to date with new features and enhancements
  • Shared access allows up to four simultaneous users to access at one time
  • Up to 16 user profiles can be set-up with event logging
  • Compatible with Rose Electronics KVM switches, extenders, and most other KVM devices
  • Front panel indicators show Link, Local or Remote connection, VNC access, Network speed, and Power
  • Security using AES 128 bit encryption and RSA 2048 bit public key authentication
  • IP lockout feature for incorrect login
  • Configurable to use your LDAP server for authorization and validation

OVERVIEW

UltraLink 2 is a compact and low cost solution for remote IP access and KVM switching with a wide range of applications. It provides access to computers and servers locally, across a network, or over IP using a web browser.

The unit can be connected to a Rose Electronics KVM switch to provide access to as many as 1,000 computers or servers from anywhere in the world.

UltraLink 2 is easy to install and configure. Connect the unit, assign an IP address and network information, remotely connect to the unit and it's ready to use.

Rather than pay for the expense of traveling to a remote site to perform an upgrade or patch, the Virtual Media feature allows IT professionals to remotely access USB equipped systems and perform patches and upgrades. On the dual access model, a local KVM station can be connected for direct access to the connected computer.

Front panel indicators show:

  • The network link activity
  • Local or remote data received from the computer
  • Indicates a remote viewer is connected
  • Indicates the Ethernet network speed (10 / 100 Mbps)
  • Power indicator

SPECIFICATIONS

Dimensions
(W x D x H)
UL2-SA: 2.95" x 4.72" x 1.06" (75 x 120 x 27 mm) UL2-DA: 2.95" x 4.72" x 1.65" (75 x 120 x 42 mm)
Weight UL2-SA: 0.75 lb (0.3 kg)UL2-DA: 1 lb (0.5 kg)
Power From Host Computer via USBOptional +5V power adapter UL2-SA: 5WUL2-DA: 6W
Resolution VGA: 1600 x 1200
Distance CPU/KVM: 25 feet (7.6m)
Connectors Computer:VGA video: HD15FPS/2 keyboard: Mini-din6FPS/2 mouse: Mini-din6FLocal port (UL2-DA):VGA video: HD15FPS/2 keyboard: Mini-din6FPS/2 mouse: Mini-din6FNetwork: RJ45 jack
Controls Reset: Push-buttonPower: Green LEDLink: Green LEDLocal: Green LEDRemote: Green LEDVNC: Green LEDSpeed: Green LED
Environment Operating temperature: 32°F–113°F (0°C–45°C)Storage temperature: -13°F–140°F (-25°C–60°C)Relative humidity: 5%–80%, non-condensing

PART NUMBERS

Product Part Number Description
UL2-SA UltraLink 2, Web browser based KVM Access Over IP, Single access unit
UL2-DA UltraLink 2, Web browser based KVM Access Over IP, Dual access unit
UL2-SA/SW UltraLink 2, Web browser based KVM Access Over IP, Single access unit w/ power supply
UL2-DA/SW UltraLink 2, Web browser based KVM Access Over IP, Dual access unit w/ power supply

DOCUMENTS

DOCUMENT LINK
Datasheet • UltraLink 2 PDF
Quick Start • UltraLink 2PDF
Manual • UltraLink 2 • Installation and Operation PDF
