UltraMatrix AV DVI 8

DVI Matrix Switch • 8×8

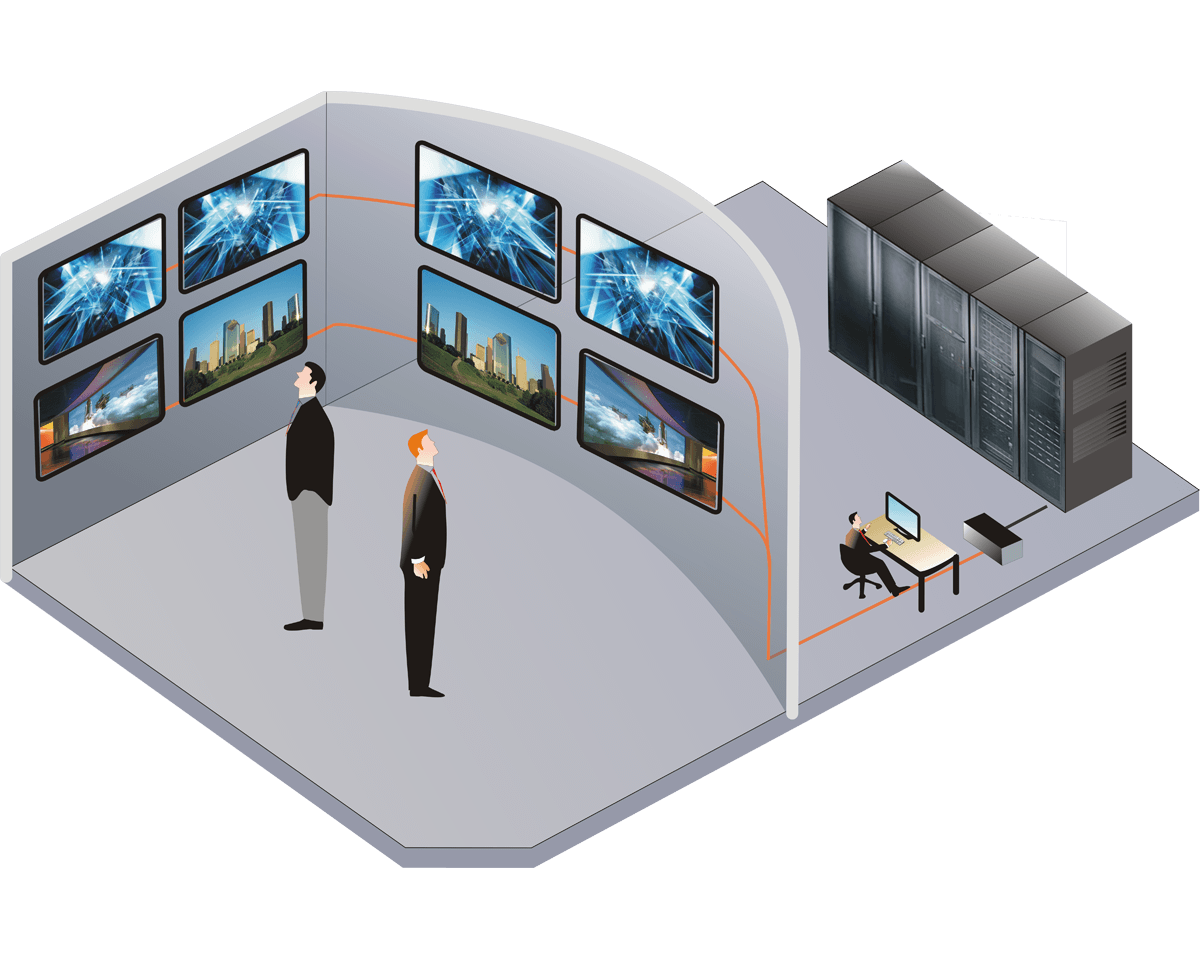

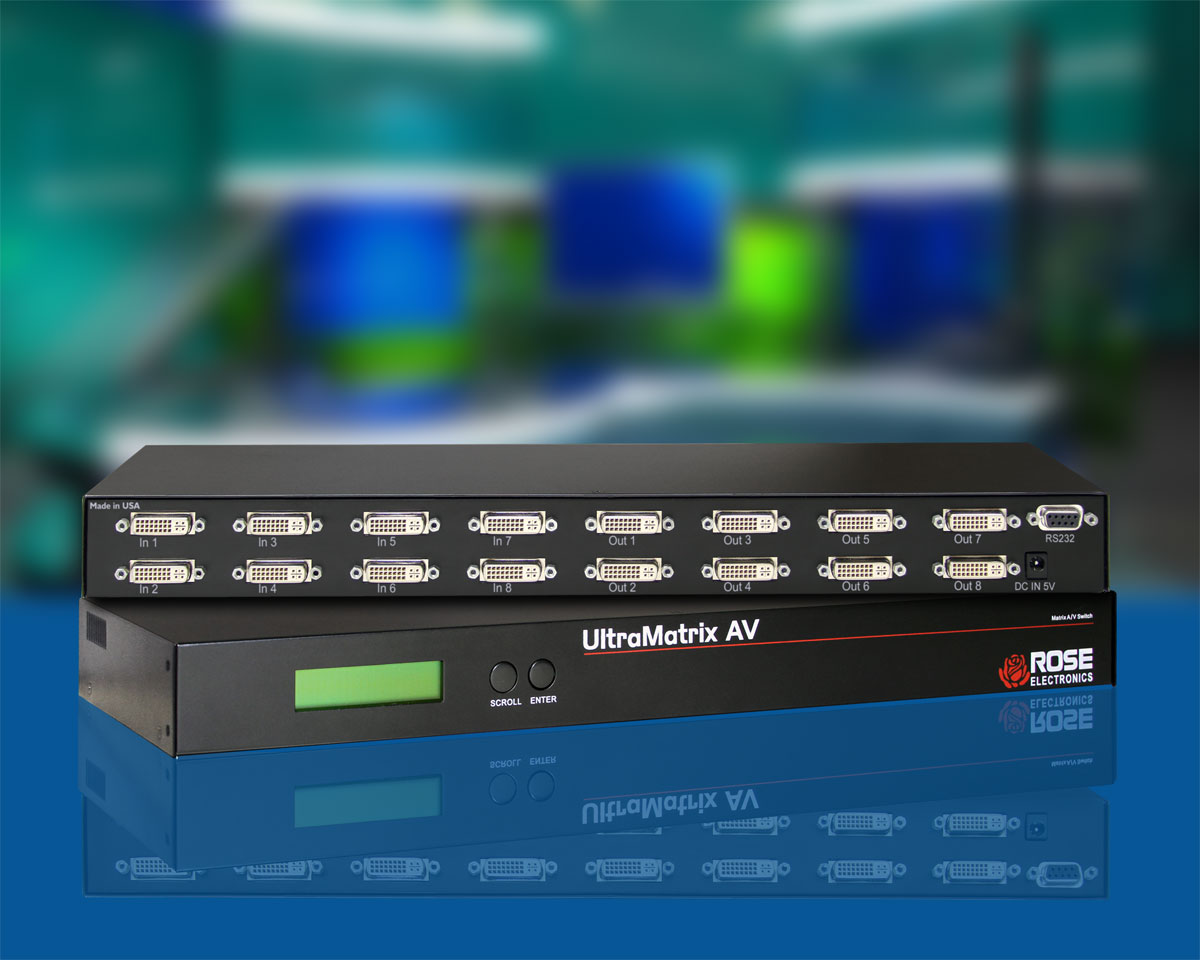

Product Picture
Diagram
  • Switch single-link DVI video from any input to any output
  • Select and view connection source and destination from front panel
  • Switch from front panel or RS232 port using control software provided with unit
  • Extends the monitor and speakers up to 50 feet from the unit
  • Built-in DDC learning mode simplifies operation
  • Supports all video formats (VGA / SVGA / XGA / RGBHV / SOG)
  • Video bandwidth of 200MHz
  • Supports resolutions up to 1920×1200
  • Save and playback up to 50 different macro routing sequences
  • Windows based software control for quick and easy switching
  • Optional Ethernet interface for control over network

OVERVIEW

The UltraMatrix AV DVI-D matrix switch is the perfect addition to new or existing installations that need to display 1 to 16 video sources to 1 to 16 remote DVI-D displays. Pick one video source and display it on 1, 2, or all monitors.

Easy front panel selection of the video source to displayed on each remote monitor. Just push a button and select the source, then select the destination port. The front panel display shows which computers are connected to the displays.

Selection can also be performed by using the provided RoseControl software that sends switching command to the unit. With one click on the cross-point, that computers video is instantly switched to the selected DVI-D monitor. These commands are sent using the RoseControl software installed on a computer or laptop and connected to the RS232 port on the unit.

SPECIFICATIONS

Dimensions (W x D x H) 17" x 6.75" x 1.75" (432 x 171 x 44.5 mm)
Weight 6 lb (2.7 kg)
Power 90-230 VAC 50-60Hz External adapter, +5V DC, 5A 25W
Resolution DVI: 1920 x 1200
Distance Video: 25 feet (7.6m)
Connectors Video: DVISerial: DB9FPower: Barrel jack
Controls Select and configuration: 2 push-buttons and 2x20 LCD
Environment Operating temperature: 32°F–104°F (0°C–40°C)Storage temperature: -13°F–140°F (-25°C–60°C)Relative humidity: 5%–80%, non-condensing

PART NUMBERS

Product Part Number Description
UMA-04DX04D UltraMatrix AV, 4x4 DVI Matrix Switch
UMA-08DX08D UltraMatrix AV, 8x8 DVI Matrix Switch
UMA-16DX16D UltraMatrix AV, 16x16 DVI Matrix Switch

DOCUMENTS

DOCUMENT LINK
Datasheet • UltraMatrix AV DVI 8 PDF
Manual • UltraMatrix AV DVI 8 • Installation and Operation PDF
