VideoSplitter DVI Audio

DVI/Audio Splitter • One In to 2-4 Out

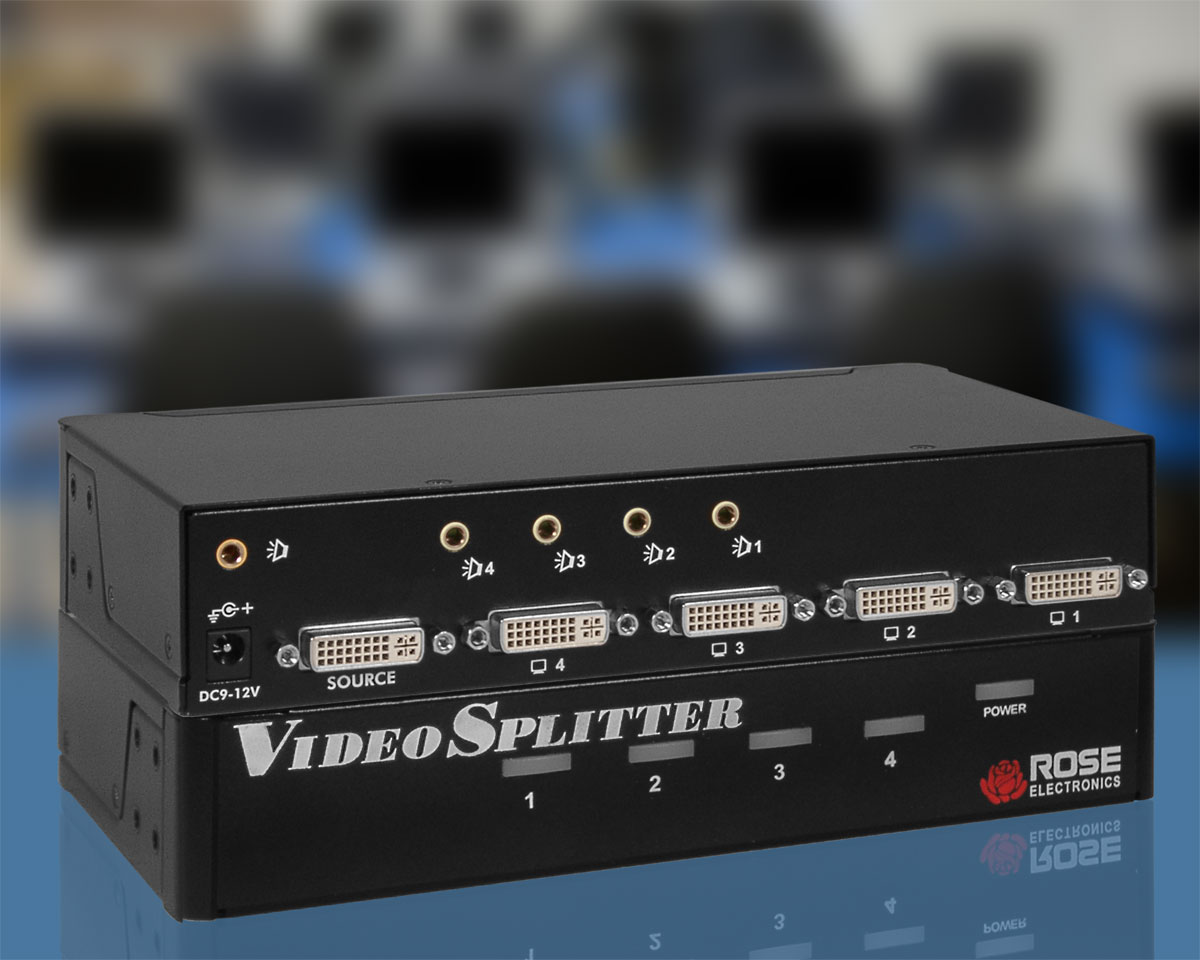

Product Picture

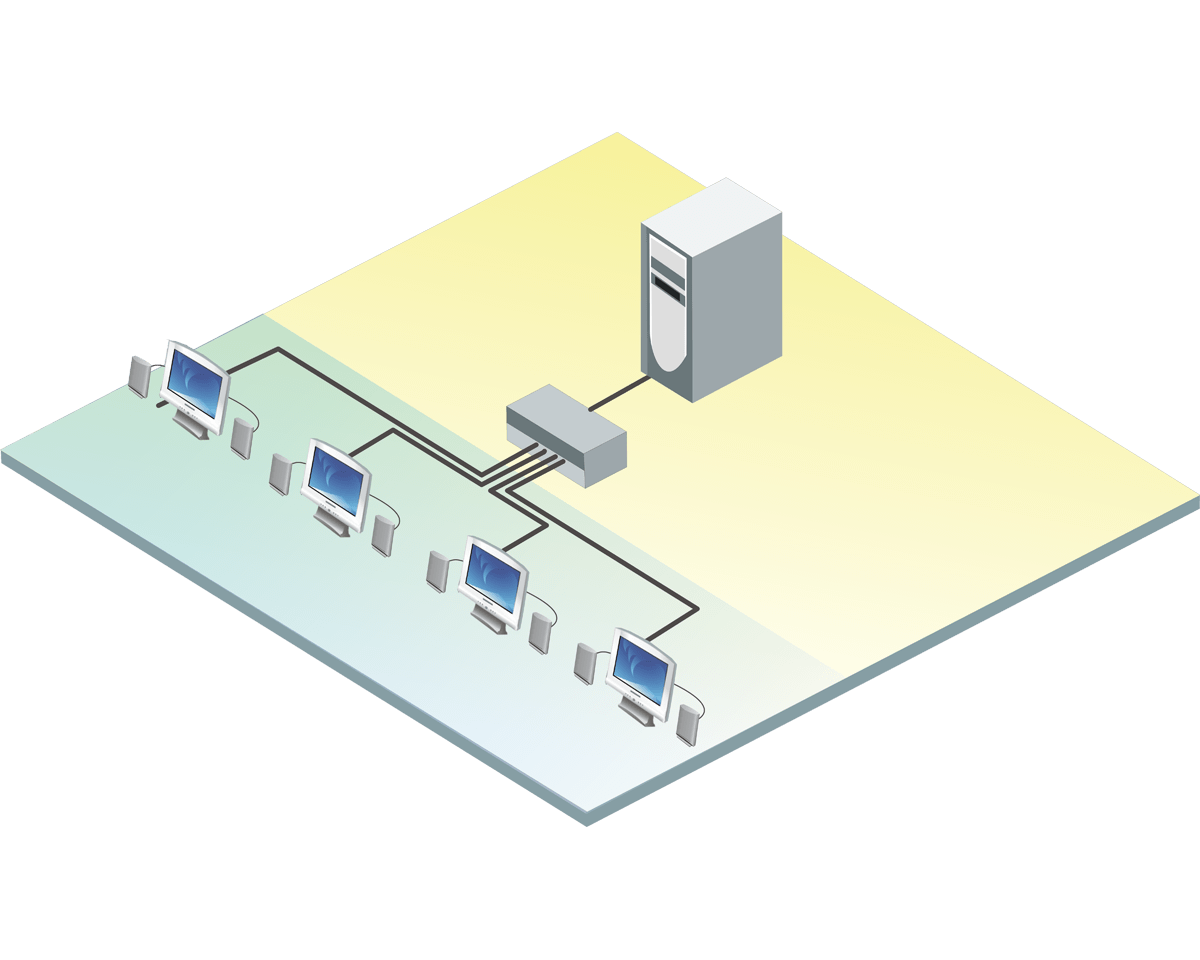

Diagram
  • Distributes one DVI-D video source and audio source to four DVI monitors and speaker sets
  • Locate the DVI monitors up to 33 ft (10m) away from the unit
  • Supports resolutions of up to 1920x1200@60Hz
  • Splits both video and analog stereo audio
  • DVI 1.0 and HDCP 1.2 compliant for easy HD video distribution
  • Compatible with DVI projectors, monitors, large displays, and video wall display systems
  • Accurate and reliable reproduction of digital video signal, with no signal attenuation or distortion
  • Each model can easily be cascaded to additional Video Splitter DVI+Audio units to increase the number of displays
  • Output status LED indicators
  • Rack mount option available

OVERVIEW

When you need to distribute DVI video and analog audio to multiple destinations, then the Video Splitter DVI+Audio from Rose Electronics is the perfect solution. The two-port model takes a single DVI video and analog input and distributes it to two DVI outputs and two speakers or audio inputs. The four-port model distributes the video signal to four DVI outputs and four speakers or audio inputs. All models have standard DVI connectors and 3.5mm stereo jacks.

Each model can easily be cascaded to additional Video Splitter DVI+Audio units to increase the number of displays. The Video Splitter DVI+Audio supports single-link video resolutions up to 1920 x 1200 at 60Hz. The audio frequency range is from 20Hz to 20Khz.

SPECIFICATIONS

Dimensions (W x D x H) 8.66" x 5.31" x 1.73" (220 x 135 x 44 mm)
Weight 2.4 lb (1.1 kg)
Power 90-240 VAC 50-60Hz External adapter, +9VDC, .6A 6W
Resolution DVI: 1920 x 1200
Distance Video: 33 feet (10m)
Connectors Video: DVIAudio: 3.5mm stereo jackPower: Barrel jack
Controls Unit power: Green LEDVideo active: Green LED per port
Environment Operating temperature: 32°F–104°F (0°C–40°C)Storage temperature: -13°F–140°F (-25°C–60°C)Relative humidity: 5%–80%, non-condensing

PART NUMBERS

Product Part Number Description
VSP-4DVI/A1 Video Splitter, Audio, 1 DVI video input, 4 DVI video outputs

DOCUMENTS

DOCUMENT LINK
Datasheet • VideoSplitter DVI Audio PDF
Manual • VideoSplitter DVI Audio • Installation and Operation PDF
