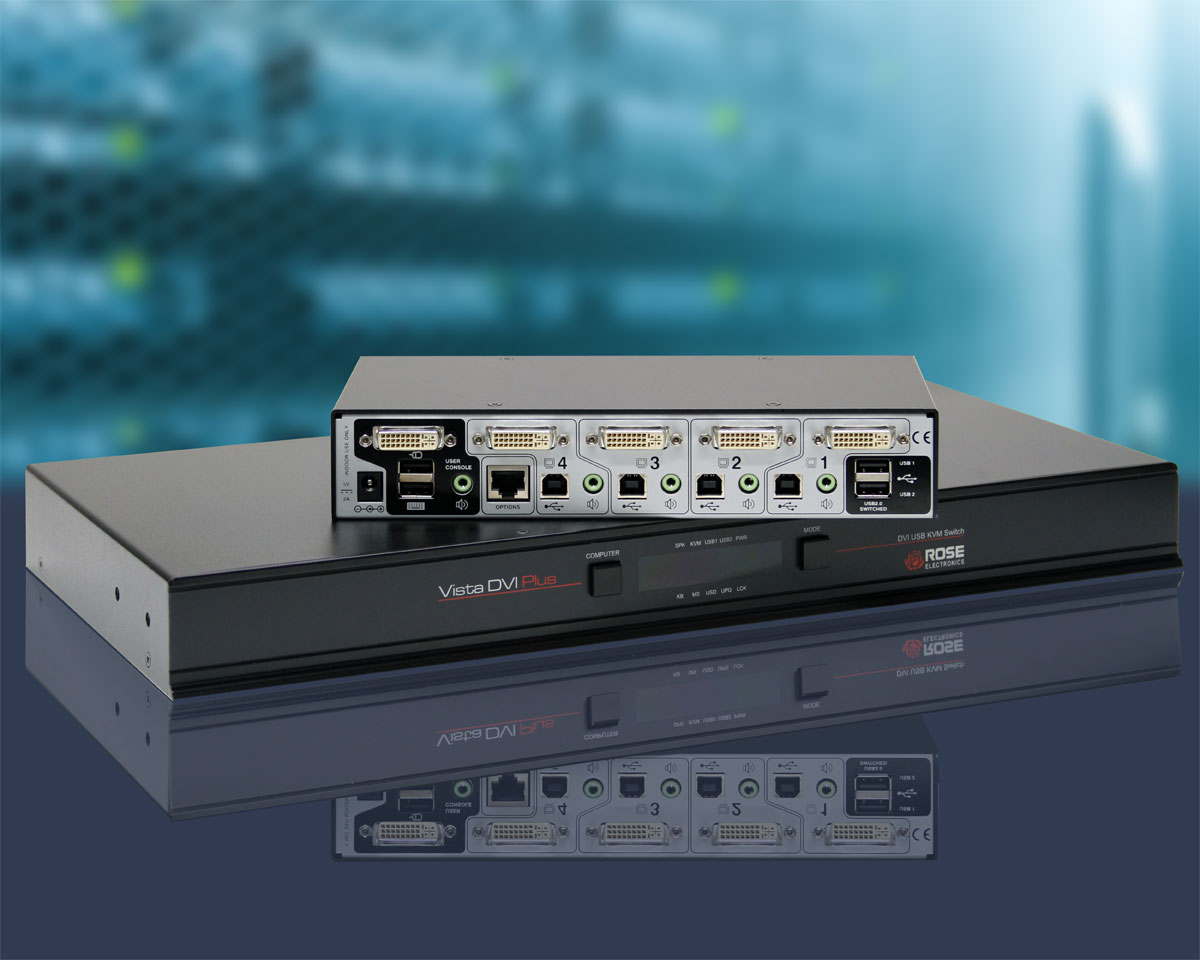

Vista DVI Plus
1×4, 1×8 KVM Switch • Dual-link DVI • VGA • USB2.0 • Audio
- Available models:
- 1×4 dual-link DVI-I KVM switch
- 1×8 dual-link DVI-I KVM switch with OSD
- Supports digital and analog video
- Digital video up to 2560×1600@60Hz, higher resolutions at lower frame rates
- Analog video up to 2048×1536
- Select a computer using the front panel switches, hotkeys, mouse buttons, or serial port
- Multi-platform support for PC’s, Apple, and Linux
- USB keyboard and mouse emulation
- EDID emulation
- Transparent USB 2-port hub for connecting shared USB devices at 480Mb/sec
- The 1x8 model includes an OSD for easy configuration and port switching
- Independent or joint switching of PCs, USB hub, audio, and microphone
- RS232 serial port for upgrades to the units firmware and for synchronizing two or more Vista DVI Plus units for multi-head switching
- Front panel indicator shows the currently active channel, peripheral switching status, keyboard and mouse activity, OSD status, upgrade mode, and power
OVERVIEW

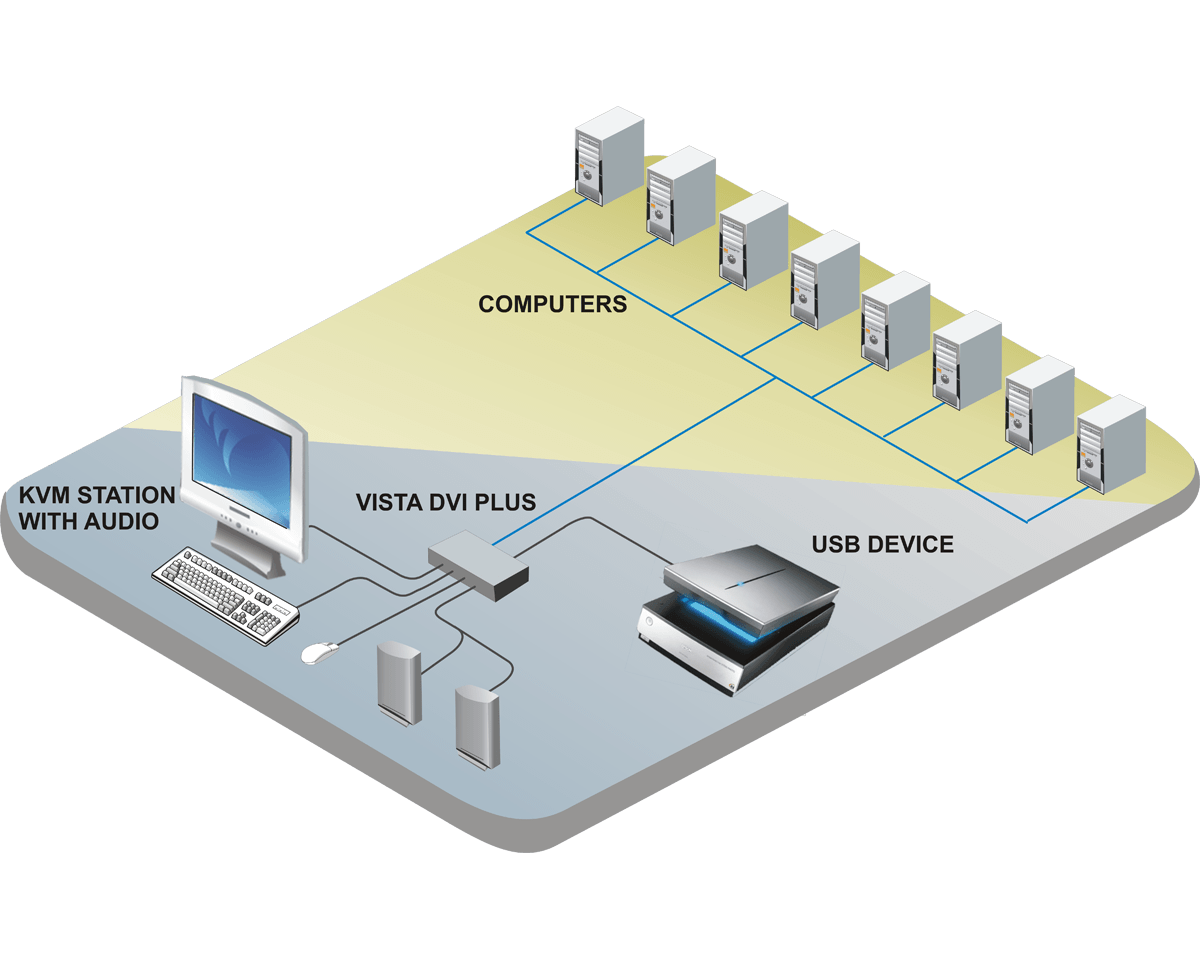

Vista DVI Plus is a powerful single user KVM switch that delivers video at a crystal clear, high quality resolution of up to 2560 x 1600 (Dual-link DVI video). All Vista DVI Plus models support both digital and analog video, USB keyboards and mice, and two USB 2.0 peripherals. The KVM, USB peripherals, and audio can all be switched together to a selected CPU port, or independently with the KVM to CPU port #1, the USB peripherals to CPU port #2, and the audio to CPU port #6. Several of the features of Vista DVI Plus make selective switching easy by using the front panel display, hotkey sequences, or serial switching commands from a remote computer via a serial cable.
Vista DVI Plus can be connected to an additional Vista DVI Plus unit and synchronized to switch video from a dual-head computer. The first video signal can be connected to one unit, and the other video signal to a second unit. When a switching command is sent to the master unit, it sends the same switching command to the secondary unit. Both units can then be switched to the same CPU port and both video signals will be displayed on the attached monitors.
Vista DVI Plus is available in 2 models:
- 1x4 Dual-link DVI-I
- 1x8 Dual-link DVI-I
SPECIFICATIONS
| Dimensions (W x D x H) |
4-port: 9.17" x 4.53" x 1.75" (233 x 115 x 44.5 mm) (1U)8-port: 19" x 8.5" x 1.75" (482 x 215 x 44.5 mm) (1U) |
| Weight | 4-port: 1.8 lb (0.8 kg)8-port: 4.6 lb (2.1 kg) |
| Power | 100-240 VAC 50-60Hz External adapter, +5V 4-port: 10W8-port: 20W |
| Resolution | Single-link DVI: 1920 x 1200Dual link DVI: 2560 x 1600 |
| Distance | CPU/KVM: 25 feet (7.6m) |
| Connectors | Video: DVI femaleKeyboard: USB Type AMouse: USB Type AAudio: 3.5mm Female audio jackUSB 2.0 device: Two USB Type A USB 2.0 host: USB Type BPower: Barrel jack |
| Controls | Computer/Mode: Front panel push buttonsComputer selection: Front panel, hot-key, mouse, or OSD (1x8 model)Selected computer: LED digitSelected KVM: Red LED per portSelected speaker: Red LED per portSelected USB1: Red LED per portSelected USB2: Red LED per port |
| Environment | Operating temperature: 32°F–104°F (0°C–40°C)Storage temperature: -13°F–140°F (-25°C–60°C)Relative humidity: 5%–80%, non-condensing |
PART NUMBERS
| Product Part Number | Description |
|---|---|
| KVM-4TDDL/A1 | DVI-I Dual-link, USB 2.0, 1x4 KVM switch |
| KVM-8TDDL/A1 | DVI-I Dual-link, USB 2.0, 1x8 KVM switch |
| RM-VDP-14/19 | Rackmount kit for 4-port switch |
| RM-VDP-18/19 | Rackmount kit for 8-port switch |
| KIT-RCSMDM005 | Serial port + flash cable, DB9F to RJ45/DB9M |
| CAB-MDMDB9MM005 | DB9 to DB9 serial cable (5ft, 1.8m) |
| CAB-MDMRJ8MM005 | RJ45 to RJ45 serial cable (5ft, 1.8m) |
| CAB-RCSMDMD9F2XRJ010 | RJ45 to RJ45 cable with DB9 pigtail, for RCS/RCP switching |
