Vista PS/2

1×2, 1×4, 1×8 KVM Switch • VGA • USB • PS/2

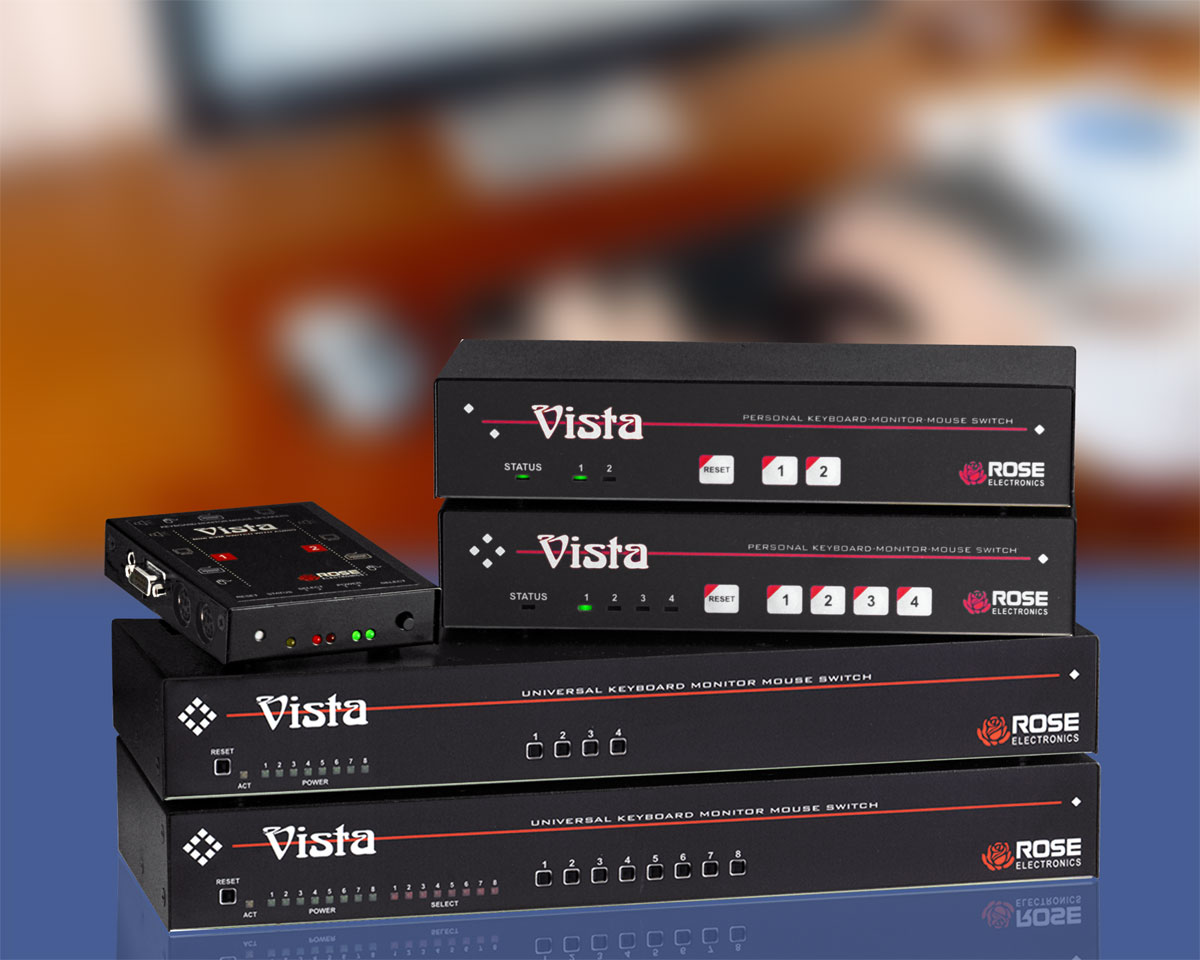

Product Picture

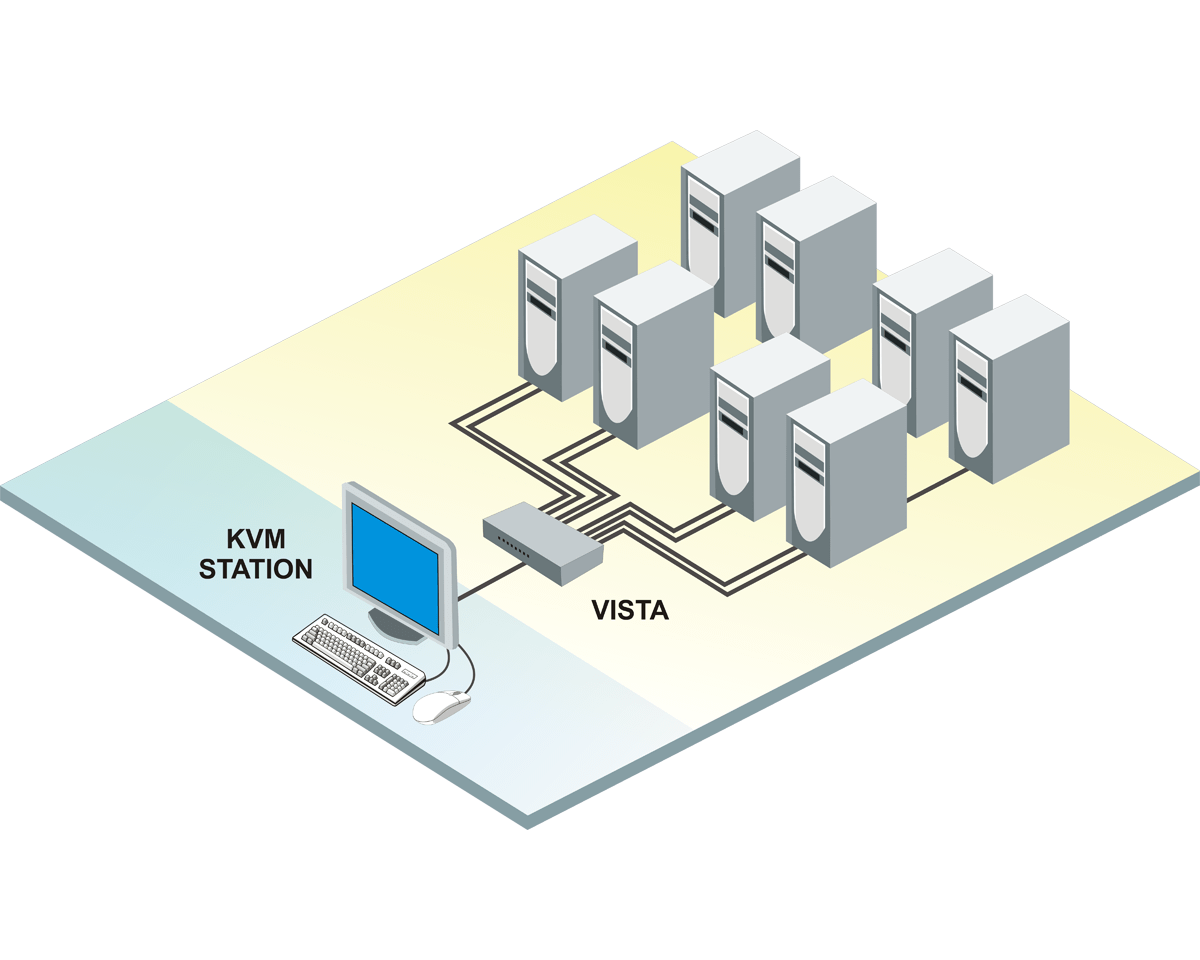

Diagram
  • VGA resolution up to 1920x1200@60Hz
  • Two chassis sizes to choose from
    • KVM-series: 9" wide, rack mountable 2-port and 4-port, optional Apple ADB support
    • KVL-series: 13" wide, rack mountable 4-port and 8-port, expandable to 64 computers
  • Connectors available in two styles
    • DB25 connectors, uses Rose UltraCable, supports USB
    • PC connectors, uses native connectors for keyboard, video, and mouse
  • Optional On-screen menu on L-series units
  • Works with all PCs and most UNIX workstations
  • USB support on DB25 models (with UltraCables)
  • Supports wheel and serial mice
  • Select computer from front panel or from easy to use keyboard commands
  • Front panel LEDs show computer selected, power status, and activity
  • Powered by your computer, no external power (supply required for /OV option)
  • Scan mode sequences through computers at adjustable rate
  • Rack mount kits available in 19", 23", and 24" sizes
  • Non-volatile memory stores configuration settings
  • Fully shielded steel chassis
  • Made in USA

OVERVIEW

Vista PS/2 is a single user KVM switch ideal for use in small or home offices with the need for a single keyboard, monitor, and mouse to access two, four, or eight computers. The unit supports a high resolution up to 1920 x 1200. Designed for plug-and-play operation, Vista PS/2 is easy to configure and install.

Vista PS/2 switches are produced in three models:

  • KVM-Series – 9" wide, rack mountable 2 and 4-port (1U) and supports both PC and Apple computers.
  • KVL-Series – 13" wide, rack mountable 4 and 8-port (1U), expandable up to 64 computers

Vista PS/2 connectors can be ordered in 2 different styles:

  • DB25 connectors, uses Rose UltraCable, Supports USB
  • Standard PC connectors, uses direct one-to-one cables for keyboard, video, and mouse

SPECIFICATIONS

Dimensions
(W x D x H)
M-Series: 8.8" x 3.4" x 1.75" (224 x 86 x 44.5 mm) (1U)L-Series: 13.3" x 4.8" x 1.75" (338 x 122 x 44.5 mm) (1U)
Weight M-Series: 2 lb (0.9 kg)L-Series: 3 lb (1.4 kg)
Power Supplied by computer M-Series: 3WL-Series: 5W
Resolution VGA: 1920 x 1200
Distance CPU/KVM: 25 feet (7.6m)
Connectors U-series:Video: VGA HD15 femalePS/2 keyboard: MiniDin-6F+AW7PS/2 mouse: MiniDin-6FPC-series:CPU/KVM ports: DB25 Female
Controls Reset: push-button switchActivity: Yellow LEDComputer power: Green LED per portComputer select: Red LED per port
Environment Operating temperature: 32°F–131°F (0°C–55°C)Storage temperature: -13°F–140°F (-25°C–60°C)Relative humidity: 5%–80%, non-condensing

PART NUMBERS

Product Part Number Description
KVM-2UPH Vista, 1x2 KVM Switch, 1-KVM to 2-CPUs (DB25)
KVM-4UPH Vista, 1x4 KVM Switch, 1-KVM to 4-CPUs (DB25)
KVM-2PCA Vista, 1x2 KVM Switch, 1-KVM to 2-CPUs (VGA-PS/2-PS/2)
KVM-4PCA Vista, 1x4 KVM Switch, 1-KVM to 4-CPUs (VGA-PS/2-PS/2)
KVM-2UPM Vista, 1x2 Apple KVM Switch, 1-KVM to 2-MAC's (DB25)
KVM-4UPMH Vista, 1x4 Apple KVM Switch, 1-KVM to 4-MAC's (DB25)
KVL-4UA Vista, 1x4 KVM Switch, 1-KVM to 4-CPUs (DB25)
KVL-4UA/OV Vista, 1x4 KVM Switch, 1-KVM to 4-CPUs (DB25) with OSD
KVL-8UA Vista, 1x8 KVM Switch, 1-KVM to 8-CPUs (DB25)
KVL-8UA/OV Vista, 1x8 KVM Switch, 1-KVM to 8-CPUs (DB25) with OSD
KVL-8PCA Vista, 1x8 KVM Switch, 1-KVM to 8-CPUs (VGA-PS/2-PS/2)
KVL-8PCA/OV Vista, 1x8 KVM Switch, 1-KVM to 8-CPUs (VGA-PS/2-PS/2) with OSD
RM-UMxx Rack Mount kit, 1U, M Chassis (xx = 19", 23", or 24")
RM-ULxx Rack Mount kit, 1U, L Chassis (xx = 19", 23", or 24")
/OV suffix On-screen display option
Cable Part Number Description
CAB-ZX0606Cnnn UltraCable, PC to Switch, DB25M to VGA-PS/2 Keyboard + Mouse
CAB-ZX0606CAnnn UltraCable, PC to Switch, DB25M to VGA-PS/2 Keyboard + Mouse-Stereo Audio
CAB-CX0606Cnnn UltraCable Hi-Res, PC to Switch, DB25M to VGA-PS/2 Keyboard + Mouse
CAB-C1Y0509Cnnn UltraCable Hi-Res, PC to Switch, DB25M to VGA-AT Keyboard + Serial Mouse
CAB-CXUSBCnnn UltraCable Hi-Res, USB to Switch, DB25M to VGA-USB Keyboard + Mouse
CAB-ZXV66MMnnn UltraCable, PC to switch, VGA-PS/2 to VGA-PS/2 (M-M)
CAB-CXV66MMnnn UltraCable Hi-Res, PC to switch, VGA-PS/2 to VGA-PS/2 (M-M)

DOCUMENTS

DOCUMENT LINK
Datasheet • Vista PS/2 PDF
Quick Start • Vista PS/2PDF
Manual • Vista PS/2 • 2-port and 4-port (narrow chassis) Installation and Operation PDF
Manual • Vista PS/2 • 4-port and 8-port (wide chassis) Installation and Operation PDF
