Xcion HDMI CATx
CATx Extender/Switch • HDMI • USB2.0 • Audio • Serial
Xcion family DVI CATx, HDMI CATx, DVI Fiber
Xcion family DVI CATx, HDMI CATx, DVI Fiber
DISTRIBUTED SWITCHING APPLICATION

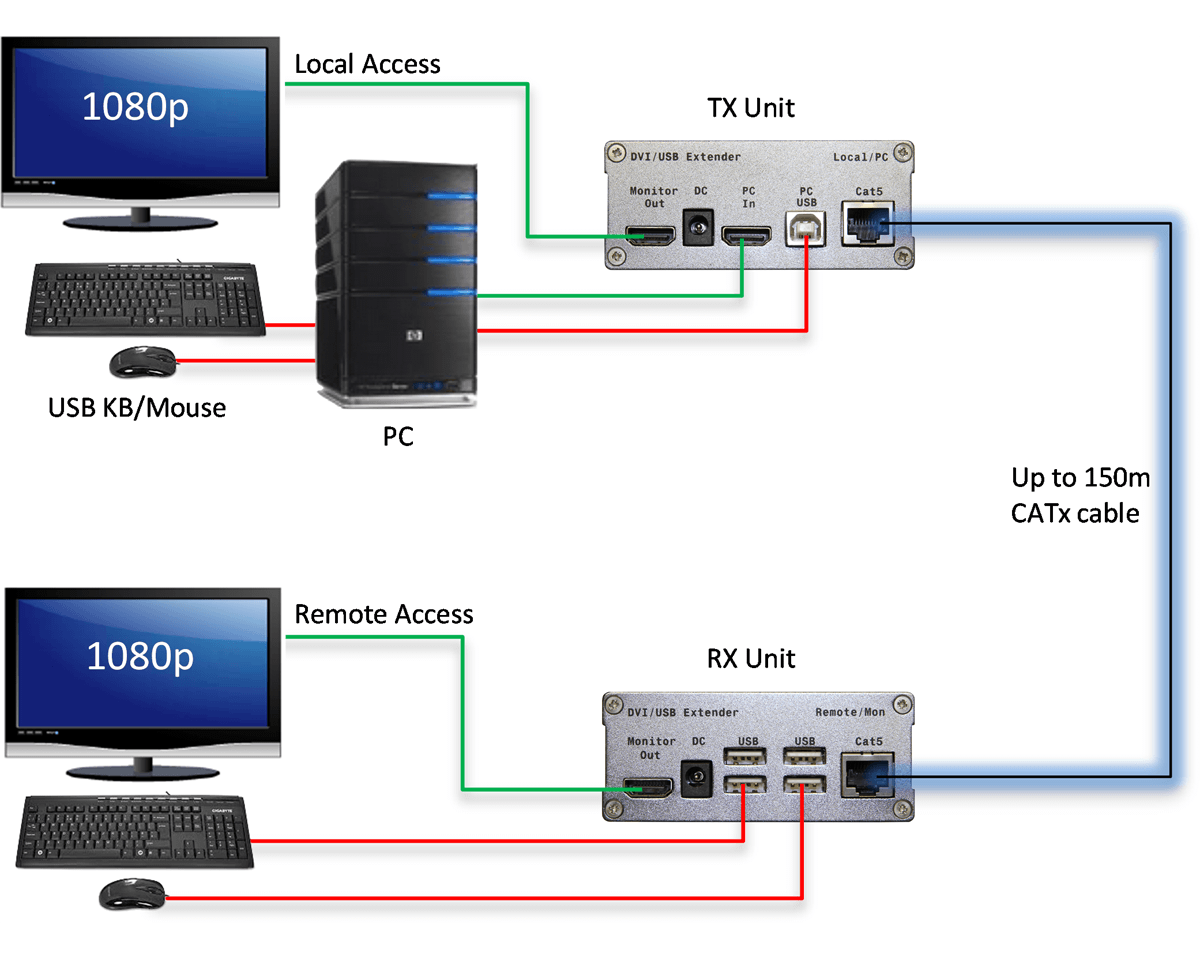

POINT TO POINT APPLICATION
- Extends Full HD digital or analog video with visually lossless quality
- Transparent USB 2.0 device support
- Units can be run point to point as extender or through gigabit Ethernet switch to form distributed matrix switch
- Transmitter and Receiver connect to each other or gigabit Ethernet switch with a single CATx extension up to 492 feet (150 m)
- Input and output video resolutions up to 1920×1080 @60 Hz
- Base model supports digital video and USB 1.1 devices (keyboard, mouse and other HID devices) at rates up to 12Mbps
- Optional USB 2.0 high-speed device support for higher speed devices, such as flash sticks, cameras, scanners, and printers
- Optional bi-directional analog audio and RS232 serial port
- Firmware upgrade requires no special cable
- DDC menu to choose remote display EDID or any of 5 fixed settings
- OSD menu functions allow option activation, firmware updates, monitor synchronization, and OSD locking
- 4 units can be mounted in a 1U 19" rack
OVERVIEW
The Xcion Digital Extender supports HDMI at 1920x1200 with high quality compressed video over CATx or fiber cable. The standard unit comes with HDMI video input/output, and an HDMI local port on the transmitter unit. USB1.1/USB2.0 is supported up to 12Mbps. The optional USB2.0 device support and switch mode functions are configured on the standard chassis using software keys to activate the selected options. With the USB2.0 device support activated, the unit will support transparent USB2.0 up to 64Mbps.
The Switch Mode option enables up to 48 Xcion devices (transmitter and receiver) to be connected to each other using a gigabit network switch, creating a distributed KVM switching system where any user can access any connected host computer resource. Multiple users can also access a single PC/Server using a limited command structure.
Management of the Xcion HDMI extender is through an extensive OSD menu structure that is displayed on the connected monitor and operated via keyboard commands.
Serial and audio transmission over USB can be supported using external USB adapters.
SPECIFICATIONS
| Dimensions (W x D x H) | 3.88" x 4.17" x 1.6" (98 x 106 x 41 mm) (1U) |
| Weight | 1.19 lb (0.54 kg) |
| Power | 100-250 VAC 50-60Hz External adapter, +12V, 1A Transmitter or Receiver: 5W |
| Resolution | HDMI video: 1080p |
| Distance | CATx: 500ft (150m) |
| Connectors | Transmitter:HDMI video: female, Input and LocalUSB 1.1/2.0: USB Type BCATx link: RJ45 jackPower using external adapter: Barrel jackReceiver:HDMI video: femaleUSB 1.1/2.0: Four USB Type ACATx link: RJ45 jackPower using external adapter: Barrel jack |
| Controls | Unit power: Red/Green LEDLink Status: Red/Green LEDOSD: via keyboard |
| Environment | Operating temperature: 32°F–113°F (0°C–45°C)Storage temperature: -4°F–158°F (-20°C–70°C)Relative humidity: 0%–80%, non-condensing |
PART NUMBERS
| XCK-2DTXUH1H | Xcion CATx Extender Kit with HDMI/USB |
| /T | Xcion USB2.0 High Speed Option (64Mbps) |
| /SM | Xcion Switch Mode Option for distributed KVM switching |
