Orion XTender
Modular CATx/Fiber Extender • 2/4/6-Card Chassis
2-card, 4-card, and 6-card Chassis
DVI+USB-HID+USB2.0+Audio+Serial over Fiber
DVI+VGA scaler+USB-HID over CATx

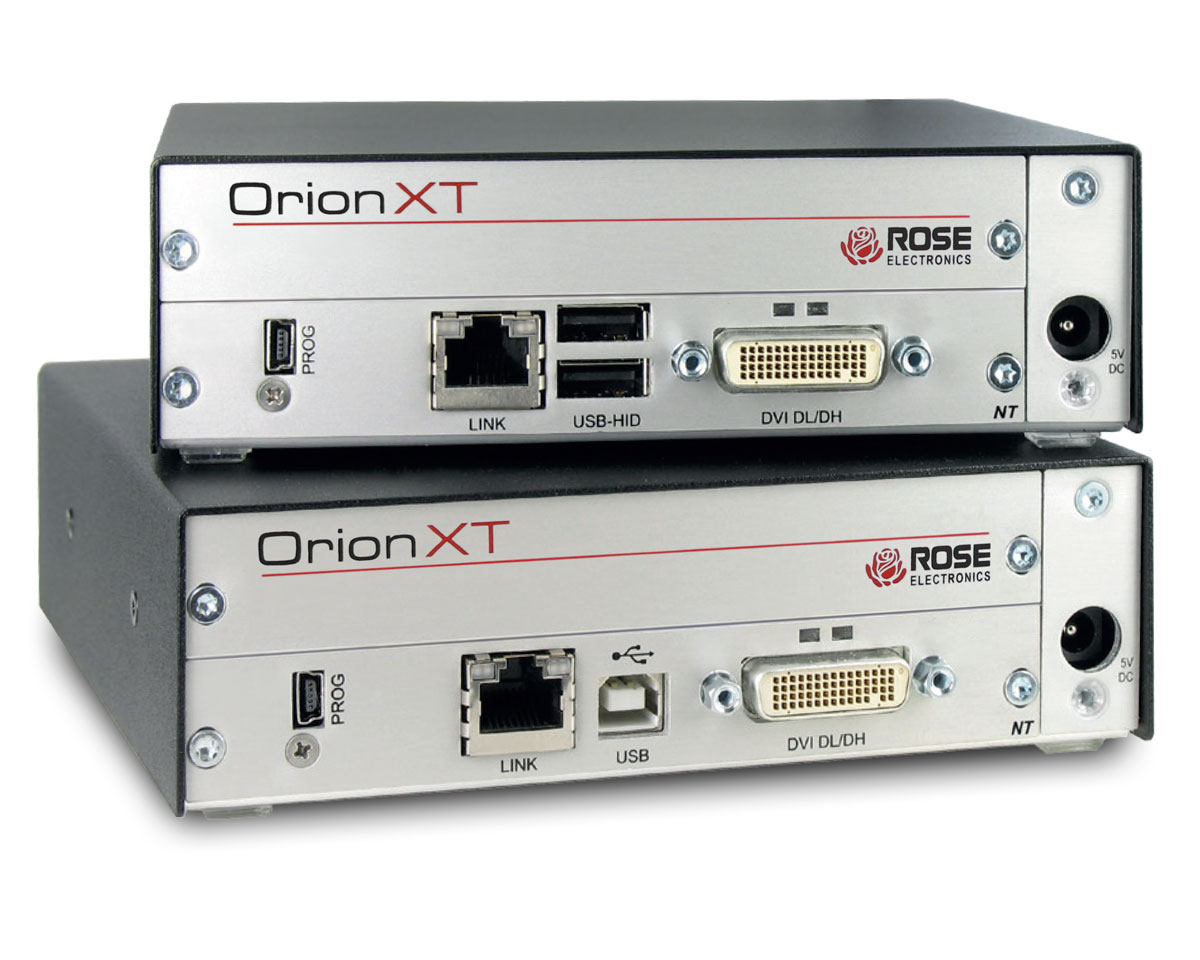

DVI dual-link/dual-head over CATx
HDMI over CATx, Transmitter with local video

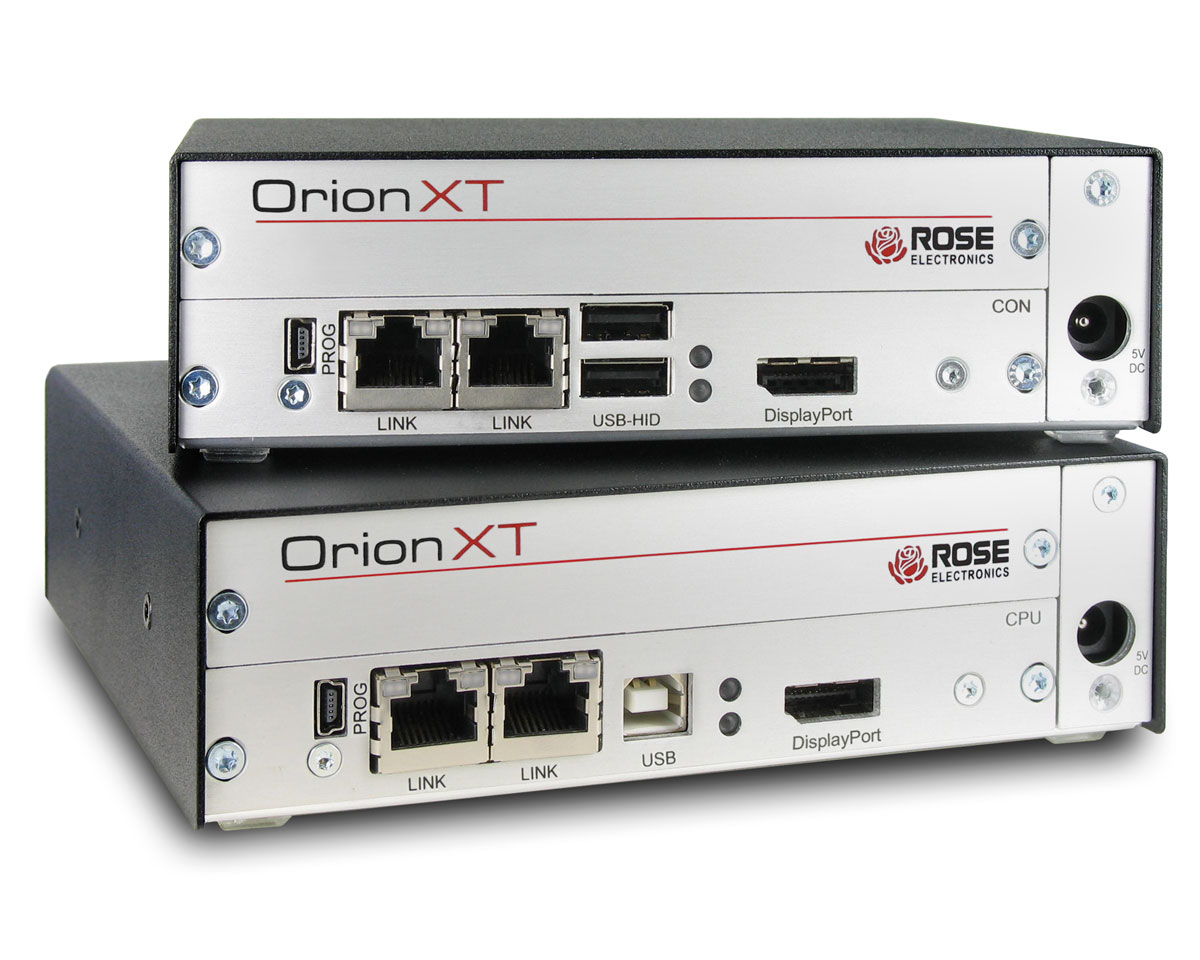

DisplayPort 1.1 over CATx

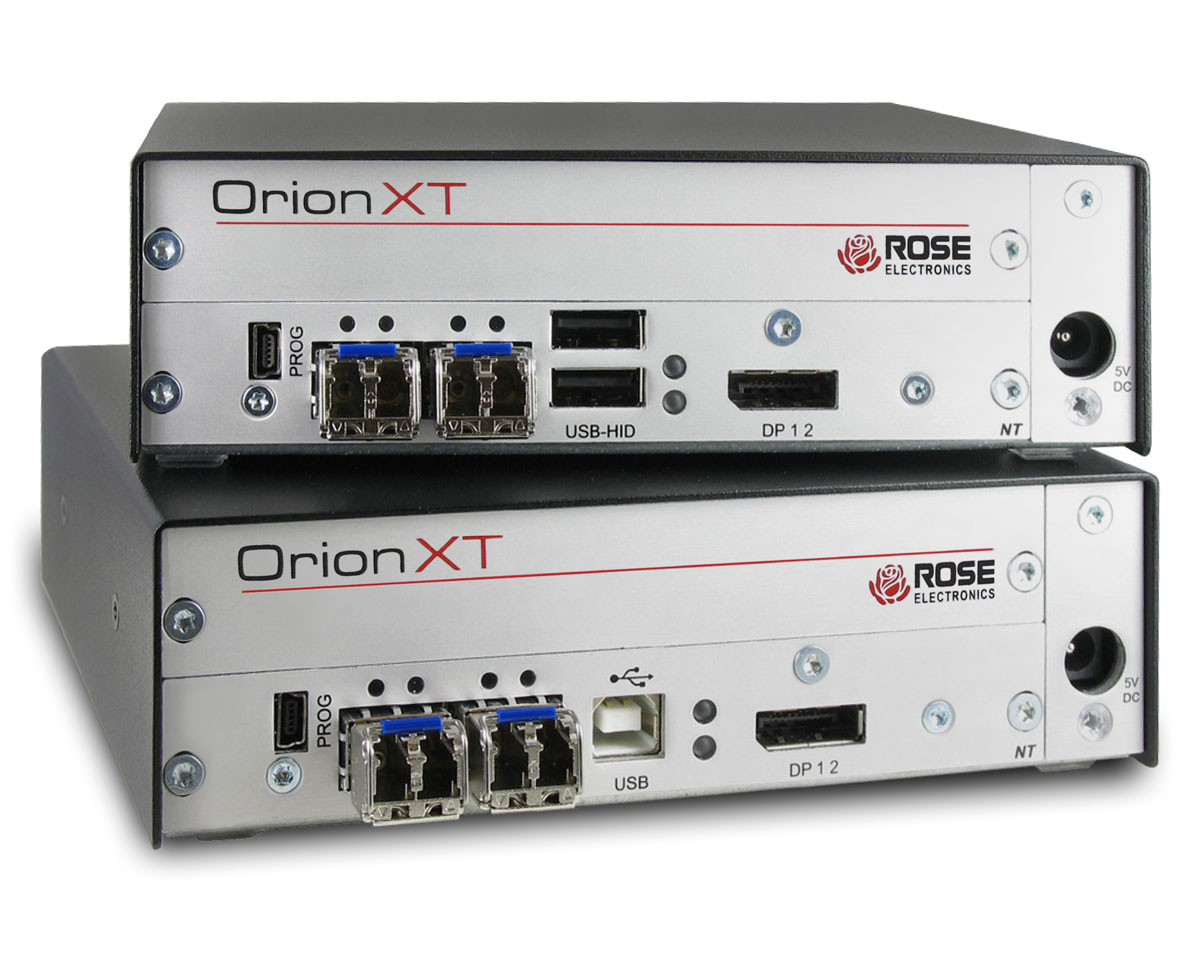

DisplayPort 1.2 over Fiber with redundant link

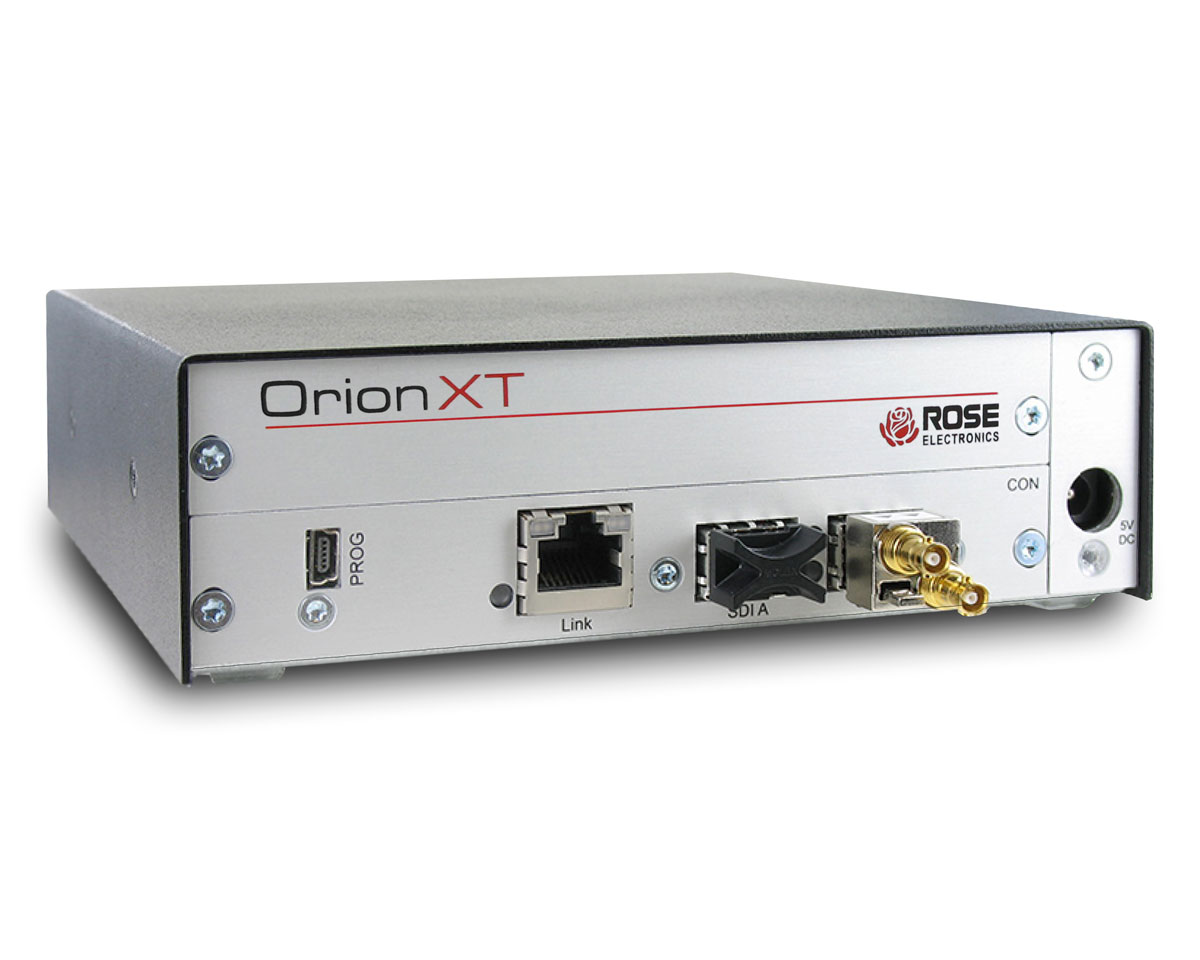

SDI over CATx
HDMI+USB 2.0 over CATx in 6-card chassis
DisplayPort+USB+Serial+Audio over Fiber in 6-card chassis

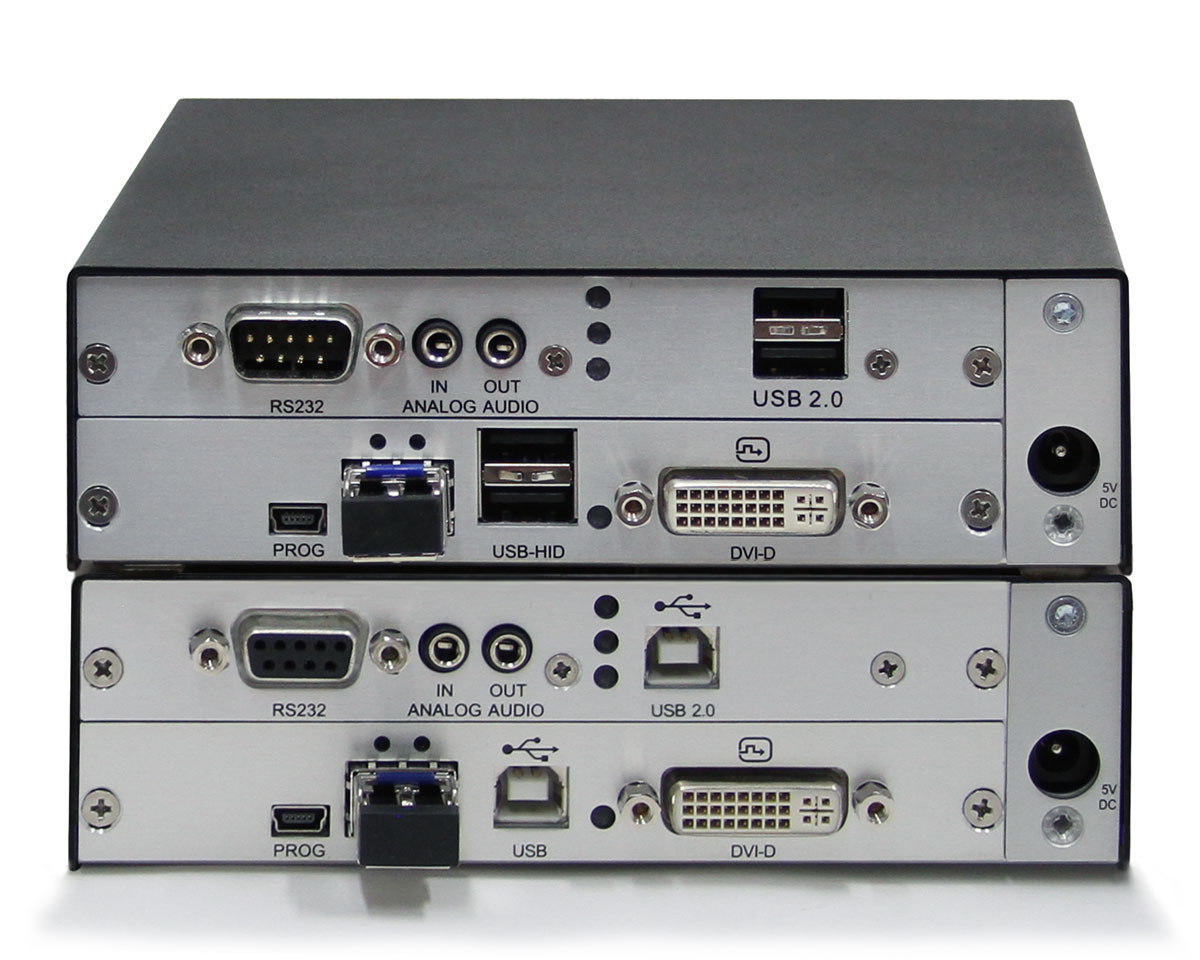

DVI+PS/2+USB+Serial+Audio over Fiber in 6-card chassis
Transmitters in 6-card Chassis, Receivers in 2-card ChassisCluster your computers together and spread out your KVM stations
- Extend your KVM stations and computers
- Up to 460ft (140m) using CATx cable
- Up to 3,300ft (1Km) using multi-mode fiber
- Up to 33,000ft (10Km) using single-mode fiber
- Multiple chassis sizes satisfies both large and small requirements
- Use HID devices like keyboard, mouse, and touchscreen or option to add printers, scanners, hard drives, memory sticks, audio devices, etc.
- Video interfaces available:
- Single-link DVI video up to 1920×1200@60Hz
- Dual-link DVI video up to 4K@30Hz
- Dual-head DVI video using one cable up to 1920×1200@60Hz
- DVI-I (VGA) video up to 1920×1200@60Hz with optional scaling
- HDMI and DisplayPort video up to 4K@60Hz
- SDI video up to 1920×1080p
- Other interfaces available:
- USB-HID, USB 2.0, and USB3.0 devices
- PS2 keyboard and mouse
- Serial RS-232 and RS-422, up to 115.2Kbaud
- Analog stereo microphone and speaker
- Digital audio (Mini-XLR, Coaxial, Optical)
- Other options available:
- Redundant power
- Redundant link
OVERVIEW
The modular design of the Orion XTender allows users to extend desktop control of remote computers or to relocate them in a secure and managed space away from desktop, control room, or hazardous environments.
Whether you need single, dual, or quad-head video displays with control from a USB or PS2 keyboard, mouse, or touchscreen, this modular and feature packed family can be configured to fit your needs.
Common applications include control rooms, broadcast studios, outside broadcast vans, concert and theatre venues, AV distribution, medical imaging, and other industrial/military applications.

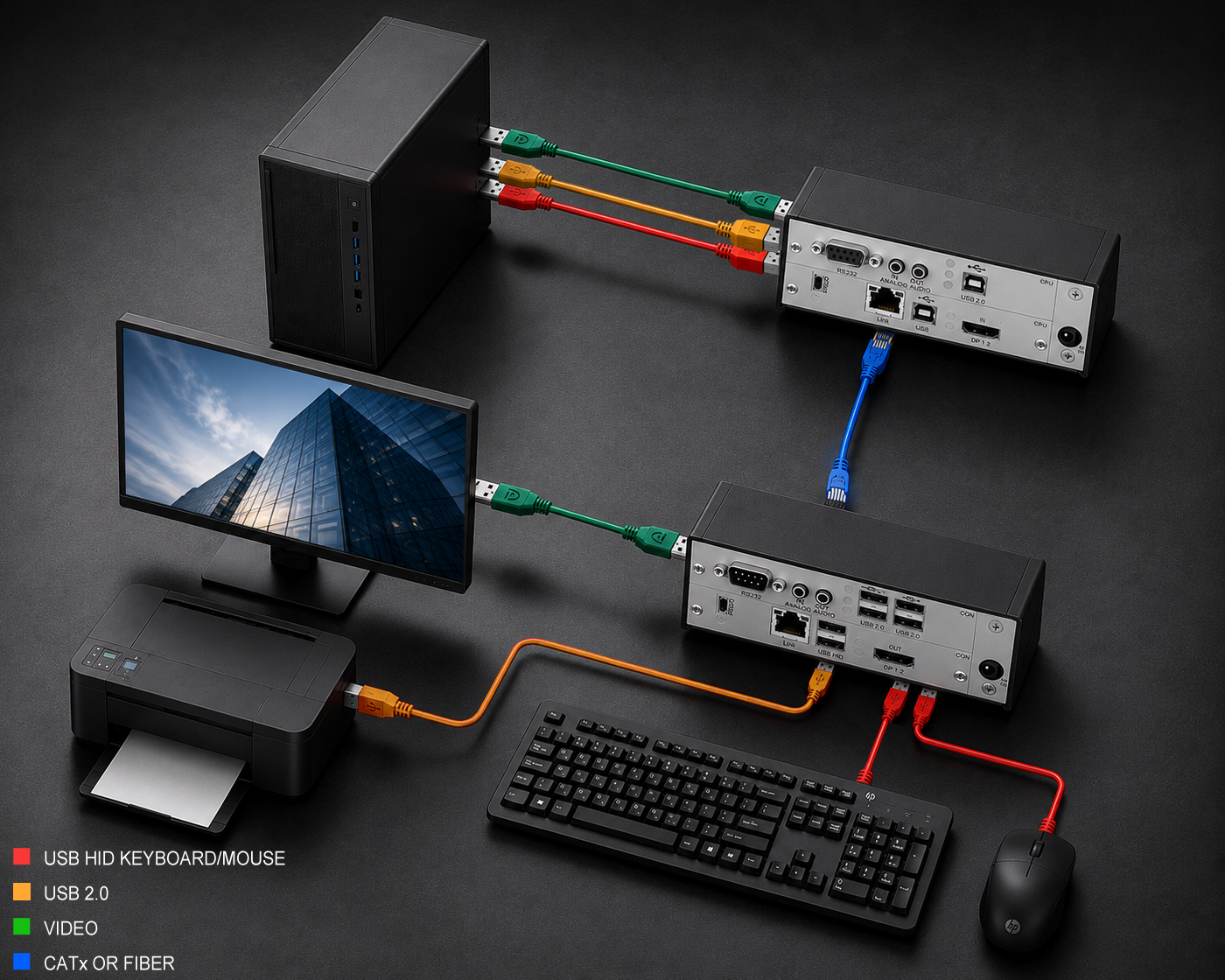

Run them point to point or connect them to an Orion-X or Orion-XC switch. Now you can route your video, audio, and USB control to whatever destination desired. Your source and destination video format need not be the same.
A wide range of chassis sizes with provision for redundant power make the Orion XT a versatile product. You can use the larger sizes where multiple sources are in the same location and use the smaller units to spread around your facility near the users.
Connection status LED's are located on the front panel to indicate the operating status of the unit. The chassis are all rack mountable and all connectors are on the same side of the chassis for convenience and ease of access.
SPECIFICATIONS
| Dimensions (W x D x H) |
2x: 5.7" x 5.7" x 1.6" (146 x 146 x 41 mm) (1U)4x: 11.6" x 5.7" x 1.6" (295 x 146 x 41 mm) (1U)6x: 18.4" x 5.7" x 1.6" (466 x 146 x 41 mm) (1U) |
| Weight | 2x: 0.9 lb (0.4 kg)4x: 2.0 lb (0.9 kg)6x: 3.1 lb (1.4 kg) |
| Power | 100-240 VAC 50-60Hz Power at chassis:2x: External adapter, +5V, 3A2x: Internal power supply, AC line power4x: External adapter, +5V, 5A6x: Internal power supply, AC line powerOptional redundant power supplyMaximum power required by cards:Base card DVI + HID: 4WBase card DVI/VGA+ HID 4.5WBase card HDMI + HID: 4WAnalog Audio / Serial: 1.5WSerial(RS422): .75WDigital Audio: 1.5WUSB-HID: 1.5WPS/2: 3.25WUSB 2.0 embedded: 5.5WUSB 2.0: 12.5WMaximum power of chassis: 2x: 15W4x: 25W6x: 60W |
| Resolution | DVI single-link video: 1920 x 1200/2048 x 1152 DVI dual-link video: 2560 x 2048VGA video: 1920 x 1200HDMI video: 1920 x 1200 |
| Distance | CATx: 460' (140m)Multi-mode fiber: (62.5µ): 650' (200m)Multi-mode fiber: (50µ): 1,300' (400m)Multi-mode fiber: (50µ) OM3: 3,300' (1Km)Single-mode fiber: (9µ): 33,000' (10Km) |
| Connectors | Transmitter:DVI video: DVI femaleVGA video: DVI-I femaleHDMI: HDMI femaleUSB HID keyboard/mouse: USB Type BPS/2 keyboard/mouse: Two PS/2 mini-din6FPS/2 dual access keyboard/mouse: Two PS/2 mini-din6FUSB 2.0 host: USB Type BCATx link: RJ45 jack, one per video portFiber link: Duplex LC, one per video portAnalog audio: Two 3.5mm stereo jacksDigital audio: S/PDIF RCA, AES mini-XLR, S/PDIF optical TOSLINKSerial: DB9FPower using external adapter: Barrel jackPower using internal power supply: IEC-320 recepacleReceiver:DVI video: DVI female, one per portUSB HID keyboard/mouse: Two USB type A jackPS/2 keyboard/mouse: Two PS/2 mini-din6FUSB 2.0 device: Four USB Type ACATx link: RJ45 jack, one per video portFiber link: Duplex LC, one per video portAnalog audio: Two 3.5mm stereo jacksDigital audio: S/PDIF RCA, AES mini-XLR, S/PDIF optical TOSLINKSerial: DB9MPower using external adapter: Barrel jackPower using internal power supply: IEC-320 recepacle |
| Controls | Error status: Green LED per portLink status: Green LED per portUSB/video status: RGB LED per portVGA status: RGB LED per portDigital audio status: RGB LED per portUSB-HID status:Two orange LEDs per portUSB embedded 2.0 status: Three green LEDs per portUSB 2.0 status: RGB LED per port |
| Environment | Operating temperature: 41°F–113°F (5°C–45°C)Storage temperature: -13°F–140°F (-25°C–60°C)Relative humidity: 0%–80%, non-condensing |
PART NUMBERS
| It is not practical to list all part numbers here | |
|---|---|
| because the product has so many variations. | |
| Pleae refer to the datasheet for a complete description. | |
| Transmitters | |
| OT2-SLDTXUD1D | Transmitter, DVI-D, USB HID, CATx |
| OT2-SLDFMUD1D | Transmitter, DVI-D, USB HID, Fiber Multi-mode |
| OT2-SLDFSUD1D | Transmitter, DVI-D, USB HID, Fiber Single-mode |
| OT2-SLDTXUD1V | Transmitter, DVI-I (VGA), USB HID, CATx |
| OT2-SLDFMUD1V | Transmitter, DVI-I (VGA), USB HID, Fiber Multi-mode |
| OT2-SLDFSUD1V | Transmitter, DVI-I (VGA), USB HID, Fiber Single-mode |
| OT2-SLDTXTD1D | Transmitter, DVI-D, USB 2.0, CATx |
| OT2-SLDFMTD1D | Transmitter, DVI-D, USB 2.0, Fiber Multi-mode |
| OT2-SLDFSTD1D | Transmitter, DVI-D, USB 2.0, Fiber Single-mode |
| OT4-SLDTXTD1V | Transmitter, DVI-I (VGA), USB HID, USB 2.0, CATx |
| OT4-SLDFMTD1V | Transmitter, DVI-I (VGA), USB HID, USB 2.0, Fiber Multi-mode |
| OT4-SLDFSTD1V | Transmitter, DVI-I (VGA), USB HID, USB 2.0, Fiber Single-mode |
| OT2-SLDTXUD1D/AUD | Transmitter, DVI-D, USB HID, Audio/Serial, CATx |
| OT2-SLDFMUD1D/AUD | Transmitter, DVI-D, USB HID, Audio/Serial, Fiber Multi-mode |
| OT2-SLDFSUD1D/AUD | Transmitter, DVI-D, USB HID, Audio/Serial, Fiber Single-mode |
| OT4-SLDTXUD1V/AUD | Transmitter, DVI-I (VGA), USB HID, Audio/Serial, CATx |
| OT4-SLDFMUD1V/AUD | Transmitter, DVI-I (VGA), USB HID, Audio/Serial, Fiber Multi-mode |
| OT4-SLDFSUD1V/AUD | Transmitter, DVI-I (VGA), USB HID, Audio/Serial, Fiber Single-mode |
| OT4-SLDTXTD1D/AUD | Transmitter, DVI-D, USB 2.0, Audio/Serial, CATx |
| OT4-SLDFMTD1D/AUD | Transmitter, DVI-D, USB 2.0, Audio/Serial, Fiber Multi-mode |
| OT4-SLDFSTD1D/AUD | Transmitter, DVI-D, USB 2.0, Audio/Serial, Fiber Single-mode |
| OT4-SLDTXTD1V/AUD | Transmitter, DVI-I (VGA), USB HID, USB 2.0, Audio/Serial, CATx |
| OT4-SLDFMTD1V/AUD | Transmitter, DVI-I (VGA), USB HID, USB 2.0, Audio/Serial, Fiber Multi-mode |
| OT4-SLDFSTD1V/AUD | Transmitter, DVI-I (VGA), USB HID, USB 2.0, Audio/Serial, Fiber Single-mode |
| Receivers | |
| OR2-SRDTXUD1D | Receiver, DVI-D, USB HID, CATx |
| OR2-SRDFMUD1D | Receiver, DVI-D, USB HID, Fiber Multi-mode |
| OR2-SRDFSUD1D | Receiver, DVI-D, USB HID, Fiber Single-mode |
| OR2-SRDTXTD1D | Receiver, DVI-D, USB HID, USB 2.0, CATx |
| OR2-SRDFMTD1D | Receiver, DVI-D, USB HID, USB 2.0, Fiber Multi-mode |
| OR2-SRDFSTD1D | Receiver, DVI-D, USB HID, USB 2.0, Fiber Single-mode |
| OR2-SRDTXUD1D/AUD | Receiver, DVI-D, USB HID, Audio/Serial, CATx |
| OR2-SRDFMUD1D/AUD | Receiver, DVI-D, USB HID, Audio/Serial, Fiber Multi-mode |
| OR2-SRDFSUD1D/AUD | Receiver, DVI-D, USB HID, Audio/Serial, Fiber Single-mode |
| OR4-SRDTXTD1D/AUD | Receiver, DVI-D, USB HID, USB 2.0, Audio/Serial, CATx |
| OR4-SRDFMTD1D/AUD | Receiver, DVI-D, USB HID, USB 2.0, Audio/Serial, Fiber Multi-mode |
| OR4-SRDFSTD1D/AUD | Receiver, DVI-D, USB HID, USB 2.0, Audio/Serial, Fiber Single-mode |
