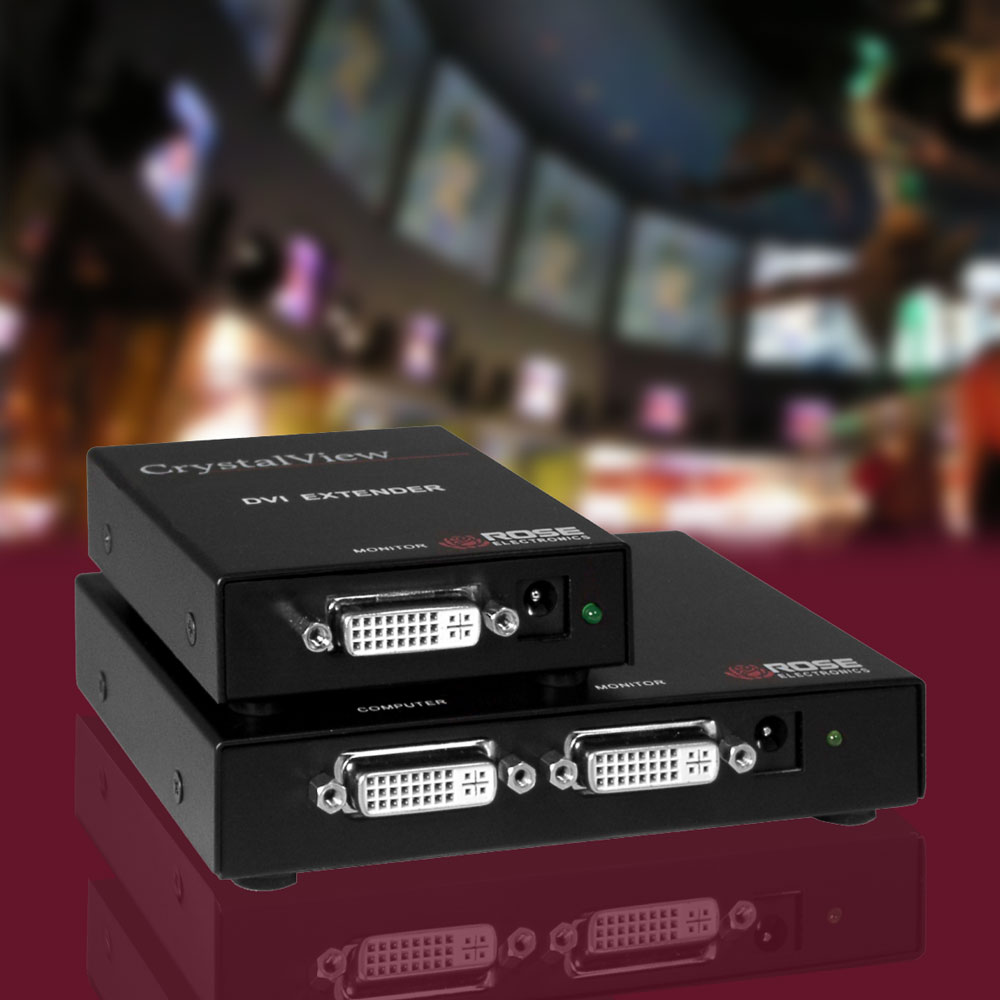

CrystalView DVI Multi

CATx Extender/Splitter - One DVI In to 2-4 Out - 220'

  • Combines features of splitter and extender in one unit
  • Extends DVI video 220' (65m) away to multiple locations over CATx
  • Resolution up to 1920 x 1200
  • Local port on transmitter unit allows viewing video at source
  • Small receiver unit is installed for each monitor
  • EDID read from local monitor is stored in flash memory

Typical Application

CrystalView DVI Multi application

Overview

CrystalView DVI Multi from Rose Electronics is a perfect enhancement for an existing system or designing a new video distribution system. It can be easily integrated into any system and provide perfect DVI video quality to all connected displays, with absolutely no loss in signal quality, even at 1920 x 1200 @ 60Hz. The unit splits the video input signal into 1, 2, or 4 different outputs, depending on the model desired.

The remote displays can be extended up to 220 feet away from the controlling computer. This is ideal for many applications in which the controlling computer needs to be remotely located in a secure area away from the DVI displays. When the CrystalView DVI Multi units are powered up, the EDID information from the locally connected monitor is read and saved in flash memory. Once saved, the local DVI monitor does not have to be connected or powered on. All models offer a local DVI connection for viewing video on a locally connected DVI monitor.

Specifications

Dimensions
(W x D x H)
Transmitter: 5" x 3.75" x 0.85" (127 x 95 x 21.6 mm)
Receiver: 2.75" x 3.4" x 0.85" (70 x 86 x 21.6 mm)
Weight Transmitter: 0.2 lbs (0.1 kgs)
Receiver: 0.4 lbs (0.2 kgs)
Power 100-240 VAC 50-60Hz
External adapter, +5V, 3A
Transmitter: 15W
Distance DVI 1920x1200: 220' (65m)
Connectors Transmitter:
DVI video: DVI female, one per port
Local DVI video: DVI female
Link: RJ45 jack, one per port
Power: Barrel jack
Receiver:
DVI Video: DVI female
Link: RJ45 jack
Power: Barrel jack
Controls Unit power: Green
Status: Green LED
Environment Operating temperature: 32°F–113°F (0°C–45°C)
Storage temperature: -13°F–140°F (-25°C–60°C)
Relative humidity: 0%–80%, non-condensing

Part numbers

Kits (transmitter, receiver, and power supply)
CRK-21DLC DVI Video Extender, Local Access, CAT6, (1x TX + 1x RX)
CRK-22DLC DVI Video Extender, Local Access, CAT6, (1x TX + 2x RX)
CRK-24DLC DVI Video Extender, Local Access, CAT6, (1x TX + 4x RX)
Transmitters
CRV-DL1DLC Transmitter, DVI Extender, Local Access, CAT6, 1 Port RJ45
CRV-DL2DLC Transmitter, DVI Extender/Splitter, Local Access, CAT6, 2 Port RJ45
CRV-DL4DLC Transmitter, DVI Extender/Splitter, Local Access, CAT6, 4 Port RJ45
Receivers
CRV-SRDLC Receiver, DVI Video Extender, CAT6
