CrystalView DVI Multi
CATx Extender/Splitter - One DVI In to 2-4 Out - 220'
- Combines features of splitter and extender in one unit
- Extends DVI video 220' (65m) away to multiple locations over CATx
- Resolution up to 1920 x 1200
- Local port on transmitter unit allows viewing video at source
- Small receiver unit is installed for each monitor
- EDID read from local monitor is stored in flash memory

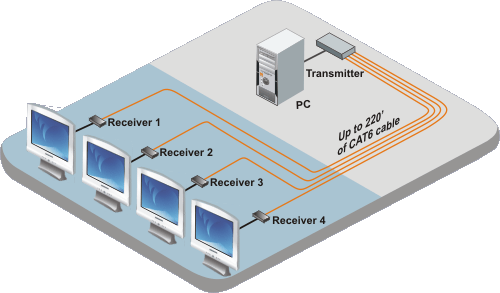

Typical Application
Overview
CrystalView DVI Multi from Rose Electronics is a perfect enhancement for an existing system or designing a new video distribution system. It can be easily integrated into any system and provide perfect DVI video quality to all connected displays, with absolutely no loss in signal quality, even at 1920 x 1200 @ 60Hz. The unit splits the video input signal into 1, 2, or 4 different outputs, depending on the model desired.
The remote displays can be extended up to 220 feet away from the controlling computer. This is ideal for many applications in which the controlling computer needs to be remotely located in a secure area away from the DVI displays. When the CrystalView DVI Multi units are powered up, the EDID information from the locally connected monitor is read and saved in flash memory. Once saved, the local DVI monitor does not have to be connected or powered on. All models offer a local DVI connection for viewing video on a locally connected DVI monitor.
Specifications ▼
| Dimensions (W x D x H) | Transmitter: 5" x 3.75" x 0.85" (127 x 95 x 21.6 mm) Receiver: 2.75" x 3.4" x 0.85" (70 x 86 x 21.6 mm) |
| Weight | Transmitter: 0.2 lbs (0.1 kgs) Receiver: 0.4 lbs (0.2 kgs) |
| Power | 100-240 VAC 50-60Hz External adapter, +5V, 3A Transmitter: 15W |
| Distance | DVI 1920x1200: 220' (65m) |
| Connectors | Transmitter: DVI video: DVI female, one per port Local DVI video: DVI female Link: RJ45 jack, one per port Power: Barrel jack Receiver: DVI Video: DVI female Link: RJ45 jack Power: Barrel jack |
| Controls | Unit power: Green Status: Green LED |
| Environment | Operating temperature: 32°F–113°F (0°C–45°C) Storage temperature: -13°F–140°F (-25°C–60°C) Relative humidity: 0%–80%, non-condensing |
Part numbers ▼
| Kits (transmitter, receiver, and power supply) | |
|---|---|
| CRK-21DLC | DVI Video Extender, Local Access, CAT6, (1x TX + 1x RX) |
| CRK-22DLC | DVI Video Extender, Local Access, CAT6, (1x TX + 2x RX) |
| CRK-24DLC | DVI Video Extender, Local Access, CAT6, (1x TX + 4x RX) |
| Transmitters | |
| CRV-DL1DLC | Transmitter, DVI Extender, Local Access, CAT6, 1 Port RJ45 |
| CRV-DL2DLC | Transmitter, DVI Extender/Splitter, Local Access, CAT6, 2 Port RJ45 |
| CRV-DL4DLC | Transmitter, DVI Extender/Splitter, Local Access, CAT6, 4 Port RJ45 |
| Receivers | |
| CRV-SRDLC | Receiver, DVI Video Extender, CAT6 |
