CrystalView EX5 Quad
Multi-head CATx Extender - DVI/USB 2.0/Audio - 330'
- Extends up to four DVI video signals and USB 2.0 up to 330' (100m)
- Uncompressed video resolution up to 1920 x 1200
- Three remote high speed USB 2.0 device ports supplying 500ma power
- USB 2.0 throughput of up to 30 Mbps
- Supports audio via USB or optional dedicated channel
- Use USB keyboards, mice, printers, scanners, flash drives, audio devices, touch screens, web cams, game controllers, and others
Typical Application
Overview

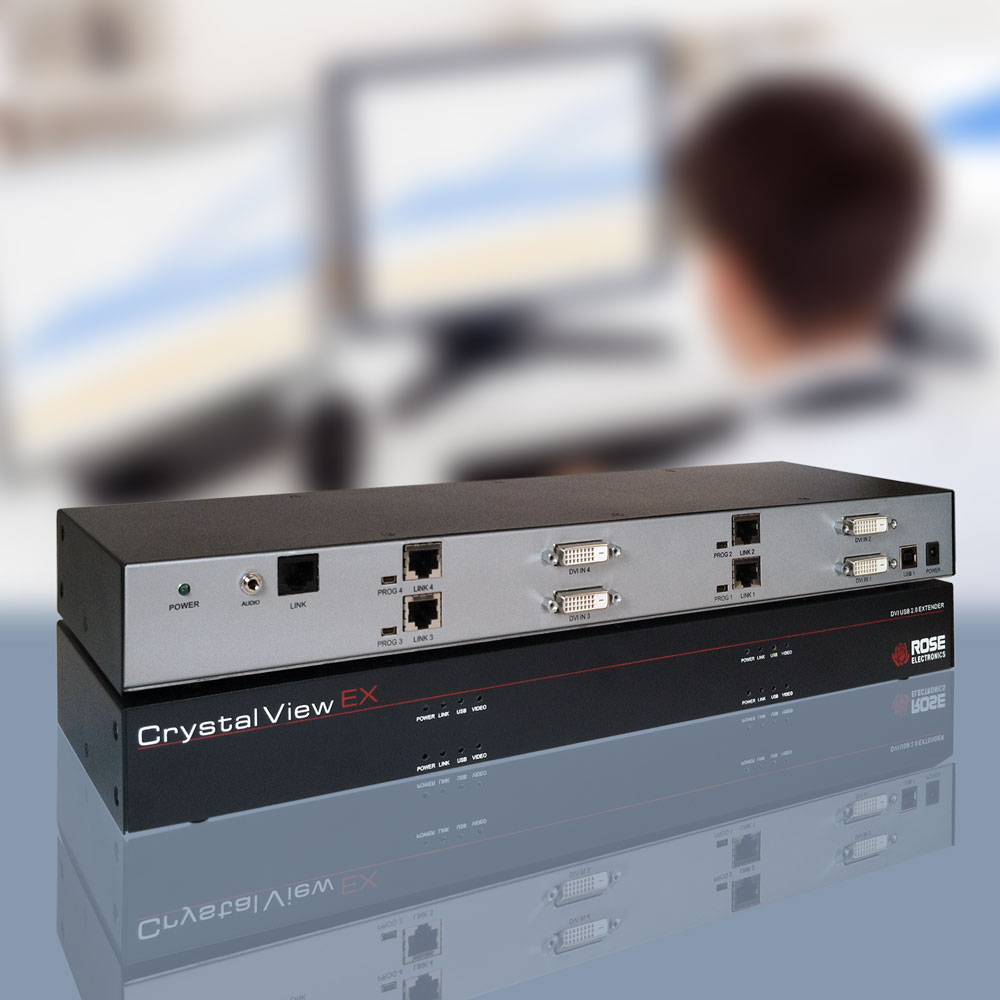

CrystalView EX5 Quad extender supports DVI graphic interfaces in an uncompressed video format with a resolution up to 1920 x 1200. This full speed uncompressed video data transfer format prevents picture corruption and frame drops. The extender will maintain a smooth and clear picture even when displaying video in the highest resolution up to a distance of 330 feet over a CATx cable.
It also extends USB keyboard and mouse signals. Using enhanced USB emulation, a wide range of USB HID and USB 2.0 devices are supported. 3 USB ports are available on the receiver unit, with the capacity to expand the number of ports to 13 by using USB hubs. Each USB port has 500 ma of power for USB devices requiring higher power to operate.
CrystalView EX5 Quad is available in dual, triple, or quad-head models. Each video output requires a separate CATx cable. Additionally, each of these models can be mounted in a chassis and are a standard 19" 1U size.
Specifications ▼
| Dimensions (W x D x H) | Mini Chassis: 9" x 5.7" x 1.73" (228 x 144 x 44 mm) (1U) B Chassis: 16.7" x 4.85" x 1.75" (424 x 123 x 44.5 mm) (1U) |
| Weight | Mini Chassis: 4.4 lbs (2 kgs) B Chassis: 6 lbs (2.7 kgs) |
| Power | 100-240 VAC 50-60Hz External adapter, +5V, 3A-9A Dual: 15W Triple: 30W Quad, 45W |
| Distance | DVI 1920x1200: 330' (100m) |
| Connectors | Transmitter: DVI video: DVI female, one per port USB host: USB Type B Link: RJ45 jack, one per port Power: Barrel jack Receiver: DVI video: DVI female, one per port USB device: Three USB Type A, 500ma each Link: RJ45 jack Power: Barrel jack |
| Controls | Unit power: Green LED per port Link active: Green LED per port Video active: Green LED per port USB status: Green LED per port |
| Environment | Operating temperature: 32°F–104°F (0°C–40°C) Storage temperature: -4°F–158°F (-20°C–70°C) Relative humidity: 20%–80%, non-condensing |
Part numbers ▼
| Kits (transmitter, receiver, and power supply) | |
|---|---|
| CRK-1DTXT2DM-EX5 | Dual DVID, USB, Mini Chassis |
| CRK-1DTXT2D-EX5 | Dual DVID, USB, "B" Chassis |
| CRK-1DTXT3D-EX5 | Triple DVID, USB, "B" Chassis |
| CRK-1DTXT4D-EX5 | Quad DVID, USB, "B" Chassis |
| /AU | Optional Audio only |
| /AUD | Optional Audio + Serial |
| RM-UM19 | Rackmount KIT for Mini Chassis |
| RM-UB19 | Rackmount KIT for "B" Chassis |
| RM-UD-1U | Under-desk rackmount for "M" Chassis |
