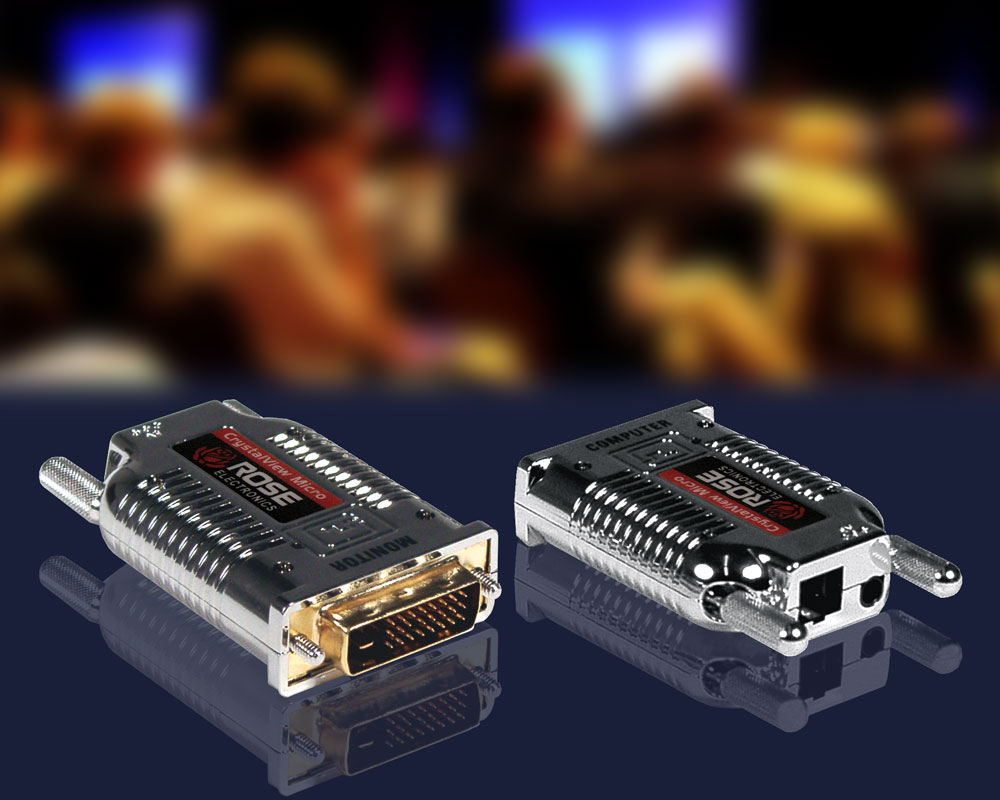

CrystalView DVI Micro
Compact Fiber Extender - Single-link DVI
- Miniature style directly connects to DVI connector
- Video resolution up to: 1920 x 1200 at 1000 feet (300m)
- SC type connector on unit connects to a single multi-mode fiber
- Auto-detect EDID information
Typical Application
Overview
CrystalView DVI Micro Fiber is a compact extender combining efficiency and functionality into an affordable solution. Specifically designed for a single SC type multi-mode optical fiber, CrystalView DVI Micro Fiber will extend a DVI video signal to a remote monitor up to 3,300 feet away. Video resolution reaches a maximum of 1920 x 1200, but is contingent on distance with signal degradation as it increases.
The following can be used as a reference guide for resolution capabilities:
- 1920 x 1200 up to 984 feet
- 1600 x 1200 up to 1,650 feet
- 1280 x 1024 up to 3,300 feet
This device is plug-and-play with easy installation and auto-detect EDID information.
Specifications ▼
| Dimensions (W x D x H) | 1.57" x 2.61" x 0.59" (40 x 66 x 15 mm) |
| Weight | 0.6 lbs (0.25 kgs) |
| Power | Transmitter: Powered by computer DVI Receiver: 100-240 VAC 50-60Hz, External adapter, +5V DC, 2A 1W |
| Distance | 1920 x 1200: 1000' (300m) 1600 x 1200: 1650' (500m) 1280 x 1024: 2,300' (700m) |
| Connectors | Transmitter: Single-link DVI video: DVI male direct plug-in Fiber: Single multi-mode fiber with SC connector Receiver: Single-link DVI video: DVI male direct plug-in Fiber: Single multi-mode fiber with SC connector |
| Environment | Operating temperature: 32°F–122°F (0°C–50°C) Storage temperature: -4°F–158°F (-20°C–70°C) Relative humidity: 20%–80%, non-condensing |
Part numbers ▼
| Kits (transmitter, receiver, and power supply) | |
|---|---|
| CRK-T1DFMDM | DVI video extender, single fiber, multi-mode |
| CRK-T1DFMDM/HDCP | DVI video extender, single fiber, multi-mode, HDCP |
