MultiStation
Multiple kvm Stations Share a Computer
- Multiple users share one computer with VGA video and PS/2 or USB keyboard and mouse
- kvm stations and computer all connected to unit with kvm cables
- Supports either two or four kvm stations
- USB keyboard and mouse with adapter cable

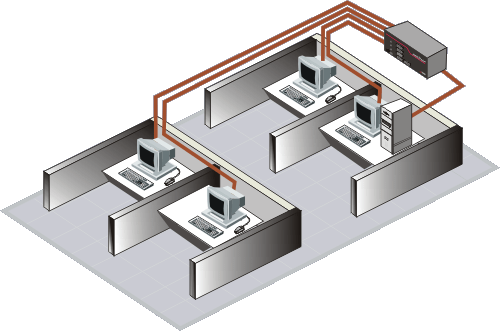

Typical Application
Overview
Multistation provides access to one computer from multiple locations up to 50 feet away, or 250 feet away using the remote kit model. MultiStation allows multiple users at different kvm stations to share control over a computer on a first-come first-serve basis. Users cannot all use the computer at once, but must wait until one user relinquishes control in order to have access.
An integrated kvm emulator makes it seem as though all PS/2 or serial connected keyboards, video monitors, and mice will behave exactly as if they were connected directly to the computer. MultiStation's sharing feature does not require using any keyboard commands. The unit also splits the VGA video signal allowing the same screen to be displayed on all monitors simultaneously. The maximum resolution supported is 1920 x 1200.
Multistation is produced in three models:
- ML-2U - Standalone unit 2 kvm user stations to 1 CPU
- ML-4U - Standalone unit 4 kvm user stations to 1 CPU
- MLK-2U - Distributed units up to 250 feet apart, local unit with 1 kvm user station and 1 CPU, remote unit with 1 kvm
Specifications ▼
| Dimensions (W x D x H) | ML-2U/MLK-2U: 8.85" x 4.9" x 2.1" (225 x 125 x 53 mm) ML-4U: 13.1" x 4.9" x 5.25" (333 x 125 x 133 mm) |
| Weight | ML-2U/MLK-2U: 3 lbs (1.4 kgs) ML-4U: 7 lbs (3.2 kgs) |
| Power | 90-240 VAC, 50-60Hz External adapter, 17VAC CT, 1.45A ML-2U/MLK-2U: 5W ML-4U: 10W |
| Resolution | VGA: 1280 x 1024 |
| Distance | Up to 50-250 feet (15-76 m) |
| Connectors | Power: DIN5 CPU/KVM: DB25F Bus in/out: 13W3F (Model MLK-2U) |
| Controls | Dip switch: command disable Power: Green LED Status: Yellow LED Remote video: Yellow LED |
| Environment | Operating temperature: 32°F–131°F (0°C–55°C) Storage temperature: -13°F–140°F (-25°C–60°C) Relative humidity: 0%–80%, non-condensing |
Part numbers ▼
| Product Part Number | Description |
|---|---|
| ML-2U | 1 CPU to 2 kvm's, DB25 kvm & CPU Connectors, SV-Chassis |
| ML-4U | 1 CPU to 4 kvm's, DB25 kvm & CPU Connectors, 3U, SVX-Chassis |
| MLK-2U | 1 CPU to 2 kvm's, Kit with Local & Remote Units, DB25 kvm & CPU Connectors, 13W3 SMB Bus Connectors, SMB Bus Cable Required, SV-Chassis |
