KVM Rack Drawer - 17"/19" LCD

  • Available with 17" or 19" LCD
  • Resolution up to 1280 x 1024 - VGA or DVI
  • USB or PS/2 keyboard/touchpad interface
  • On-screen menu for easy adjustments
  • Closing drawer puts LCD in standby
  • Optional audio, trackball, and touchscreen

Typical Application

RackView application

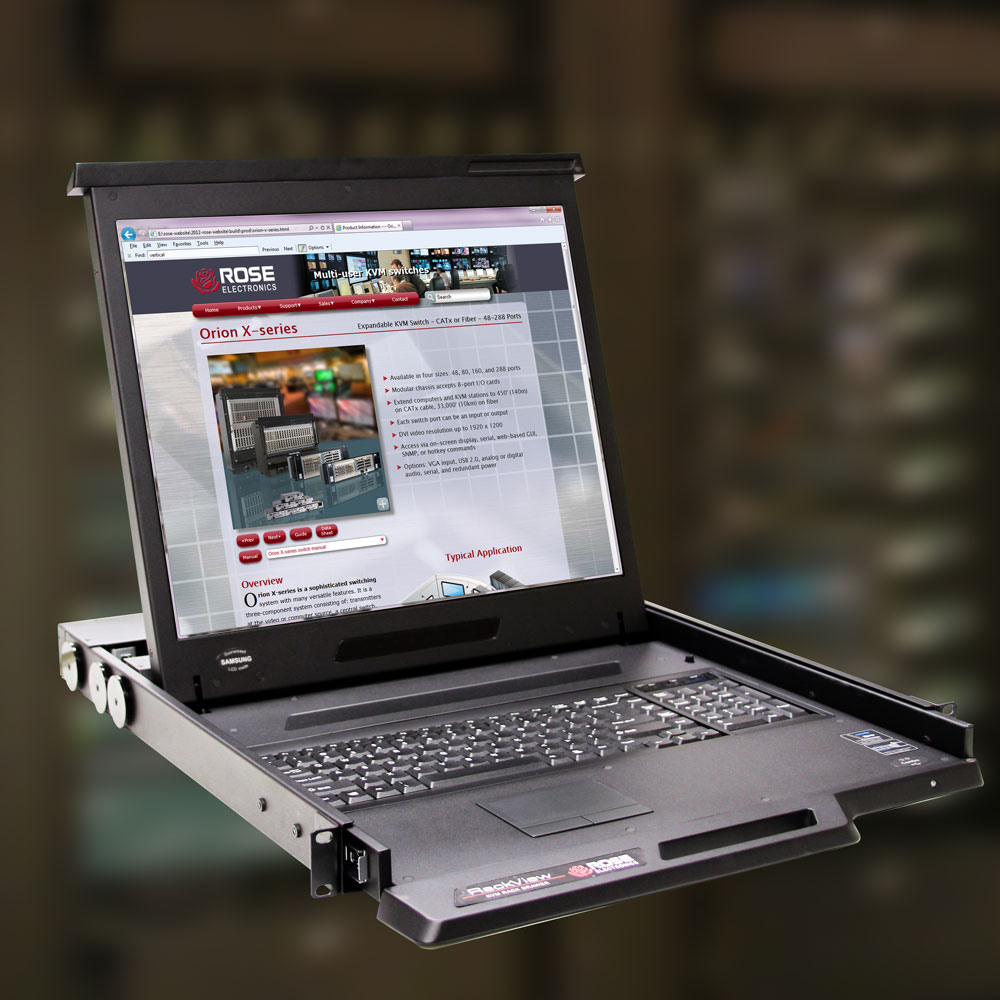

RackView is a smart and compact IT solution for accessing your rack based computers. The unit is housed in a rack mountable, sliding 1U drawer that can fit into any standard sized rack, making it perfect for situations where space is at a premium. In addition to a 17" or 19" LCD folding monitor, the station includes a keyboard with a separate numeric keypad, and a touchpad mouse.

The folding and sliding features provide for easy and quick station access when needed, while preventing the keyboard and screen from blocking access to other rack equipment when the console is not in use. RackView can display video from either DVI or VGA sources. Keyboard and mouse can be either standard USB or PS/2. The connectors on the back of the unit are DVI and HD15 3-way combo with VGA, PS/2, and USB. The unit comes standard with a DVI and USB cable.

To install RackView, screw the provided adjustable mounting rails to your standard 19" rack. Slide the unit into the mounted brackets and secure it. One person can easily install the RackView in a rack. RackView has an automatic off feature where closing the lid engages a micro-switch that puts the RackView into standby mode. This saves power while instantly making the console available when needed. Call on RackView to streamline your data center with its sleek appearance and outstanding features.


17": 17.4" x 18.1" x 1.73" (442 x 460 x 44 mm)
19": 17.4" x 19.7" x 1.73" (442 x 500 x 44 mm)
Weight 17": 26.4 lbs (12 kg)
19": 27.9 lbs (12.7 kg)
Resolution 1280 x 1024
Diagonal size 17"/19"
Viewing Area 17": 13.31" x 10.63" (338 x 270 mm)
19": 14.80" x 11.85" (376 x 301 mm)
Dot pitch 17": 0.264 mm
19": 0.294 mm
Colors 16.7M
Contrast ratio 1000:1
Brightness 250 cd/m²
Backlight 17": CCFL
19": LED
MTBF 17": 50,000 hours
19": 30,000 hours
Response time 5 ms
Power Auto-sensing 100 to 240VAC, 50-60Hz
Watts Max. 25 Watt, Standby 4 Watt
Controls 6 backlit buttons for OSD control
1 on/off power button
Connectors DVI female: DVI video
HD15 female: VGA video, PS/2 and USB keyboard and mouse
Environment Operating temperature: 32°F–122°F (0°C–50°C)
Storage temperature: 23°F–140°F (-5°C–60°C)
Relative humidity: 5%–90%, non-condensing

Part numbers

KVM Rack Drawers
RV1-CAKVT17/DVI RackView, KVM Drawer, 17" 1280x1024 LCD, VGA, DVI, USB KB/MS, Touch Pad, US KB
RV1-CAKVT19/DVI RackView, KVM Drawer, 17" 1280x1024 LCD, VGA, DVI, USB KB/MS, Touch Pad, US KB
RV1-CAKVT19/TSR RackView, KVM Drawer(1.5U) 19" Resistive Touchscreen, 1280x1024 LCD, VGA, DVI, USB KB/MS, Touch Pad, US KB
RV1-CAKVT19/TSC RackView, KVM Drawer(1.5U) 19" Capacitive Touchscreen, 1280x1024 LCD, VGA, DVI, USB KB/MS, Touch Pad, US KB
CAB-CMBVM66C005 Combo(HD15) to VGA+PS2
/K1 HD15 -HD15 + (1) USB-A
/K2 HD15 to HD15 + (2) PS2
/K3 DVI-D + VGA-M to DVI-I + (1) USB-A
/DCnn12/24/48 DC power option
