RackView High Res

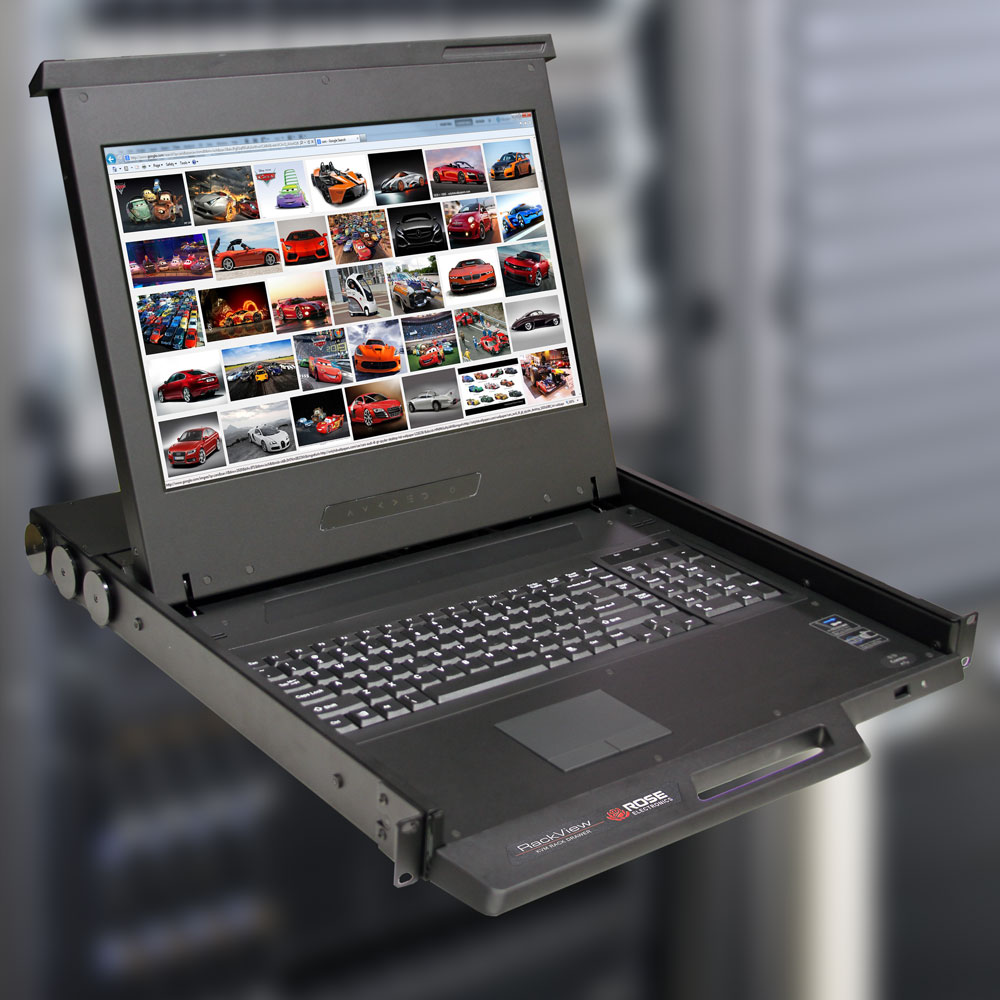

KVM Rack Drawer - 17" High Resolution LCD

  • High resolution 17" LCD
  • Resolution up to 1920 x 1200 - VGA or DVI
  • USB keyboard/touchpad interface
  • LED backlight saves power
  • Closing drawer puts LCD in standby
  • On-screen menu and picture-in-picture
  • Optional KVM switch, audio, trackball

Typical Application

RackView High Res application

Overview

When you want the maximum clarity for your KVM console drawer, RackView High Res fits the bill. At 1920 x 1200, you get a very detailed picture. Of course, in addition to the 17" high resolution folding monitor, there is a touchpad mouse and USB keyboard with a separate numeric keypad. The folding and sliding features ensure easy and quick access while in use, and keep the keyboard and screen from blocking access to rack equipment when the console is not in use.

The video interface features both DVI and VGA. If you want to go all out, then hookup both video inputs and use the picture-in-picture function (PiP). As in a television, you can view two video sources simultaneously usually one at full size and another at a reduced size in a small window. You can however display them side by side as well.

The unit comes standard with a DVI/USB cable. There is no PS/2 keyboard interface in this model. To install RackView, screw the provided adjustable mounting rails to your standard 19" rack. Slide the unit into the mounted brackets and secure it. One person can easily install the RackView in a rack. This model also has standby on close whereby closing the lid turns the monitor off automatically and puts it in standby mode.

RackView High Res is sure to fulfill your requirements for a high quality video display. It is ideal for industries requiring precision and detail such as military, medical, or broadcast, but it serves equally well in any data center.

Specifications

Dimensions 17.4" x 18.9" x 1.73" (442 x 480 x 44 mm)
Weight 24.0 lbs (10.9 kg)
Resolution 1920 x 1200
Diagonal size 17.1"
Viewing Area 14.45" x 9.02" (367 x 229 mm)
Dot pitch 0.191 mm
Colors 16.7M
Contrast ratio 600:1
Brightness 210 cd/m²
Backlight LED
MTBF 20,000 hours
Response time 30 ms
Power Auto-sensing 100 to 240VAC, 50-60Hz
Watts Max. 34 Watt, Standby 4 Watt
Controls 6 backlit buttons for OSD control
1 on/off power button
Pip function
Connectors DVI female: DVI video
HD15 female: VGA video, PS/2 and USB keyboard and mouse
Environment Operating temperature: 32°F–122°F (0°C–50°C)
Storage temperature: 23°F–140°F (-5°C–60°C)
Relative humidity: 20%–90%, non-condensing

Part numbers

KVM Rack Drawer
RV1-CAKVT17/FHD 17" High Resolution LCD, 1920x1200
Cables
/K1 HD15 -HD15 + (1) USB-A
/K2 HD15 to HD15 + (2) PS2
/K3 DVI-D +VGA-M to DVI-I + USB-A
Options
/DCnn 12/24/48 DC power option
