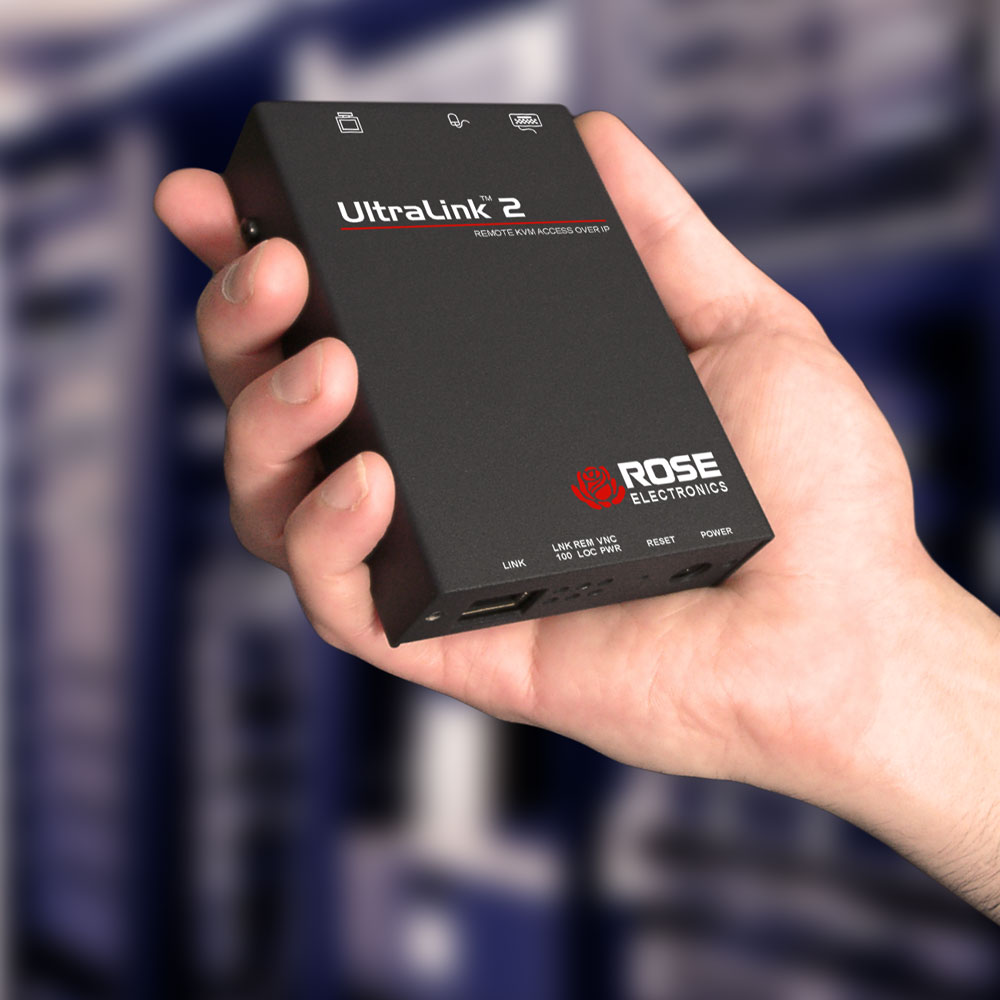

UltraLink 2
Single Computer kvm-IP Access
- Connect to a single computer with optional local port for dual access
- Browser-based or VNC program to remotely access computers over IP
- Responsive, real-time mouse control
- Secure encrypted operation
- VGA Video resolution up to 1600 x 1200
Typical Application
Overview
UltraLink 2 is a compact and low cost solution for remote IP access and kvm switching with a wide range of applications. It provides access to computers and servers locally, across a network, or over IP using a web browser.
The unit can be connected to a Rose Electronics kvm switch to provide access to as many as 1,000 computers or servers from anywhere in the world.
UltraLink 2 is easy to install and configure. Connect the unit, assign an IP address and network information, remotely connect to the unit and it's ready to use.
Rather than pay for the expense of traveling to a remote site to perform an upgrade or patch, the Virtual Media feature allows IT professionals to remotely access USB equipped systems and perform patches and upgrades. On the dual access model, a local kvm station can be connected for direct access to the connected computer.
Front panel indicators show:
- The network link activity
- Local or remote data received from the computer
- Indicates a remote viewer is connected
- Indicates the Ethernet network speed (10 / 100 Mbps)
- Power indicator
Specifications ▼
Dimensions (W x D x H) | UL2-SA: 2.95" x 4.72" x 1.06" (75 x 120 x 27 mm) UL2-DA: 2.95" x 4.72" x 1.65" (75 x 120 x 42 mm) |
Weight | UL2-SA: 0.75 lbs (0.3 kgs) UL2-DA: 1 lbs (0.5 kgs) |
Power | Supplied by computer UL2-SA: 5W UL2-DA: 6W |
Resolution | VGA: 1600 x 1200 |
Distance | CPU/KVM: 25 feet (7.6m) |
Connectors | Computer: VGA video: HD15F PS/2 keyboard: Mini-din6F PS/2 mouse: Mini-din6F Local port (UL2-DA): VGA video: HD15F PS/2 keyboard: Mini-din6F PS/2 mouse: Mini-din6F Network: RJ45 jack |
Controls | Reset: Push-button Power: Green LED Link: Green LED Local: Green LED Remote: Green LED VNC: Green LED Speed: Green LED |
Environment | Operating temperature: 32°F–113°F (0°C–45°C) Storage temperature: -13°F–140°F (-25°C–60°C) Relative humidity: 5%–80%, non-condensing |
Part numbers ▼
Product Part Number | Description |
---|---|
UL2-SA | UltraLink 2, Web browser based kvm Access Over IP, Single access unit |
UL2-DA | UltraLink 2, Web browser based kvm Access Over IP, Dual access unit |
UL2-SA/SW | UltraLink 2, Web browser based kvm Access Over IP, Single access unit w/ power supply |
UL2-DA/SW | UltraLink 2, Web browser based kvm Access Over IP, Dual access unit w/ power supply |
