UltraVista LC II

Video Wall Controller - DVI/HDMI - 2 x 2 or 3 x 3

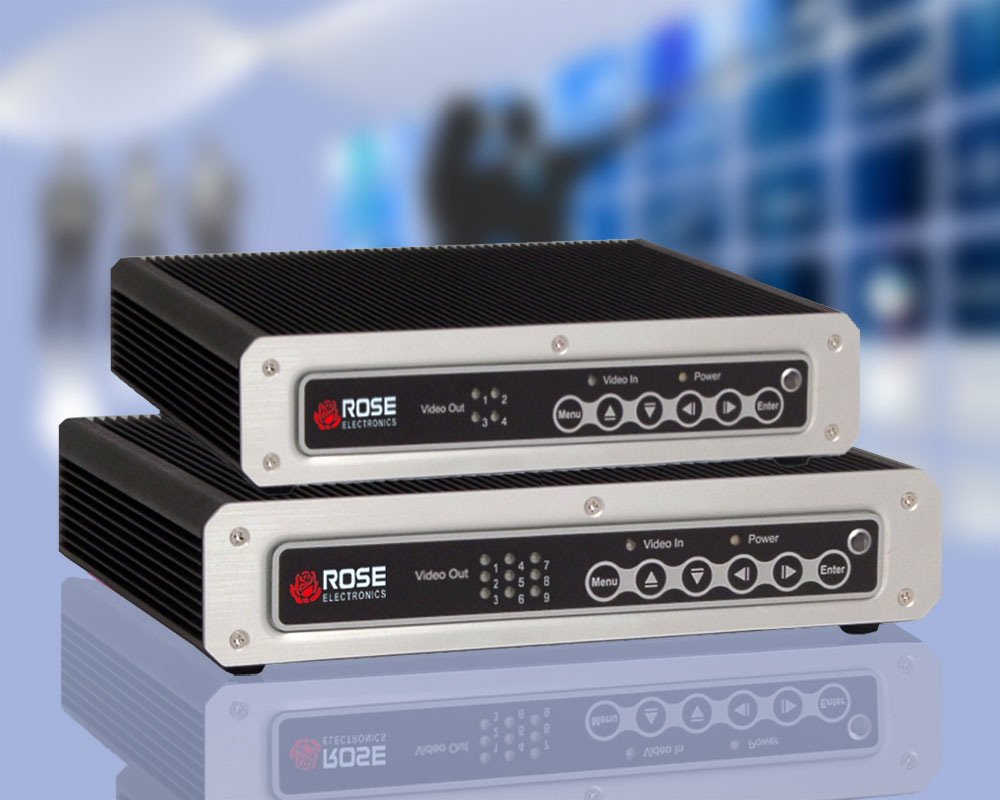

UltraVista LC II picture
◀ Prev Next ▶ Guide Data
Sheet
Manual
  • Display and enlarge different video sources across any combination of output screens
  • Available models: 2 x 2 DVI, 2 x 2 HDMI, and 3 x 3 DVI
  • Video resolution up to 1920 x 1200
  • Accepts HDTV and digital signals
  • Can be expanded to make a 4x4 or 9x9 video array

Typical Application

UltraVista LC II application

Overview

UltraVista LC is a video wall controller that provides an inexpensive means to build or add on to a high quality video wall. UltraVista LC connects directly to a computer with a single DVI cable with a single-link DVI or HDMI input, and instantly displays the video source on a large video wall. Video can be displayed at high resolutions of up to 1920 x 1200. It will automatically detect the correct settings for the video, eliminating extra setup and the need for adjustments. The video source is split evenly over the display array with no image scaling. A remote control or the connected computer is used to control the unit.

UltraVista LC can be automatically configured for three different output modes, including video wall mode, clone mode, and replication mode. These modes are automatically configured based on the input resolution from the video source. In video wall mode, the image is accurately split over the display array. In clone mode, the same image is displayed on all monitors. In the replication mode, the same image is shown on each row of monitors.

UltraVista LC is available in 3 models:

  • 2x2 - 1 DVI input / 4 single-link DVI outputs
  • 2x4 – 1 HDMI input / 4 single-link HDMI outputs
  • 3x3 - 1 DVI input / 9 single-link DVI outputs

UltraVista LC can be expanded to make a 4x4 or 9x9 video array.

Specifications

Dimensions
(W x D x H)
2x2: 9.1" x 7.1" x 1.85" (230 x 180 x 47 mm)
3X3: 11.6" x 7.5" x 2.6" (295 x 191 x 65 mm)
Weight 2x2: 3 lbs (1.4 kgs)
3X3: 5 lbs (2.3 kgs)
Power 90-264 VAC 47-63Hz
External adapter, +12 DC, 3.3A
2x2: 20W
3X3: 35W
Resolution DVI: 1920 x 1200
Distance Video: 25 feet (7.6m)
Connectors Video in: DVI
Video out: Four DVI(2x2), Nine DVI(3x3)
Power: Barrel jack
Config: RS232 DB9
Controls Unit power: Green LED
Input valid: Green LED
Output: Green LED per port
Config: 6 button keypad for OSD control
Remote: Infrared input
Environment Operating temperature: 32°F–104°F (0°C–40°C)
Storage temperature: -13°F–140°F (-25°C–60°C)
Relative humidity: 5%–80%, non-condensing

Part numbers

Product Part Number Description
VWL-B122FD Controller, 1 x DVI-D input, 4 x DVI-D output, 2x2 display
VWL-B122FH Controller, 1 x HDMI input, 4 x HDMI output, 2x2 display
VWL-B133FD Controller, 1 x DVI-D input, 9 x DVI-D output, 3x3 display
