UltraVista LC II
Video Wall Controller - DVI/HDMI - 2 x 2 or 3 x 3
- Display and enlarge different video sources across any combination of output screens
- Available models: 2 x 2 DVI, 2 x 2 HDMI, and 3 x 3 DVI
- Video resolution up to 1920 x 1200
- Accepts HDTV and digital signals
- Can be expanded to make a 4x4 or 9x9 video array

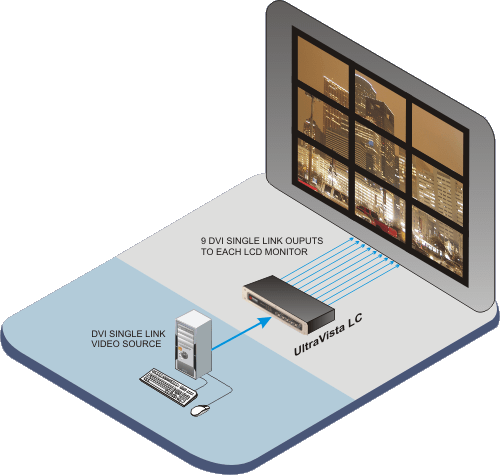

Typical Application
Overview
UltraVista LC is a video wall controller that provides an inexpensive means to build or add on to a high quality video wall. UltraVista LC connects directly to a computer with a single DVI cable with a single-link DVI or HDMI input, and instantly displays the video source on a large video wall. Video can be displayed at high resolutions of up to 1920 x 1200. It will automatically detect the correct settings for the video, eliminating extra setup and the need for adjustments. The video source is split evenly over the display array with no image scaling. A remote control or the connected computer is used to control the unit.
UltraVista LC can be automatically configured for three different output modes, including video wall mode, clone mode, and replication mode. These modes are automatically configured based on the input resolution from the video source. In video wall mode, the image is accurately split over the display array. In clone mode, the same image is displayed on all monitors. In the replication mode, the same image is shown on each row of monitors.
UltraVista LC is available in 3 models:
- 2x2 - 1 DVI input / 4 single-link DVI outputs
- 2x4 – 1 HDMI input / 4 single-link HDMI outputs
- 3x3 - 1 DVI input / 9 single-link DVI outputs
UltraVista LC can be expanded to make a 4x4 or 9x9 video array.
Specifications ▼
| Dimensions (W x D x H) | 2x2: 9.1" x 7.1" x 1.85" (230 x 180 x 47 mm) 3X3: 11.6" x 7.5" x 2.6" (295 x 191 x 65 mm) |
| Weight | 2x2: 3 lbs (1.4 kgs) 3X3: 5 lbs (2.3 kgs) |
| Power | 90-264 VAC 47-63Hz External adapter, +12 DC, 3.3A 2x2: 20W 3X3: 35W |
| Resolution | DVI: 1920 x 1200 |
| Distance | Video: 25 feet (7.6m) |
| Connectors | Video in: DVI Video out: Four DVI(2x2), Nine DVI(3x3) Power: Barrel jack Config: RS232 DB9 |
| Controls | Unit power: Green LED Input valid: Green LED Output: Green LED per port Config: 6 button keypad for OSD control Remote: Infrared input |
| Environment | Operating temperature: 32°F–104°F (0°C–40°C) Storage temperature: -13°F–140°F (-25°C–60°C) Relative humidity: 5%–80%, non-condensing |
Part numbers ▼
| Product Part Number | Description |
|---|---|
| VWL-B122FD | Controller, 1 x DVI-D input, 4 x DVI-D output, 2x2 display |
| VWL-B122FH | Controller, 1 x HDMI input, 4 x HDMI output, 2x2 display |
| VWL-B133FD | Controller, 1 x DVI-D input, 9 x DVI-D output, 3x3 display |
