Video Splitter CAT5
VGA/Audio Splitter over CATx
- Splits, amplifies, and extends VGA video from a single source to 6 or 12 monitors over CATx cable
- Video resolution up to 1600 x1200 at 650' (200m), 1280 x 1024 at 1,000' (300m)
- Keyboard and mouse emulation assures smooth operation
- Optional stereo speakers, microphone, and serial extension on 6-port unit
- Choose from three different kinds of receiver units with varying video resolution capabilities

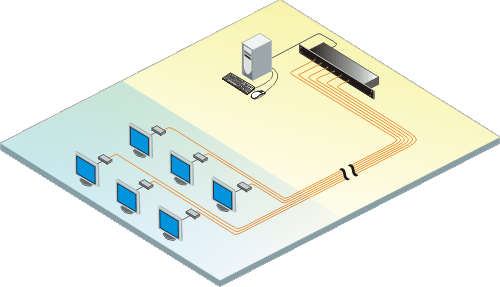

Typical Application
Overview
VideoSplitter CAT5 consolidates an extender and a video splitter into a single unit that will accept a single video source and extend it to multiple remote monitors. The product centralizes generation of the video source and then broadcasts it to a number of locations, giving it a wide range of uses. An optional upgrade will also allow audio and serial to be split and extended. VideoSplitter CAT5 supports extension up to 1,000 feet over CAT5 UTP cable with crystal clear resolutions of up to 1920 x 1200. Each VideoSplitter CAT5 connects to a selection of CrystalView remote units, and is plug-and-play, minimizing complications with setup and installation.
VideoSplitter CAT5 comes in 3 models:
- 6-port video
- 6-port video, audio, and serial
- 12-port video
Specifications ▼
| Dimensions (W x D x H) | 1U: 17" x 4.2" x 1.75" (432 x 107 x 44.5 mm) 2U: 17" x 4.2" x 3.5" (432 x 107 x 89 mm) |
| Weight | 1U: 4 lbs (1.8 kgs) 2U: 5.5 lbs (2.5 kgs) |
| Power | 90-240 VAC 50-60Hz External adapter, +5V DC, 2A 1U: 5W 2U: 10W |
| Resolution | VGA: 1600 x 1200 |
| Distance | Using CrystalView Plus receiver 1600 x1200: 650' (200m) 1280 x 1024: 1,000' (300m) Using CrystalView CAT5 receiver 1600 x 1200: 200' (60m) 1024 x 768: 1,000' (300m) Using CrystalView Mini receiver: 1600 x 1200: 100' (30m) 1280 x 1024: 150' (45m) |
| Connectors | CPU in: DB25F Link: RJ45 Headphone: 3.5 mm stereo jack Microphone: 3.5 mm mono jack Serial - DB9 |
| Controls | Link active: Green LED per port |
| Environment | Operating temperature: 32°F–113°F (0°C–45°C) Storage temperature: -13°F–140°F (-25°C–60°C) Relative humidity: 5%–85%, non-condensing |
Part numbers ▼
| Product Part Number | Description |
|---|---|
| CRV-6SLP-VS/SW | 1 Video in to 6 CATx video extender ports |
| CRV-6SLP-VS/SW/AUD | 1 Video in to 6 CATx video/audio/serial extender ports |
| CRV-12SLP-VS/SW | 1 Video in to 12 CATx video extender ports |
| CAB-D9F6XD9M001 | Cable for serial suport |
| CRV-MR | Mini PS/2 CATx Extender Remote Unit |
| CRV-R | PS/2 KVM CAT5 Extender Remote Unit |
| CRV-R1V | Plus PS/2 KVM CATx Extender Remote Unit |
| CAB-D9F6XD9M001 | Cable for serial suport |
| /AUD suffix for audio and serial option | |
