Video Splitter DVI+Audio
DVI/Audio Splitter - One In to 2-4 Out
- Distributes one DVI video and analog audio signal to two or four outputs
- Video resolution up to 1920 x 1200
- HDCP compliant
- Output status LED indicators

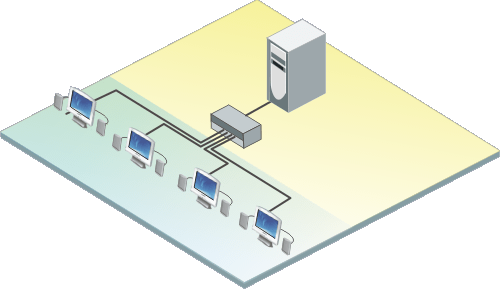

Typical Application
Overview
When you need to distribute DVI video and analog audio to multiple destinations, then the Video Splitter DVI+Audio from Rose Electronics is the perfect solution. The two-port model takes a single DVI video and analog input and distributes it to two DVI outputs and two speakers or audio inputs. The four-port model distributes the video signal to four DVI outputs and four speakers or audio inputs. All models have standard DVI connectors and 3.5mm stereo jacks.
Each model can easily be cascaded to additional Video Splitter DVI+Audio units to increase the number of displays. The Video Splitter DVI+Audio supports single-link video resolutions up to 1920 x 1200 at 60Hz. The audio frequency range is from 20Hz to 20Khz.
Specifications ▼
| Dimensions (W x D x H) | 8.66" x 5.31" x 1.73" (220 x 135 x 44 mm) |
| Weight | 2.4 lbs (1.1 kgs) |
| Power | 90-240 VAC 50-60Hz External adapter, +9V DC, .6A 6W |
| Resolution | DVI: 1920 x 1200 |
| Distance | Video: 25 feet (7.6m) |
| Connectors | Video: DVI Audio: 3.5mm stereo jack Power: Barrel jack |
| Controls | Unit power: Green Led Video active: Green LED per port |
| Environment | Operating temperature: 32°F–104°F (0°C–40°C) Storage temperature: -13°F–140°F (-25°C–60°C) Relative humidity: 5%–80%, non-condensing |
Part numbers ▼
| Product Part Number | Description |
|---|---|
| VSP-4DVI/A1 | Video Splitter, Audio, 1 DVI video input, 4 DVI video outputs |
