Vista AV

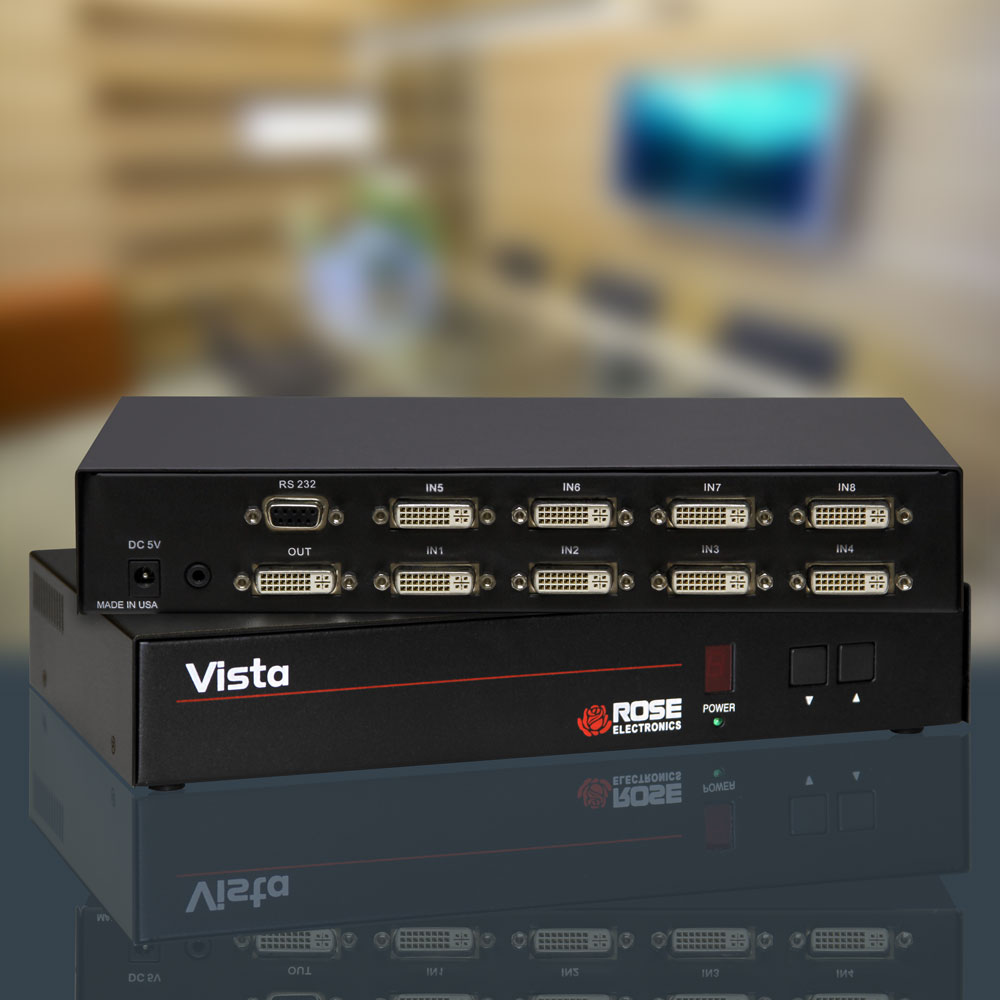

DVI Switch - 1 Output x 2, 4, 8, or 16 Inputs
- Video resolution up to 1920 x 1200
- 2, 4, 8, or 16 in to 1 output
- Switch from front panel push buttons, serial commands, or optional infrared
- DVI output is capable of driving cable lengths up to 25' (7m)
- Front panel display indicates the active selection
- Built-in DDC learning mode simplifies operation
Typical Application
Overview
Vista AV DVI video switch is ideal for switching multiple DVI video sources to one centralized monitor and is suitable for a variety of applications. The video from each source can be easily switched to the output monitor by either pushing the button on the front panel or by using remote serial commands from a connected computer or controller. The multi-platform design will simultaneously support PC, Apple, Linux, and Sun systems and allow seamless switching from one system to another. High quality output resolutions of up to 1920 x 1200 are supported to 25 feet without an extender.
Vista AV DVI ranges in size by 4 models:
- 1 DVI output to 2 DVI input ports
- 1 DVI output to 4 DVI input ports
- 1 DVI output to 8 DVI input ports
- 1 DVI output to 16 DVI input ports
Specifications ▼
| Dimensions (W x D x H) | 2-port: 6.67" x 3.4" x 1.75" (169 x 86 x 44.5 mm) 4-port: 10.5" x 6" x 1.75" (267 x 152 x 44.5 mm) 8-port: 10.5" x 6" x 1.75" (267 x 152 x 44.5 mm) 16-port: 17" x 6.75" x 1.75" (432 x 171 x 44.5 mm) |
| Weight | 2-port: 5 lbs (2.3 kgs) 4-port: 6 lbs (2.7 kgs) 8-port: 7 lbs (3.2 kgs) 16-port: 10 lbs (4.5 kgs) |
| Power | 90-230 VAC 50-60Hz External adapter, +5V DC, 2A 2-port: 5W 4-port: 6W 8-port: 8W 16-port: 10W |
| Resolution | DVI: 1920 x 1200 |
| Distance | Video: 25 feet (7.6m) |
| Connectors | Video: DVI Serial: DB9F Power: Barrel jack |
| Controls | 2, 4, and 8-port: LED digit, up and down video select buttons 16-port: 2 push-buttons and 2x20 LCD |
| Environment | Operating temperature: 32°F–104°F (0°C–40°C) Storage temperature: -13°F–140°F (-25°C–60°C) Relative humidity: 5%–80%, non-condensing |
Part numbers ▼
| Product Part Number | Description |
|---|---|
| AVS-1x02DVI | 1 DVI output / 2 DVI video input ports |
| AVS-1x04DVI | 1 DVI output / 4 DVI video input ports |
| AVS-1x08DVI | 1 DVI output / 8 DVI video input ports |
| AVS-1x16DVI | 1 DVI output / 16 DVI video input ports |
| CAB-DVIIMMxxx | DVI video cable |
