Vista Mini
Low Cost kvm Switch - 1 x 2
- Easy to use and install
- Economical
- Video resolution up to 1920 x 1440
- Support PC, UNIX, USB, and audio
- DB25 or PS/2 connectors
- Optional on-screen menu and audio support

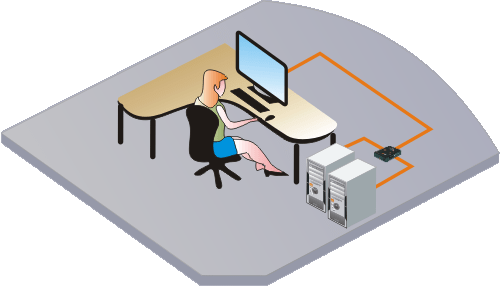

Typical Application
Overview
The Vista family is the kvm switch of choice for small or home offices wanting to use a single keyboard, monitor, and mouse to access two, four, or eight computers. Designed for plug-and-play operation, Vista switches reduce equipment clutter and save space.
Vista switches are made in three models: The smallest, the Vista Mini 2-port switch, supports audio and has high resolution video (350 MHz). The 2 and 4-port (1U) Vista M-Series switches are rack mountable and support both PC and Apple computers. The 4 and 8-port (1U) Vista L-Series switches are also rack mountable and offer on-screen-menu for larger applications.
Specifications ▼
| Dimensions (W x D x H) | 3.2" x 4.2" x 0.8" (81 x 107 x 20.5 mm) |
| Weight | 1 lbs (0.5 kgs) |
| Power | Supplied by computer 2W |
| Resolution | VGA: 2048 x 1536 |
| Distance | CPU/KVM: 25 feet (7.6m) |
| Connectors | U-series: Video: VGA HD15 female PS/2 keyboard: MiniDin-6F+AW7 PS/2 mouse: MiniDin-6F PC-series: CPU/KVM ports: DB25 Female |
| Controls | Reset: push-button switch Activity: Yellow LED Computer power: Green LED per port Computer select: Red LED per port |
| Environment | Operating temperature: 32°F–131°F (0°C–55°C) Storage temperature: -13°F–140°F (-25°C–60°C) Relative humidity: 5%–80%, non-condensing |
Part numbers ▼
| Product Part Number | Description |
|---|---|
| KVT-2U | Vista Mini, 1x2 kvm Switch, 1-kvm to 2-CPUs (DB25) |
| KVT-2PC | Vista Mini, 1x2 kvm Switch, 1-kvm to 2-CPUs (VGA-PS/2-PS/2) |
| Vista Mini Bundled Kits | Description |
| KVT-2UN-K | 2 Port kvm Switch, Includes two 5' cables |
| KVT-2U-KA | 2 Port kvm Switch with audio, Includes two 5' cables |
