CrystalLink USB2.0 CATx Flex Power

Mini USB2.0 CATX Extender

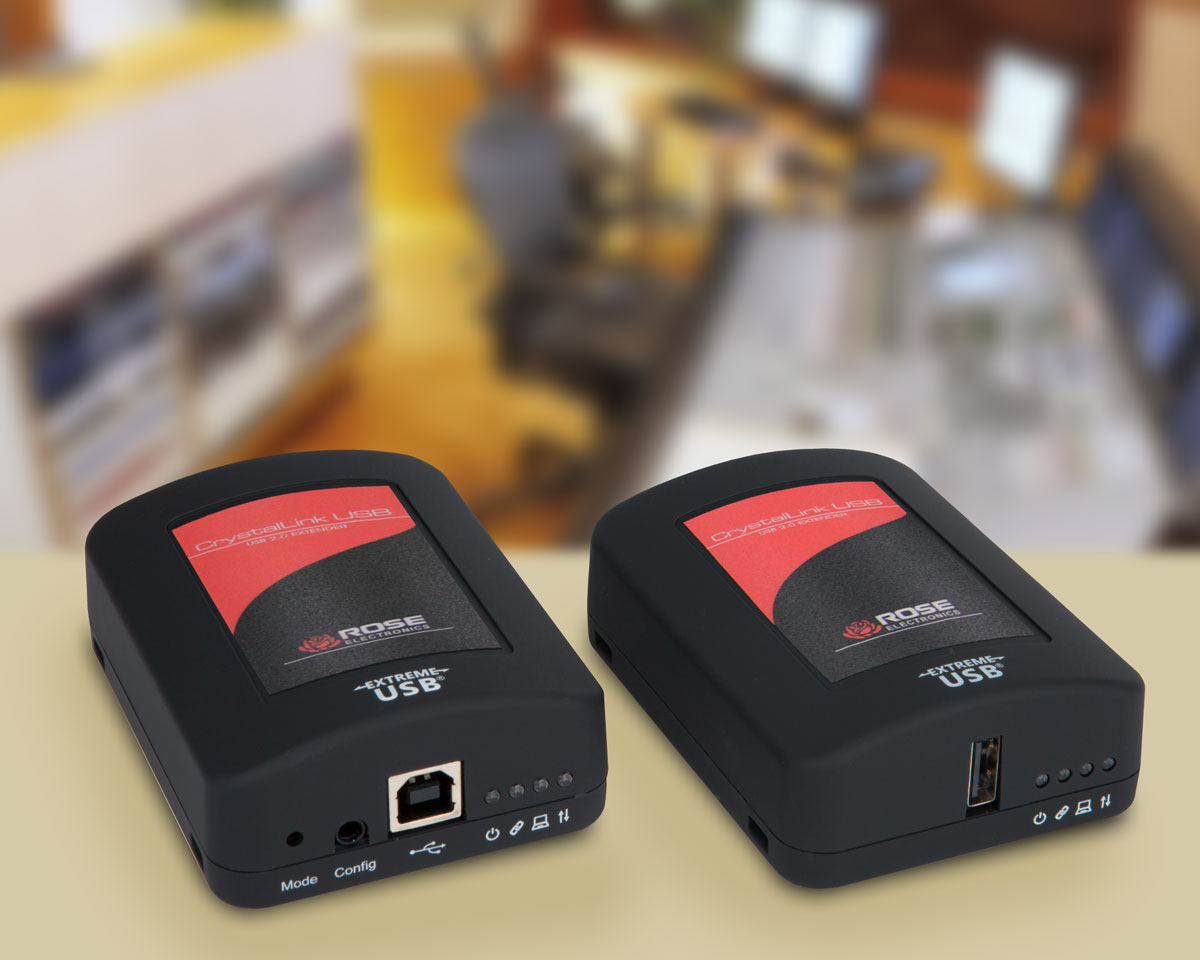

Product Picture

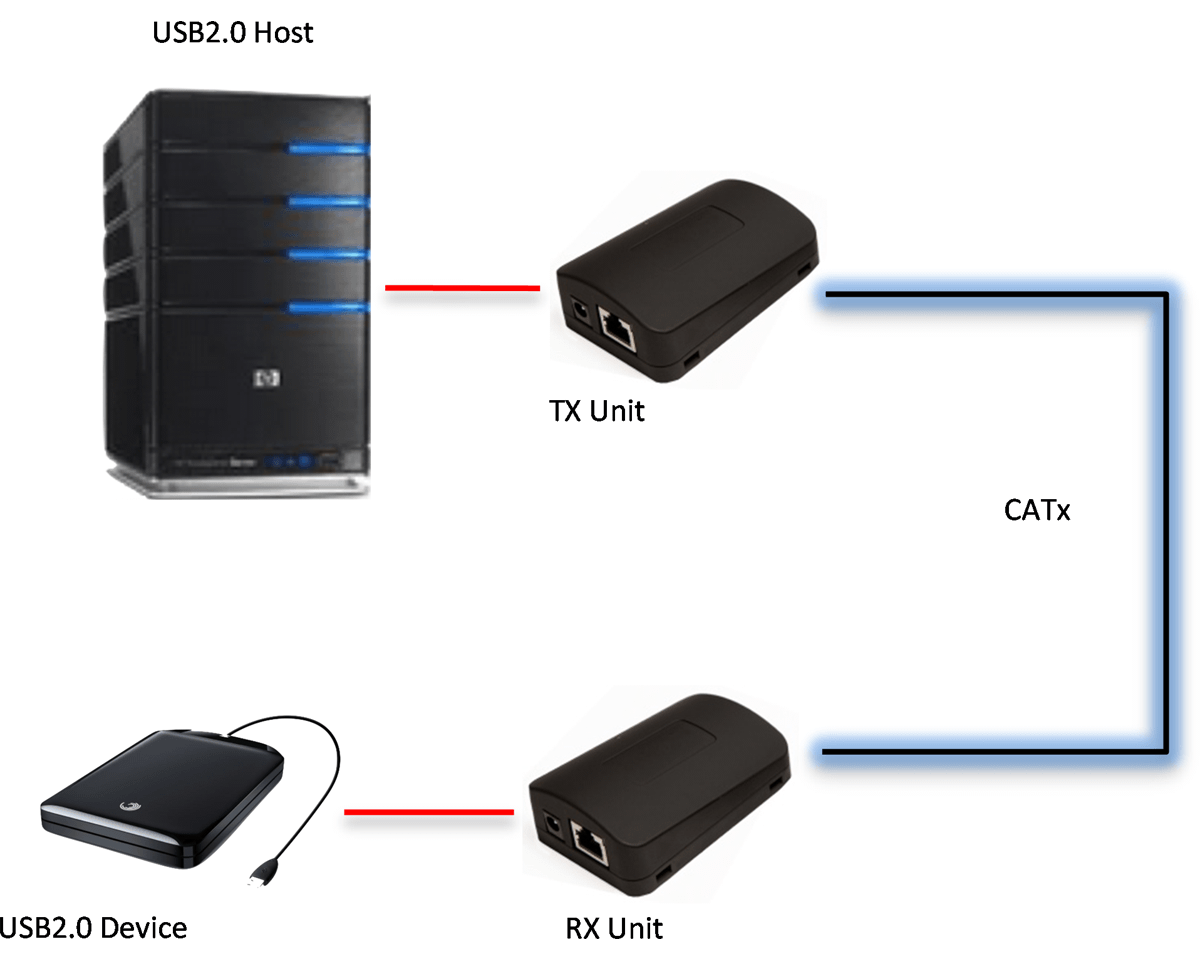

Diagram
  • Uses standard solid core CATx cable, CAT5e or better
  • Operates with USB1.1 and USB2.0 hosts
  • Plug and play, no software drivers required
  • Supports all major Operating Systems: Windows®, MAC OS X®, Linux®
  • Remote extender provides up to 500mA power to a single attached USB device
  • Attach up to 4 powered USB hubs for additional remote USB device support
  • Mounting slots are on both units – allowing rack mounting using cable tie wraps

OVERVIEW

The CrystalLink USB2.0 Flex-Power extends up to 330 feet (100 meters) over CATx UTP-STP cable. Individual USB devices such as a Keyboard or Mouse, USB disc drive, USB Printer or USB Joystick can be extended away from the host PC using the CrystalLink USB2.0 Flex-Power extender. Additional USB devices can be connected using a powered USB hub. Up to 4 powered hubs can be cascaded at the remote end.

The CrystalLink USB2.0 Flex-Power extension system consists of two units, a transmitter and a receiver. The transmitter connects directly to the CPU's USB port. The transmitter and receiver are linked via CATx solid core cable and the USB device is directly connected to the receiver unit.

Only one external power supply is required to operate this device.

SPECIFICATIONS

Dimensions (W x D x H) 2.25" x 3.35" x 1.1" (57 x 85 x 28 mm)
Weight 1.35 lb (0.62 kg)
Power 100-240 VAC 50-60Hz One external adapter, +24V DC, 1A 24W
USB Host Support EHCI (USB 2.0) and OHCI/UHCI (USB 1.1)
Distance 330' (100m)
Connectors Transmitter:USB host: USB Type BLink: RJ45Power: Barrel jack (24VDC)Receiver:USB device: Type A Link: RJ45Power: Barrel jack (24VDC)
Controls Link status: Green LED on TX and RX
Environment Operating temperature: 32°F–122°F (0°C–50°C)Storage temperature: -4°F–158°F (-20°C–70°C)Relative humidity: 20%–80%, non-condensing

PART NUMBERS

Product Part Number Description
CLK-1U2TPB-100M/FP/PE CrystalLink, USB 2.0 Extender Flex Power
