CrystalLink USB1.1 CATx Dual Port

Interface powered Dual Port USB1.1 CATx Extender

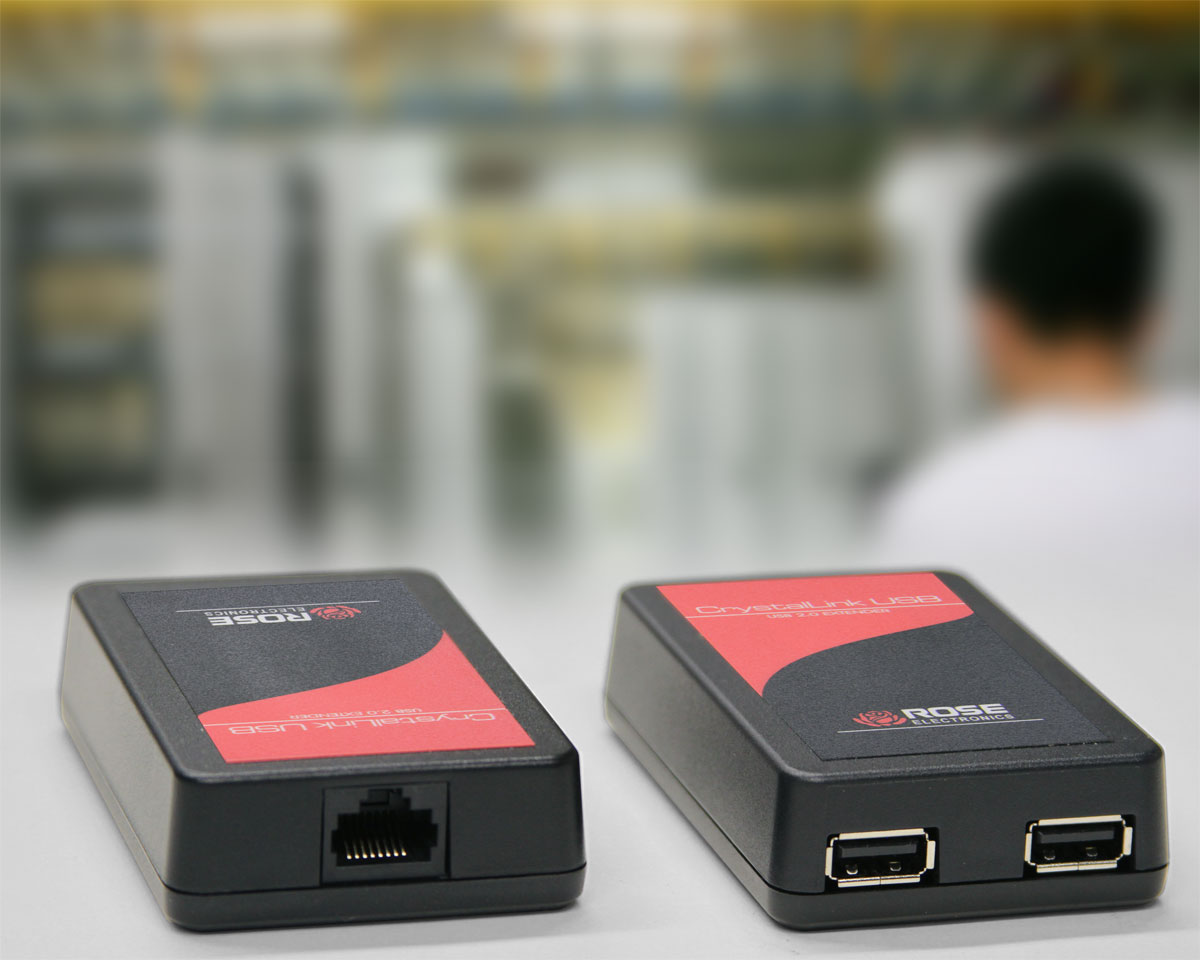

Product Picture

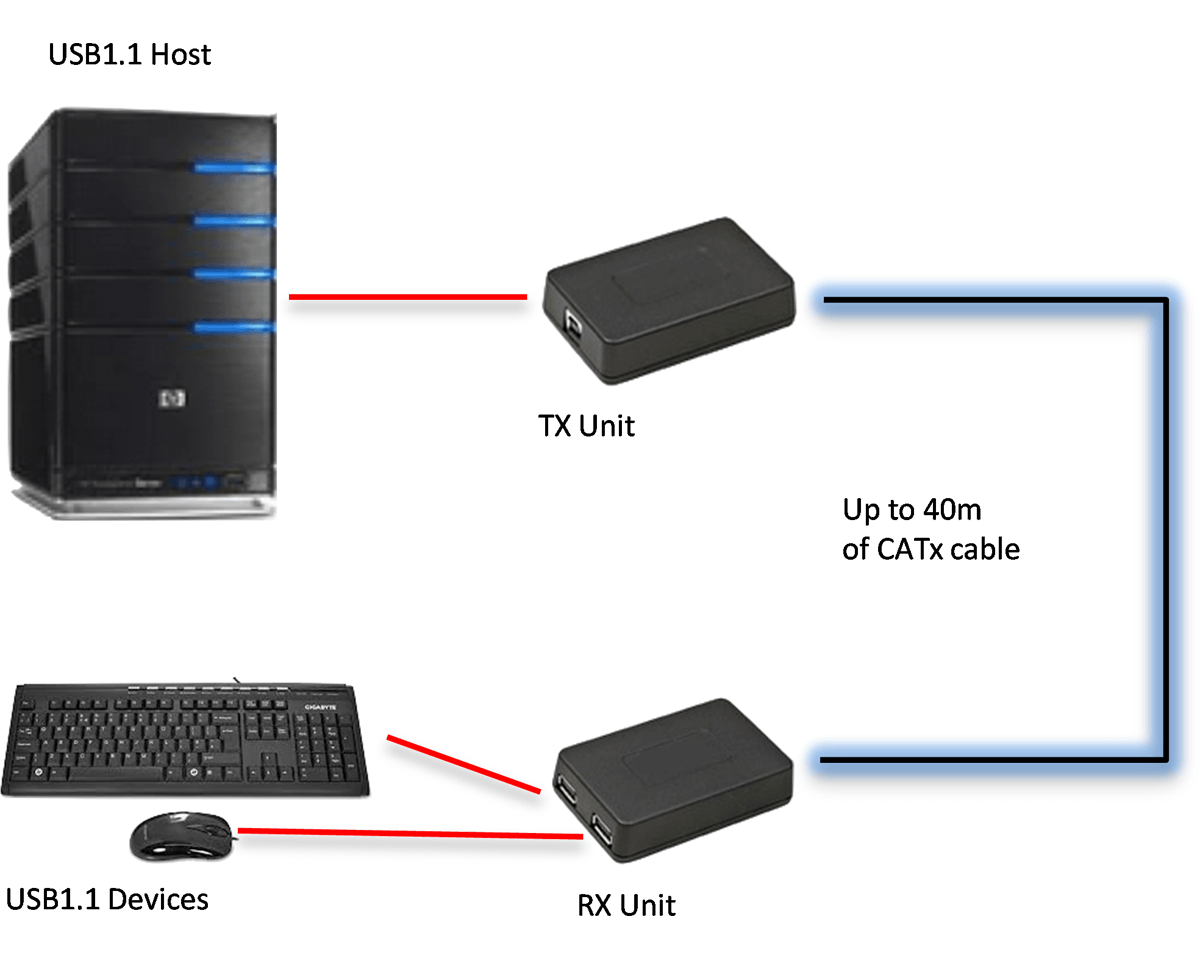

Diagram
  • Extends two USB2.0 devices at USB1.1 speeds
  • Supports full-speed (12Mbps) or low-speed (1.5Mbps) USB devices
  • Interface powered Transmitter Unit, and self-powered Receiver Unit
  • Plug and Play. No software drivers required
  • Supports all major Operating Systems: Windows, MAC OS X, Linux
  • Remote extender provides up to 400mA power to attached USB devices
  • Robust ESD and EFT immunity for industrial environments

OVERVIEW

The CrystalLink USB1.1 dual-port is a versatile extender device that can be used in multiple different applications. It is a great way to put your peripherals where they are convenient to the user or to secure the USB host from unwanted access.

The CrystalLink USB1.1 extends up to 130 feet (40 meters) over CATx UTP/STP cable. Individual USB devices such as a Keyboard or Mouse, USB thumb-drive, USB Printer and USB Joystick can be extended away from the host PC using the CrystalLink USB1.1 extender. Additional USB devices can be connected using a powered USB hub. The CATx extension cable can be CAT5e, 6 or 7, UTP/STP cable. Extension performance is optimized with the use of CATx solid core cable. Stranded (patch) cable and the use of patch panels will reduce the maximum operational distance. STP cable with grounded metal hoods is recommended.

No external power is required to operate this device.

SPECIFICATIONS

Dimensions (W x D x H) 2.17" x 3.34" x 0.87" (55 x 85 x 22 mm)
Weight 1 lb (0.5 kg)
Power Transmitter: USB poweredReceiver: powered from TX unitUSB Device: receives 400mA when the TX unit is supplied with 800mA
USB Host Support XHCI (USB 3.0), EHCI (USB 2.0) and OHCI/UHCI (USB 1.1)
Distance 130' (40m)
Connectors Transmitter:USB host: USB Type ALink: RJ45Receiver:USB device: (2) USB Type A(F) Link: RJ45
Environment Operating temperature: 32°F–122°F (0°C–50°C)Storage temperature: -4°F–158°F (-20°C–70°C)Relative humidity: 20%–80%, non-condensing

PART NUMBERS

Product Part Number Description
CLK-2U1TP-40M CrystalLink, USB1.1 Dual Port Extender

DOCUMENTS

DOCUMENT LINK
Datasheet • CrystalLink USB1.1 CATx Dual Port PDF
Manual • CrystalLink USB1.1 CATx Dual Port • Installation and Operation PDF
