CrystalView EX HDMI

CATx Extender • HDMI • USB 2.0 • 330' (100m)

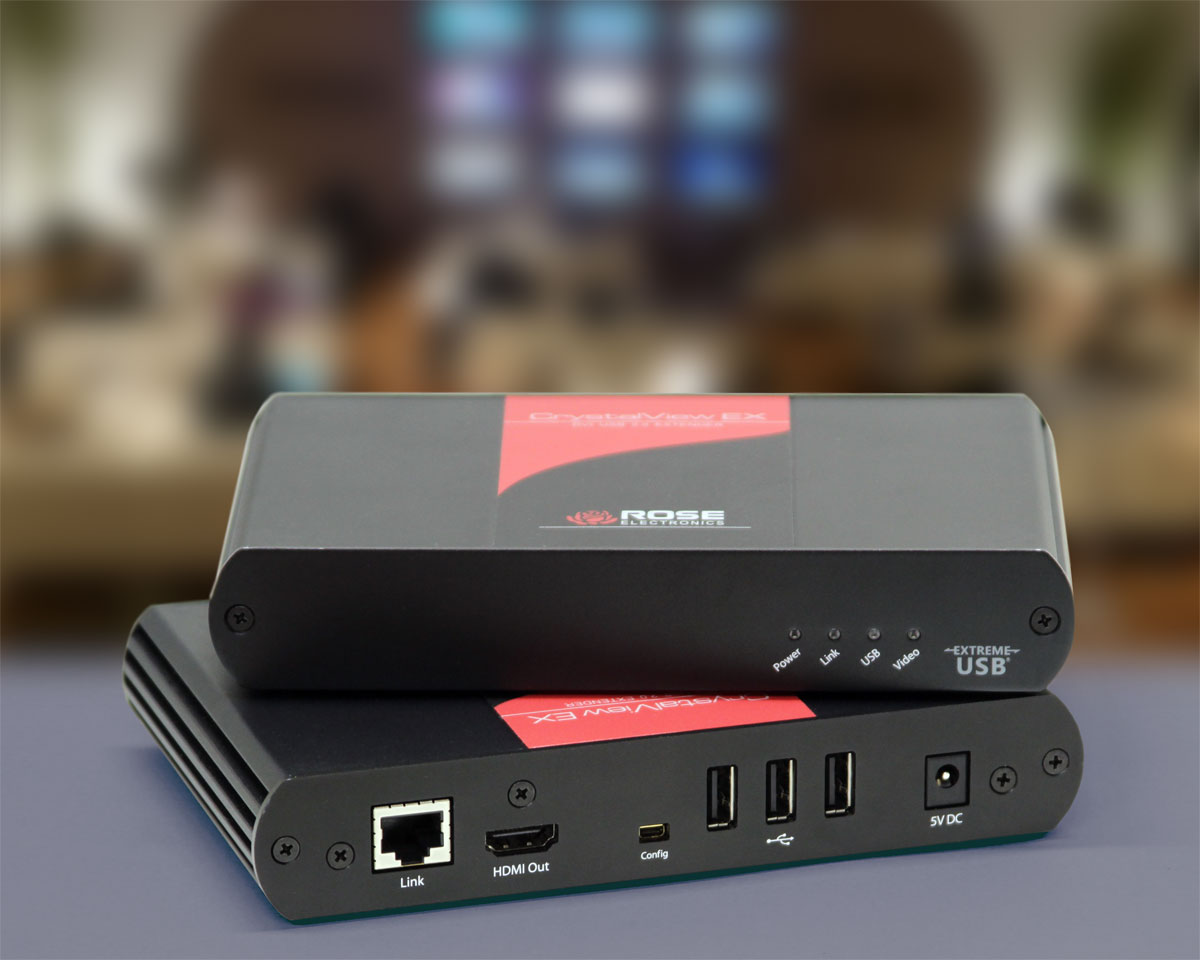

Product Picture
Diagram
  • Extends HDMI video and USB 2.0 up to 330' (100m)
  • Uncompressed video resolution up to 3840 x 2160
  • Supports 36-bit color and CEC / HDCP / Lip-Sync pass-through
  • Three remote high speed USB 2.0 device ports supplying 500ma power
  • USB 2.0 throughput of up to 40 Mbps
  • Supports audio via HDMI
  • Use USB keyboards, mice, printers, scanners, flash drives, audio devices, touch screens, web cams, game controllers, and others

OVERVIEW

CrystalView EX HDMI is designed for the remote viewing and operation of a high definition monitor and associated USB peripherals. A professional product featuring uncompressed HD digital video, CrystalView EX HDMI is a high performance extender enabling a remote console management workstation to be located at a distance from an HDMI host device. It is compatible with all major operating systems, including Windows, Linux, and Apple OS X.

An HDCP pass-through feature is included allowing digital content from any HDCP compatible device to be transmitted without losing frames or experiencing video corruption. If additional USB devices are required, a USB hub may be connected to expand the number of ports. The high quality video and digital audio extension used in conjunction with USB 2.0 or lower peripherals makes this device unrivalled for in performance and operation for distances up to 330 feet (100m).

SPECIFICATIONS

Dimensions (W x D x H) 6.9" x 4.4" x 1.18" (175 x 112 x 30 mm)
Weight 2.0 lb (0.9 kg)
Power 100-240 VAC 50-60Hz External adapter: Transmitter: +5V, 3A, groundedExternal adapter: Receiver: +5V 3A, grounded Transmitter: 15WReceiver: 15W
Resolution HDMI 1.3: uncompressed 1080p, 1920x1200, 4K 3036 bit color, deep color, x.v.color, 2D and 3DUSB2.0 throughput: up to 40Mbps
Distance HDMI 1920x1200: 330' (100m)
Connectors Transmitter:HDMI video: HDMI femaleUSB host: USB Type BLink: RJ45 jackPower: Barrel jackReceiver:HDMI video: HDMI femaleUSB device: Three USB Type A, 500ma eachLink: RJ45 jackPower: Barrel jack
Controls Unit power: Green LEDLink active: Green LEDVideo active: Green LEDUSB status: Green LED
Environment Operating temperature: 32°F–104°F (0°C–40°C)Storage temperature: -4°F–158°F (-20°C–70°C)Relative humidity: 20%–80%, non-condensing

PART NUMBERS

Kits (transmitter, receiver, and power supply)
CRK-1DTXT-HD6 CrystalView EX HDMI Extender
Rack Mount Kit Description
RM-CRV-EX/19 19" Rack Mount for standard size server and equipment racks
RM-CRVEX/PLT Cover plate for rack mount
Cable Part Number Description
CAB-HDMIMM006 HDMI Male-Male, 6ft (2.0m)
CAB-HDMIMM010 HDMI Male-Male, 10ft (3.0m)
CAB-USBAB006 USB A to B Cable, 6ft (2.0m)
CAB-USBAB010 USB A to B Cable, 10ft (3.0m)

DOCUMENTS

DOCUMENT LINK
Datasheet • CrystalView EX HDMI PDF
Manual • CrystalView EX HDMI • Installation and Operation PDF
