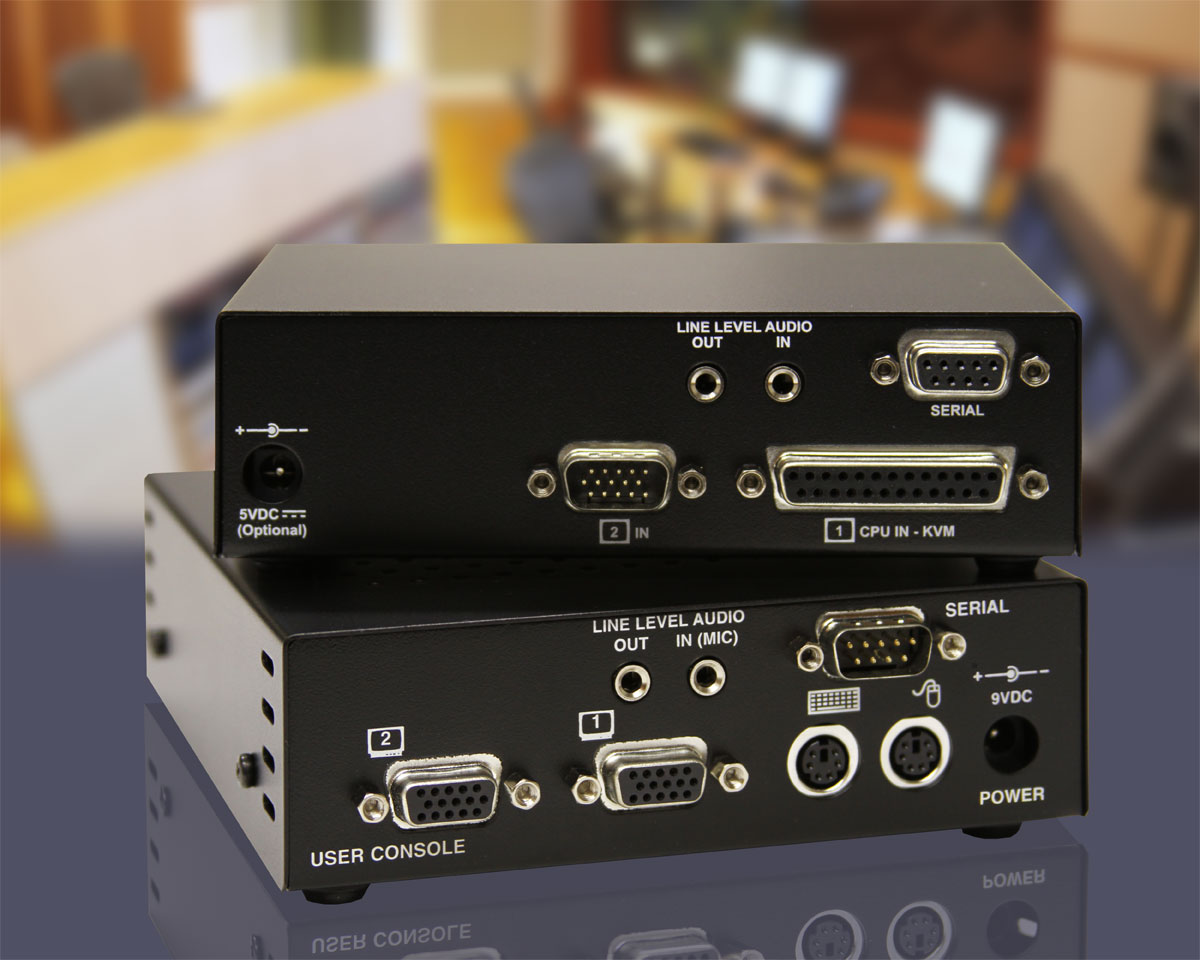

CrystalView Plus
CATx Extender • VGA • PS2 • Audio • Serial+Skew • 1000'
- Video resolution up to 1600 x 1200 at 650' (200m), 1280 x 1024 at 1,000' (300m)
- Video adjustments of equalization and skew are done via keyboard commands
- PS/2 keyboard and mouse emulation assures smooth operation
- Optional stereo speakers, microphone, and serial extension
- Optional dual-head video feature
OVERVIEW
CrystalView Plus series of KVM Extenders allows you to position your KVM station and enhance video quality up to 1,000 feet away from your computer using a single CATx cable. The extender is available in models compatible with dual or quad video to support multiple video sources. Another option, the dual access model, allows you to access the computer at either the local or remote end.
CrystalView Plus has simplified setup and configuration by eliminating adjustment knobs and jumper switch settings. All tuning for skew, low and high frequency equalization, and RGB delay can be set with keyboard commands. Each video channel can be adjusted individually or universal settings may be applied, enabling the user to achieve the appropriate settings for image clarity.
Stereo audio is an optional addition which produces low-noise, high quality sound. Speakers, headphones, or a microphone can be connected to the remote receiver unit, giving it a wide range of uses such as call centers, trader's desks, kiosks, TV stations, and any G9other application in which multiple video and audio sources require extension from a computer.
The bi-directional serial option allows the connection at the remote location of a touchscreen, digital tablet, serial printer, or other serial device. CrystalView Plus is plug-and-play, with no set-up required for serial devices.
SPECIFICATIONS
| Dimensions (W x D x H) |
SL1, DL1: 7.8" x 3.9" x 1.5" (197 x 100 x 38 mm) R1V, R2V: 5.5" x 5.7" x 1.1" (140 x 145 x 29 mm) SL1/AUD, DL1/AUD: 7.8" x 3.9" x 1.7" (197 x 100 x 44 mm) R1V/AUD, R2V/AUD: 5.5" x 5.7" x 1.7" (140 x 145 x 44 mm) SL2: 5.7" x 4.3" x 1.1" (146 x 110 x 29 mm) SL2/AUD: 5.7" x 4.3" x 1.7" (146 x 110 x 44 mm) R4V, R4V/AUD: 10.8" x 5.7" x 1.1" (275 x 145 x 29 mm) |
| Weight | SL1, DL1: 2.4 lb (1.1 kg)R1V, R2V: 2.9 lb (1.3 kg)SL1/AUD, DL1/AUD: 2.9 lb (1.3 kg)R1V/AUD, R2V/AUD: 3.3 lb (1.5 kg)SL2: 2.4 lb (1.1 kg)SL2/AUD: 2.9 lb (1.3 kg)R4V, R4V/AUD: 3.7 lb (1.7 kg) |
| Power | Transmitter: Powered by computer PS/2Receiver 100-240 VAC 50-60Hz, External adapter, +9V DC, 1A/2A SL1, DL1: 10WR1V, R2V: 8WSL1/AUD, DL1/AUD: 8WR1V/AUD, R2V/AUD: 8WSL2: 8WSL2/AUD: 8WR4V, R4V/AUD: 15W |
| Distance | VGA 1600 x 1200: 650' (200m)VGA 1280 x 1024: 1,000' (300m) |
| Connectors | Transmitter:VGA video, PS/2 keyboard/mouse: DB25FOther VGA video: HD15MDual access keyboard/mouse: Two mini-din6 femaleLink: RJ45 jack, one per video portAudio:Two 3.5mm stereo jacksSerial: DB9FReceiver:VGA video: HD15FOther VGA video: HD15FPS/2 keyboard/mouse: Two mini-din6 femaleLink: RJ45 jack, one per video portAudio:Two 3.5mm stereo jacks Serial: DB9MPower: Barrel jack |
| Controls | Skew: Keyboard command 2.8 ns/stepLink active:Green LED in RJ45 linkData active:Yellow LED in RJ45 link |
| Environment | Operating temperature: 32°F–104°F (0°C–40°C)Storage temperature: -13°F–140°F (-25°C–60°C)Relative humidity: 5%–90%, non-condensing |
PART NUMBERS
| Kits (transmitter, receiver, and power supply) | |
|---|---|
| CRK-1P1V | KVM Extender Kit - Single-video, VGA, PS/2 (CRV-SL1 + CRV-R1V) |
| CRK-1P2V | KVM Extender Kit - Dual-head, VGA, PS/2 (CRV-SL2 + CRV-R2V) |
| CRK-2P1V | KVM Extender Kit - Single-video, dual access, VGA, PS/2 (CRV-DL1 + CRV-R1V) |
| Local units (Transmitters) | |
| CRV-SL1 | Local unit - Single-video, VGA, PS/2 |
| CRV-SL2 | Local unit - Dual-head, VGA, PS/2 |
| CRV-DL1 | Local unit - Single-video, dual-access, VGA, PS/2 |
| Remote Units (Receivers) | |
| CRV-R1V | Remote unit - Single-video, VGA, PS/2 |
| CRV-R2V | Remote unit - Dual-head, VGA, PS/2 |
| CRV-R4V | Remote unit - Quad-head, VGA, PS/2 |
| Options | |
| /AUD | Audio and serial option, add suffix to part number |
| Cables | |
| CAB-ZX0606Cnnn | UltraCable, PC to Switch, DB25M to VGA-PS/2 Keyboard + Mouse |
| CAB-CX0606Cnnn | UltraCable Hi-Res, PC to Switch, DB25M to VGA-PS/2 Keyboard + Mouse |
| CAB-D9MFnnn | Cable, Serial, DB9M to DB9F |
| CAB-SPMMnnn | Cable, Stereo Audio, Mini-Phone M-M (3.5mm) |
| CAB-08UTPnnn | Cable, UTP CAT5, RJ45MM |
| Rack mount brackets | |
| RM-BR1 | Rack Mount brackets for CRV-SL1, CRV-SL1/AUD, CRV-DL1, CRV-DL1/AUD |
| RM-BR3 | Rack Mount shelf for CRV-SL2, CRV-SL2/AUD, CRV-R1V, CRV-R1V/AUD, CRV-R2V, CRV-R2V/AUD, CRV-R4V, CRV-R4V/AUD |
