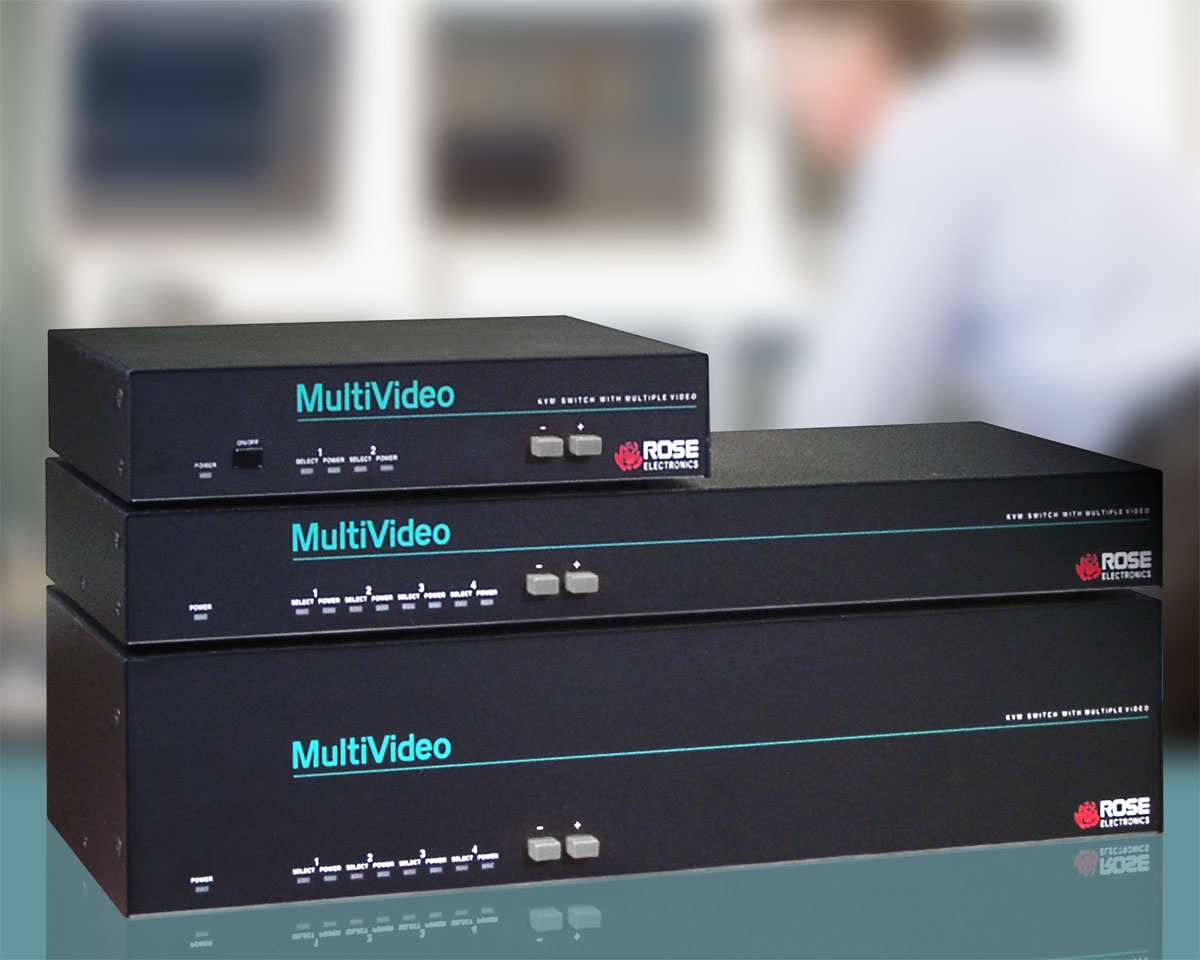

MultiVideo
1×2, 1×4, 1×8 Multi-head KVM Switch • VGA • USB • PS/2
- Available in 5 different port configurations
- 2 computers, each with 2 video ports
- 2 computers, each with 4 video ports
- 4 computers, each with 2 video ports
- 4 computers, each with 4 video ports
- 8 computers, each with 2 video ports
- Video resolution up to 1920×1200
- Integrated expansion for chaining units together supports up to 64 computers
- PC-platform units support PS/2 and USB keyboard and mouse to computer
- Multi-platform units also support Sun and Apple keyboard and mouse, audio, and touchscreen
- Optional OSD for configuration, computer selection, security, on-screen names, and screen savers
- Switch computers from keyboard, front panel, OSD, or RS232 port
- Scan mode switches through computers with adjustable rate
- Easy to use keyboard shortcut switches computer or turns scan mode on/off
- Supports HV sync, composite sync, and sync-on-green
- Free lifetime firmware upgrades for product enhancements
- Rack mount kits available in 19", 23", and 24" sizes
- Optional audio and serial function
- Made in USA
OVERVIEW

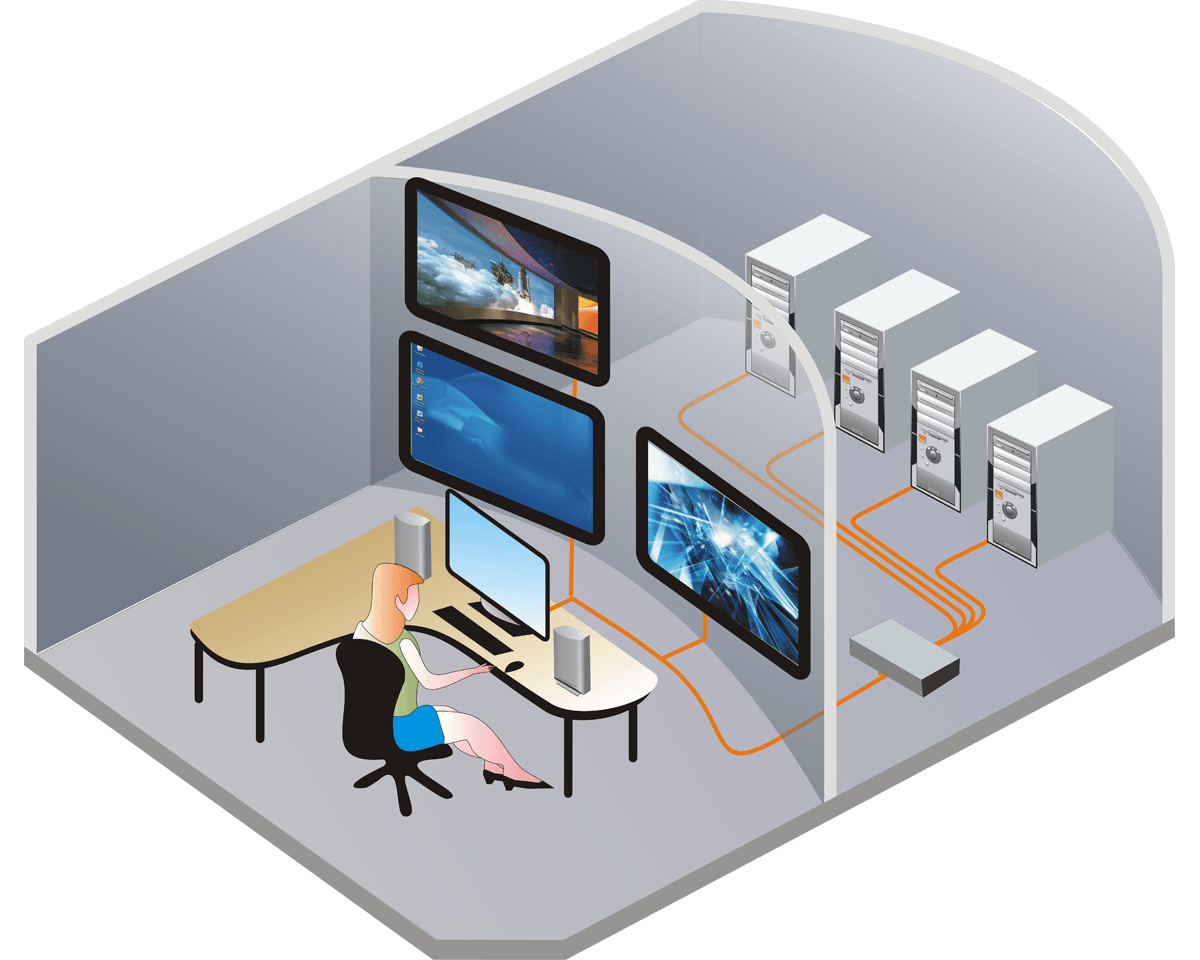

MultiVideo delivers keyboard command switching between different computers with multiple video signals. MultiVideo switch allows a user to view up to 4 video outputs per CPU at a resolution of 1600 x 1200. An optional on-screen display with a streamlined visual interface allows users to select which computer and video signal to view, and simplifies configuration and security. PC only and multi-platform models are available. The PC model supports only PS/2 and USB keyboards and mice, while the multi-platform will support PS/2, USB, Sun, and Apple keyboards and mice.
MultiVideo is offered in 5 different port configurations:
- 2 computers, each with 2 video ports
- 2 computers, each with 4 video ports
- 4 computers, each with 2 video ports
- 4 computers, each with 4 video ports
- 8 computers, each with 2 video ports
Units can be inter-connected to support a maximum of 64 computers. Serial touchscreen support is available on the multi-platform models.
SPECIFICATIONS
| Dimensions (W x D x H) |
M Chassis: 8.8" x 4.85" x 1.75" (223 x 123 x 44.5 mm) (1U)B chassis: 16.7" x 4.85" x 1.75" (424 x 123 x 44.5 mm) (1U)C chassis: 16.7" x 4.85" x 3.5" (424 x 123 x 89 mm) (2U) |
| Weight | M Chassis: 4 lb (1.8 kg)B chassis: 6 lb (2.7 kg)C chassis: 8 lb (3.6 kg) |
| Power | 90-240 VAC 50-60Hz M chassis: External adapter, +5V, 2AB/C-chassis: Internal M Chassis: 15WB chassis: 25WC chassis: 30W |
| Resolution | VGA: 1920 x 1200 |
| Distance | CPU/KVM: 25 feet (7.6m) |
| Connectors | Power: B/C chassis: IEC320, M-chassis: DIN5CPU/KVM: DB25FRS232: RJ 6-conductor |
| Controls | Computer selection: OSD, front panel(option), hot-key, serial portUnit Power: Green LEDCPU power: Green LED per portCPU select: Red LED per portPrev computer: Push-button -Next computer: Push-button + |
| Environment | Operating temperature: 32°F–113°F (0°C–45°C)Storage temperature: -13°F–140°F (-25°C–60°C)Relative humidity: 5%–80%, non-condensing |
PART NUMBERS
| Product Part Number | Description |
|---|---|
| MPM-2U2V | MultiVideo, 1x2 KVM Switch, Dual-head Video PC, 1U, M Chassis |
| MPB-4U2V | MultiVideo, 1x4 KVM Switch, Dual-head Video PC, 1U, B Chassis |
| MPC-2U4V | MultiVideo, 1x2 KVM Switch, Quad-head Video PC, 1U, C Chassis |
| MPC-4U4V | MultiVideo, 1x4 KVM Switch, Quad-head Video PC, 1U, C Chassis |
| MPC-8U2V | MultiVideo, 1x8 KVM Switch, Dual-head Video PC, 1U, C Chassis |
| MEM-2U2V | MultiVideo, 1x2 KVM Switch, Dual-head Video Multi-Platform, 1U, M Chassis |
| MEB-4U2V | MultiVideo, 1x4 KVM Switch, Dual-head Video Multi-Platform, 1U, B Chassis |
| MEC-2U4V | MultiVideo, 1x2 KVM Switch, Quad-head Video Multi-Platform, 1U, C Chassis |
| MEC-4U4V | MultiVideo, 1x4 KVM Switch, Quad-head Video Multi-Platform, 1U, C Chassis |
| MEC-8U2V | MultiVideo, 1x8 KVM Switch, Dual-head Video Multi-Platform, 1U, C Chassis |
| /OV suffix | On-screen display option |
