UltraView DVI

1×16 KVM Switch • DVI • USB2.0 • Audio

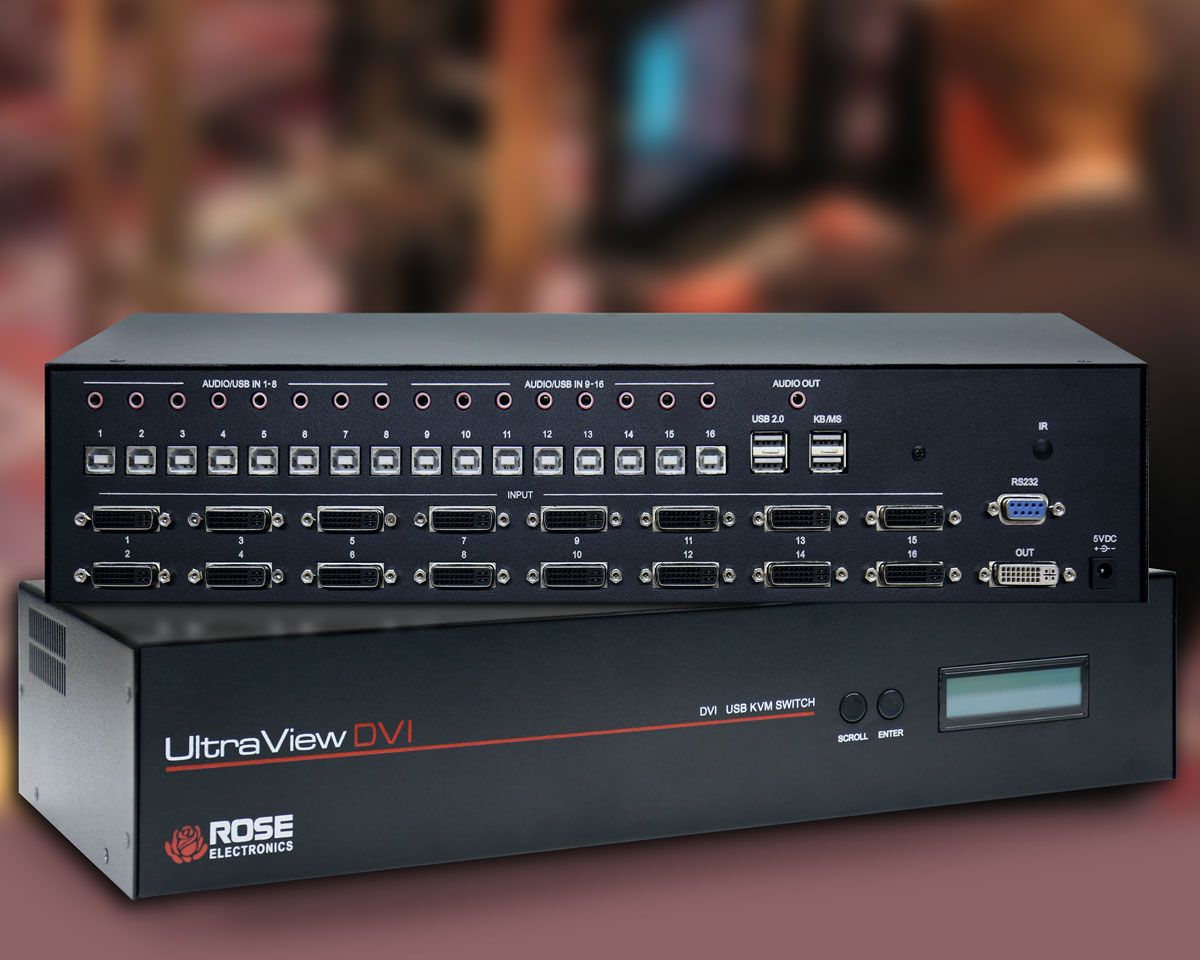

Product Picture

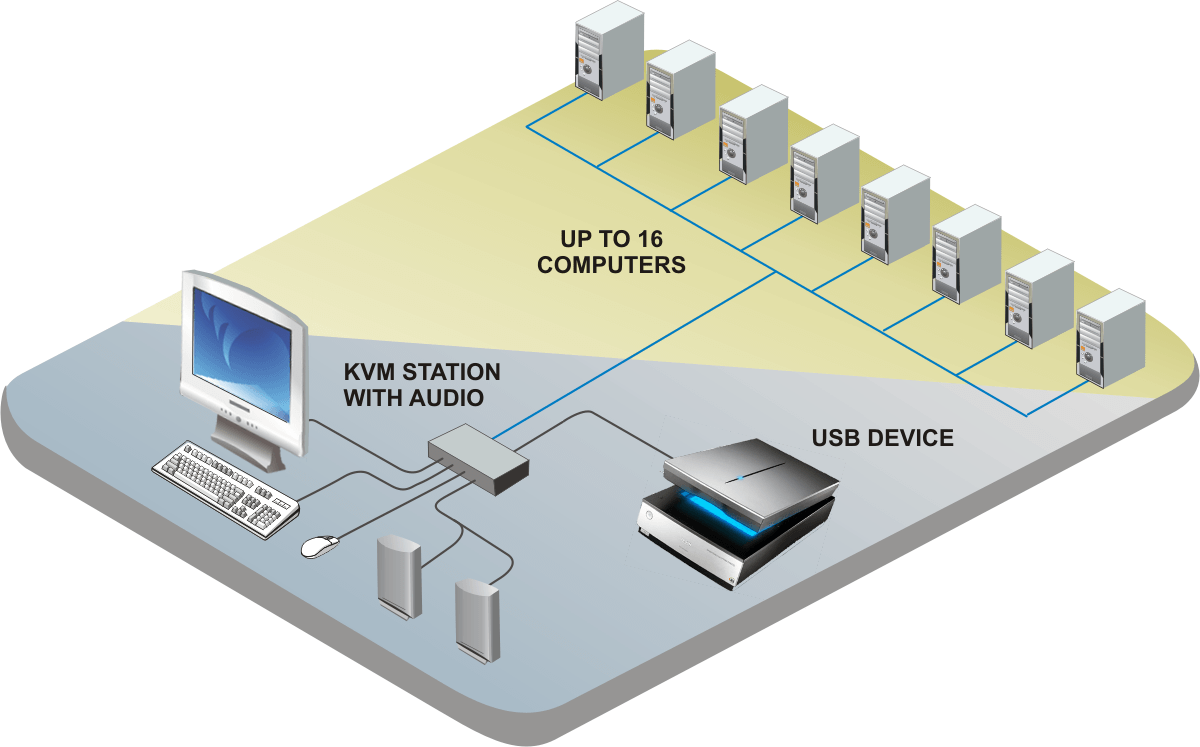

Diagram
  • Supports single-link DVI video input / output
  • Input/output resolutions up to 1920×1200
  • Supports all USB 2.0 devices, including flash drives, printers, cameras, and scanners
  • Supports USB-HID keyboard and mouse
  • Analog stereo audio switching
  • Front panel buttons and LCD display for local manual control
  • Serial RS-232 remote control
  • Optional IR and Ethernet remote control
  • Hot-key commands for port switching
  • Independent or joint switching of PCs, USB hub, audio, and microphone
  • USB Keyboard and mouse emulation for trouble free booting
  • Computers can be up to 40 feet away from the KVM console with 20 feet on either side of the switch
  • Has the capacity to learn what type of monitor is connected to the switch and emulate it across all ports
  • Flash upgradeable firmware and rack-mountable

OVERVIEW

The 16 port switch supports DVI video, USB keyboard and mouse, along with audio and USB 2.0 devices, or the KVM can be switched independently of the audio and USB 2.0 peripherals. The UltraView DVI provides switching locally from the front panel control buttons and keyboard hot-keys, or through the RS-232 port. Optional infrared remote control and TCP/IP controls are available.

Display EDID information supplied to the computers can be one of two standard tables suitable for either PC or Mac, or it can be acquired from an attached display. The switch then emulates the discovered EDID information and emulates it to all ports so that the attached computers can access the EDID table at boot-up.

The product is able to handle several video resolutions up to 1920 x 1200 @ 60 Hz (WUXGA). Installation of the unit is quick and simple. Connect the product to the desired computers and devices and the KVM console. Then power on the peripherals, followed by the switch and finally the connected PC’s/Servers. Computers can be up to 40 feet (12 meters) away from the KVM console, or 20 feet (6 meters) on each side of the switch. The switch is rackmountable, flash upgradeable, and made in the USA.

SPECIFICATIONS

Dimensions (W x D x H) 16.9" x 7" x 3.5" (430 x 178 x 89 mm) (2U)
Weight 5 lb (2.3 kg)
Power 100-240 VAC 50-60Hz External adapter, +5V, 4.0A 20W
Resolution Single-link DVI: 1920 x 1200@60Hz
Distance CPU/KVM: 20 feet (6.0m)User/KVM: 20 feet (6.0m)
Connectors Video: DVI femaleKeyboard: USB Type AMouse: USB Type AUSB2.0: 2x USB Type ASerial: RS232, DB9F, 115,200bpsAudio: 3.5mm outputUSB Input: 16 x USB-Type BAudio Input: 16x 3.5mm jack Power: Barrel jack
Controls Computer selection: Front panel, keyboard hot-key, Serial RS232Optional Control: Infrared or TCP-IPLCD Display: LCD with 2x20 charctersFront Panel Buttons: Scroll and Enter
Environment Operating temperature: 32°F–131°F (0°C–55°C)Storage temperature: -4°F–185°F (-20°C–85°C)Relative humidity: 0%–95%, non-condensing

PART NUMBERS

Product Part Number Description
UVD-1x16DVI/UA1 1X16 KVM DVI /USB/Audio KVM Switch
Cable Part Number Description
CAB-DVIDMM006 DVI-D, 6ft (2.0m) Video Cable.
CAB-USBAB006 USB-AB 6ft (2.0m) USB Cable
CAB-SPMM006 Audio with 3.5mm, 6ft (2.0m)

DOCUMENTS

DOCUMENT LINK
Datasheet • UltraView DVI PDF
Manual • UltraView DVI • Installation and Operation PDF
