OVERVIEW

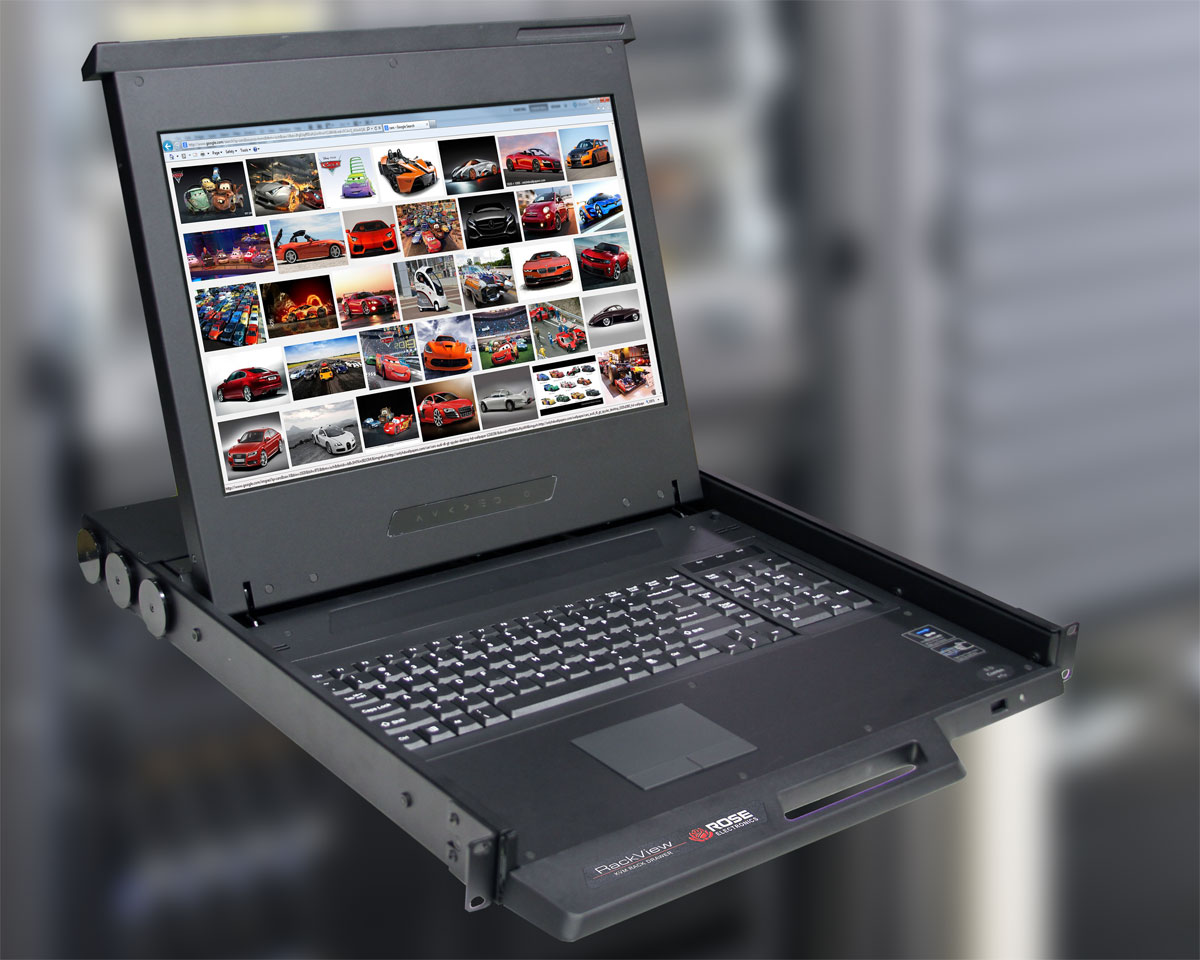

When you want the maximum clarity for your KVM console drawer, RackView High Res fits the bill. At 1920×1200, you get a very detailed picture. Of course, in addition to the 17" high resolution folding monitor, there is a touchpad mouse and USB keyboard with a separate numeric keypad. The folding and sliding features ensure easy and quick access while in use, and keep the keyboard and screen from blocking access to rack equipment when the console is not in use.

The video interface features both DVI and VGA. If you want to go all out, then hookup both video inputs and use the picture-in-picture function (PiP). As in a television, you can view two video sources simultaneously usually one at full size and another at a reduced size in a small window. You can however display them side by side as well.

The unit comes standard with a DVI/USB cable. There is no PS/2 keyboard interface in this model. To install RackView, screw the provided adjustable mounting rails to your standard 19" rack. Slide the unit into the mounted brackets and secure it. One person can easily install the RackView in a rack. This model also has standby on close whereby closing the lid turns the monitor off automatically and puts it in standby mode.

RackView + KVM Switch options include three different KVM switches that will satisfy most data center applications. There is an 8 or 16-port VGA/USB switch with a combined 2-port USB2.0 hub, an 8 or 16-port VGA/USB switch with a cascade port for 8-level cascades, and a 12-port DVI/USB switch. These switches are mounted in the rear of the RackView chassis, and each kit includes a quantity of CPU cables for easy installation.

RackView High Res is sure to fulfill your requirements for a high quality video display. It is ideal for industries requiring precision and detail such as military, medical, or broadcast, but it serves equally well in any data center.
