RackView Keyboard Drawer

1U Rack Mount Keyboard Drawer

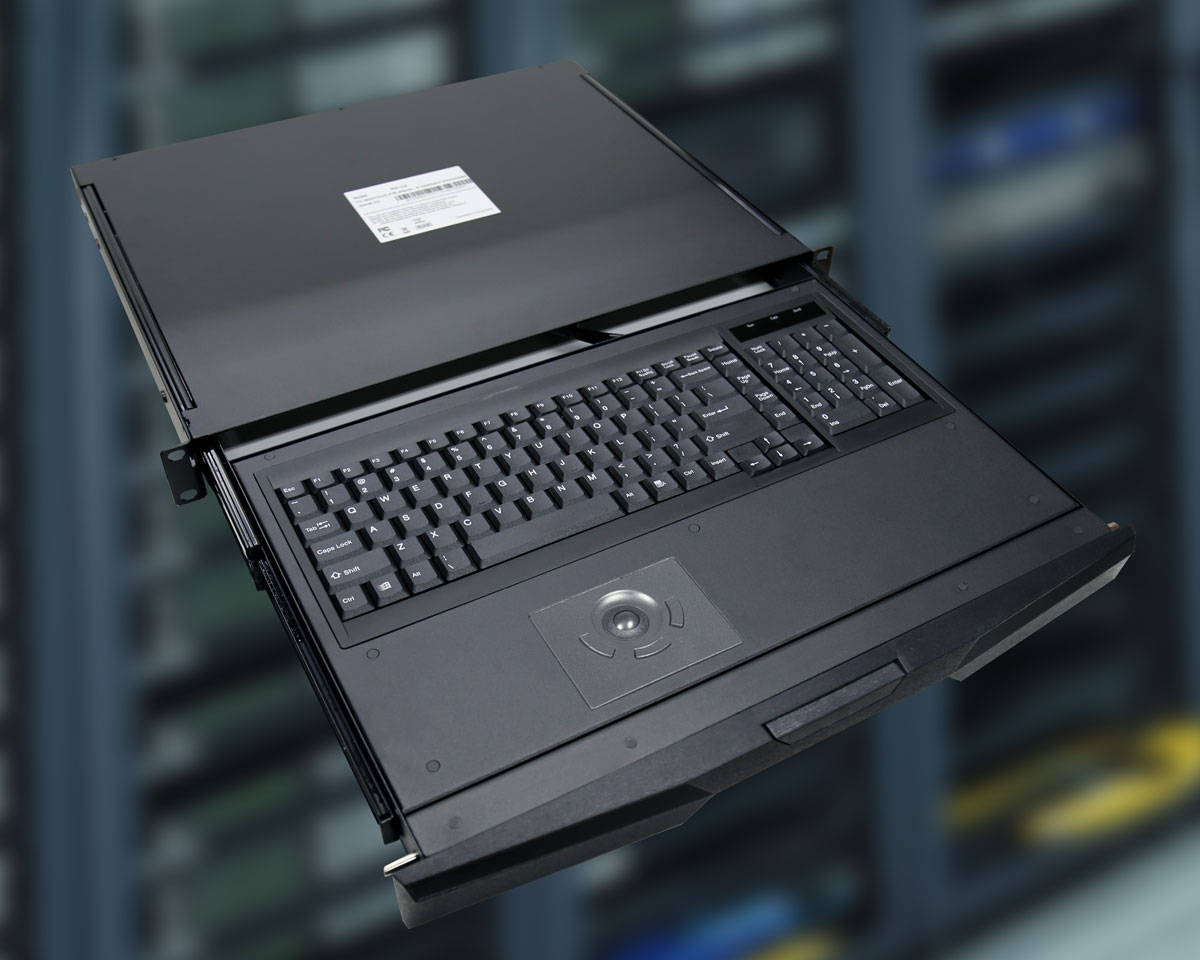

Product Picture

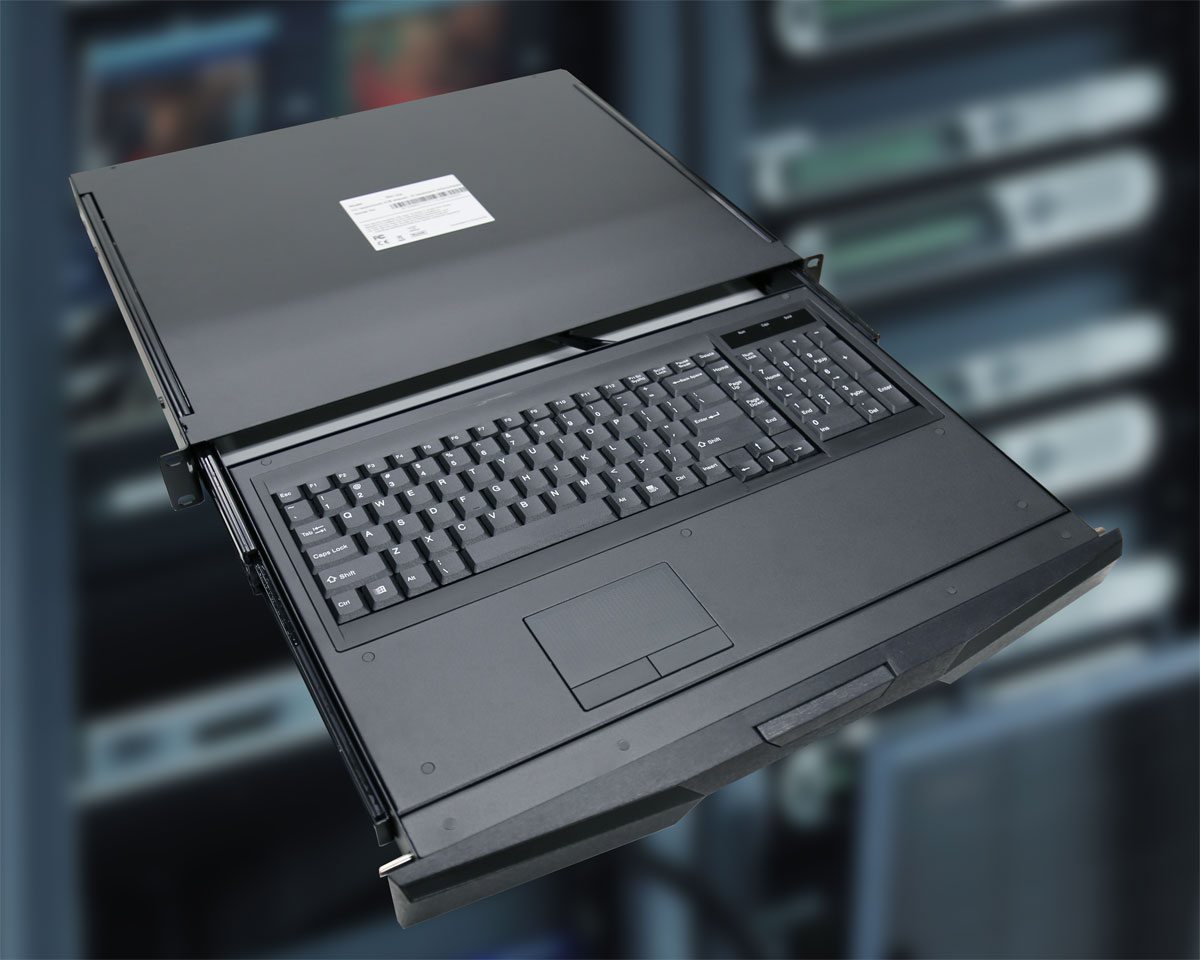

Product Picture
Diagram
  • Full size 104-key keyboard
  • Separate numeric keypad
  • PS/2 and USB connectors
  • Integrated touchpad or trackball mouse
  • Easy to combine with any monitor and KVM switch
  • Two models available, standard or short depth

OVERVIEW

RackView Keyboard Drawer is an innovative space saving design that fits in 1U of rack space. The rack mountable keyboard is packaged neatly in a compact pullout drawer. This easy-glide keyboard drawer contains a tactile 104-key keyboard, and a touchpad mouse with two buttons.

You can place the product at any height within a standard 19" rack. This offers the operator the maximum in comfort and takes up a minimum amount of rack space. The front panel conceals the unit when it is not in use and the drawer is lockable.

Installation of the RackView Keyboard is very easy. Simply adjust the rear rack rail length to the depth of your rack using one of the two supplied rear-mount brackets, slide the unit through the rack, and secure the rack mount brackets to the rack rails.

Both PS/2 and USB keyboard interfaces are present so you can connect to current or legacy equipment. A six foot (2m) PS2 and USB cable is included for direct connection to a PC or a KVM Switch.

The product is often paired with a RackView Panel Mount to make a complete KVM station. This gives the benefit of having the LCD display always present, and the keyboard can hide away when not needed.

SPECIFICATIONS

Dimensions 17.4" x 15.7" x 1.73" (441.6 x 550 x 44 mm)
Weight 18.9 lb (8.6 kg)
Connectors Rack drawer: HD15 femaleCable: HD15 male to USB type A male and PS/2 mini-din6 malePS/2 mouse adapter: USB type A female to mini-din6 male
Environment Operating temperature: 32°F–104°F (0°C–40°C)Storage temperature: -4°F–140°F (-20°C–60°C)Relative humidity: 20%–80%, non-condensing

PART NUMBERS

RV1-KT-R(1U) Rack Mounted Keyboard Drawer, w/Touchpad, Short depth
RV1-KM-R(1U) Rack Mounted Keyboard Drawer, w/Trackball, Short depth
RV1-KT-L(1U) Rack Mounted Keyboard Drawer, w/Touchpad, Long depth
RV1-KM-L(1U) Rack Mounted Keyboard Drawer, w/Trackball, Long depth
