RackView LCD Drawer
1U Rack Mount LCD Drawer
- VGA or DVI video resolutions up to:
- 17"1280×1024
- 19"1280×1024
- 17" wide1920×1080
- 17" HD1920×1200
- 19" wide1440×900
- 20"1600×1200
- On-screen menu for easy adjustments
- Optional touchscreen, DC power, HDMI, SD-SDI
OVERVIEW

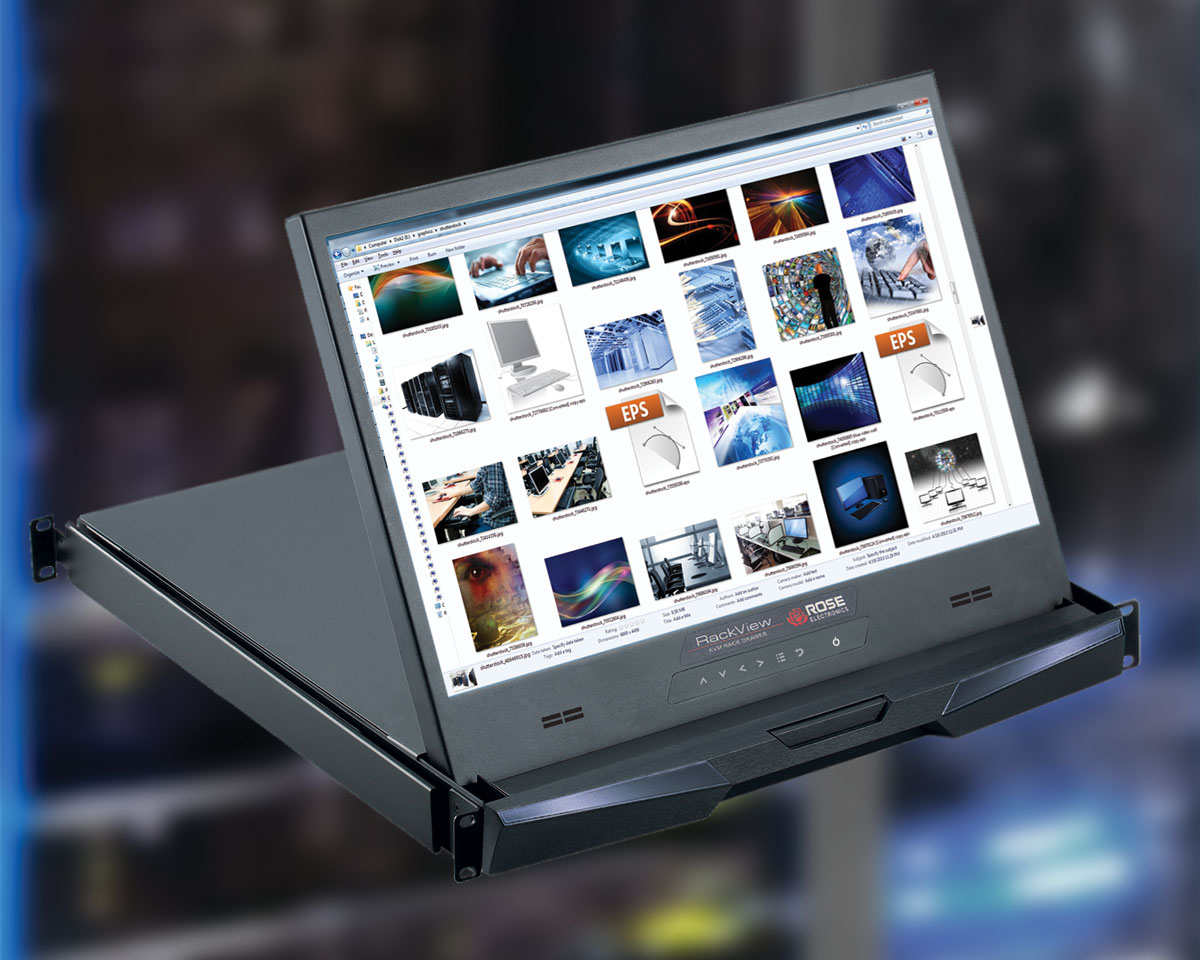

RackView LCD Monitor is a foldaway monitor that can be pulled out anytime you need to use it. The product has an innovative space saving design that allows it to fit in 1U of rack space. It can be placed at any height desired within a standard 19" rack. The monitor allows easy access for viewing while occupying a minimum amount of rack space. The front panel conceals the unit when it is not in use.
RackView LCD Monitor features a Samsung LCD panel known for its high quality and reliability. Its LED backlighting technology helps to conserve energy and reduce heating in your power-hungry data center.
There are a wide range of sizes and resolutions available:
- 17"1280×1024
- 19"1280×1024
- 17" wide1920×1080
- 17" HD 1920×1200
- 19" wide 1440×900
- 20"1600×1200
All models except the 19" wide and the 20" are available with a USB touchscreen option. The 17"HD (1920x1200) model also includes a picture-in-picture (PiP) function for viewing two video sources simultaneously, usually one at full size and another at a reduced size in a small window. This option works whenever the HDMI or SD-SDI video options are installed.
RackView LCD monitor is great for use with multi-headed video where you need extra monitors but no keyboard or mice.
SPECIFICATIONS
| Dimensions (WxDxH) |
17": 17.4" x 19.7" x 1.73" (441.6 x 500 x 44 mm)19": 17.4" x 19.7" x 1.73" (441.6 x 500 x 44 mm)19"W: 17.4" x 18.1" x 1.73" (441.6 x 460 x 44 mm)20": 17.3" x 25.6" x 1.73" (439.6 x 650 x 44 mm)17"W: 17.4" x 18.9" x 1.73" (441.6 x 480 x 44 mm)17"HD: 17.4" x 18.9" x 1.73" (441.6 x 480 x 44 mm) |
| Weight | 17": 23.1 lb (10.5 kg)19": 27.5 lb (12.5 kg)19"W: 28.6 lb (13 kg)20": 29.7 lb (13.5 kg)17"W: 24.2 lb (11 kg)17"HD: 24.2 lb (11 kg) |
| Resolution | 17": 36.3 lb (16.5 kg)19": 40.7 lb (18.5 kg)19"W: 37.4 lb (17 kg)20": 38.5 lb (17.5 kg)17"W: 33 lb (15 kg)17"HD: 33 lb (15 kg) |
| Diagonal size | 17"19"19"20.1"17.3"17.1" |
| Viewing Area | 17": 13.31" x 10.63" (338 x 270 mm)19": 14.80" x 11.85" (376 x 301 mm)19"W: 16.06" x 10.04" (408 x 255 mm)20": 16.06" x 12.05" (408 x 306 mm)17"W: 15.04" x 8.46" (382 x 215 mm)17"HD: 14.45" x 9.06" (367 x 230 mm) |
| Dot pitch | 17": 0.264 mm19": 0.294 mm19"W: 0.2835 mm20": 0.255 mm17"W: 0.198917"HD: 0.191 |
| Colors | 16.7M |
| Contrast ratio | 17": 1000:119": 1000:119"W: 1000:120": 800:117"W: 600:117"HD: 600:1 |
| Brightness | 17": 250 cd/m²19": 250 cd/m²19"W: 300 cd/m²20": 300 cd/m²17"W: 400 cd/m²17"HD: 210 cd/m² |
| Backlight | 17", 19"W, 20": CCFL19", 17"W, 17"HD: LED |
| MTBF | 17", 19"W, 17"W: 50,000hrs19": 30,000hrs20": 45,000hrs17"HD: 20,000hrs |
| Response time | 17": 5 ms19": 5 ms19"W: 5 ms20": 16 ms17"W: 40 ms17"HD: 30 ms |
| Power | Auto-sensing 100 to 240VAC, 50-60Hz |
| Watts | 17": Max. 25 Watt, Standby 4 Watt19": Max. 25 Watt, Standby 4 Watt19"W: Max. 25 Watt, Standby 4 Watt20": Max. 48 Watt, Standby 4 Watt17"W: Max. 25 Watt, Standby 4 T3917" HD Max. 34 Watt, Standby 4 Watt |
| Controls | 6 backlit buttons for OSD control1 on/off power button |
| Connectors | 1 x VGA HD15 15-pin1 x DVI female |
| Environment | Operating temperature: 32°F–131°F (0°C–55°C)Storage temperature: -4°F–140°F (-20°C–60°C)Relative humidity: 5%–90%, non-condensing |
PART NUMBERS
| LCD Rack Drawers | |
|---|---|
| RV1-LCDA17/DVI | 1U 17" 1280x1024 LCD rack drawer, DVI and VGA |
| RV1-LCDA19/DVI | 1U 19" 1280x1024 LCD rack drawer, DVI and VGA |
| RV1-LCDA17/DWS/HD | 1U 17" 1920 x 1080 LCD rack drawer, DVI and VGA |
| RV1-LCDA17/FHD | 1U 17" 1920 x 1200 LCD rack drawer, DVI and VGA |
| RV1-LCDA19/WS | 1U 19" 1440x900 wide screen LCD rack drawer, DVI and VGA |
| RV1-LCDA20/DVI | 1U 20" 1600x1200 LCD rack drawer, DVI and VGA |
| Cables | |
| CAB-DVIDMM006 | DVI-D cable 6' |
| CAB-DVIDMM010 | DVI-D cable 10' |
| CAB-CXVMM005 | VGA cable 5' |
| CAB-CXVMM010 | VGA cable 10' |
| Options | |
| /nnnDC | 12/24/48/125/250 DC power option |
| /HM | HDMI with dual stereo speakers, 2W x 2 |
| /SD | 3G/HD/SD-SDI Broadcast video (1080p, FHD and 19"WS only) |
| /AV | S-Video, Composite BNC (17", 19", 19"WS and 20" only) |
| /TSR | Resistive Touchscreen (17", 19", 17"WS and 17"HD only) |
| /TSC | Capacitive Touchscreen (17", 19", 17"HD only) |
| /KM | Trackball Mouse |
| International KB (add /nn to part number) | /UK,/DE,/FR,/SP,/IT,/NE,/NO,/RU,/SW, /PO,/CH,/JP,/KR,/AR,/TU |
