Vista HDMI 4K

1×4 KVM Switch • HDMI 4K@30 • USB2.0 • Audio

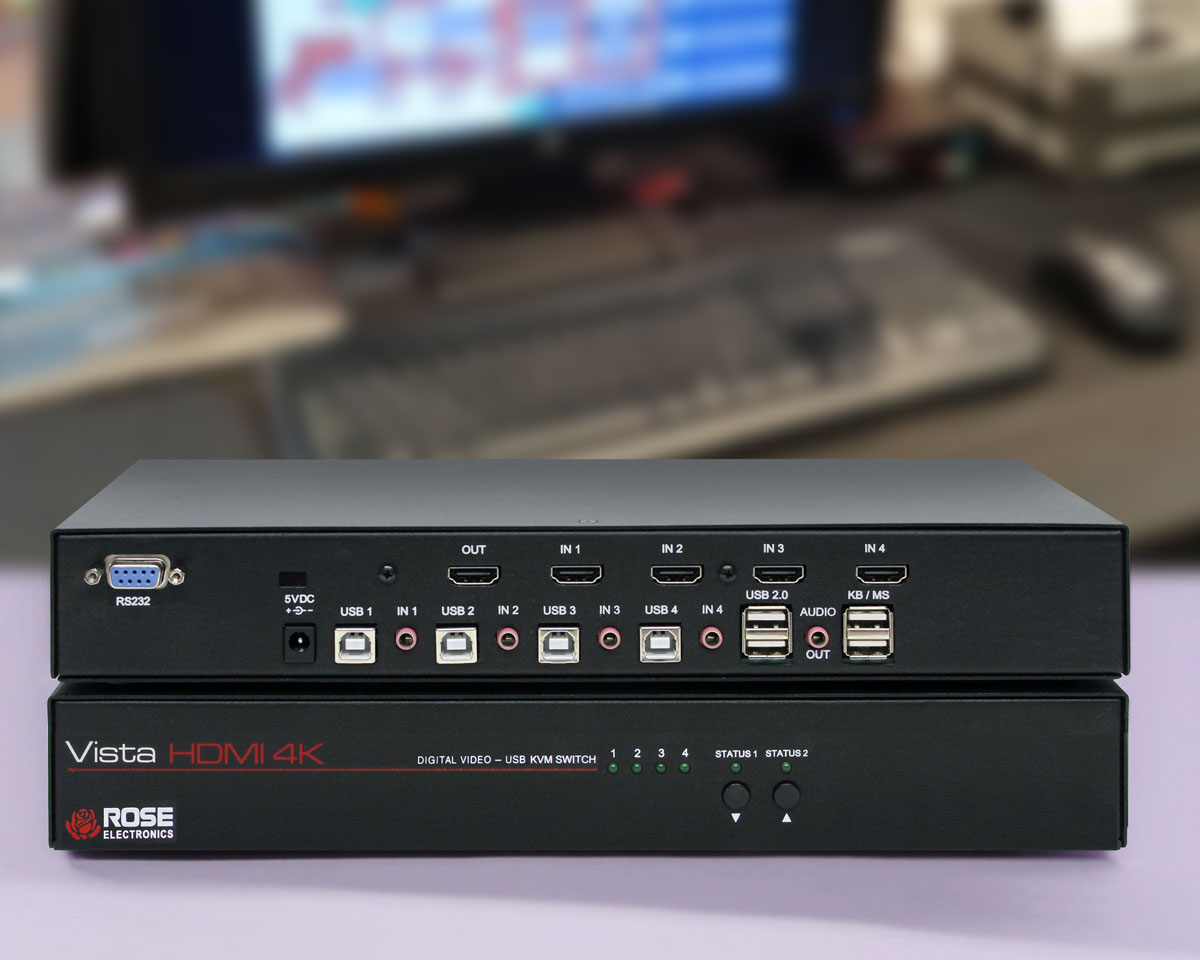

Product Picture
  • Supports HDMI video resolutions up to 3840×2160@30Hz
  • HDMI audio support, LPCM7.1, Dolby True HD, Dolby Digital Plus, and DTS-HD Master Audio
  • HDCP 2.2 compliant
  • Fully supports Windows, Mac, and Linux
  • Supports USB2.0 devices and USB-HID keyboard/mouse
  • Switchable stereo analog audio on all ports
  • Access and control the switch via front panel push buttons, keyboard hot-keys or the serial RS-232 port
  • Serial control interface via the DB9 serial port using the Rose RCS-4RS/D9 4-port remote control switch
  • EDID learning and pass-through for all ports, enabling smooth and efficient video switching
  • Independent switching and use of the KVM station and USB2.0 ports
  • Complete keyboard/mouse emulation for error free booting of connected PC’s/servers
  • Made in USA

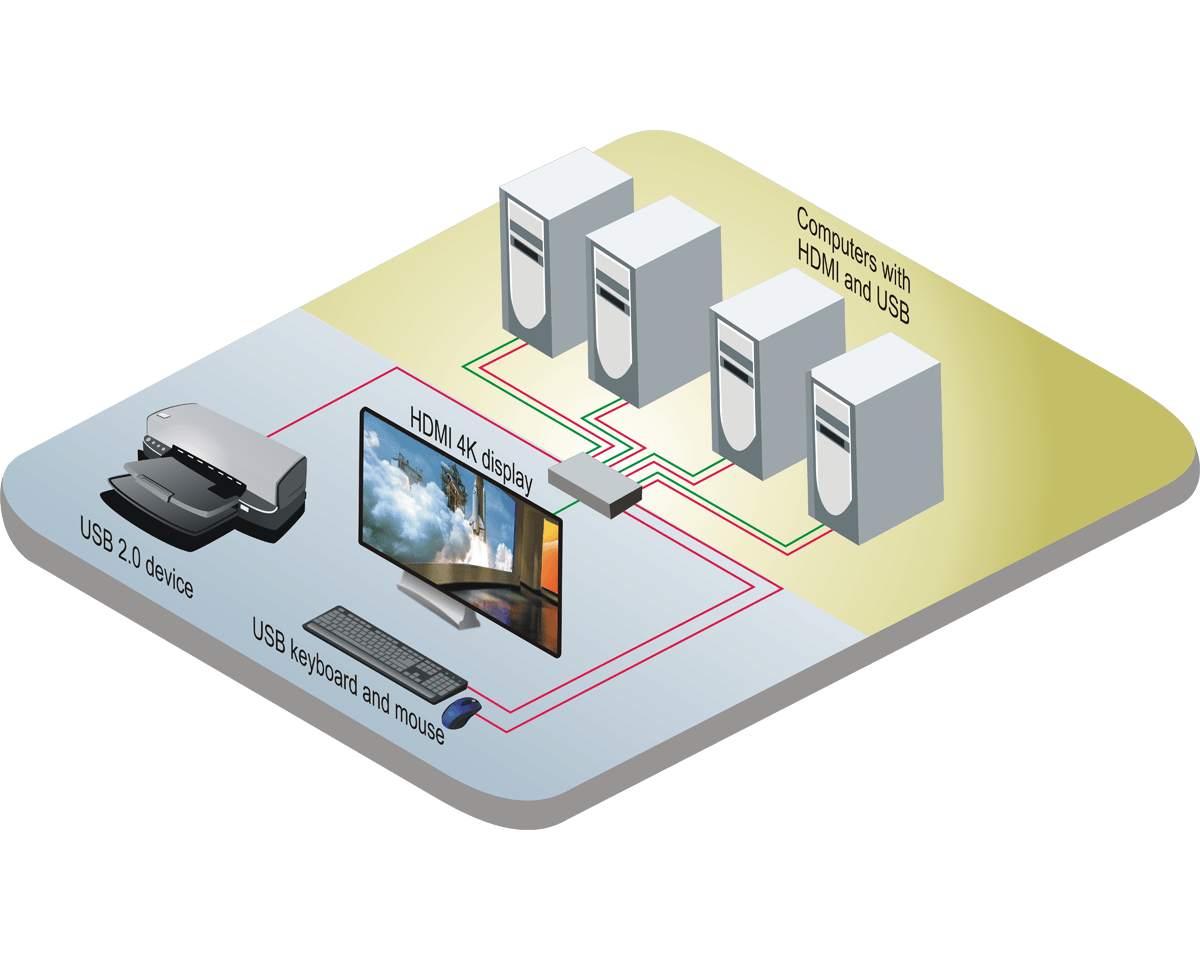

Vista HDMI 4K is a 4-port HDMI KVM Switch with 4K Ultra-HD video support and USB2.0 sharing. This dedicated multiplatform KVM switch is capable of managing four computers through a single HDMI high-resolution monitor with USB keyboard and mouse control. Management of the switch can be controlled through the front panel push-buttons, via keyboard hotkeys, or RS-232 serial port commands.

Considerable cost savings can be realized by consolidating the user control into a single monitor, keyboard and mouse workstation, with host USB2.0 support and HDCP compliance.

Upgrading to a 4K display monitor ? No problem, the Vista HDMI 4K will integrate directly with the latest 4K display monitors.


Dimensions (W x D x H) 12.5" x 6.34" x 1.71" (317 x 161 x 43.4 mm) (1U)
Weight 3.5 lb (1.6 kg)
Power 100-240 VAC 50-60Hz External adapter, +5V, 4A 20W
Resolution HDMI: 1080p@60Hz HDMI: 1080p @60HzHDMI 4K: 3840 x 2160 @30HzVGA: 2048 x 1536
Distance CPU/KVM: 20 feet (6m)
Connectors Video: HDMI femaleUSB 2.0 host: USB Type BKeyboard: USB Type AMouse: USB Type AUSB 2.0 device: Two USB Type A Audio: 1 x Stereo Audio 3.5mm per channelSerial: DB9F serial portPower: Barrel jack
Controls Computer selection: Front panel (2x20 LCD) , hot-key, serial port or optionalTCP/IP
Environment Operating temperature: 23°F–95°F (-5°C–35°C)Storage temperature: -4°F–185°F (-20°C–85°C)Relative humidity: 5%–90%, non-condensing


Product Part Number Description
KVM-4THD/4K Vista HDMI 4K, 4 Port KVM Switch, HDMI+USB2.0, 2K/4K
Cable Part Number Description
CAB-HDMIMM006 HDMI 6ft (2.0m) Video Cable
CAB-USBAB006 USB-AB (6ft (2.0m) cable
CAB-D9MF006 DB9 M/F 6ft (2.0m) Serial Cable


Datasheet • Vista HDMI 4K PDF
Manual • Vista HDMI 4K • Installation and Operation PDF
