DVI • HDMI • DisplayPort Extender Selection Guide
| Product | Video | Uncom- pressed |
Media | Maximum Resolution |
Distance |
KB MS | USB Device |
Audio | Serial | Local Port |
Multi head |
Data Sheet |
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
Orion XTender
Modular CATx/Fiber Extender 2/4/6-Card Chassis |
DVI-D DVI-I/VGA HDMI DisplayPort Dual-Link DVI SDI |
CATx Fiber |
3840×2160@60 | CATx 460'140m MM: 3,300'1Km SM: 33,000'10Km | USB PS/2 |
USB 2.0 Option |
Option | Option | Option |
 |
||
 |
Orion XTender Rack
Modular CATx/Fiber Extender 21-Card Chassis |
DVI-D DVI-I/VGA HDMI DisplayPort Dual-Link DVI SDI |
CATx Fiber |
3840×2160@60 | CATx 460'140m MM: 3,300'1Km SM: 33,000'10Km | USB PS/2 |
USB 2.0 Option |
Option | Option | Option |
|
||
 |
CrystalView HDMI 4K60
HDBaseT Extender Extension • CATx • Power over cable |
HDMI | ✓ | CATx | 3840×2160@60 | 330'100m | None | Via HDMI | ✓ |
|
|||
 |
CrystalView Exact
CATx Extender • DisplayPort 1.2a USB 3.1/2.0/1.1 • LAN • RS232 • 330' (100m) |
DisplayPort | CATx | 3840×2160@60 | 330'100m | USB | USB 3.1 Gen 1 USB 2.0 USB 1.1 |
Via DP | ✓ |
|
|||
 |
UltraLink E-series
KVM over 1G Ethernet DisplayPort • USB 2.0 • Audio • Serial |
DisplayPort | ✓ | CATx Fiber |
3840×2160@60 | 49.7mi80km | USB | USB 2.0 | ✓ | ✓ | ✓ | ✓ |
|
 |
CrystalView EX HDMI
CATx Extender HDMI/USB 2.0 • 330' (100m) |
HDMI | ✓ | CATx | 3840×2160@30 | 330'100m | USB | USB 2.0 | Via HDMI |
|
|||
 |
CrystalView EX DVI
CATx Extender DVI/USB 2.0 • 330' (100m) |
DVI | ✓ | CATx | 1920×1200 | 330'100m | USB | USB 2.0 | Via USB2.0 |
|
|||
 |
Xcion HDMI CATx
Compact HDMI CATx Extender/Switch USB2.0 and matrix switch options |
HDMI | CATx | 1920×1200 | CATx 500'150m |
|
|||||||
 |
Xcion DVI CATx
Compact DVI CATx Extender/Switch VGA, USB2.0, Audio, Serial, Switch options |
DVI-D | CATx | 1920×1200 | CATx 426'130m MM: 1,640'500m SM: 65,600'20Km | USB | USB 2.0 Option |
Option | Option | ✓ |
|
||
 |
Xcion DVI Fiber
Compact DVI Fiber Extender/Switch VGA, USB2.0, Audio, Serial, Switch options |
DVI-D | Fiber | 1920×1200 | CATx 426'130m MM: 1,640'500m SM: 65,600'20Km | USB | USB 2.0 Option |
Option | Option | ✓ |
|
||
 |
CrystalView EX HDMI Multi
Multi-head CATx Extender HDMI/USB 2.0/Audio • 330' (100m) |
HDMI x 1-4 | ✓ | CATx | 1920×1200 | 330'100m | USB | USB 2.0 | Option | Option | ✓ |
|
|
 |
CrystalView EX DVI Multi
Multi-head CATx Extender DVI/USB 2.0/Audio • 330' (100m) |
DVI x 1-4 | ✓ | CATx | 1920×1200 | 330'100m | USB | USB 2.0 | Option | Option | ✓ |
|
|
 |
CrystalView DVI CATx
CATx Extender DVI/USB/PS2 • 460' |
DVI | CATx | 1920×1200 | 460'140m | USB PS/2 |
USB2.0 Option |
Option | Option | ✓ | Option |
|
|
 |
CrystalView DVI Quad CATx
Multi-head CATx Extender DVI + options |
DVI | CATx | 1920×1200 | 460'140m | USB PS/2 |
USB2.0 Option |
Option | Option | ✓ | Option |
|
|
 |
CrystalView DVI Multi
DVI CATx Extender/Splitter 1, 2, 4 outputs • 1920×1200 • 220' |
DVI 1-8 out | ✓ | CATx | 1920×1200 | 220'65m | None | ✓ |
|
||||
 |
CrystalView HDT
HDBaseT Extender Extension • CATx • Power over cable |
HDMI | ✓ | CATx | 1920×1200 | 330'100m | USB | ✓ | ✓ |
|
|||
 |

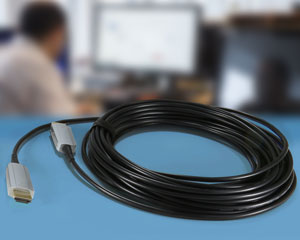

CrystalView HDMI Active Optical Cable
CrystalLink HDMI Fiber Extender Cable HDMI 2.0 • 4K60 • Up to 330ft (100m) |
HDMI | ✓ | Fiber | 3840×2160 | 32.8'10m 65.6'20m 98.4'30m 164.0'50m 229.6'70m 328.0'100m | None |
|
|||||
 |

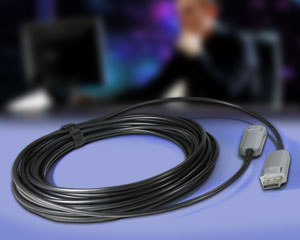

CrystalView DP Active Optical Cable
CrystalLink DisplayPort Fiber Extender Cable DisplayPort 1.4 • 8K60 • Up to 165ft (50m) |
DP | ✓ | Fiber | 7680×4320 | 32.8'10m 65.6'20m 98.4'30m 164.0'50m | None |
|
|||||
 |

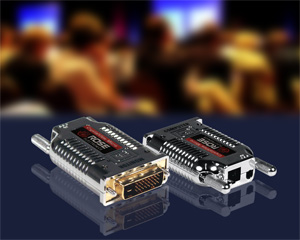

CrystalView DVI Micro
Compact Fiber Extender Single-link DVI |
DVI | ✓ | Fiber | 1920×1200 | MM: 1,300'400m | None |
|
|||||
 |

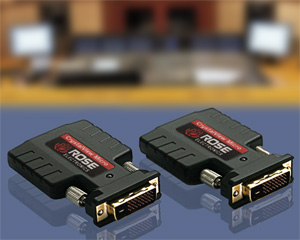

CrystalView DVI Micro DL
Compact Fiber Extender Dual-link DVI |
Dual-Link DVI | ✓ | Fiber | 2560×2048 | MM: 1,300'400m | None |
|
|||||
 |

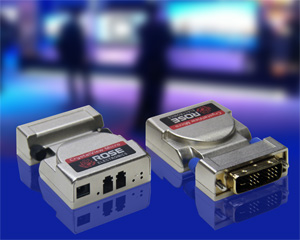

CrystalView DVI Micro LT
Fiber Extender • DVI Multi-mode or single-mode |
Single-Link DVI | ✓ | Fiber | 1920×1200 | MM: 4,920'1500m SM: 1,640'500m | None |
|
|||||
 |

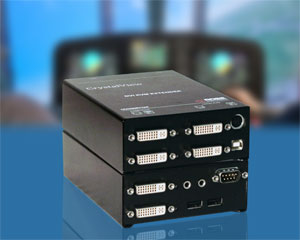

CrystalView DVI Fiber
Fiber Extender • DVI • USB • PS2 Multi-mode or single-mode |
DVI | Fiber | 1920×1200 | MM: 1,300'400m SM: 33,000'10Km | USB PS/2 |
USB 2.0 Option |
Option | Option | ✓ | Option |
|
|
 |

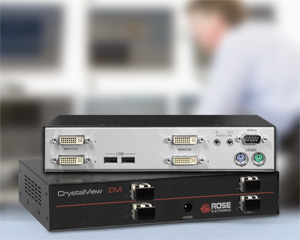

CrystalView DVI Quad Fiber
Multi-head Fiber Extender DVI + options |
DVI x 1-4 | Fiber | 1920×1200 | MM: 3,300'1Km SM: 33,000'10Km | USB PS/2 |
USB 2.0 Option |
Option | Option | ✓ | 2- 4 video |
|
|
 |
CrystalView Pro Fiber
Fiber Extender DVI/VGA/USB/PS2 |
DVI-D DVI-I/VGA |
Fiber | 1920×1200 | MM: 1,640'500m SM: 33,000'10Km | USB PS/2 |
Option | Option | ✓ |
|
|||
 |
CrystalView Pro Fiber Rack
Fiber Extender Chassis DVI/VGA/USB/PS2 |
DVI-D DVI-I/VGA |
Fiber | 1920×1200 | MM: 1,640'500m SM: 33,000'10Km | USB PS/2 |
Option | Option | ✓ |
|
|||
