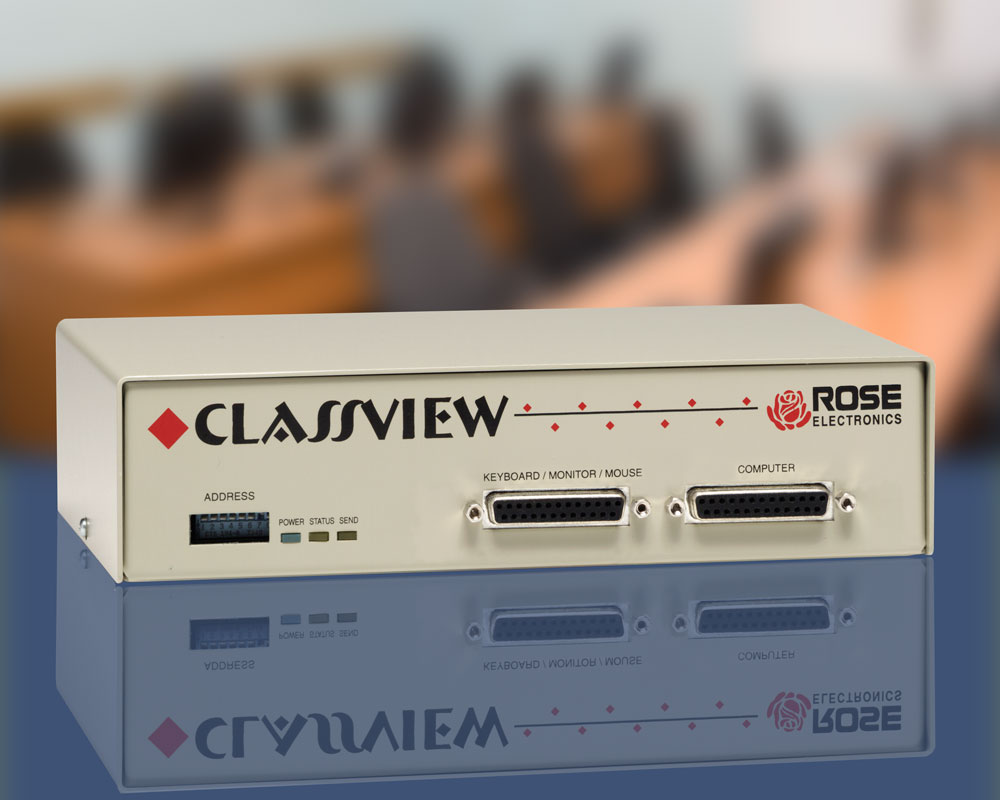

ClassView
Classroom kvm Switch
- Instructor can view, control, and share students' computers
 - Keyboard controlled, easy to use
 - Auto-scan all student computers sequentially
 - Interactive viewing among students

Typical Application
 Overview
ClassView is a distinct product designed specifically for education and classroom instruction. The unit can be utilized by an instructor in a number of ways, from enhancing training and educational activities, to monitoring inappropriate behavior and assisting in punitive measures.
The instructor may access a student's computer in three ways:
- View – see the student's station without disturbing the keyboard and mouse
 - Share – see the student's station with shared use of the keyboard and mouse
 - Control – see the student's station and take complete control of the keyboard and mouse

The instructor may also disable a student's computer, in which the screen is blanked and the mouse and keyboard are locked. Alternatively, a student's computer can be frozen, in which the screen remains on, but the mouse and keyboard are disabled.
Additional features include:
- Show – Lets the instructor show their screen to one or all students
 - Transfer – enables a student to control or view another student's computer
 - Scan – Allows the instructor to sequentially view each computer desk

The system is easily installed and can be expanded to support up to 255 PCs.
Specifications ▼
| Dimensions (W x D x H) | 8.85" x 4.9" x 2.1" (225 x 125 x 53 mm) |
| Weight | 3 lbs (1.4 kgs) |
| Power | 90-240 VAC 50-60Hz  External adapter, +/- 8 VDC,, 1.5A 10W  |
| Resolution | VGA: 1280 x 1024 |
| Distance | Up to 200' |
| Connectors | Power: Din5 CPU/KVM: DB25 Female Bus In/out: 13W3 Female RS232: RJ 6 conductor  |
| Controls | 8 position dip switch: station address Power: Green LED Status: Yellow LED Remote video: Yellow LED  |
| Environment | Operating temperature: 32°F–113°F (0°C–45°C) Storage temperature: -13°F–140°F (-25°C–60°C) Relative humidity: 5%–80%, non-condensing  |
Part numbers ▼
| Product Part Number | Description |
|---|---|
| CVK-TP | Teacher Kit, VGA/PS2, Kit Includes: Teacher Unit, Manual, Keyboard Template, plus kvm & CPU Cables |
| CVK-SP | Student Kit, VGA/PS2, Kit Includes: Student Unit, plus kvm, CPU & Bus Cables |
