ClassView

Classroom kvm Switch

  • Instructor can view, control, and share students' computers
  • Keyboard controlled, easy to use
  • Auto-scan all student computers sequentially
  • Interactive viewing among students

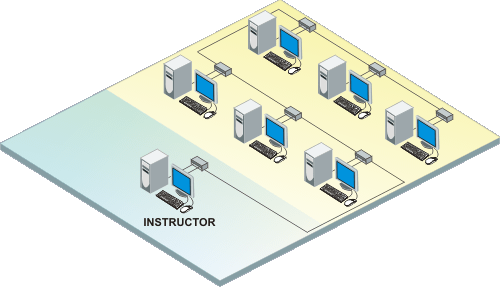

Typical Application

ClassView application

Overview

ClassView is a distinct product designed specifically for education and classroom instruction. The unit can be utilized by an instructor in a number of ways, from enhancing training and educational activities, to monitoring inappropriate behavior and assisting in punitive measures.

The instructor may access a student's computer in three ways:

  • View – see the student's station without disturbing the keyboard and mouse
  • Share – see the student's station with shared use of the keyboard and mouse
  • Control – see the student's station and take complete control of the keyboard and mouse

The instructor may also disable a student's computer, in which the screen is blanked and the mouse and keyboard are locked. Alternatively, a student's computer can be frozen, in which the screen remains on, but the mouse and keyboard are disabled.

Additional features include:

  • Show – Lets the instructor show their screen to one or all students
  • Transfer – enables a student to control or view another student's computer
  • Scan – Allows the instructor to sequentially view each computer desk

The system is easily installed and can be expanded to support up to 255 PCs.

Specifications

Dimensions (W x D x H) 8.85" x 4.9" x 2.1" (225 x 125 x 53 mm)
Weight 3 lbs (1.4 kgs)
Power 90-240 VAC 50-60Hz
External adapter, +/- 8 VDC,, 1.5A
10W
Resolution VGA: 1280 x 1024
Distance Up to 200'
Connectors Power: Din5
CPU/KVM: DB25 Female
Bus In/out: 13W3 Female
RS232: RJ 6 conductor
Controls 8 position dip switch: station address
Power: Green LED
Status: Yellow LED
Remote video: Yellow LED
Environment Operating temperature: 32°F–113°F (0°C–45°C)
Storage temperature: -13°F–140°F (-25°C–60°C)
Relative humidity: 5%–80%, non-condensing

Part numbers

Product Part NumberDescription
CVK-TPTeacher Kit, VGA/PS2, Kit Includes: Teacher Unit, Manual, Keyboard Template, plus kvm & CPU Cables
CVK-SPStudent Kit, VGA/PS2, Kit Includes: Student Unit, plus kvm, CPU & Bus Cables
