CrystalLink Serial
CATX Extender - Serial
- Extend RS232 serial device up to 1,000 feet away over CATx
- Supports baud rates up to 115,200
- RS-232D standards compatible
- One CAT5e cable for serial data and power to the remote unit

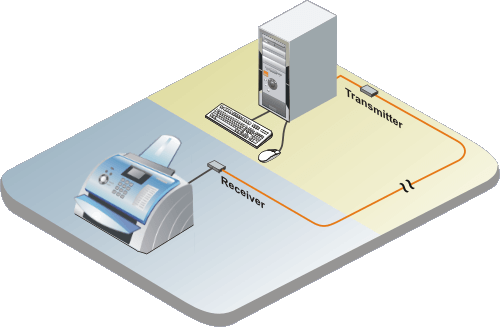

Typical Application
![CrystalLink Serial application](apps/app-crystallink-serial.png)
Overview
CrystalLink Serial is an inexpensive and compact unit that extends the distance of any compatible serial device up to 1,000 feet from your PC over a single CAT5e cable. Baud rates up to 115,200 are supported. Once plugged in to a power source, the local transmitter unit also powers the remote unit over the CAT5e cable.
CrystalLink Serial is easy to install by simply plugging the transmitter unit into a PC via the DB9 port and connecting the power adapter. Plug in the receiver unit into the serial device with the DB9 port using the included DB9 male-to-male null modem cable if required. Connect the two units with a CAT5e cable. No additional configuration or setup is required, making CrystalLink Serial an excellent tool for any situation in which a serial device needs to be located at a substantial distance from a computer.
Specifications ▼
Dimensions (W x D x H) | 1.42" x 3.75" x 0.98" (36 x 95 x 25 mm) |
Weight | 0.14 lbs (0.06 kgs) |
Power | 100-240 VAC 50-60Hz One external adapter, +9V DC, 300ma, 2.7W Receiver powered by transmitter |
Serial | Maximum baud rate: 115,200 baud |
Distance | Up to 1000' (300m) |
Connectors | Transmitter: RS232: DB9F Link: RJ45 jack Power: Barrel jack Receiver: RS232: DB9F Link: RJ45 jack |
Environment | Operating temperature: 32°F–122°F (0°C–50°C) Storage temperature: -4°F–158°F (-20°C–70°C) Relative humidity: 20%–80%, non-condensing |
Part numbers ▼
Product Part Number | Description |
---|---|
CLK-SLDTPD9 | Serial extender complete kit. transmitter, receiver, and power adapter |
