ViewLink CATx
Miniature CATx Extender - VGA/USB/PS2+Skew - 1000'
- ViewLink video resolution up to 1920 x 1200 at 300' (90m), 1024 x 768 at 1,000' (300m)
- Either USB or PS/2 with optional touch screen feature, also available as video only
- Automatic equalization provides clear video over any type of CATx cable
- Optional automated video skew adjustments adjusts for different pair lengths in cable

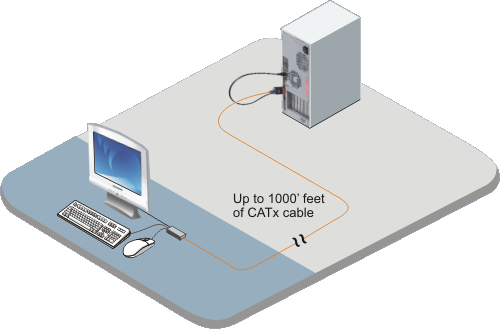

Typical Application
Overview
ViewLink CATx KVM extender is an affordable solution to access and control computers from a moderate distance. With ViewLink CATx, you can position a computer up to 1,000 feet away from the KVM station using common twisted pair CATx cable. Use any length of data cable up to 1,000 feet, and the ViewLink will calculate the cable length automatically, set the gain and equalization levels, and adjust the video to provide a crystal clear image. These automatic configuration features make installation easy and remove the need for manual adjustments.
Remote access to computers is useful for a number of reasons. The unit can be used to locate computers and users away from hazardous industrial environments, reduce vulnerability to the feet of hardware and sensitive data, reduce noise and heat, and increase desk and floor space.
ViewLink extender incorporates a range of options in the following models:
- PS/2 single
- USB single
- PS/2 and USB to PS/2 single
- PS/2 and USB to USB single
- Video only
Specifications ▼
| Dimensions (W x D x H) | Transmitter: 1.3" x 1.75" x 0.63" (33 x 44.5 x 16 mm) Receiver: 2.68" x 2.65" x 1" (68 x 67 x 25.4 mm) |
| Weight | Transmitter: 0.15 lbs (0.07 kgs) Receiver: 0.15 lbs (0.07 kgs) |
| Power | Transmitter: Powered by computer USB or PS/2 Receiver: 100-240 VAC 50-60Hz, External adapter, +5V DC, 1A Transmitter: 5W Receiver: 5W |
| Distance | VGA 1920 x 1200: 300' (90m) VGA 1024 x 768 at 1,000' (300m) |
| Connectors | Transmitter: VGA video: HD15M PS2 keyboard/mouse: Two mini-din male cable for direct plug-in USB keyboard/mouse: USB A male cable for direct plug-in Receiver: VGA video: HD15F PS2 keyboard/mouse: One PS/2 mini-din6F with included Y cable USB keyboard/mouse: Two USB Type A receptacle Power: Barrel jack |
| Controls | Status LED: Yellow Link LED: Green |
| Environment | Operating temperature: 32°F–113°F (0°C–45°C) Storage temperature: -13°F–140°F (-25°C–60°C) Relative humidity: 5%–80%, non-condensing |
Part numbers ▼
| Kits (transmitter, receiver, and power supply) | |
|---|---|
| VLK-TMVPRAVP | Single Access PS/2, VGA KVM Extender Kit, Auto EQ |
| VLK-TMVURAVU | Single Access USB, VGA KVM Extender Kit, Auto EQ |
| VLK-TMVBRAVP | Single Access PS/2 & USB to PS/2, VGA KVM Extender Kit, Auto EQ |
| VLK-TMVBRAVU | Single Access PS/2 & USB to USB, VGA KVM Extender Kit, Auto EQ |
| VLK-TMVDRAVU | Single Access DB25 to USB, VGA KVM Extender Kit, Auto EQ |
| VLK-TMVURAVD | Single Access USB to DB25, VGA KVM Extender Kit, Auto EQ |
| VLK-TMVDRAVP | Single Access DB25 to PS/2, VGA KVM Extender Kit, Auto EQ |
| VLK-TMVPRAVD | Single Access PS/2 to DB25, VGA KVM Extender Kit, Auto EQ |
| Video Only & Touchscreen Kits: | |
| VLK-TMV0RAV0-U | Video only w/USB pigtail to draw power from CPU's USB port |
| VLK-TMV0RAV0-P | Video only w/PS/2 pigtail to draw power from PS2 Keyboard port |
| VLK-TMV0RAV0/B1.3 | Video only w/barrel jack and transformer for power |
| VLK-TMVURAVU-T | Single Access USB, VGA KVM Extender Kit, Auto EQ, Touchscreen |
| Options | |
| -W | Automatic skew adjustment option |
