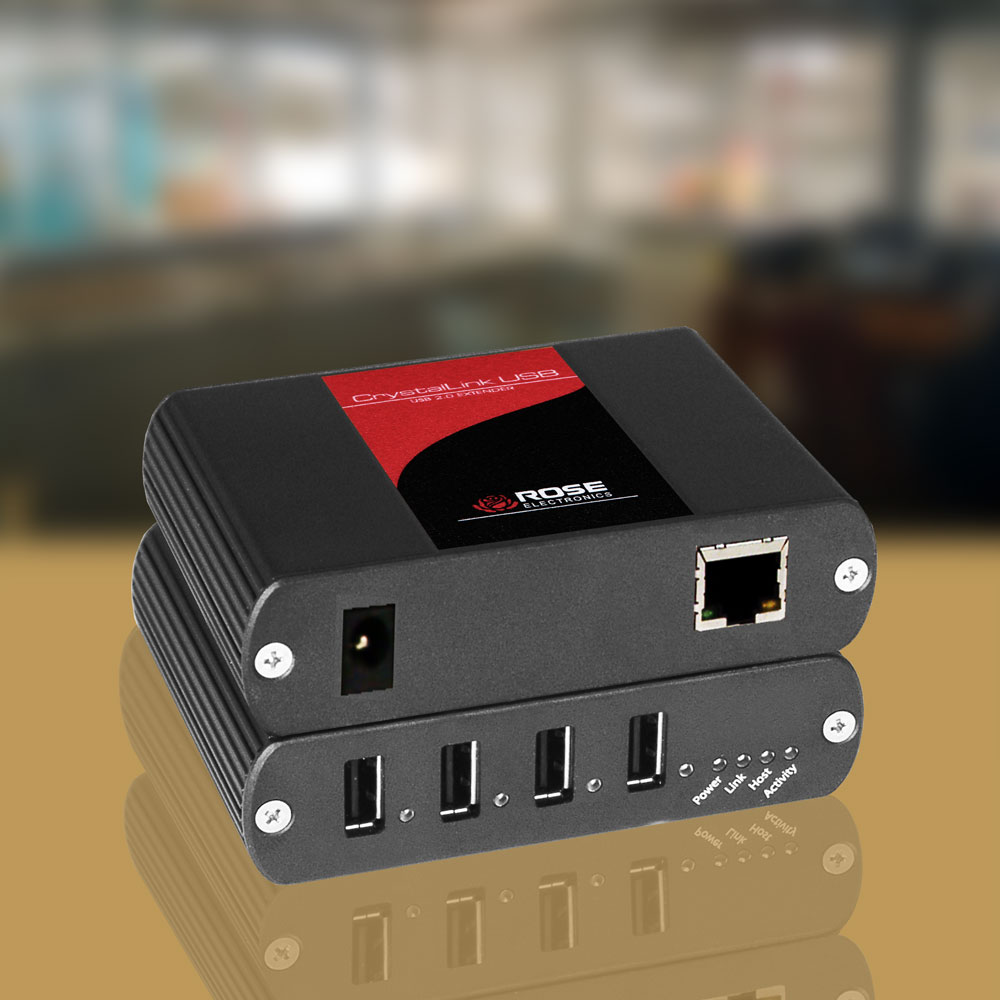

CrystalLink USB 2.0 CATx
CATx Extender - USB 2.0
- Extends USB 2.0 to 330' (100m) over CATx cable
- Four remote high speed USB 2.0 device ports supplying 500ma power
- USB 2.0 throughput of up to 480 Mbps
- Use USB keyboards, mice, printers, scanners, flash drives, audio devices, touch screens, web cams, game controllers, and others
Typical Application
Overview
CrystalLink USB 2.0 CATx extends USB signals over CAT5 cable for up to 330 feet and allows control over all USB devices and peripherals. It is ideal for any situation in which attached USB devices need to be located at a distance from the CPU. Using CrystalLink USB 2.0 CATx makes access to USB devices easy without inhibiting the data transfer rate.
The extender has 4 USB ports, with the capacity to support up to 11 USB devices by connecting up to 3 USB 4 port hubs. Any standard USB device is supported, including printers, keyboards, scanners, video cameras, flash drives, MP3 players, and more. It is compatible with all operating systems.
Specifications ▼
| Dimensions (W x D x H) | 4U2TP-100M: 3.94" x 2.99" x 1.02" (100 x 76 x 26 mm) 2U2TP-100M : 3.94" x 2.99" x 1.02" (100 x 76 x 26 mm) 4U2TP-100M/PE transmitter: 1.72" x 3.43" x 0.95" (44 x 87 x 24 mm) CLK-4U2TP-100M/PE receiver: 4.33" x 2.72" x 1.1" (110 x 69 x 28 mm) CLK-1U2TP-100M/FP: 3.35" x 1.1" x 2.25" (85 x 28 x 57 mm) CLK-1U2TP-100M/PE : 1.72" x 3.43" x 0.95" (44 x 87 x 24 mm) |
| Weight | 4U2TP-100M: 0.9 lbs (0.4 kgs) 2U2TP-100M : 0.9 lbs (0.4 kgs) 4U2TP-100M/PE transmitter: 0.13 lbs (0.06 kgs) CLK-4U2TP-100M/PE receiver: 0.44 lbs (0.2 kgs) CLK-1U2TP-100M/FP: 0.44 lbs (0.2 kgs) CLK-1U2TP-100M/PE : 0.13 lbs (0.06 kgs) |
| Power | 100-240 VAC 50-60Hz CLK-4U2TP-100M : Two external adapters, +5V DC, 3A, 15W each CLK-2U2TP-100M: One External adapter, +24V DC, 1A, 24W CLK-1U2TP-100M/FP: One external adapter, +24V DC, 1A, 24W CLK-1U2TP-100M/PE: Two external adapters +5V DC, 3A, 15W each CLK-4U2TP-100M/PE: Two External adapters, +5V DC, 1.5A, 7.5W each |
| Distance | 330' (100m) |
| Connectors | Transmitter: USB host: USB Type B Link: RJ45 jack Power: Barrel jack Receiver: USB device: USB Type A, 500ma each one per port Link: RJ45 jack Power: Barrel jack |
| Controls | Unit power: Blue LED Link status: Green LED Host status: Green LED Activity: Amber LED Device: Green LED |
| Environment | Operating temperature: 32°F–122°F (0°C–50°C) Storage temperature: -4°F–158°F (-20°C–70°C) Relative humidity: 20%–80%, non-condensing |
Part numbers ▼
| Kits (transmitter, receiver, and power supply) | |
|---|---|
| CLK-1U2TP-100M/PE | USB 2.0 Extender, 1 port CAT5, 100 meters (plastic enclosure: Tx/Rx) |
| CLK-2U2TP-100M | USB 2.0 Extender, 2 port CAT5, 100 meters (24v powered from local) |
| CLK-4U2TP-100M/PE | USB 2.0 Extender, 4 port CAT5, 100 meters (plastic enclosure: Tx) |
| CLK-4U2TP-100M | USB 2.0 Extender, 4 port CAT5, 100 meters (metal enclosure: Tx/Rx) |
