CrystalView CAT5
CATx Extender - VGA/USB/PS2/Audio/Serial - 1000'
- Video resolution up to 1600 x 1200 at 200' (60m), 1024 x 768 at 1,000' (300m)
- Separate models support PS/2 or USB keyboard/mouse
- Video equalization and gain controls are done via front panel knobs
- Keyboard and mouse emulation assures smooth operation
- Optional local port for dual access to computer at either side of extension
- Optional audio (stereo speakers and mono microphone) and serial extension

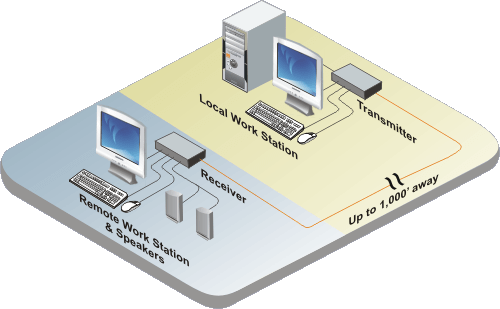

Typical Application
Overview
CrystalView CAT5 allows you to position your KVM station up to 1,000 feet away from your computer using common twisted pair CAT5 cable. Video equalization and gain controls on the remote unit allow for adjustment of brightness and clarity to compensate for degradation of image quality over long cable lengths. The dual access versions include ports for a second KVM station to be connected at the local transmitter unit, providing access to the CPU from either the local or remote unit.
Perfect for application in an office or hazardous environment, the unit allows one to safeguard computers while permitting easy access. The extender can be used to prevent theft, centralize system administration, avoid heat and cooling problems, and manage space.
CrystalView CAT5 extender is offered in following models:
- PS/2 (single or dual access)
- PS/2 (single or dual access with serial and audio)
- USB (single or dual access)
- USB (single or dual access with serial and audio)
Specifications ▼
| Dimensions (W x D x H) | Single: 8.8" x 3.4" x 1.75" (223 x 86 x 44.5 mm) Dual: 8.8" x 3.4" x 1.75" (223 x 86 x 44.5 mm) |
| Weight | Single: 1.3 lbs (0.6 kgs) Dual: 1.5 lbs (0.7 kgs) |
| Power | Transmitter: Powered by computer PS/2 or USB Receiver 100-240 VAC 50-60Hz, External adapter, +9V DC, 1A Single: 5W Dual: 7W |
| Distance | VGA 1600 x 1200: 200' (60m) VGA 1024 x 768: 1,000' (300m) |
| Connectors | Transmitter: VGA video: HD15M Other VGA video: HD15F USB keyboard/mouse: USB Type B PS/2 keyboard/mouse: Two PS/2 mini-din6F Dual access USB keyboard/mouse: Two USB type A jacks Dual access PS/2 keyboard/mouse: Two PS/2 mini-din6F Link: RJ45 jack, one per video port Audio: Two 3.5mm stereo jacks Serial: DB9F Receiver: VGA video: HD15F Other VGA video: HD15F USB keyboard/mouse: Two USB type A jack PS/2 keyboard/mouse: Two PS/2 mini-din6F Link: RJ45 jack, one per video port Audio: Two 3.5mm stereo jacks Serial: DB9M Power: Barrel jack |
| Controls | Unit power:Green LED Video adjustment: Bright and sharp rotary dials |
| Environment | Operating temperature: 41°F–113°F (5°C–45°C) Storage temperature: -13°F–140°F (-25°C–60°C) Relative humidity: 5%–90%, non-condensing |
Part numbers ▼
| Kits (transmitter, receiver, and power supply) | |
|---|---|
| CRK-1P | CrystalView CAT5, PS/2 KVM Extender Kit |
| CRK-2P | CrystalView CAT5, PS/2 Dual Access KVM Extender Kit |
| CRK-1USB | Single access – CAT5,USB KVM Extender Kit |
| CRK-2USB | Dual access - CAT5, USB Dual Access KVM Extender Kit |
| CRK-1P/AUD | CrystalView CAT5, PS/2 KVM Extender Kit, Audio/Serial |
| CRK-2P/AUD | CrystalView CAT5, PS/2 Dual KVM Extender Kit, Audio/Serial |
| CRK-1USB/AUD | CrystalView CAT5, USB KVM Extender Kit, Audio/Serial |
| CRK-2USB/AUD | CrystalView CAT5, USB Dual KVM Extender Kit, Audio/Serial |
| RM-UMxx | Rack Mount kit, 1U, M Chassis (xx = 19", 23", or 24") |
| Cables | |
| CAB-ZXV66MMnnn | UltraCable, PC to Switch, VGA-PS/2 to VGA-PS/2 (M-M) |
| CAB-CXV66MMnnn | UltraCable Hi-Res, PC to Switch, VGA-PS/2 to VGA-PS/2 |
| CAB-CXVMMnnn | UltraCable Hi-Res, PC to Switch, VGA to VGA (M-M) |
| CAB-D9MFnnn | Cable, Serial, DB9M to DB9F |
| CAB-SPMMnnn | Cable, Stereo Audio, Mini-Phone M-M (3.5mm) |
| CAB-08UTPnnn | Cable, UTP CAT5, RJ45MM |
