CrystalView Mini

CATx Extender - VGA/PS2/Audio/Serial - 150'

  • Video resolution up to 1600 x 1200 at 100' (30m), 1280 x 1024 at 150' (45m)
  • Two video settings for configuration based on cable length
  • PS/2 keyboard and mouse emulation assures smooth operation
  • Optional stereo speakers, microphone, and serial extension
  • Optional dual-access feature

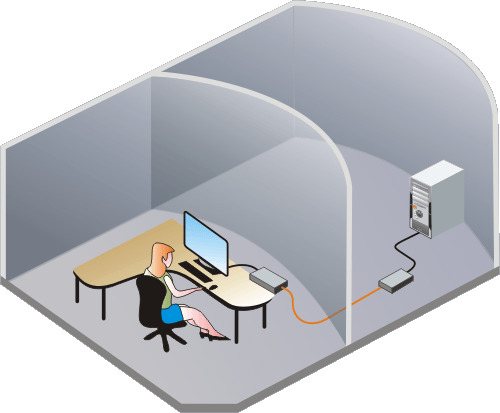

Typical Application

CrystalView Mini application

Overview

CrystalView Mini KVM extender consists of a transmitter unit and a receiver unit. The transmitter unit connects to a computer using an adapter cable, and the receiver unit connects directly to a keyboard, video monitor, and mouse using standard VGA and PS/2 ports. Together, the transmitter and receiver units are capable of extending the distance between the computer and KVM station by 150 feet using a CAT5 cable. The maximum resolution supported is 1600 x 1200, which is available up to 100 feet, and steadily declines to 1280 x 1024 at 150 feet.

CrystalView Mini is offered in the following models:

  • The single access model supports only 1 KVM and 1 CPU
  • The dual access model supports 2 KVMs connected to 1 CPU, with 1 KVM being connected to the transmitter unit, and the other connected to the receiver unit.

The integrated keyboard and mouse emulation makes the device plug-and-play with no configuration needed. Like other KVM switches and extenders, the dual access model allows control of the CPU from either KVM on a shared first-come first-serve basis.

Specifications

Dimensions
(W x D x H)
Single: 3.25" x 4.5" x 1" (82 x 114 x 25.4 mm)
Dual: 3.25" x 4.5" x 1.75" (82 x 114 x 44.5 mm)
Weight Single: 0.6 lbs (0.25 kgs)
Dual: 0.7 lbs (0.32 kgs)
Power Transmitter: Powered by computer PS/2
Receiver 100-240 VAC 50-60Hz, External adapter, +9V DC, 1A
Single: 4W
Dual: 6W
Distance VGA 1600 x 1200: 100' (30m)
VGA 1280 x 1024: 150' (45m)
Connectors Transmitter:
VGA video + PS/2 keyboard/mouse: DB25F
Other VGA video: HD15F
Dual access keyboard/mouse: Two mini-din6F
Link: RJ45 jack, one per video port
Audio: Two 3.5mm stereo jacks
Serial: DB9F
Receiver:
VGA video: HD15F
PS/2 keyboard/mouse: Two mini-din6 female
Link: RJ45 jack, one per video port
Audio: Two 3.5mm stereo jacks
Serial: DB9M
Power: Barrel jack
Controls Video adjustment: Two dip-switches on bottom of unit
Environment Operating temperature: 41°F–113°F (5°C–45°C)
Storage temperature: -13°F–140°F (-25°C–60°C)
Relative humidity: 5%–90%, non-condensing

Part numbers

Kits (transmitter, receiver, and power supply)
CRK-M1P-2 CrystalView Mini, VGA PS/2 KVM Extender Kit
CRK-M2P-2 CrystalView Mini, VGA PS/2 Dual Access KVM Extender Kit
CRK-M1P/AUD CrystalView Mini, VGA PS/2 KVM Extender Kit with Audio and Serial
CRK-M2P/AUD CrystalView Mini, VGA PS/2 Dual Access KVM Extender Kit with Audio and Serial
Cables
CAB-ZX0606Cnnn UltraCable, PC to Switch, DB25M to VGA-PS/2 Keyboard + Mouse
CAB-CX0606Cnnn UltraCable Hi-Res, PC to Switch, DB25M to VGA-PS/2 Keyboard + Mouse
CAB-CXVSMMnnn UltraCable Hi-Res, Switch to Switch, DB25M to DB25M
CAB-D9MFnnn Cable, Serial, DB9M to DB9F
CAB-SPMMnnn Cable, Stereo Audio, Mini-Phone M-M (3.5mm)
CAB-08UTPnnn Cable, UTP CAT5, RJ45MM
