CrystalView DVI CATx
CATx Extender - DVI/USB/PS2 - 460'
- Compressed DVI video at 1920 x 1200 up to 460' (140m)
- Either USB or PS/2 keyboard/mouse
- Local port for remote or local access
- Optional serial, stereo speakers, and microphone
- Optional dual-head video
Typical Application
Overview
CrystalView DVI CATx extends keyboard, mouse, and crystal clear high definition DVI video signals for up to 400 feet from a computer using CATx cable. Supporting resolutions of up to 1920 x 1200 and 18-bit color, this unit is designed for a multitude of media applications.

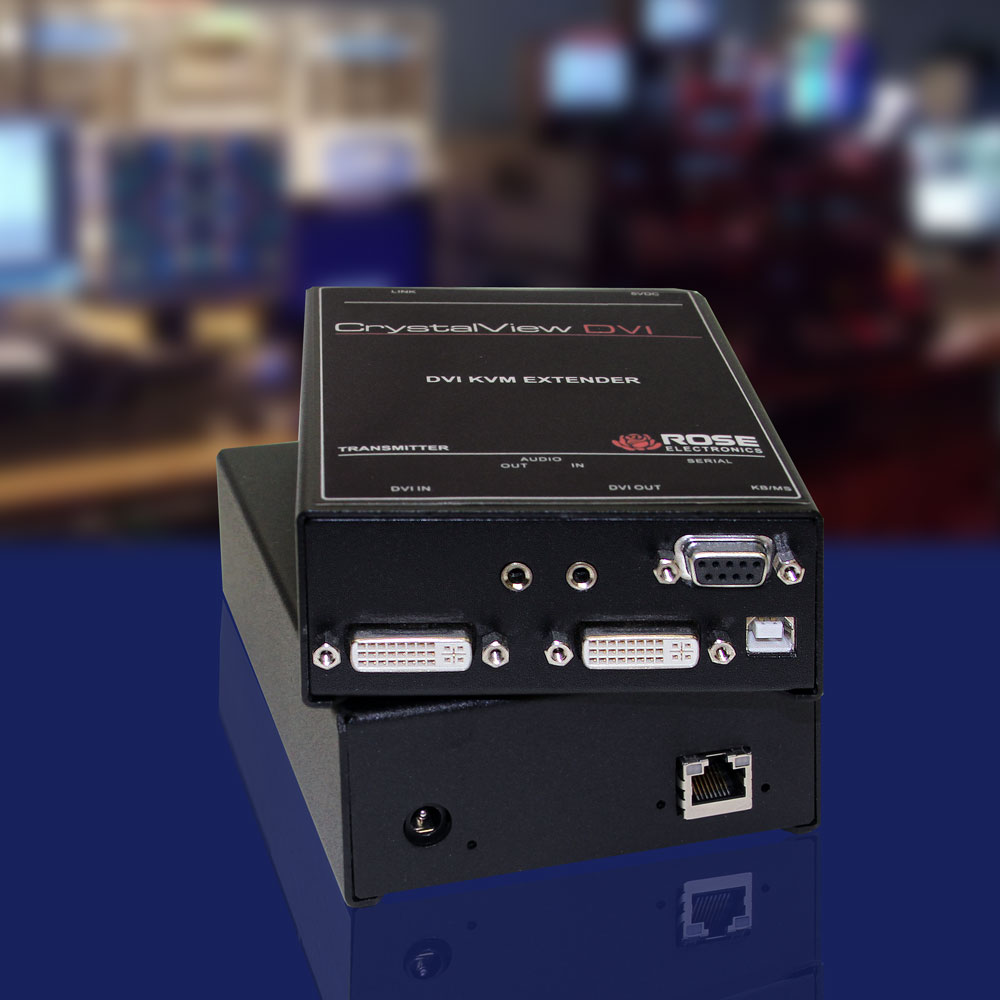

CrystalView DVI CATx is comprised of two separate units, a transmitter, which connects to the CPU, and a receiver, which connects to the keyboard, mouse, and monitor. The product is capable of supporting single or dual-head video, PS/2 or USB connectors, and is compatible with all operating systems, giving it the flexibility required to meet business demands.
CrystalView DVI CATx is available in 4 models:
- PS/2 Single-head video
- PS/2 Dual-head video
- USB Single-head video
- USB Dual-head video
All models include dual access. Serial and analog audio are optional additions for any model.
Specifications ▼
| Dimensions (W x D x H) | 4" x 5.6" x 1.65" (103 x 143 x 42 mm) |
| Weight | 0.7 lbs (0.3 kgs) |
| Power | 90-240 VAC 50-60Hz External adapter, +5V DC, 2A at each end 10W |
| Distance | DVI 1920 x 1200: 460' (140m) |
| Connectors | Transmitters : DVI video + PS/2 keyboard/mouse: DVI female Includes cable, DVI male to DVI male + two mini-din6 male Local and multi-head DVI video: DVI female Dual access PS/2 keyboard/mouse: Mini-din6F Includes cable, mini-din6M to two mini-din6F USB Keyboard/mouse: USB Type B Audio: Two 3.5mm stereo jacks or mini-din8F Serial: DB9F or mini-din8F Multi-head units use mini-din8 and include cable, mini-din8M to two 3.5mm audio plugs + DB9F Link: RJ45 jack, one per video input Power: Barrel jack Receiver: DVI video: DVI female Dual-head DVI video: DVI female PS/2 keyboard/mouse: Two PS/2 mini-din6F USB keyboard/mouse: Two USB type A jack Audio: Two 3.5mm stereo jacks Serial: DB9F Link: RJ45 jack, one per video port Power: Barrel jack |
| Controls | Unit power: Red LED Data error: Green LED Link status: Green LED Video OK: Green LED |
| Environment | Operating temperature: 41°F–113°F (5°C–45°C) Storage temperature: -13°F–140°F (-25°C–60°C) Relative humidity: 5%–80%, non-condensing |
Part numbers ▼
| Single-head kits (transmitter, receiver, and power supply) | |
|---|---|
| CRK-2DTXPD1D | CrystalView DVI CATx, Dual Access Digital CATx KVM Extender, Single-head Video, DVI, PS/2 |
| CRK-2DTXUD1D | CrystalView DVI CATx, Dual Access Digital CATx KVM Extender, Single-head Video, DVI, USB |
| Dual-head kits (transmitter, receiver, and power supply) | |
| CRK-2DTXPD2D | CrystalView DVI CATx, Dual Access Digital CATx KVM Extender, Dual-head Video, DVI, PS/2 |
| CRK-2DTXUD2D | CrystalView DVI CATx, Dual Access Digital CATx KVM Extender, Dual-head Video, DVI, USB |
| CRK-2DTXTD2D | CrystalView DVI CATx, Dual Access Digital CATx KVM Extender, Dual-head Video, DVI, USB 2.0 |
| Options | |
| /AUD | Audio & Serial Option |
| Cables | |
| CAB-DDPMDD66M006 | DVI-D male to DVI-D male + 2 mini-din6 male, 6’ |
| CAB-MD6M2MD6F | Keyboard/Mouse PS/2 “Y" cable |
| CAB-DVIAUD005 | DVI-D male to DVI-D male + 2 3.5mm plug + 1 DB9F, 5' |
| CAB-DVIDMMnnn | DVI-D mm cable |
| CAB-USBABnnn | USB type A/B cable |
| CAB-SPMMnnn | Audio 3.5mm cable |
| CAB-D9MFnnn | RS232 DB9MF serial cable |
| CAB-08UTPnnn | Cable, UTP CAT5, RJ45MM |
| nnn = length in feet | |
